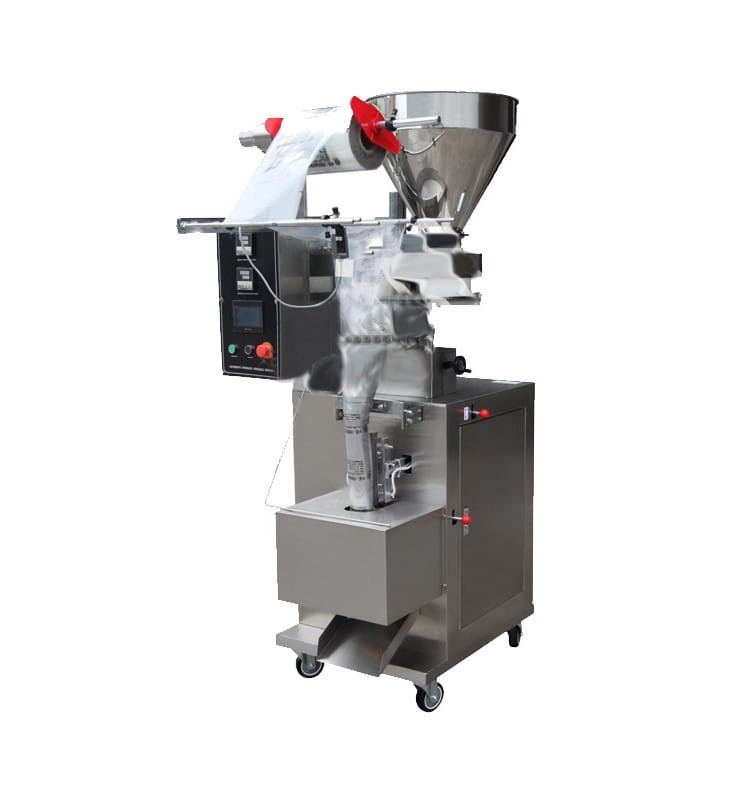

AUTOMATIC GRANULE PACKAGE MACHINE DXDK 1000V

Volumetric sachet cutter designed for packaging loose products, in the form of granules or grains, e.g. rice, pepper, peas, etc.

The device forms foil bags in the form of a web.

The device can be individually adapted to the product.

Modern technology ensures the highest achievable level of performance.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

It can work on various types of composite film: laminates foil + aluminum, foil + paper, nylon + PE, BOPP + PE.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

Seals sachets from 3 sides - transversely at the top, bottom and longitudinally (the seal forms at the back, in the middle).

Models of the DXDK-V series are equipped with suction from excess air sachets to reduce their volume.

Application:

The device is used in the food and chemical industry.

Functions:

Simple operation

High precision and reliability

Independent temperature control of the transverse and longitudinal seal

The ability to work with smooth foil and with a marker

The length of the sachets is adjustable

Technical data:

Power: 1.8 kW
Power supply: 230 V / 50 Hz
Dosing: 100-1000 ml
Capacity: 15-25 pcs./min. (depending on the size of the dose)
The length of the sachets is adjustable in the range: 50-250 mm
Width of sachets: 30-200 mm
Dimensions of the machine [length x width x height]: 1200 x 900 × 1900 mm
Weight: 350 kg

Extra paid options:

Dogazowanie

Tank vibrations

Tube under a different width of the sachet

Stamp

Incision for easy opening of the sachets

4-sided welding

Full stainless steel version
