ROTARY PACKING MACHINE HTL HT 8G-10

GRANULE AND SOLID PACKING MACHINE HTL HT 8G

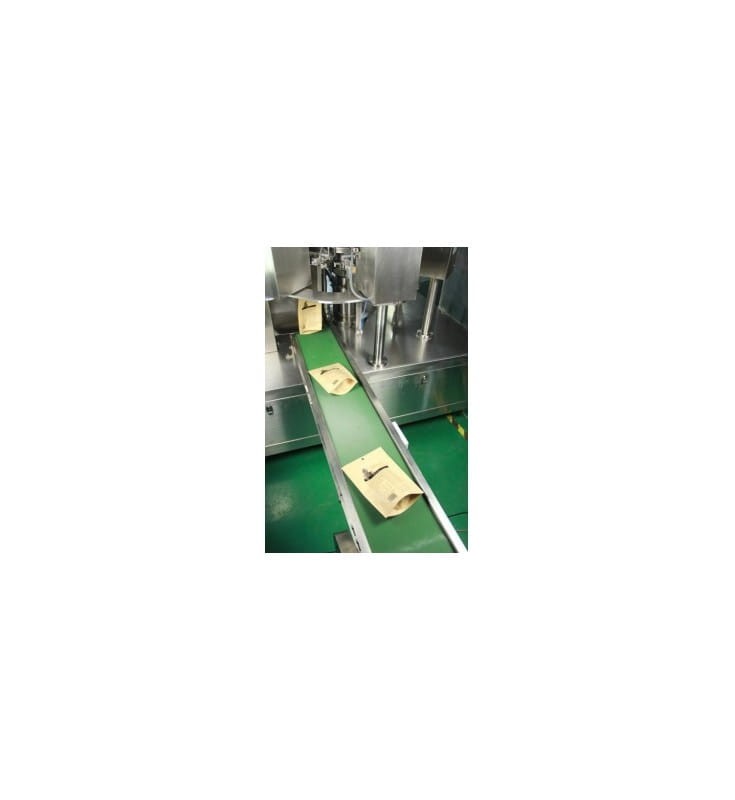

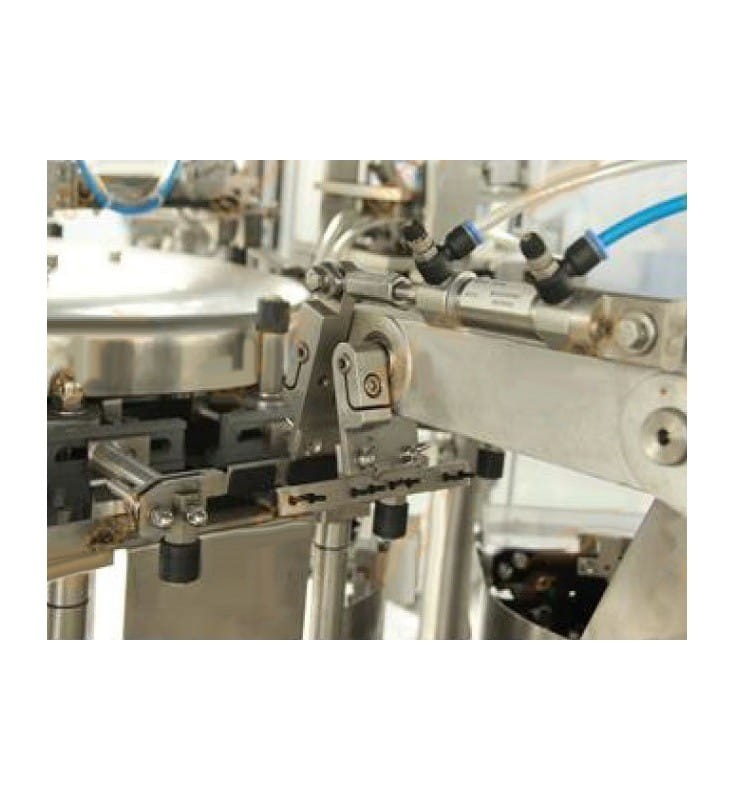

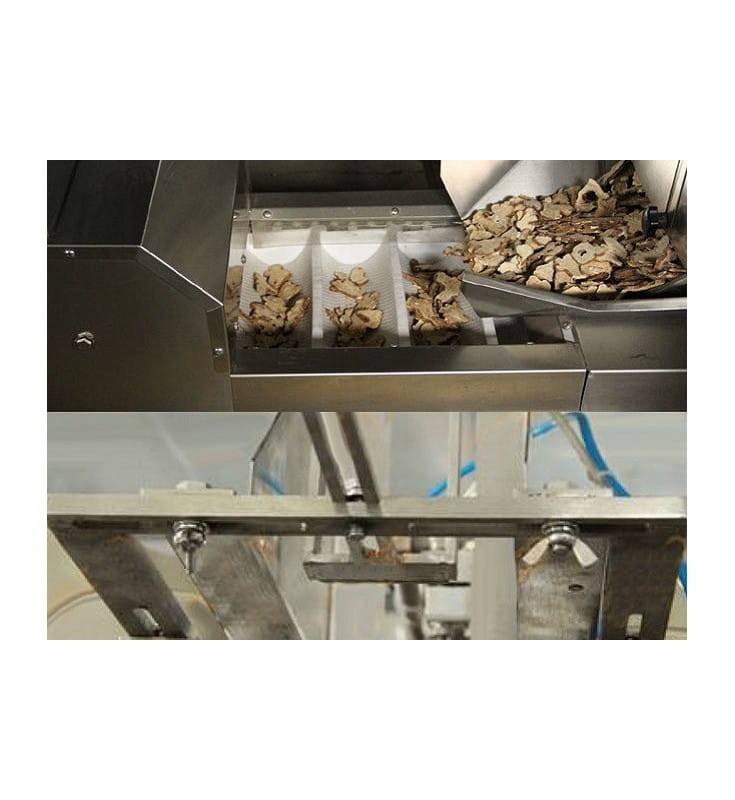

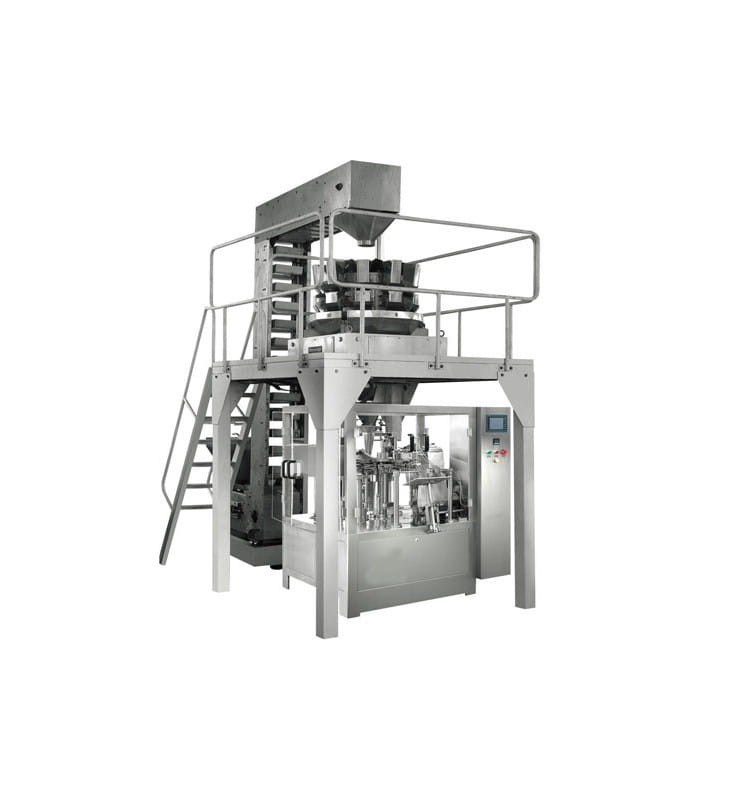

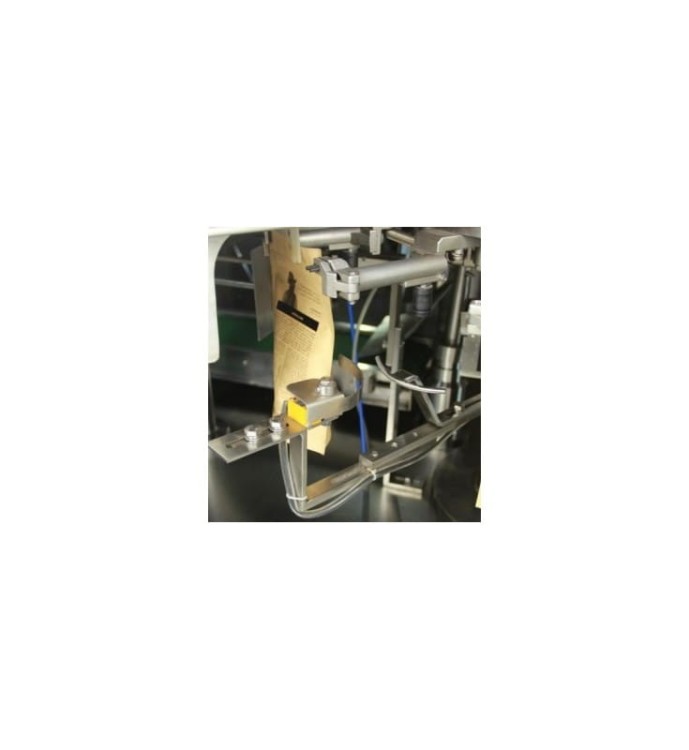

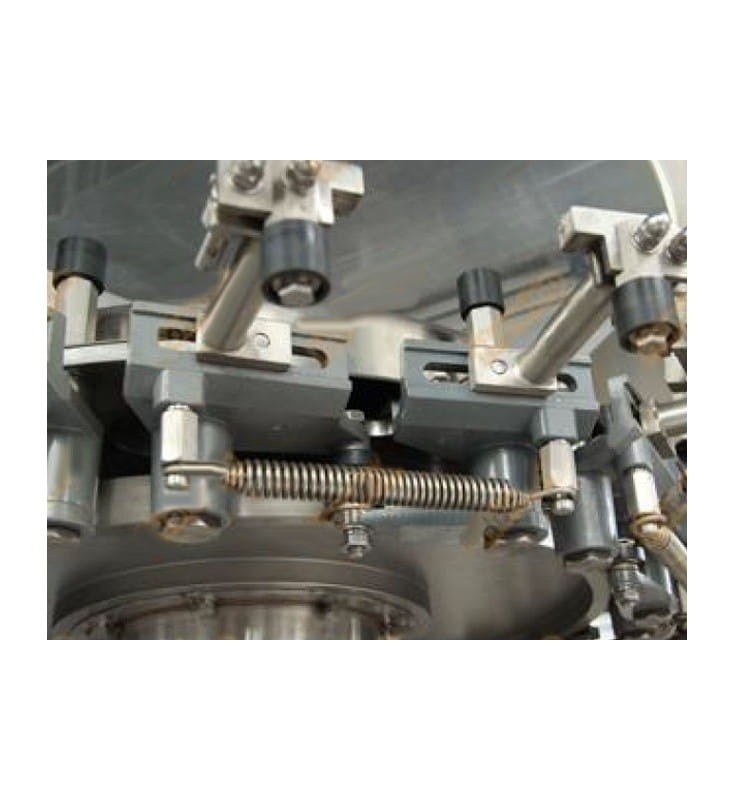

Fully automatic line designed for filling ready-made doypack bags with granules (and other solid products), and closing them. It is suitable for products of various sizes, eg pasta, sweets, biscuits, dried fruits, coffee beans, dry food for animals and others. The product is fed with a "Z" type elevator to a 10-head balancer, where it is portioned and passed to the packaging machine. The packaging machine has 8 stations where each bag is opened, filled and closed and then discharged by an external conveyor. The last element of the line is a platform for controlling the packaging process and maintaining the balancers. Easy-to-use touch screens, solid construction, high quality components. Operational stability is guaranteed by PLCs. The packaging machine is equipped with a bag detection system - when there is no bag or bag in the packing station it is not open enough to dispense. This allows you to minimize losses. Devices made of stainless steel.

Technical data:

Platform

Dimensions (L x W x H): 2000 x 2000 x 2000 mm US 78.74" x 78.74" x 78.74"

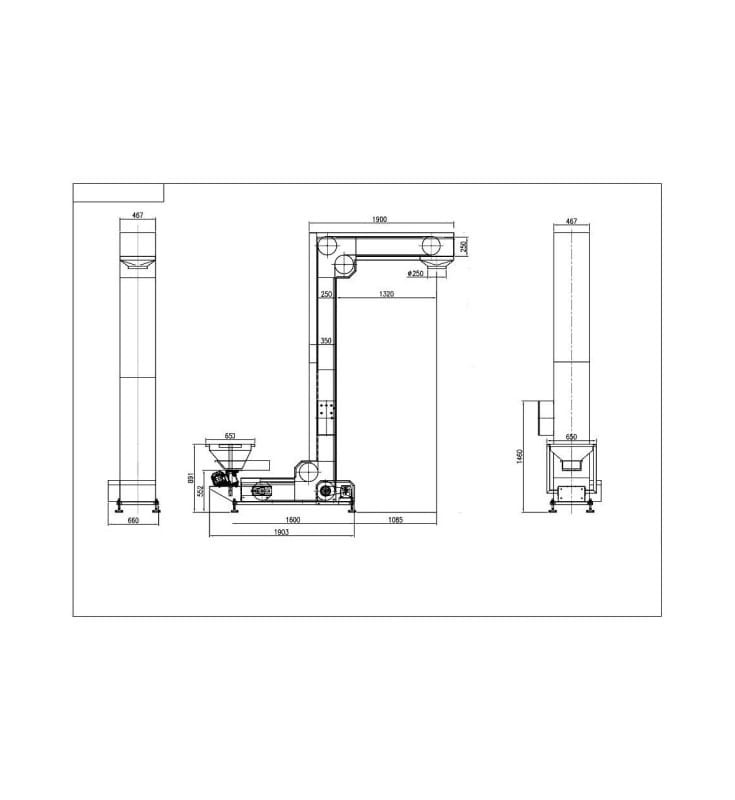

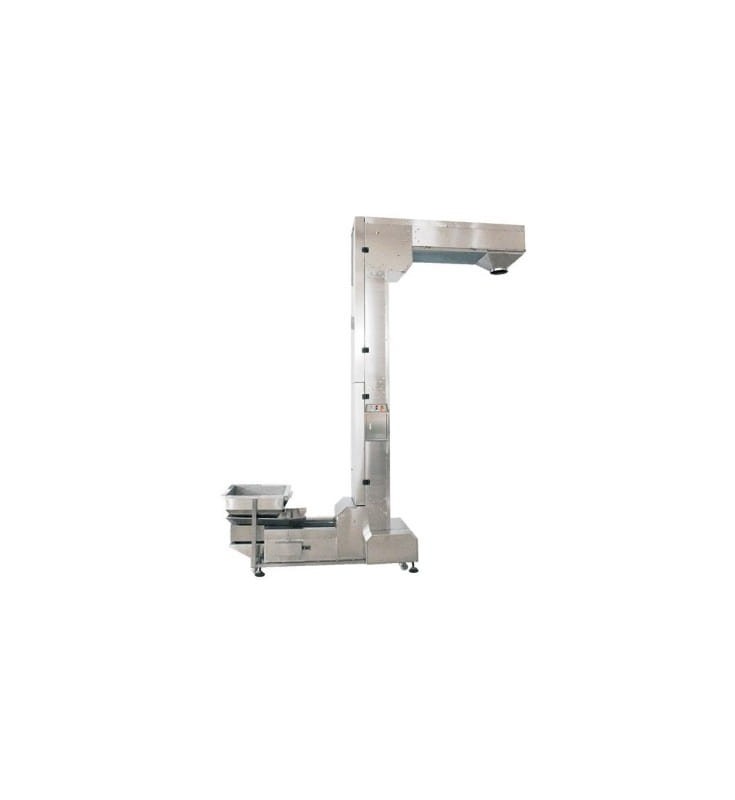

Z type elevator

Power: 1 kW

Power supply: 380 V / 50 Hz

Capacity: 4 m3 / h

Weight: 550 kg US 1212 lb

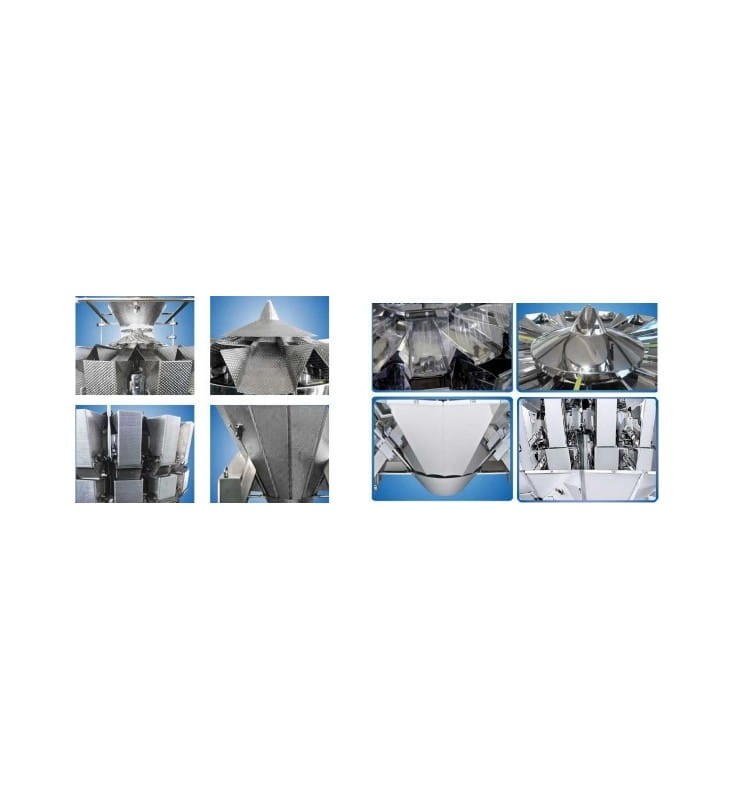

HTJW A10 Filling Machine

Dose: 10-800 g or 800-1500 g US 0.022 - 1.76 lb or 1.76 - 3.3 lb

Accuracy: 0.1-1.5 g or 0.5-2 g (respectively for doses of 10-800 g and 800-1500 g) US 0.022 - 1.76 lb

Capacity: 65 pcs / min. or 45ppm. (for doses of 10-800 g and 800-1500 g) US 0.022 - 1.76 lb and 1.76 - 3.3 lb

Tank capacity: 1600 ml or 2500 ml (respectively for doses of 10-800 g and 800-1500 g)  US 0.022 - 1.76 lb and 1.76 - 3.3 lb

Dimensions: 1482 x 1080 x 1116 mm US 58.34" x 42.51" x 43.96"

Weight: 420 kg US 925.94 lb

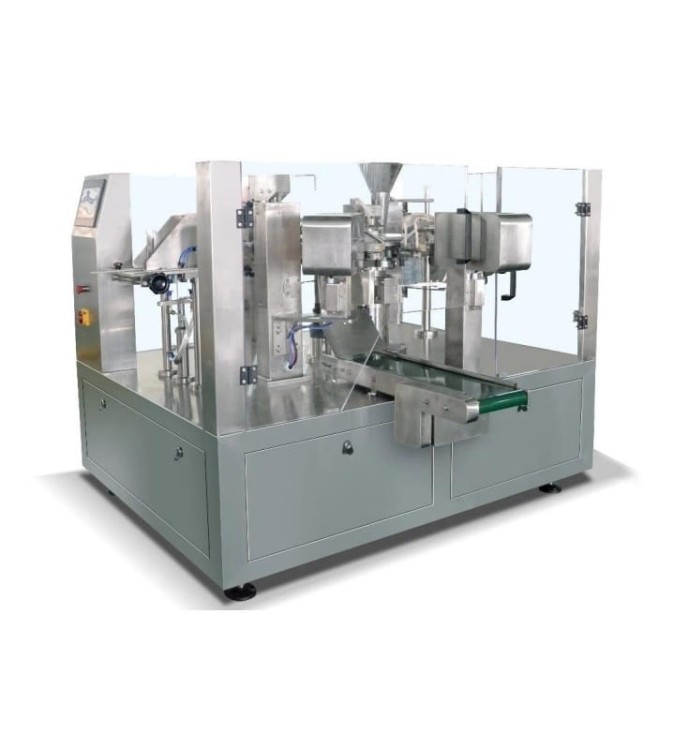

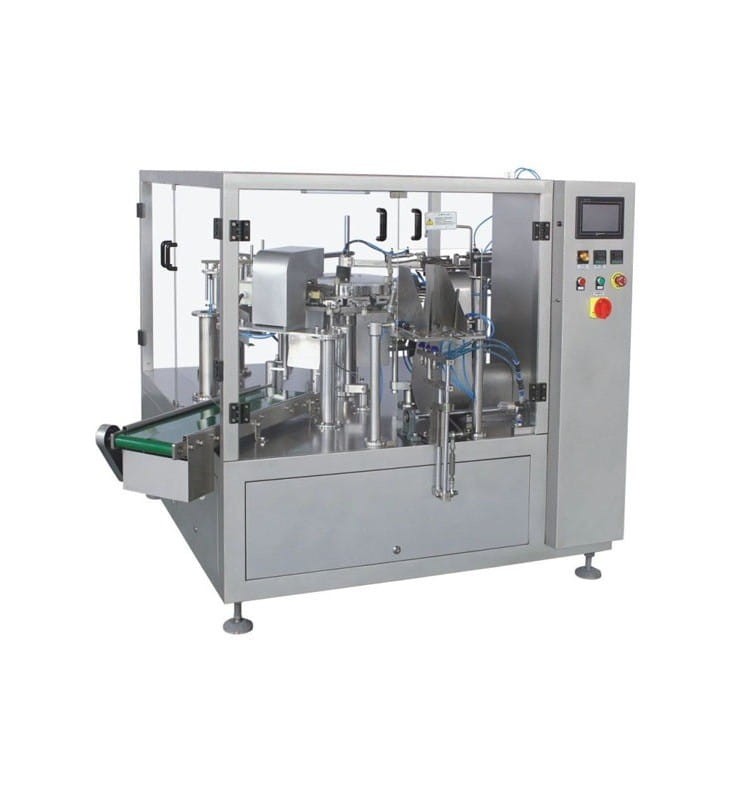

Rotary packaging machine HT 8G

Doypack zipper opening function

Date printer

Power: 4,5 kW

Power supply: 380 V / 50 Hz

Air consumption: 0.4 m3 / min, 0.8 MPa

Number of dosing stations: 8

Capacity: up to 50 pcs / min. (depending on bag size and size)

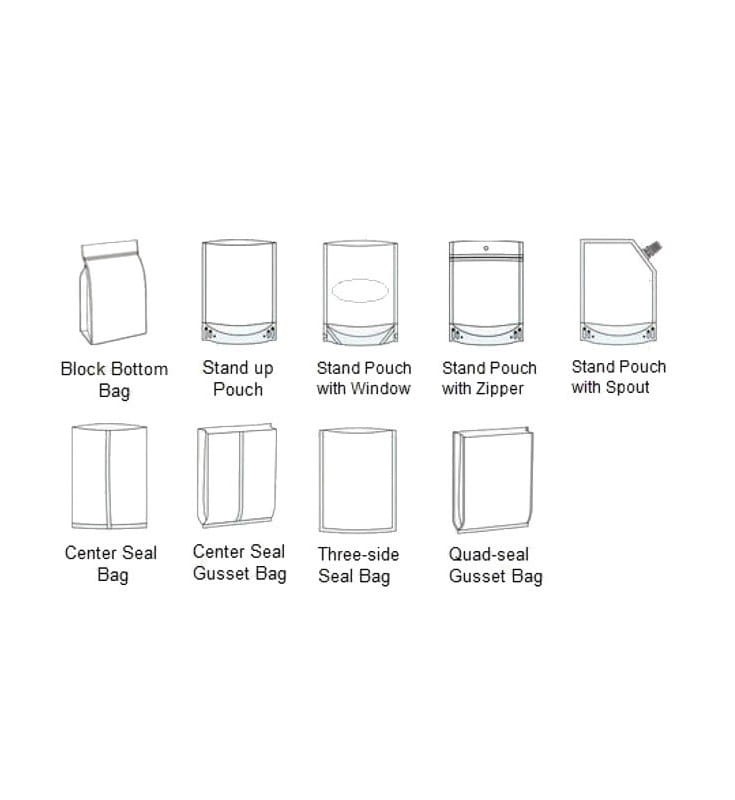

Type of handbag: doypack / bez struny / płaska totrebka / bag welded from 4 sides

Bag width: 100 - 200 mm US 3.93" - 7.87"

Length of bag: 100 - 300 mm US 3.93" - 11.81"

Dose: 50 - 1500 g US 0.11 - 3.3 lb

Dimensions: 4400 x 1800 x 3700 mm US 173.22" x 70.86" x 145.66"

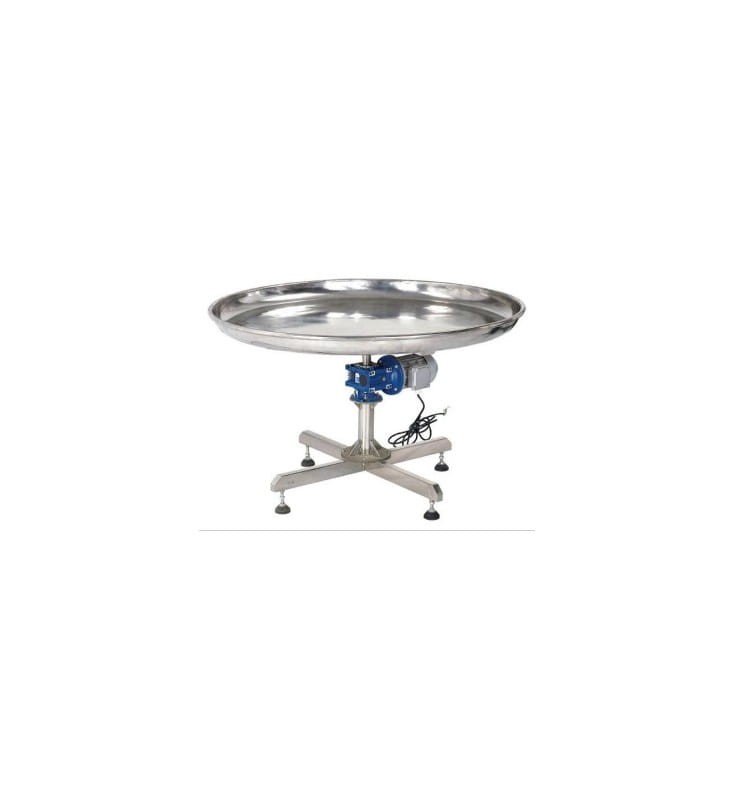

Collecting table
