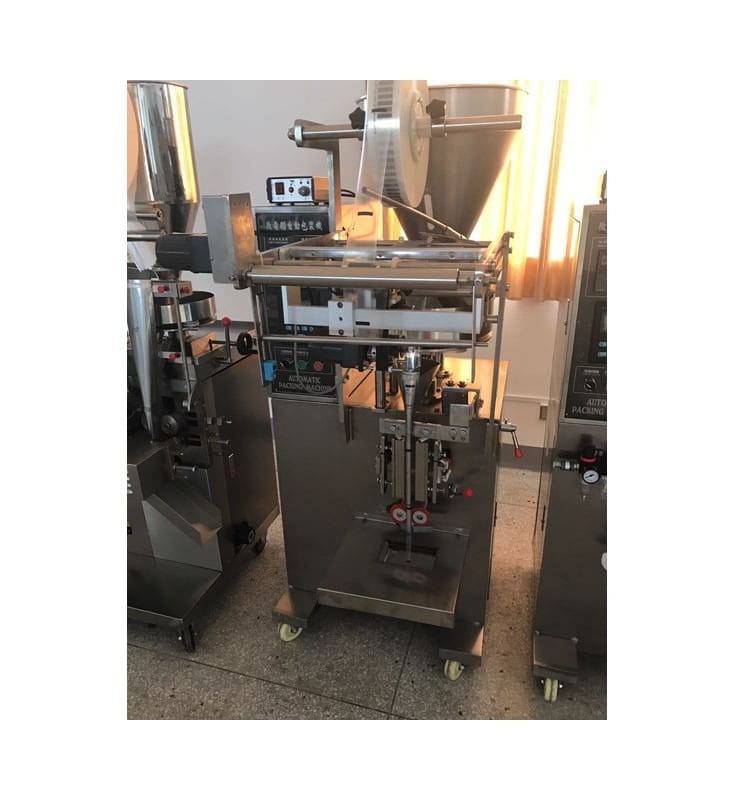

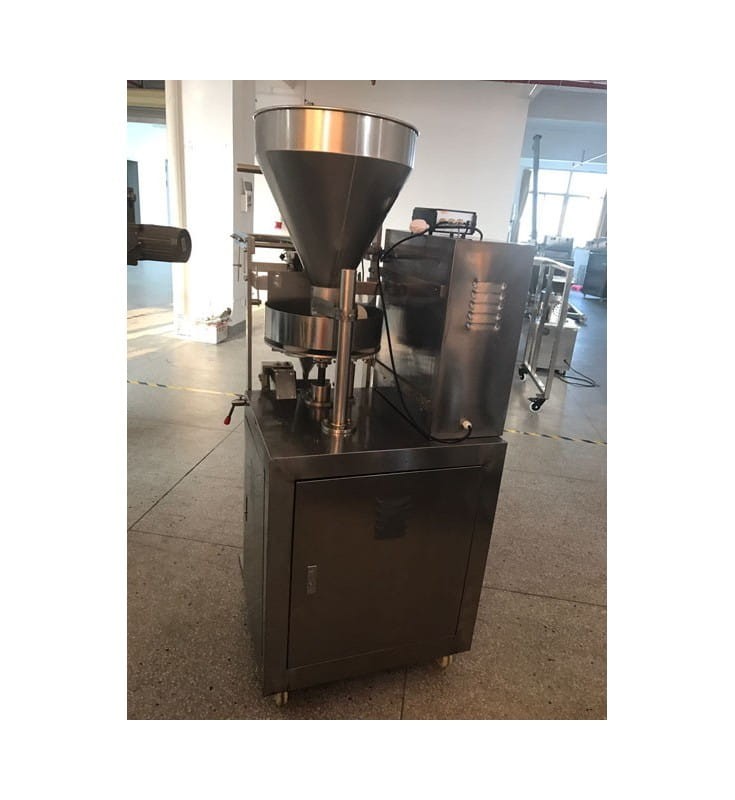

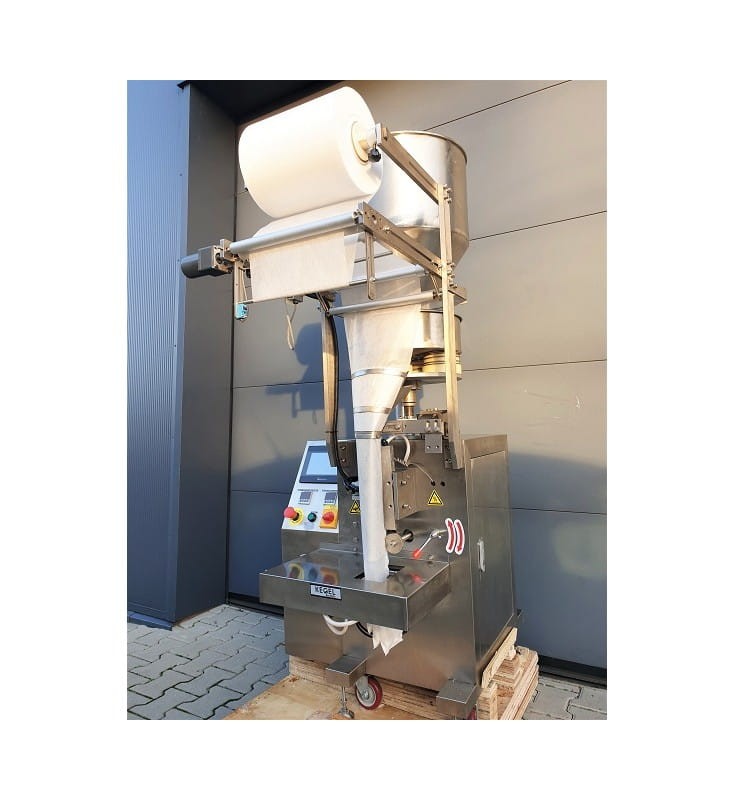

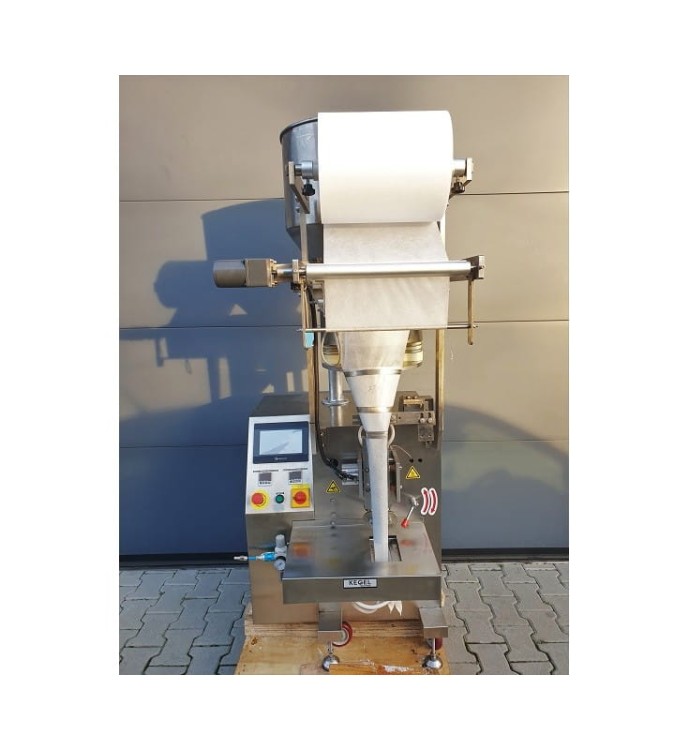

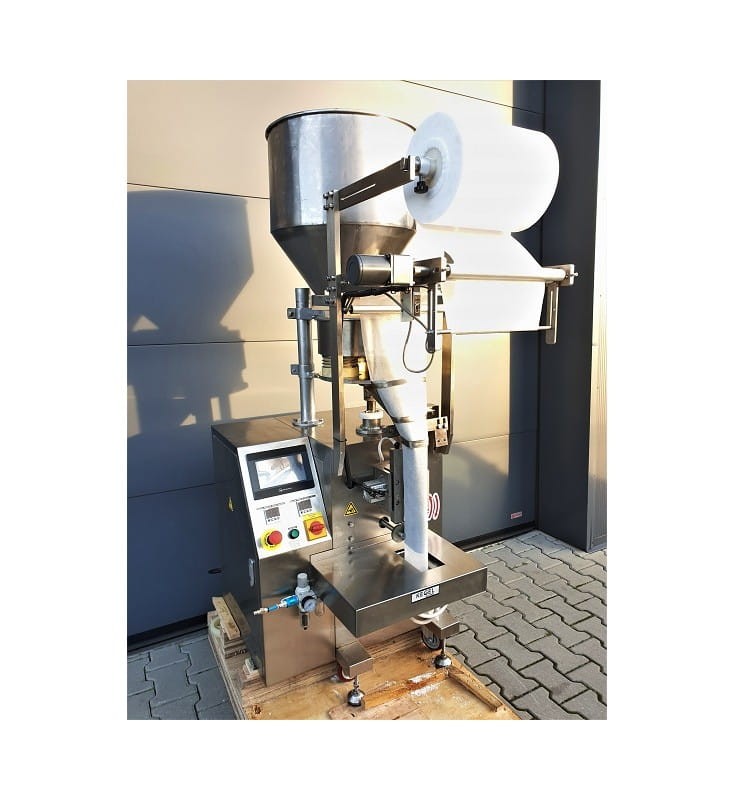

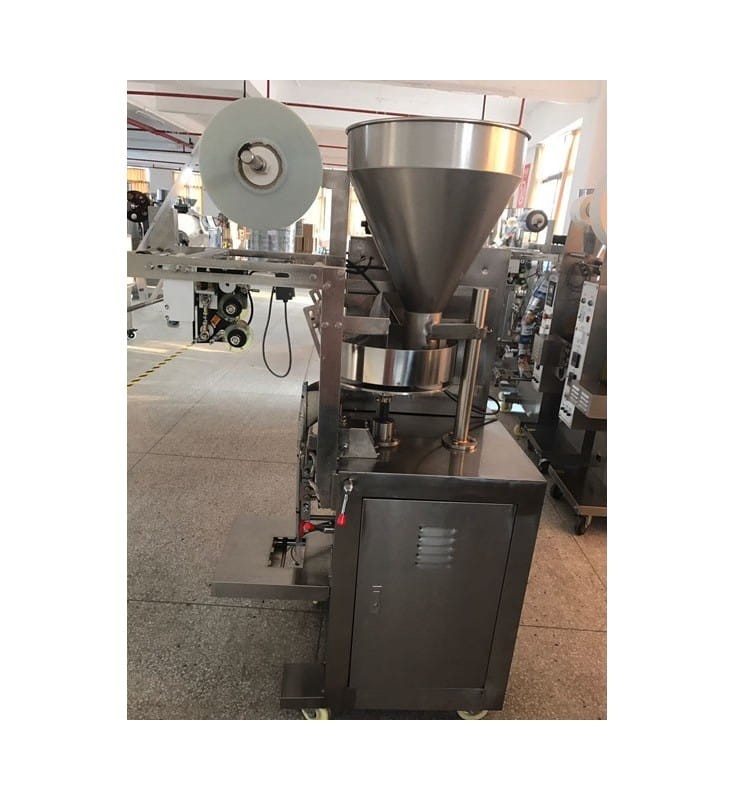

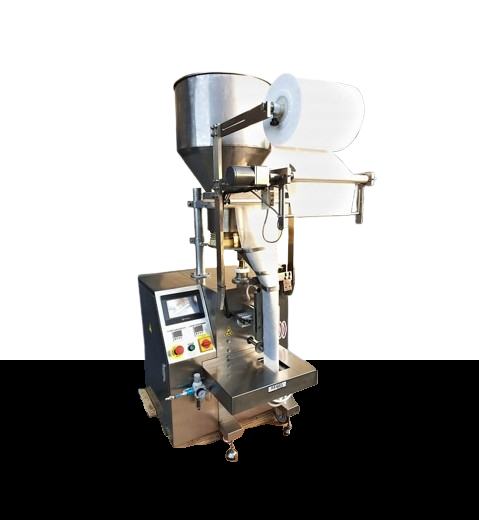

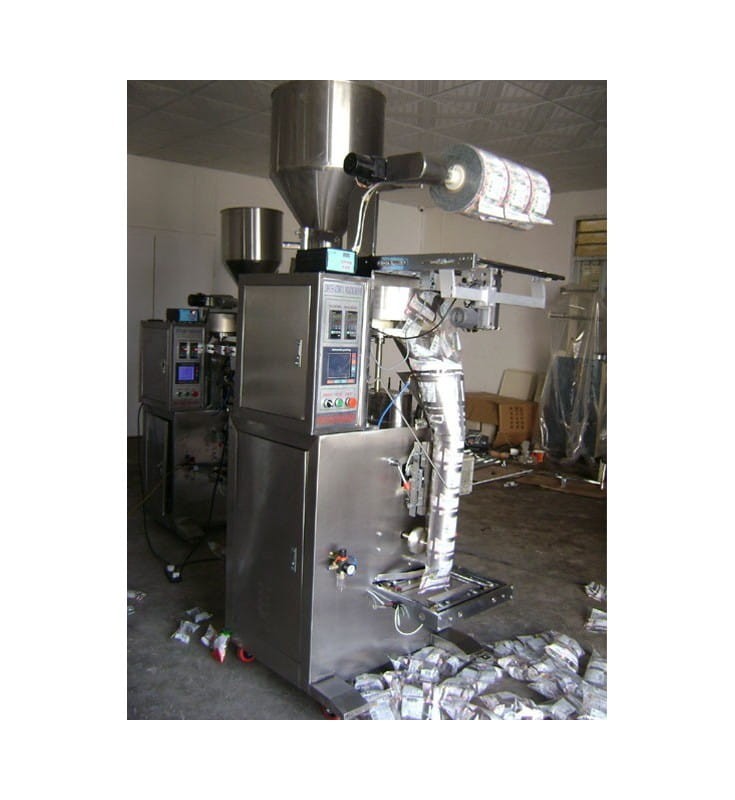

AUTOMATIC BACK SEAL SUGAR PACKING MACHINE JX015/JX013

Application:

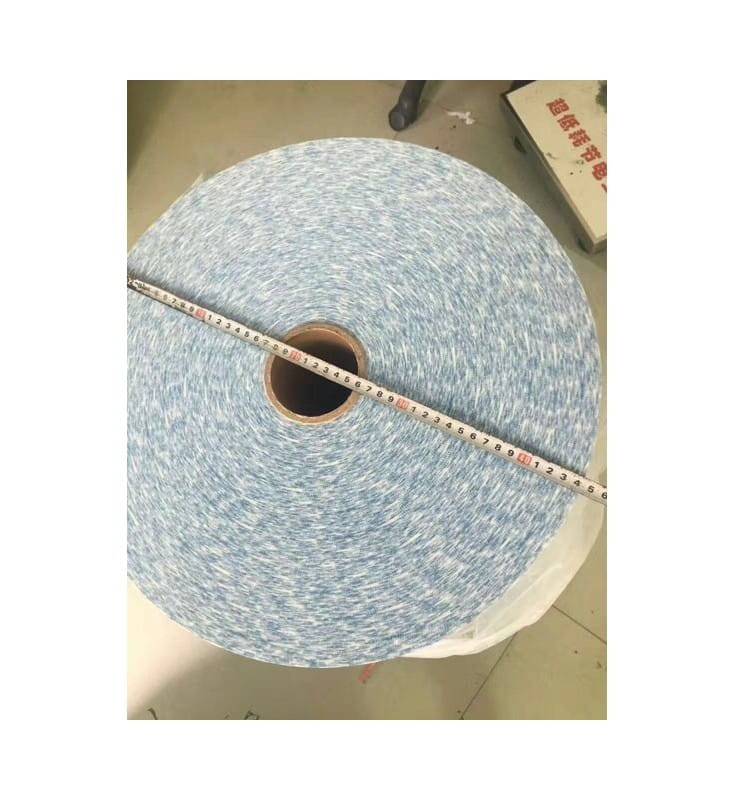

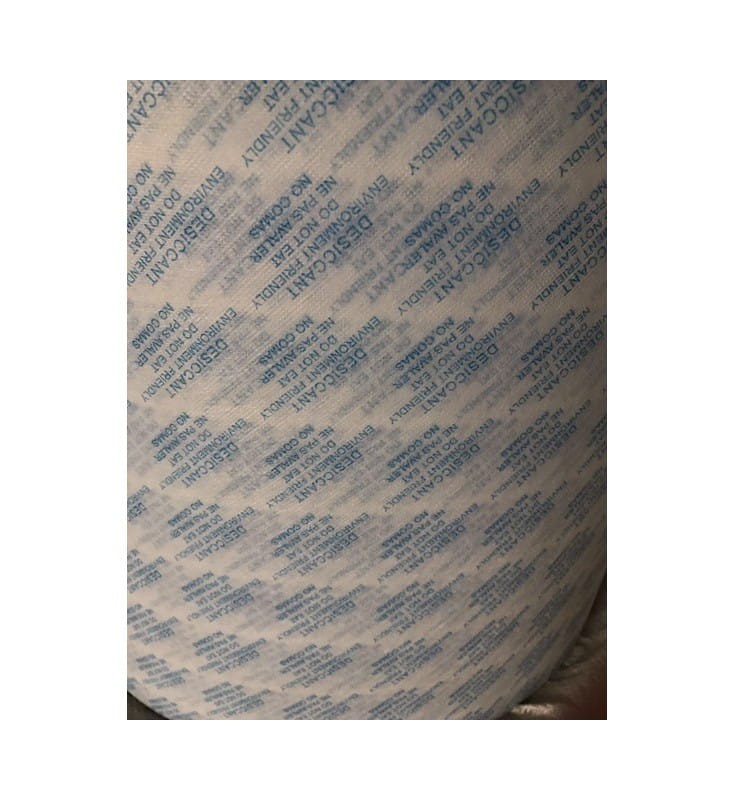

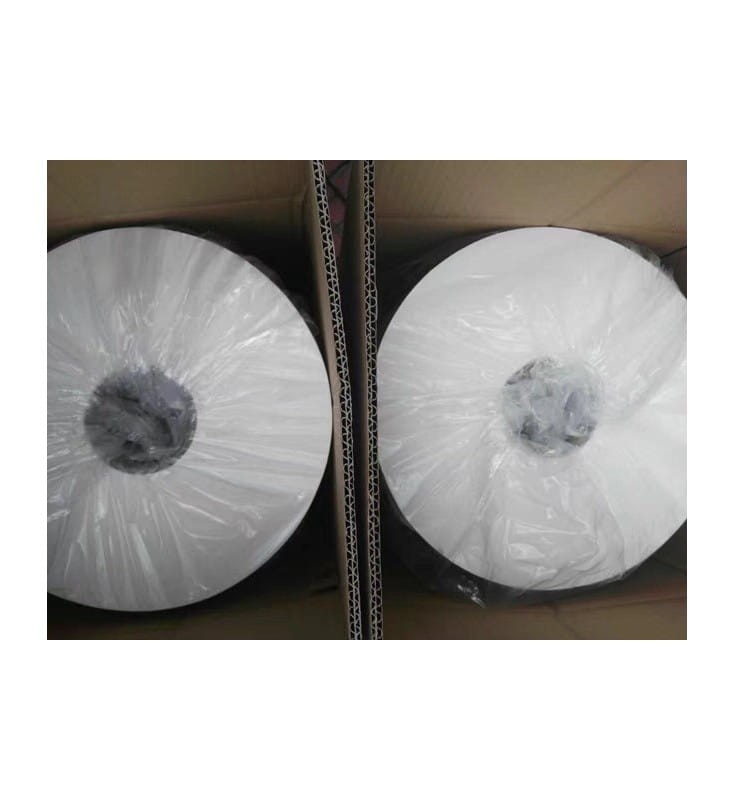

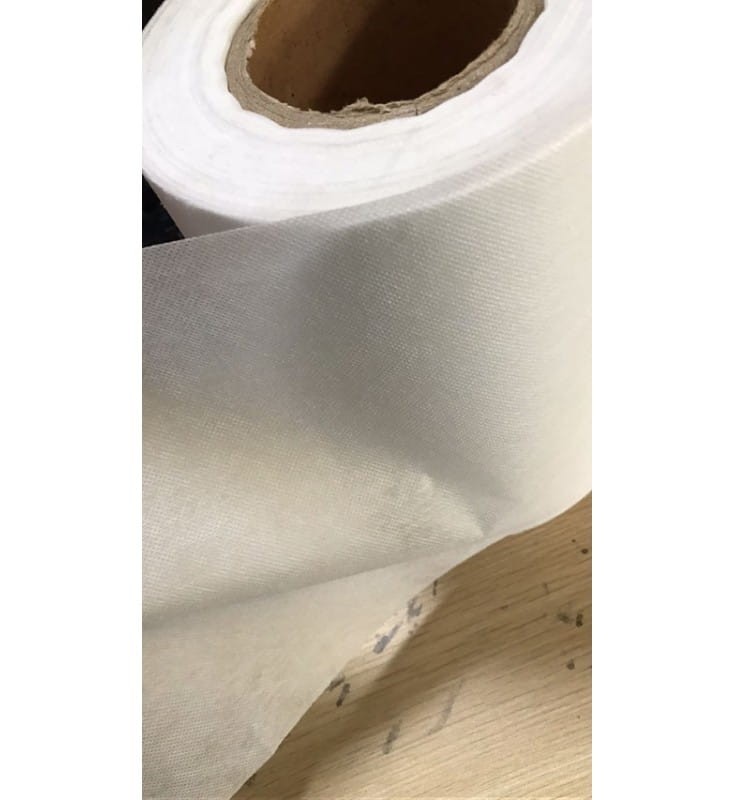

Vertical packaging machine designed for packaging in filter paper or composite film (OPP + PE, PET + PE, PET + AL + LDPE).

The device is widely used in the following industries: food, cosmetics, pharmaceutical and chemical.

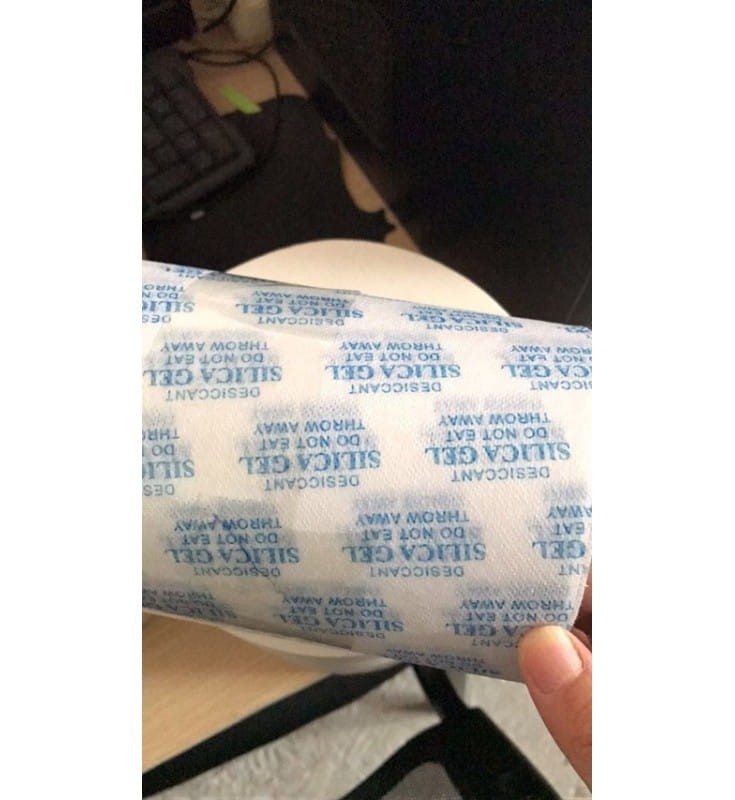

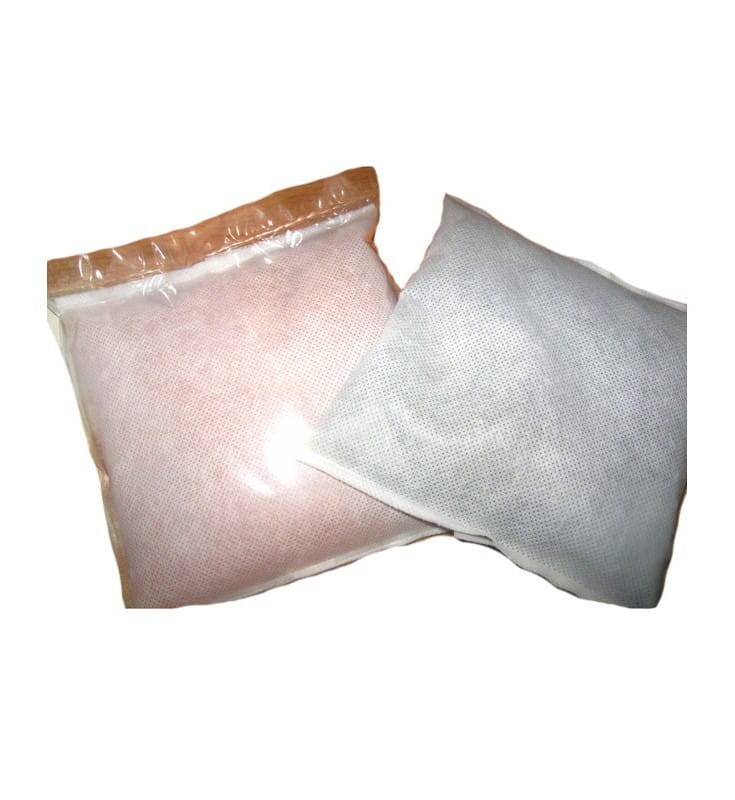

Used for example for a moisture absorber (silica gel).

The device can be individually adapted to the product.

Modern technology ensures the highest achievable level of performance.

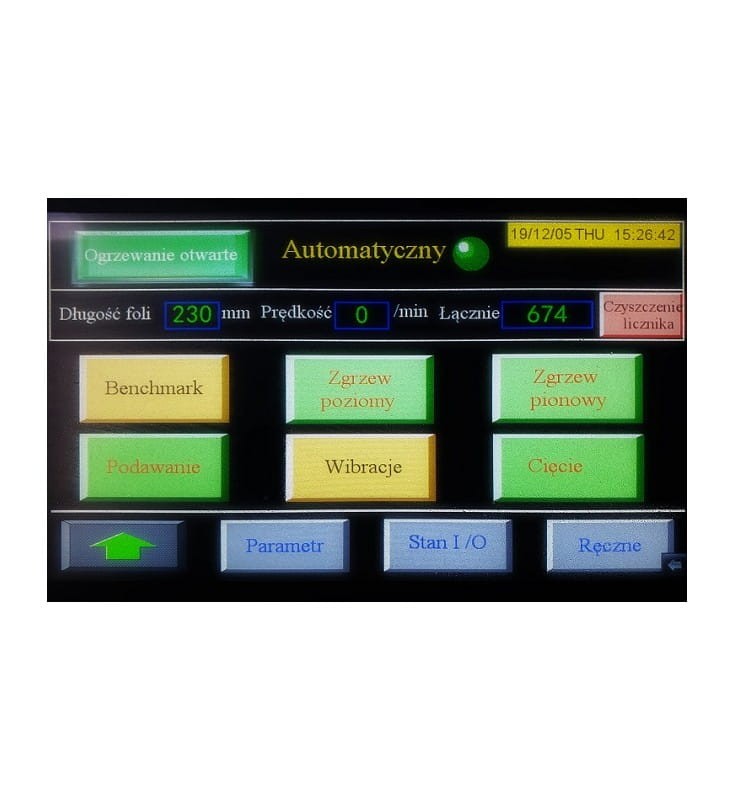

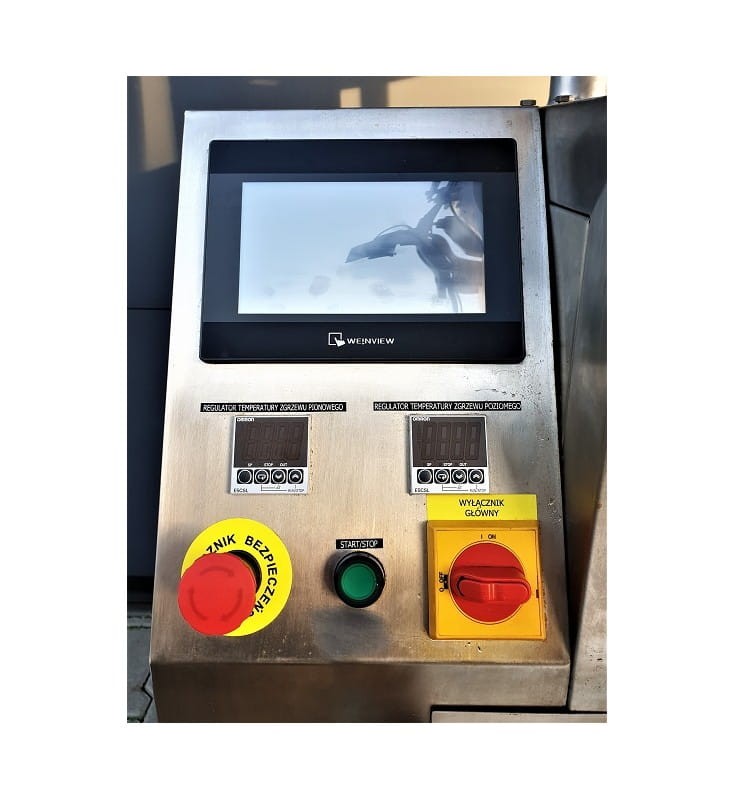

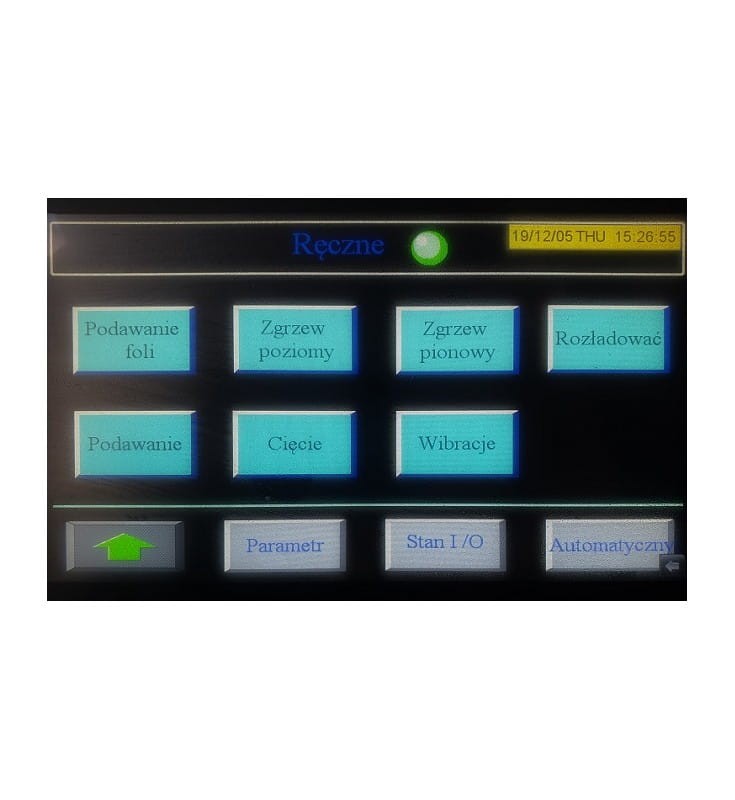

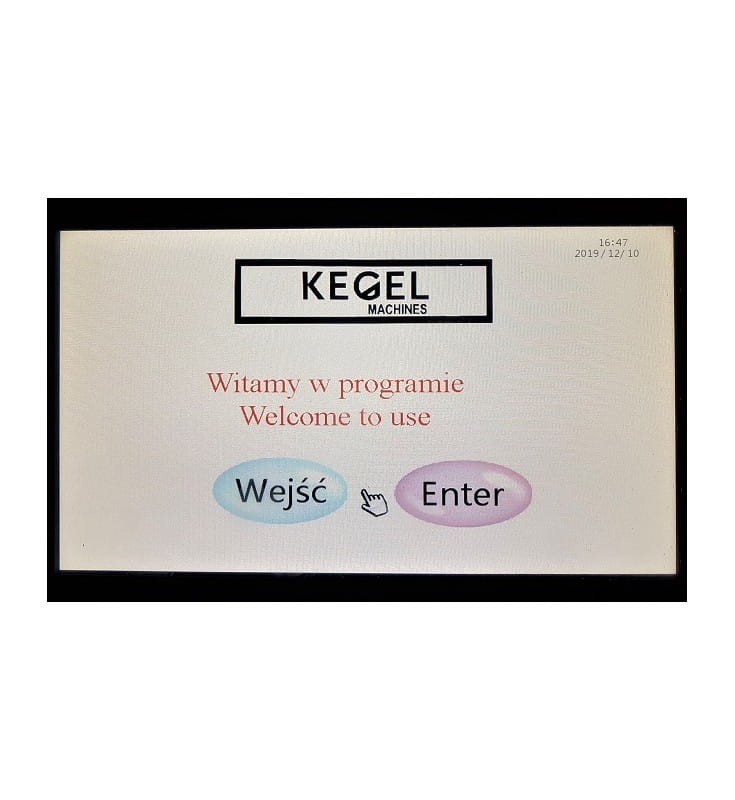

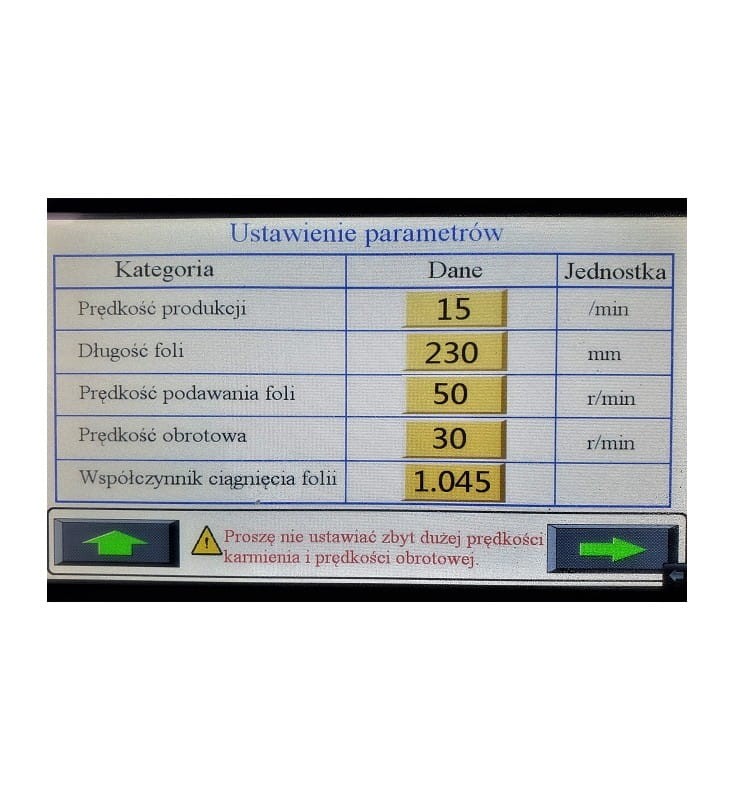

The electronic control system synchronizes the work of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

The machine can be intended for contact with art. food.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have a smooth surface or are made of corrosion-resistant stainless steel.

The construction of the machine excludes penetration of the substance into the product.

The sachet machine is not a universal device, the machine gives the possibility to create sachets of one width (the length is adjustable).

Creating sachets of different widths with one device requires the purchase of additional modules forming the sachet.

Functions:

Simple operation

Easy regulation and temperature

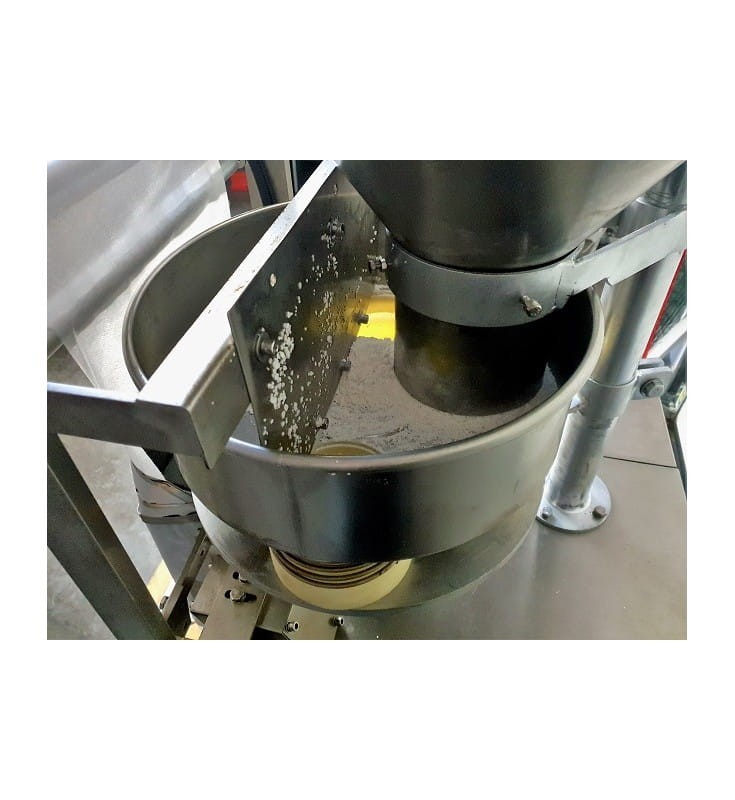

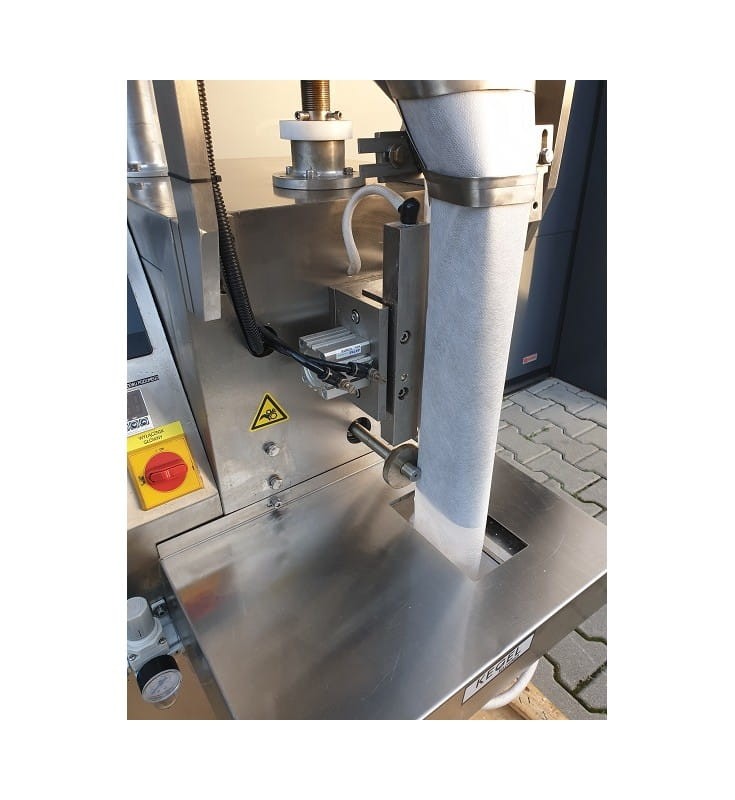

It forms bags and precisely dispenses the product.

Seals and cuts packaged sachets

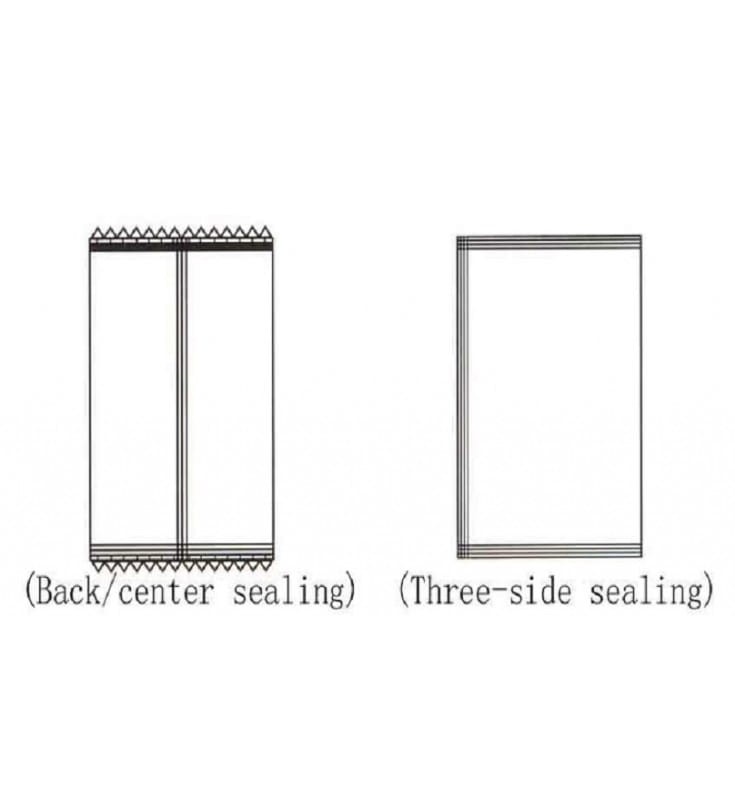

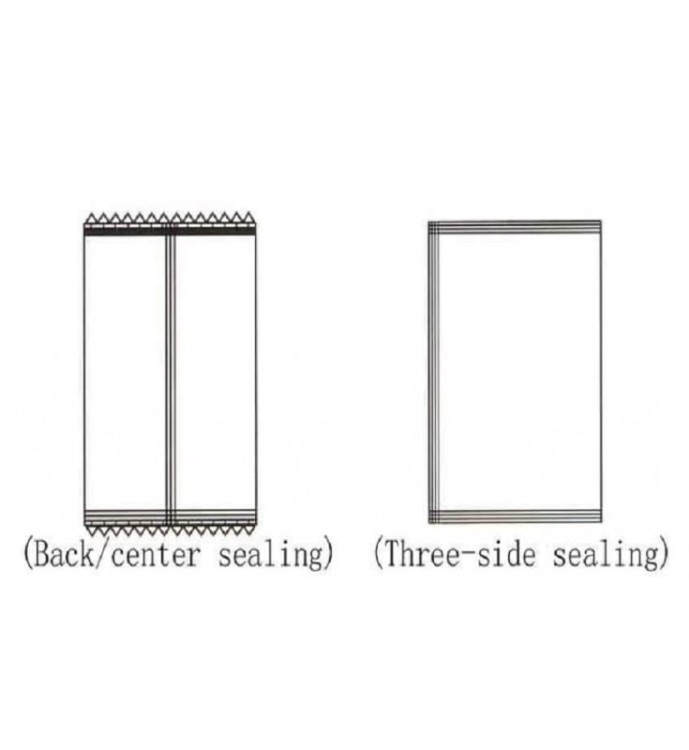

The sachet machine welds the sachets on three sides or forms the upper, lower and middle weld (H).

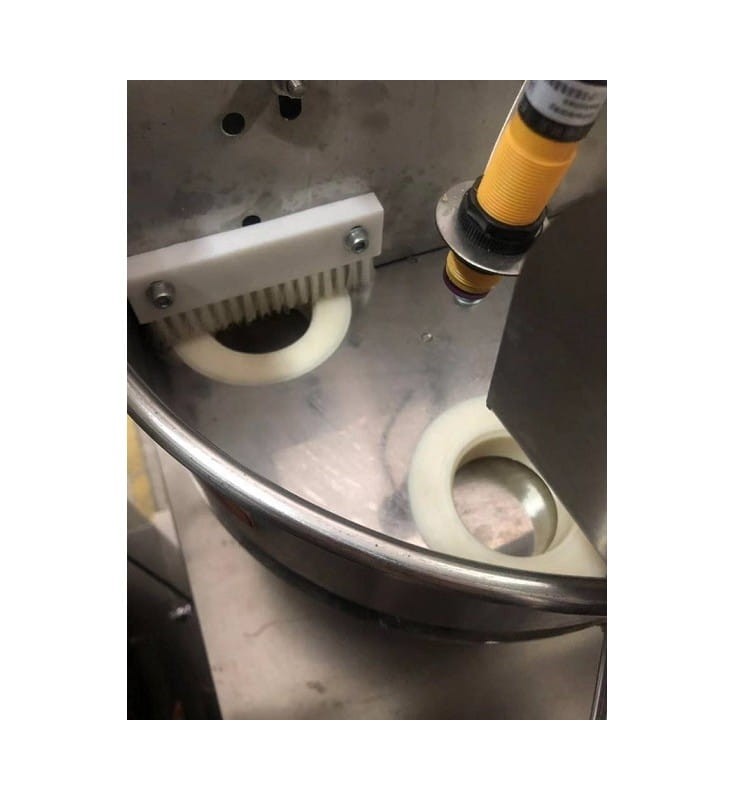

The sachet is equipped with a photocell.

Compressed air source required.

Technical data:

Power: 2.3 kW

Sachet length: 80 - 320 mm  US 3-12"

Sachet width: 100 - 480 mm  US 4-19"

Dose: 250 or 500 g  US 0.55 or 1.1 lb

Capacity: 20 - 60 pcs / min.

External dimensions [L x W x H]: 980 x 750 x 2250 mm  US 38" x 30" x 88"

Weight: 500 kg  US 1102 lb

Extra paid options:

Tank vibrations

Tube for different width of the sachet

Stamp

4-sided welding

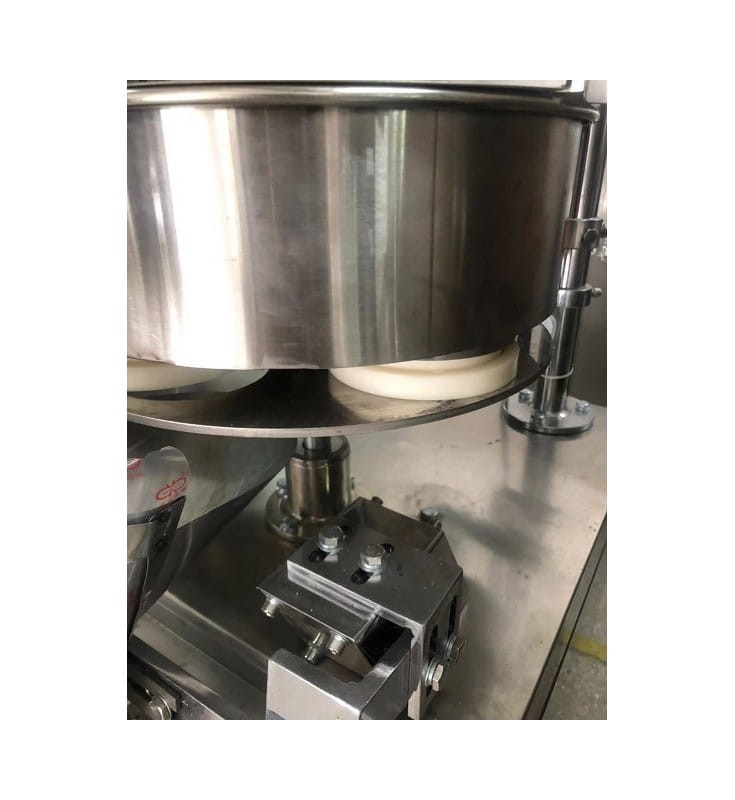

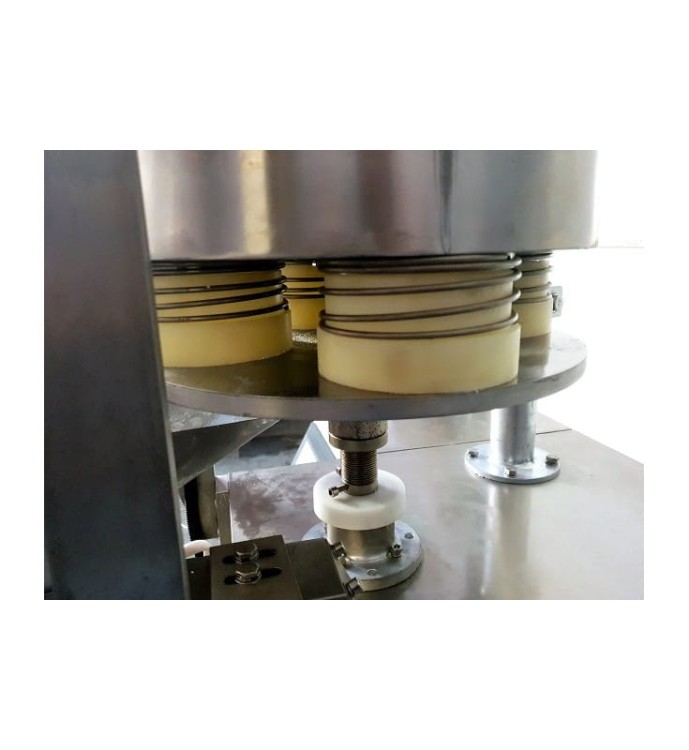

Measuring cups for different dosage
