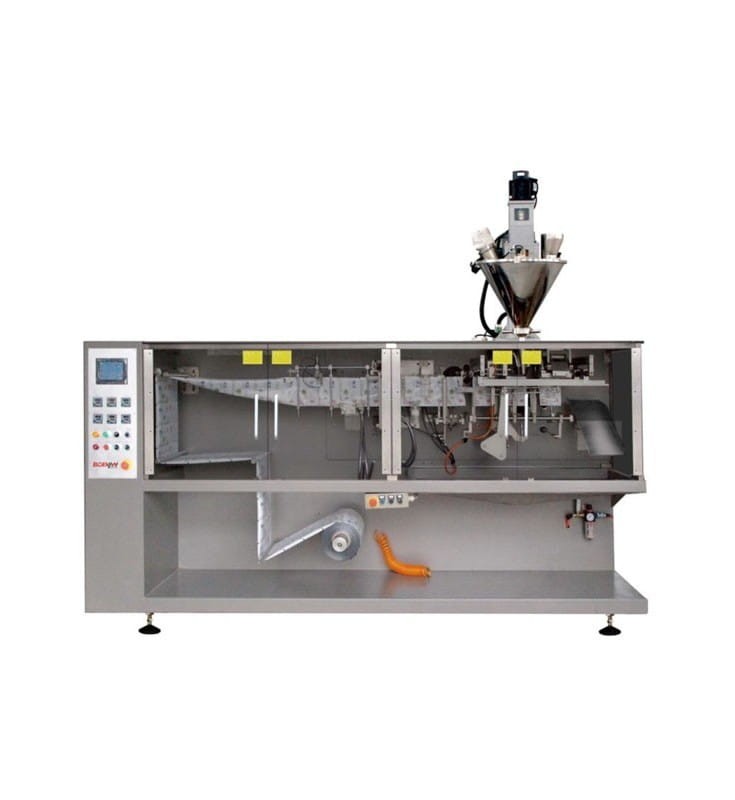

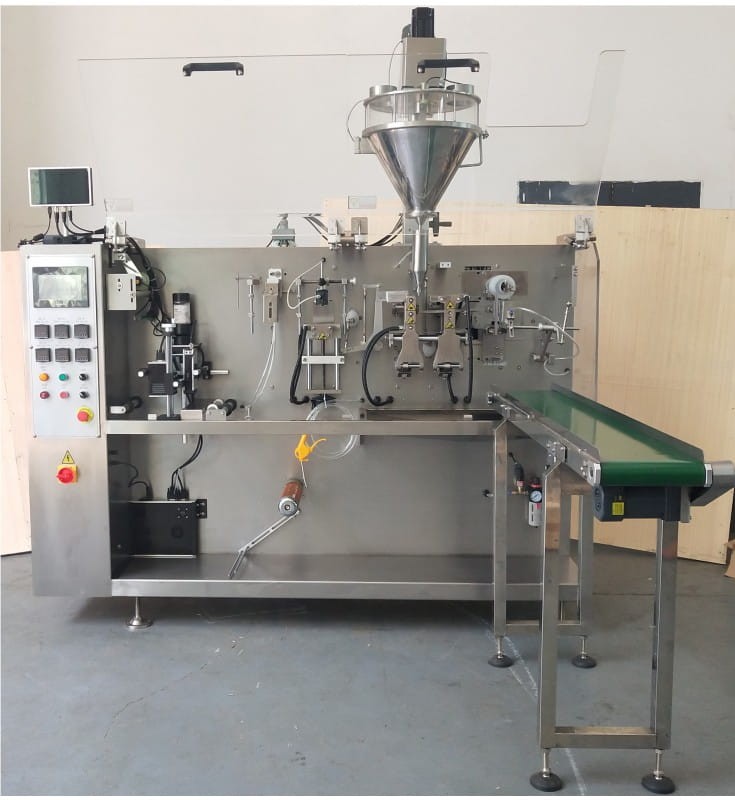

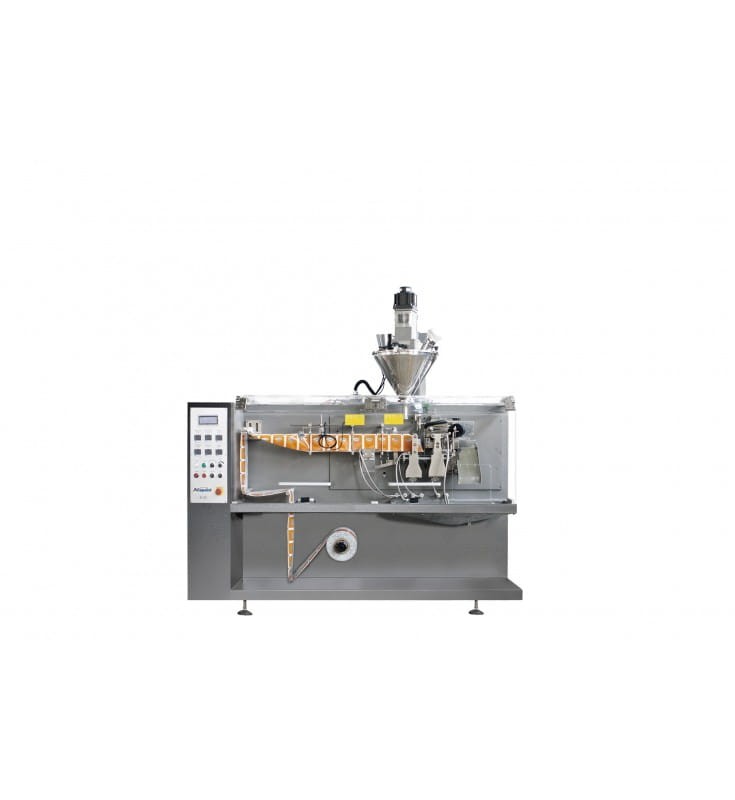

POUCH PACKAGING MACHINE UN-110

Application:

The production line is designed for packing ground spices into flat sachets with 3-sided or 4-sided seal.

It is used in the food, chemical, cosmetics and pharmaceutical industries.

Functions:

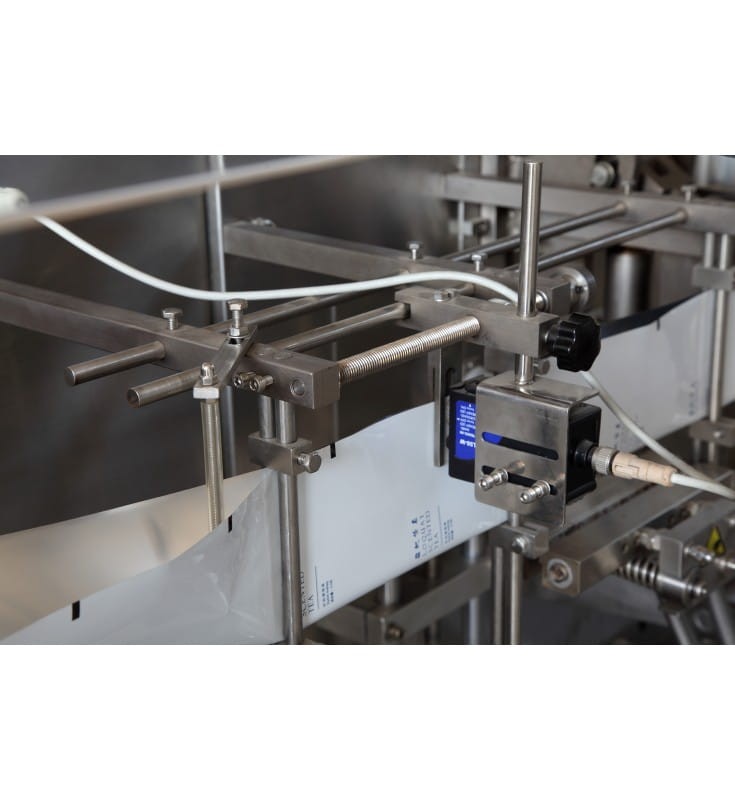

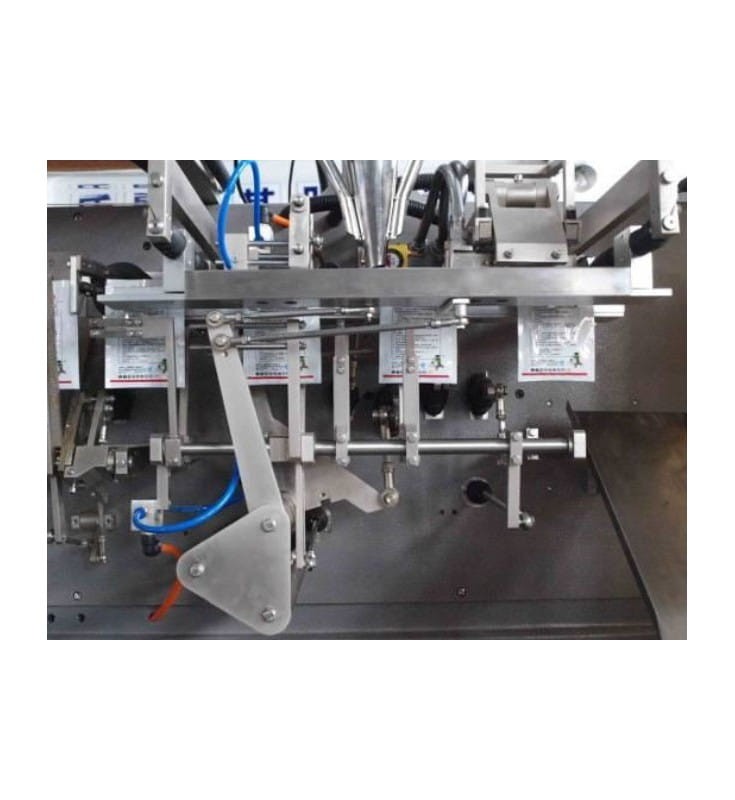

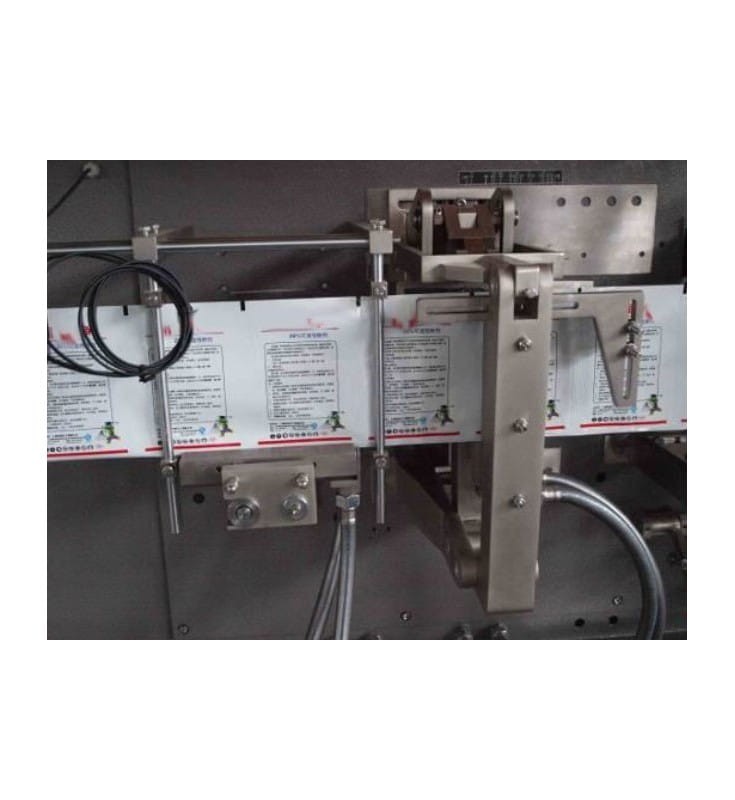

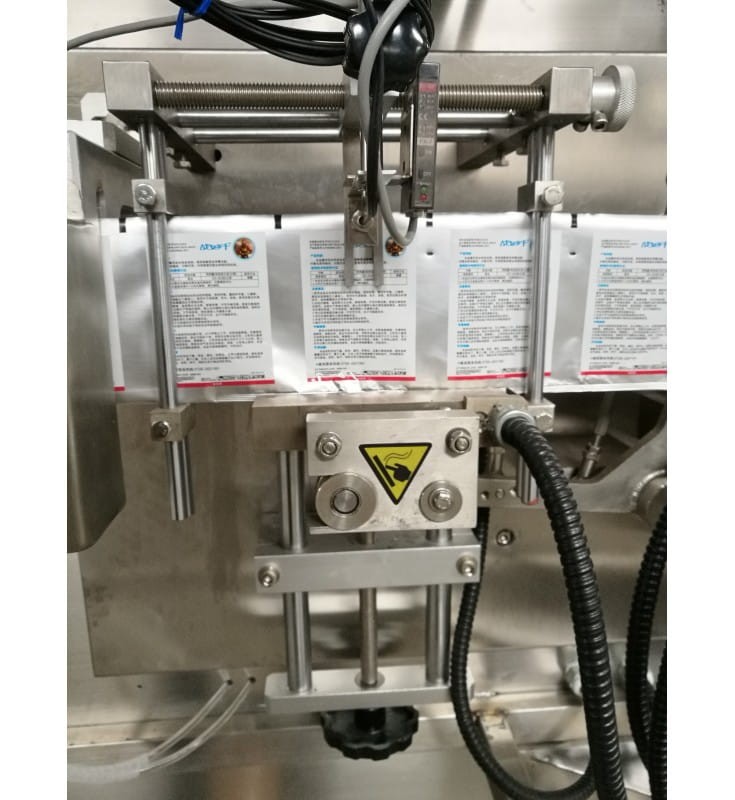

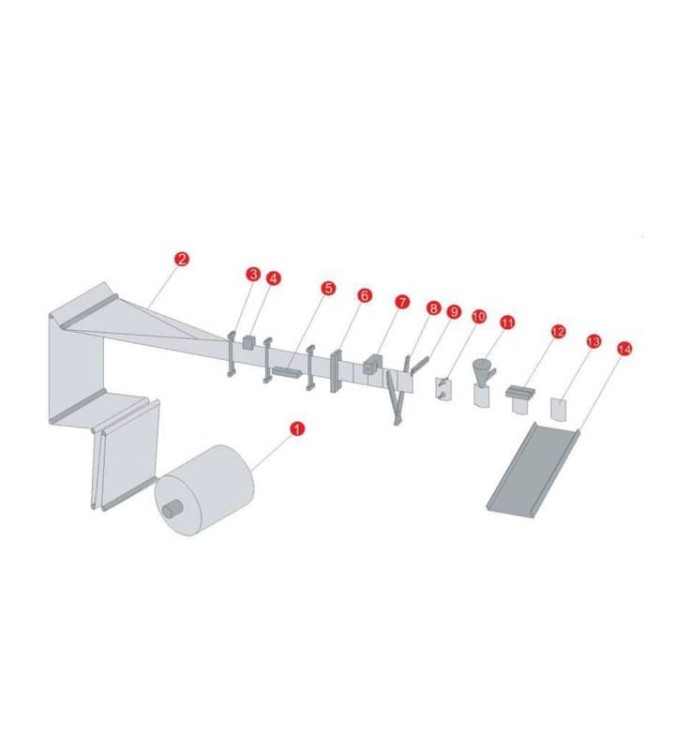

The line consists of a horizontal packaging machine for forming bags made of foil in the form of a ribbon on a roll, a screw feeder, a duster and a screw dispenser.

A simple line to use and maintain.

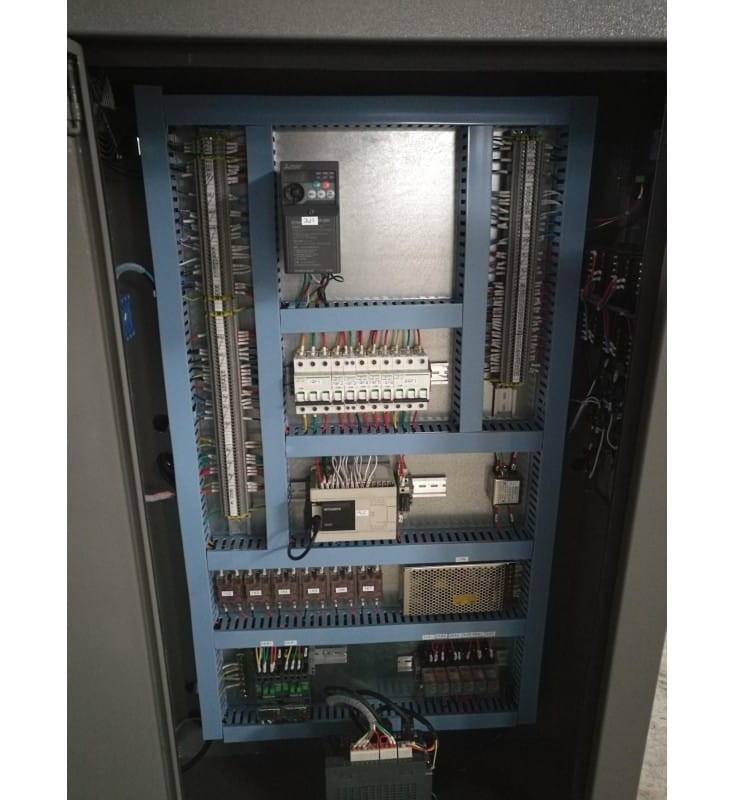

PLC controllers provide stable operation.

Operation is carried out via the panel.

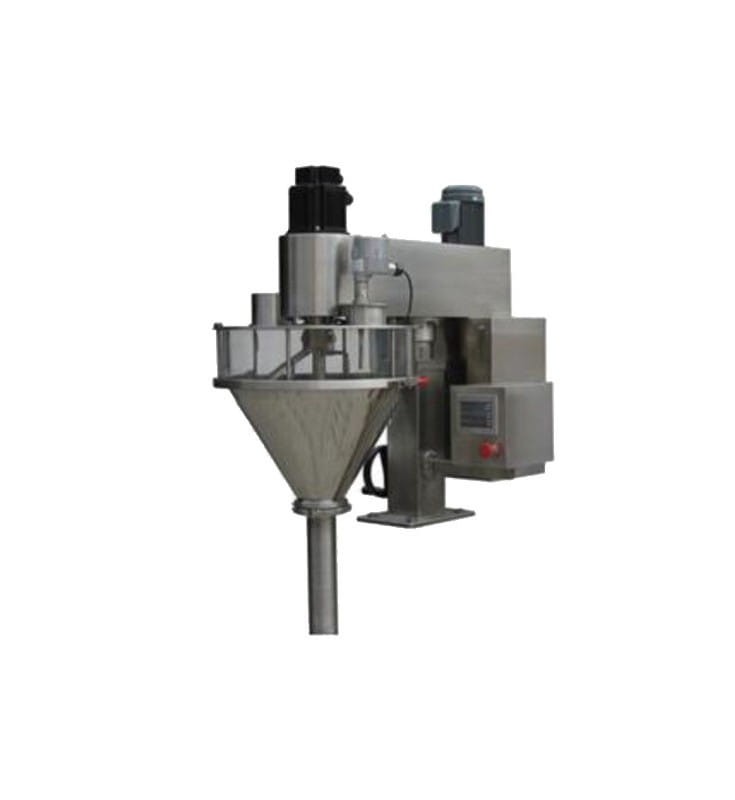

Dispenser equipped with servo motor.

All components that come into contact with the product have a smooth surface or are made of corrosion-resistant 304 steel.

Technical data:

Power: 2 KW

Power supply: 380 V / 50 Hz

Capacity: 40 - 80 pcs/min

Requires connection of a compressed air source with a capacity of 0.5 MPa

Sachet height: 50 - 110 mm

Sachet width: 50 - 120 mm

Max. packaging capacity: 60 ml

Dimensions: 2060 x 750 x 1400 mm

Weight: 600 kg

Included:

Date

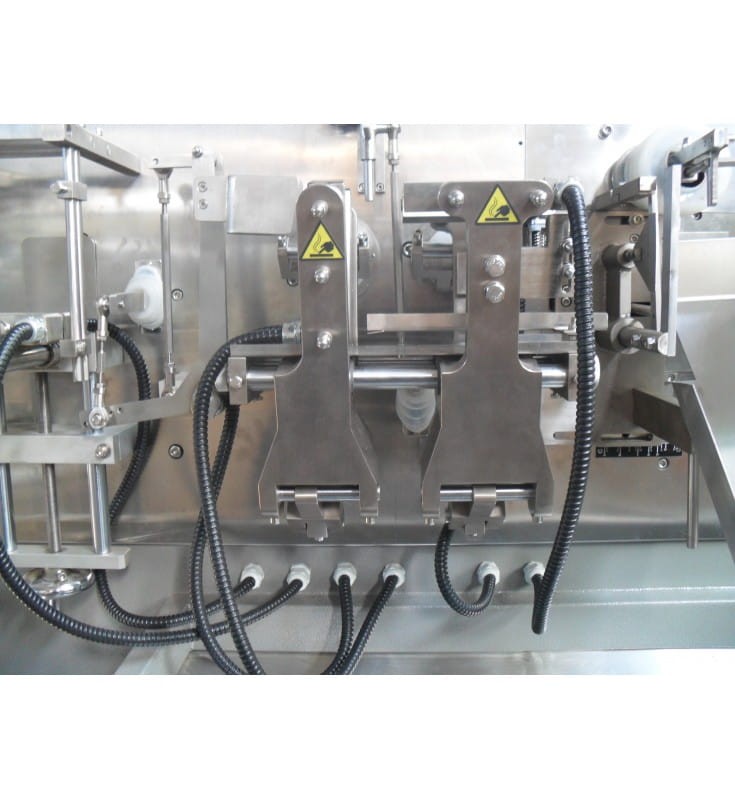

4-sided seal

Notch on both sides

Conveyor receiving finished sachets

Duster

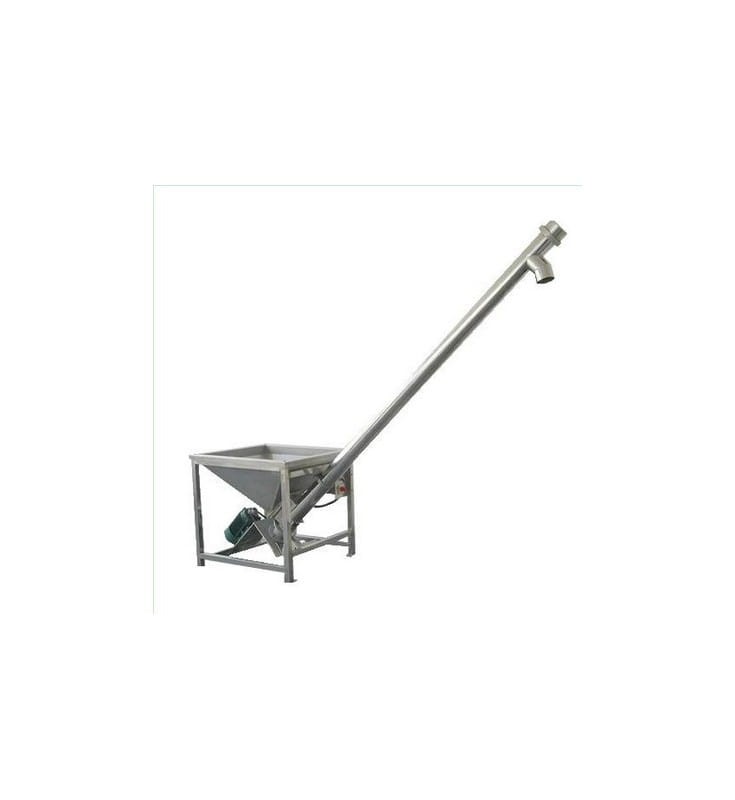

Screw feeder
