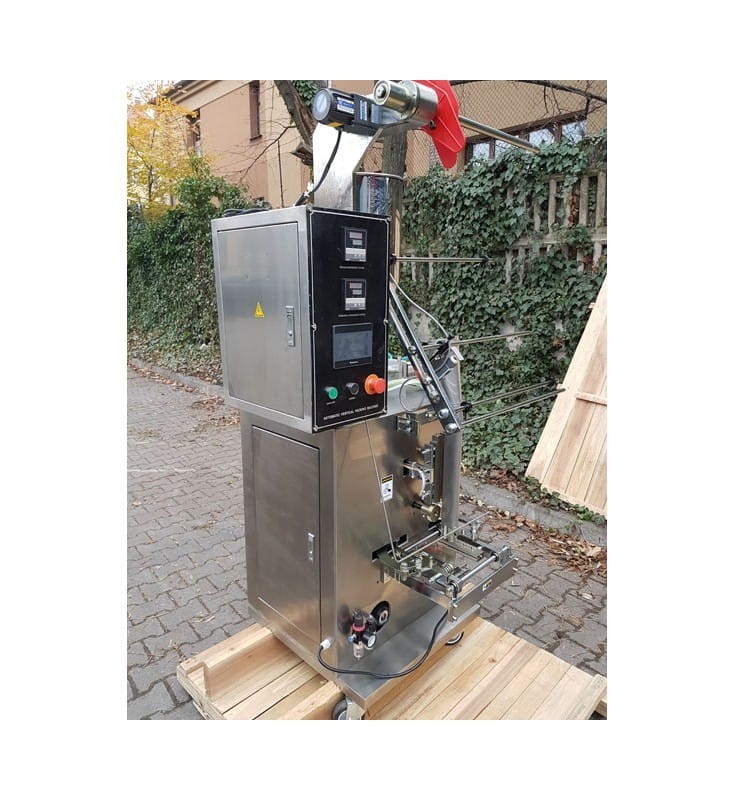

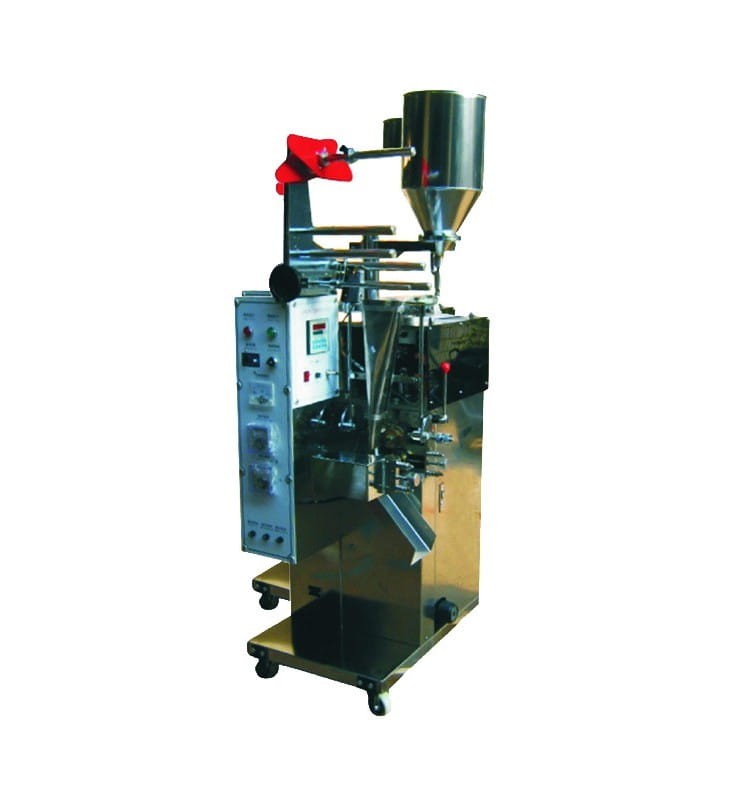

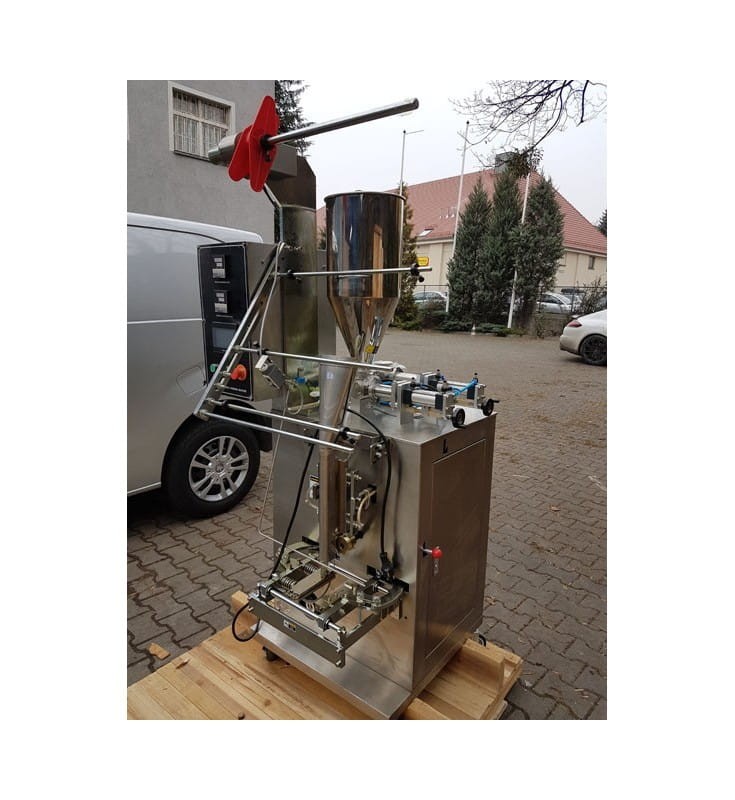

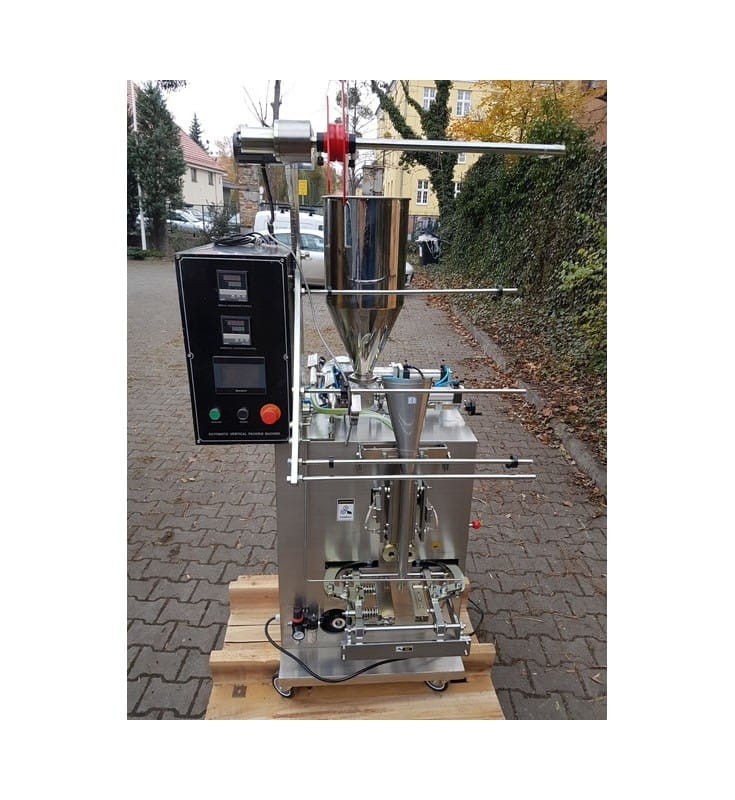

PYRAMIDAL SHAPE BAG PACKAGING MACHINE DXDG-100ZII

Vertical volumetric machine designed for packing liquids, especially thick ones, e.g. sauces, mayonnaises, ketchup etc.

The device forms foil bags in the form of a web.

The device can be individually adapted to the product.

Modern technology ensures the highest achievable level of performance.

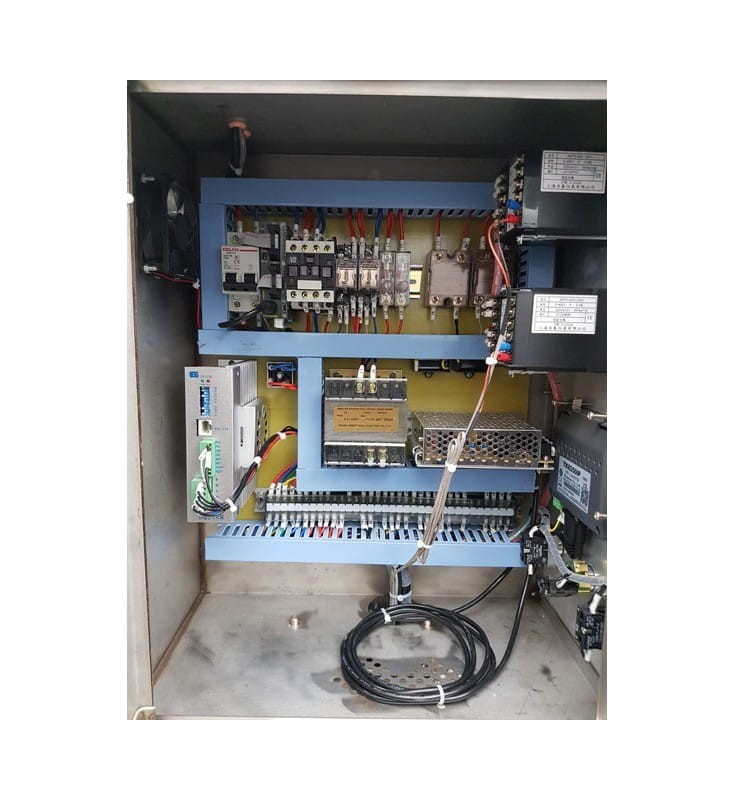

The electronic control system synchronizes the work of the machine.

The system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

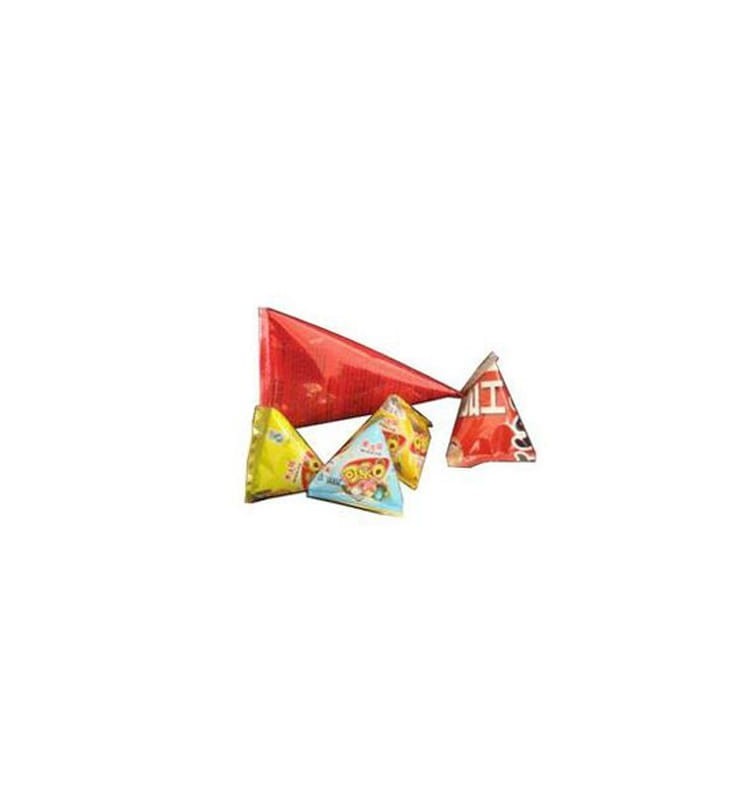

The device creates pyramid-shaped sachets.

It can work on various types of composite film: PE + aluminum, Pe + paper, PE + cellophane, PE / nylon, BOPP / PE.

The machine can be intended for contact with art. food.

It was designed in such a way as to avoid the risk of infection, disease or infection.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The construction of the machine excludes penetration of the substance into the product.

The sachet machine is not a universal device, the machine gives the possibility to create sachets of one width.

Creating sachets of different widths with one device requires the purchase of additional modules forming the sachet.

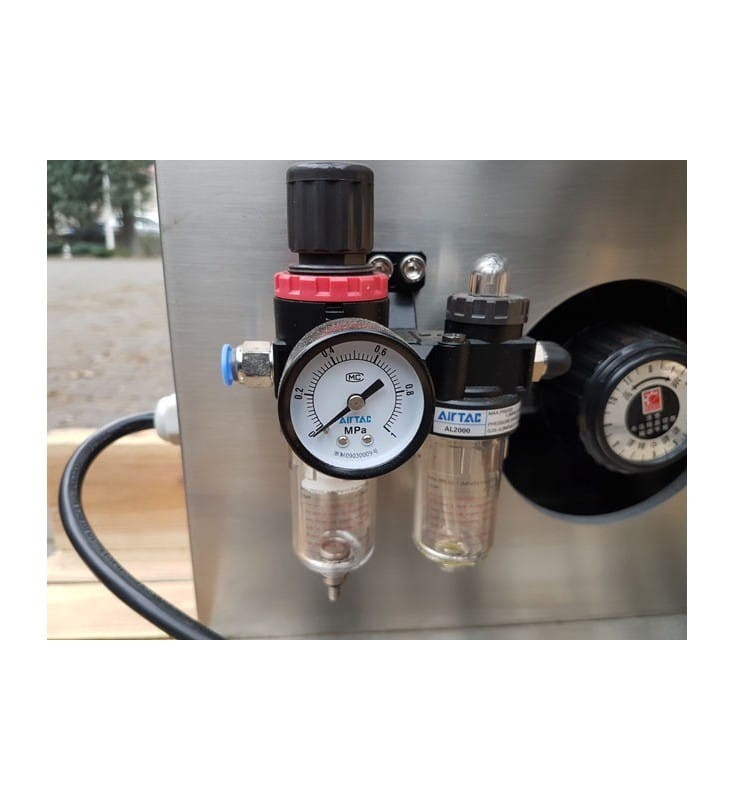

The device requires a compressor connection.

Application:

The device is used in the food, pharmaceutical and chemical industries.

Functions:

Simple operation.

High precision and reliability.

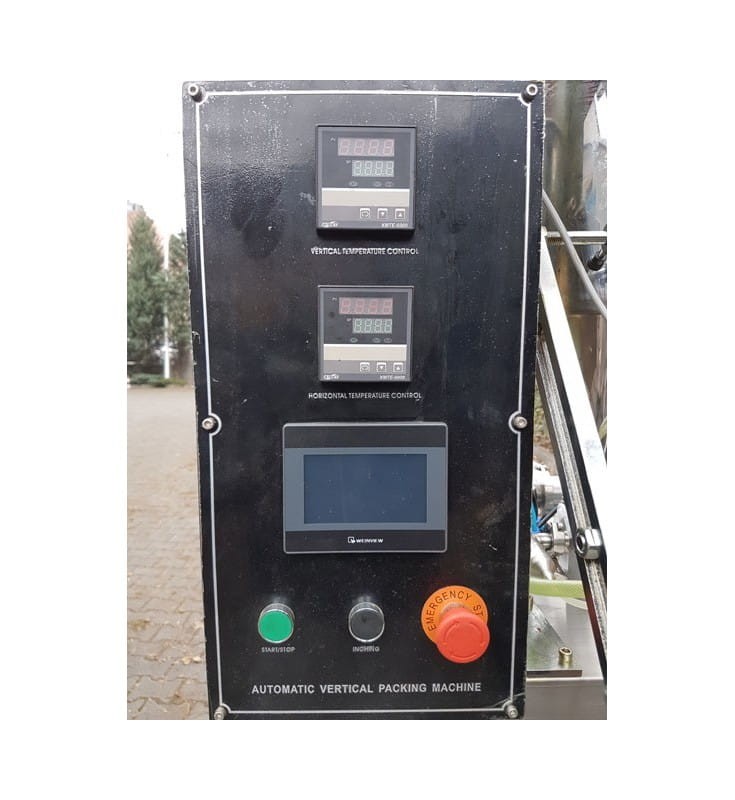

Independent temperature control of the transverse and longitudinal seal.

The length of the sachet is adjustable through the control panel.

Technical data:

Power: 1.3 kW
Power supply: 220 V / 50 Hz  US 110 V
Efficiency: 30 - 70 pcs./min. (depending on the size of the dose)
Dosage: 15 - 100 ml
The length of the sachets is adjustable in the range: 50 - 220 mm US 2" - 9"
Width of sachets: 30 - 80 mm US 1" - 3"
Dimensions of the machine [length x width x height]: 1150 x 860 x 1900 mm US 45.3" x 33.9" x 75"
Weight: 450 kg US 992 lb
The ability to upload the menu in Polish or other.

Extra paid options:

Tube under a different width of the sachet

Heated tank

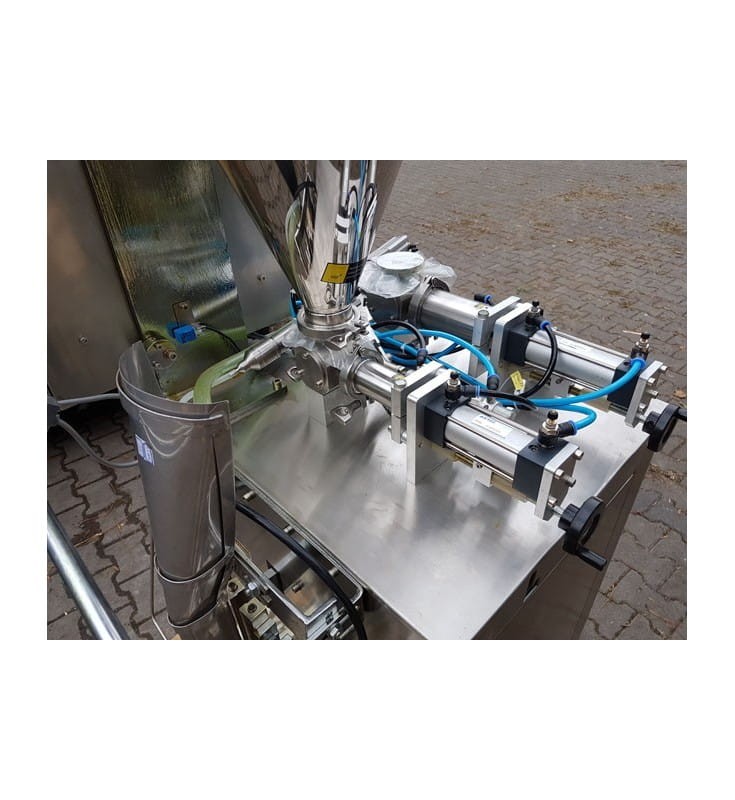

Pump for a different dose

Stamp

Incision for easy opening

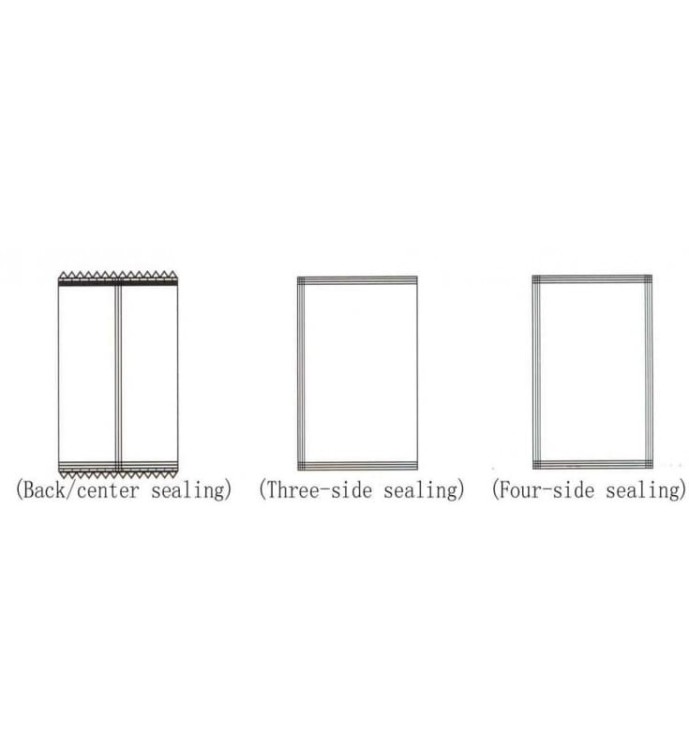

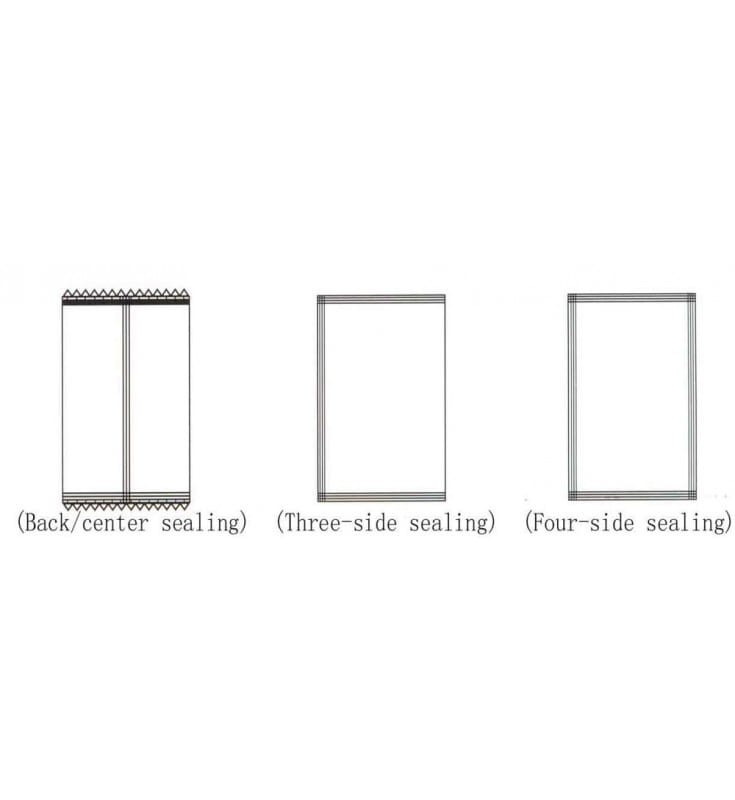

4-sided welding

Full stainless steel version
