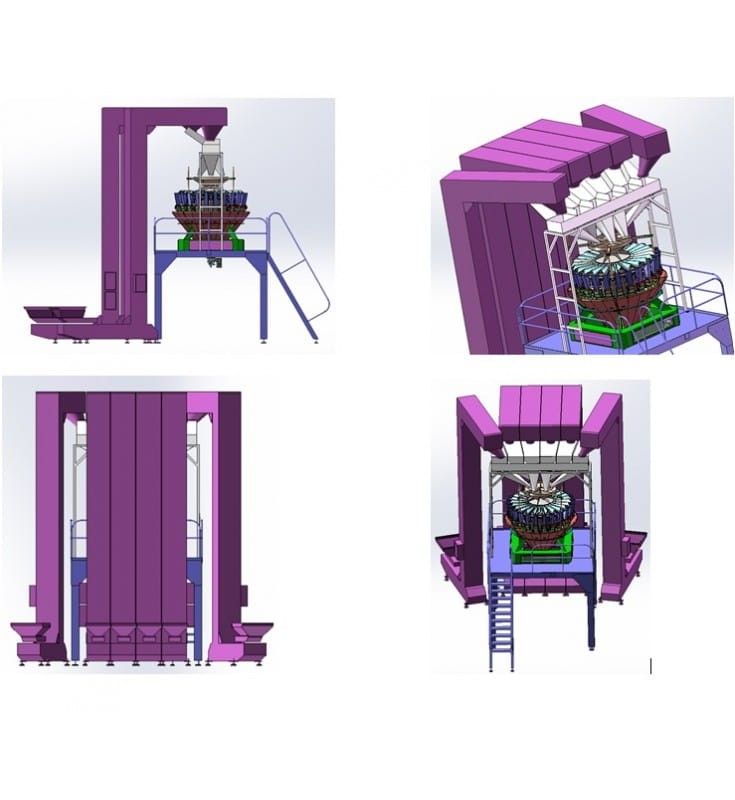

ROTARY PACKING LINE SW-8-200

Application:

The line is designed for filling ready-made doypack bags with a string of granules, seeds, nuts and their closing.

Function:

The product is fed by a lift to the weighing machine, where it is portioned, transferred to a time tank, and then to the packaging machine.

In the machine, each of the bags is opened, filled and closed, and then discharged.

The line is also equipped with a device producing and dispensing nitrogen to the bag.

It is characterized by a solid construction and high-quality components.

Device can make a eurohole.

The line is designed to pack 6 different products into one bag. (Have 6 feeder for 6 products)

Speed of line: 35-40 bags / min.

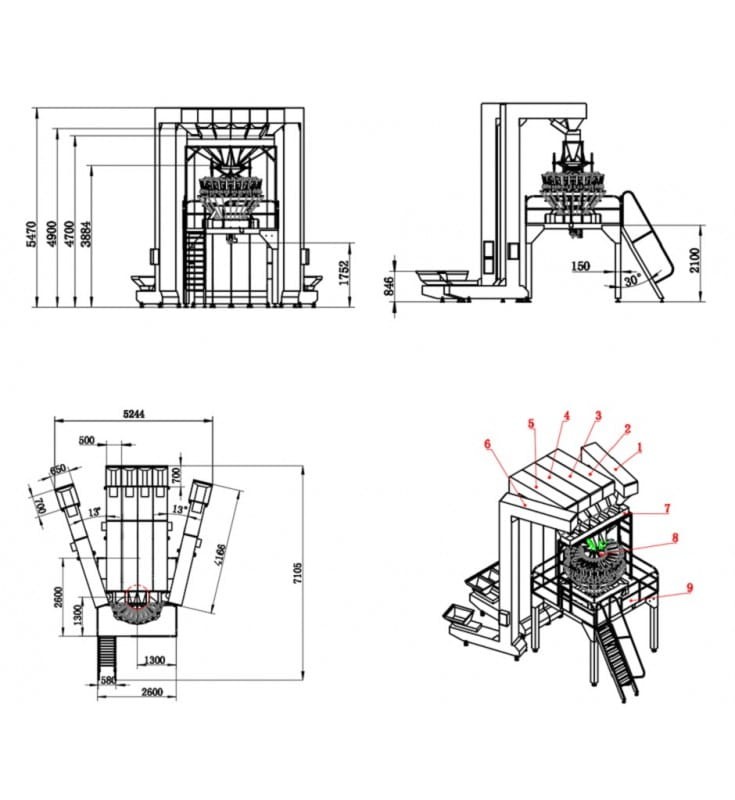

The line includes:

Bucket conveyor

24-head multihead weigher

Timing hopper

Supporting platform

Feeding platform

Rotary packing machine

Rotary table

Cooling machine

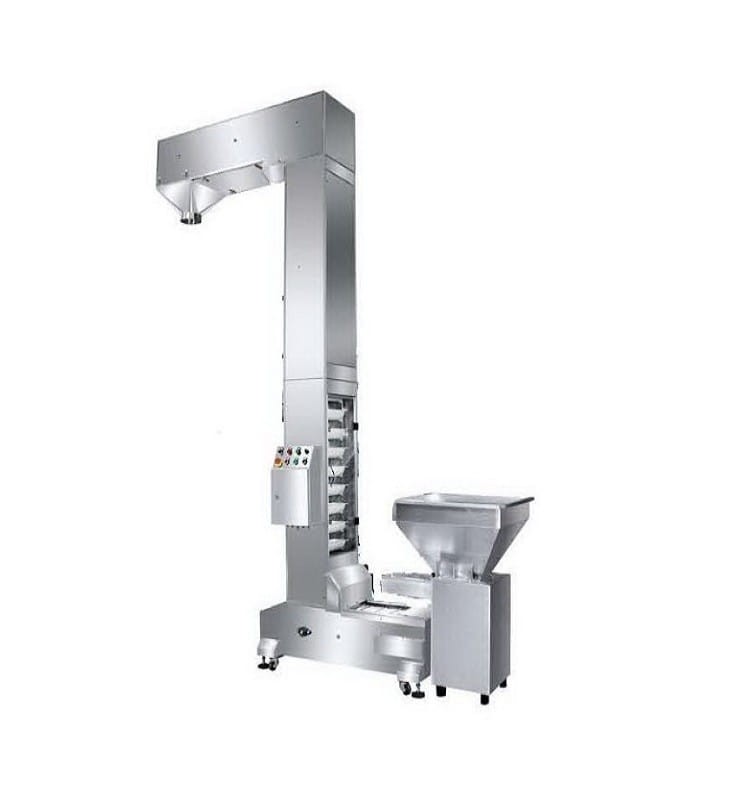

Bucket conveyor

Application:

The conveyor is applicable for vertical lifting of granule material such as corn, food plastic and chemical industry, etc.

Features:

Feeding speed can be adjusted by converter;

Be made of stainless steel 304 construction or carbon painted steel

Complete automatic or manual carry can be selected;

Include vibrator feeder to feeding products orderly into buckets, which to avoid blockage;

Automatic or manual emergency stop, vibration bottom, speed bottom, running indicator,

power indicator, leakage switch, etc.

The input voltage is 24 V or below while running.

DELIXI inverter.

Technical parameters:

Power 0.75 kW

Power supply 230 V /50 Hz US 110 V

Convey Height 1800 - 4500 mm US 71" - 177"

Bucket volume 1.6 l

Carrying speed 40-75 buckets / min.

Bucket material White PP (dimple surface)

Vibrator hopper size [W x H] 550 x 550 mm US 22 x 22"

Machine size [L x W x H] 2214 x 900 x 970 mm US 87" x 35" x 38"

Gross Weight 600 kg US 1322 lb

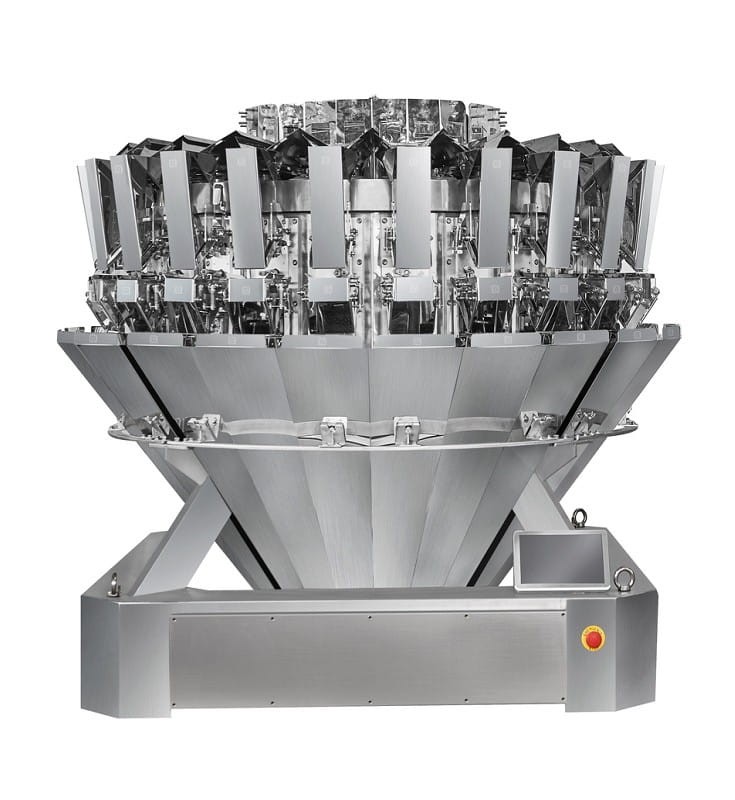

24-head multihead weigher

Application:

It is mainly apply in automatic weighing various granular products in food or non-food industries, such as potato chips, nuts, frozen food, vegetable, sea food, nail, etc.

Features:

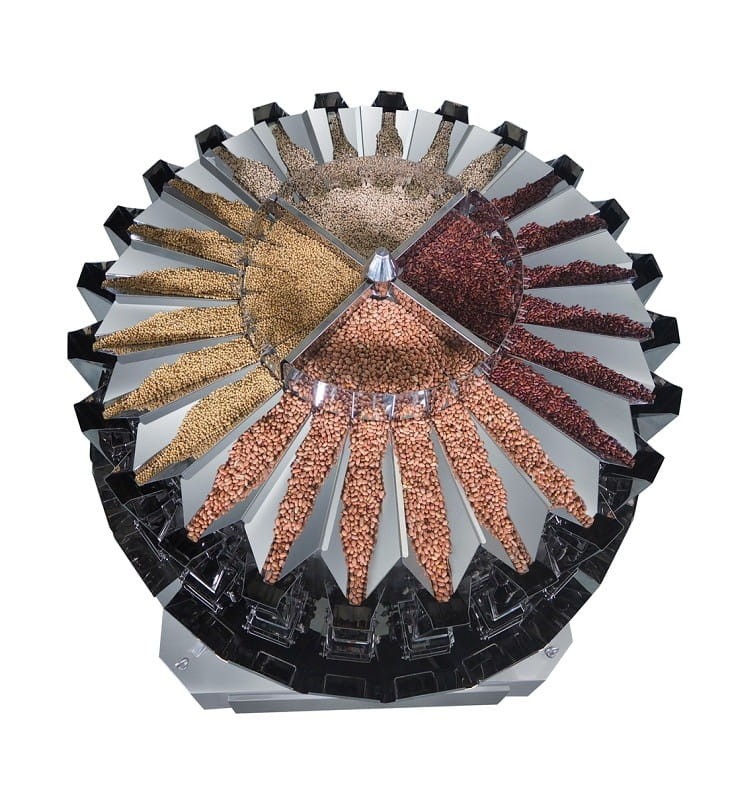

Mixing 4 or 6 kinds of product into one bag with high speed (Up to 50bpm) and precision

3 weighing mode for selection: Mixture, twin & high speed weighing with one bagger;

Discharge angle design into vertically to connect with twin bagger, less collision & higher speed;

Select and check different program on running menu without password, user-friendly;

One touch screen on twin weigher, easy operation;

Central load cell for ancillary feed system, suitable for different product;

All food contact parts can be took out for cleaning without tool;

Check weigher signal feedback to auto adjust weighing in better accuracy;

PC monitor for all weigher working condition by lane, easy for production management;

Optional CAN bus protocol for higher speed and stable performance;

Technical parameters:

Power 2,5 kW

Power supply 230 V / 50 Hz 15 A; US 110 V

Weighing range:

10-400 x 2  grams

10-200 x 4  grams

10-120 x 6  grams

Max. speed 50 bags / min. (For mixing 4 or 6 products)

Accuracy + 0.1-1.5 grams

Weigh bucket  0.8 l

Control penal 10" touch screen

Driving system stepper motor

Machine size [L x W x H] 2630 x 1700 x 1815 mm US 103" x 67" x 32"

Weight 1200 kg US 2645 lb

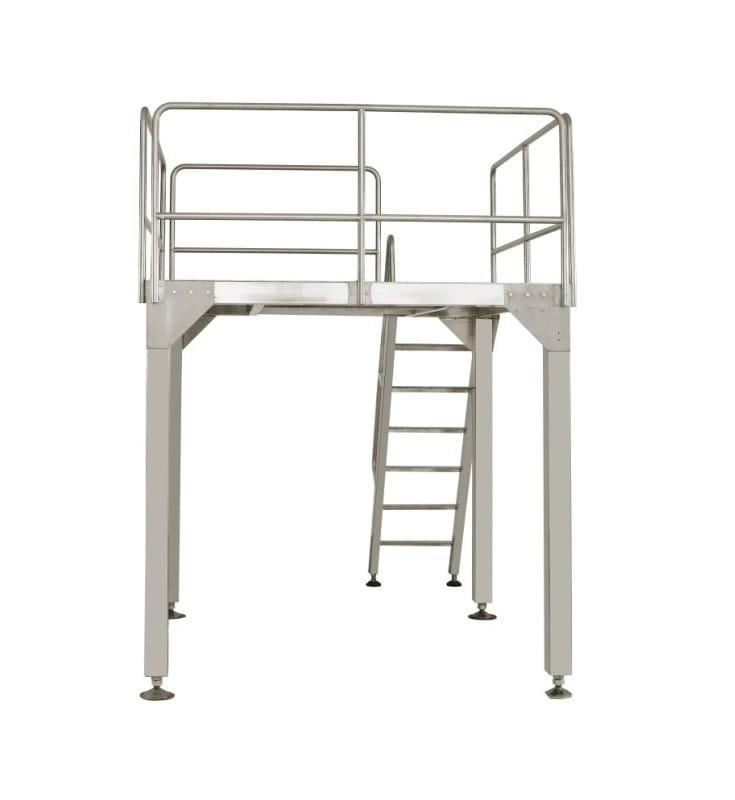

Supporting platfom

Application:

It is suitable to support multihead weigher, auger filler, and various machines on top.

Features:

The platform is compact, stable and safe with guardrail and ladder;

Be made of 304# stainless steel or carbon painted steel;

Technical parameters:

Dimension [L x W x H] 2600 x 2600 x 2000 mm US 102" x 102" x 79"

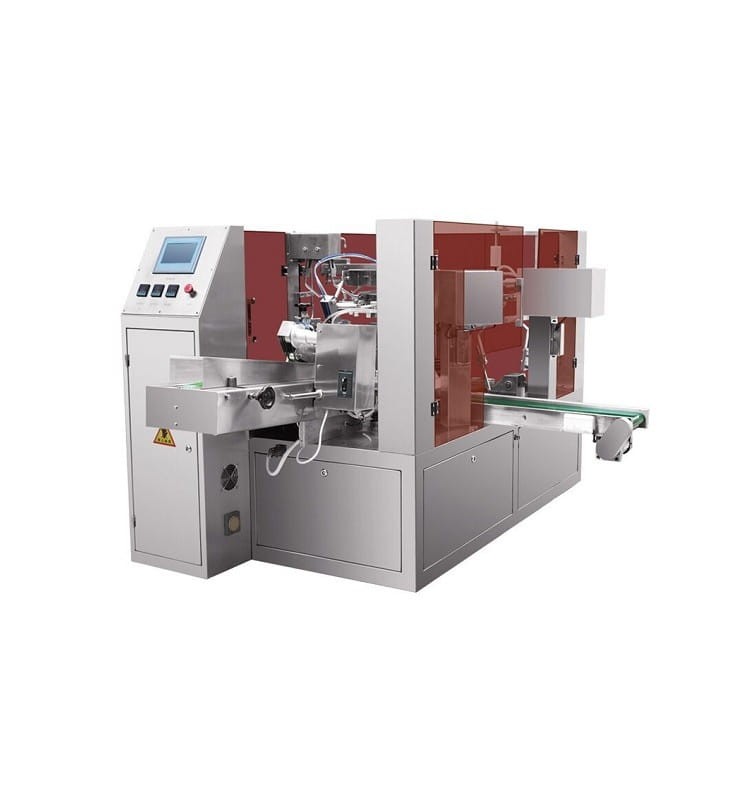

Rotary packing machine

Application:

Powder: Wheat flour, soup - (By use auger System)

Granule: Sugar, Seasoning - (By use Volumetric Measure or Scale)

Paste: Retort food- (By spiral pump or rotary Pump)

Features:

High Quality And Performance

Good Stable And Also Good Machine Exterior

Own An Extensive Range In Filling Productions

Easy Operate By Touch-Sensitive Screen,PLC And Electric Control System

Fridendly Man-Manchine Interface

Speed Can Be Anjusted By Frequency Conversion Within The Range

Volume changed easy by anjusting handle in the paste filller

Pefect Sealing System

Good Safety Secure And So On

Device can injet nitrogen

Technical parameters:

Model SW-8-200

Working Position Of machinery Eight—working station

Standard function Giving bag、Date Coding、Open Zipper、Open bag( top and bottom side)、Filling product、Close-Zipper、Heat seal、Forming and out put

Packing materials Portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bag

Total power 2.1 kW

Compress air requirement 0.6 m ³/min supply by user

Bag size

W:90 - 210 mm US 3,5-8"

L:150 - 350 mm US 6-14"

Filling volume 10-1500 g

Speed 10—40 bags / min. (the speed depends on the products status and filling weight)

Machine dimension [L x W x H] 2480 x 1600 x 1483 mm US 98" x 63" x 58"

Weight 1200 kg US 2645 lb

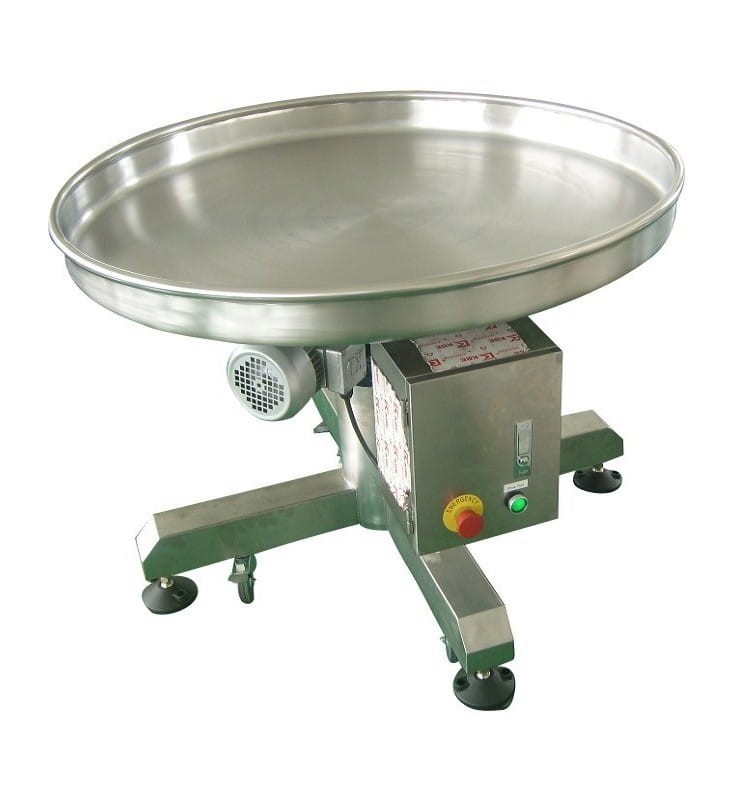

Collect table

Application:

It is mainly to collect products from conveyor, and turn around to convenient workers put products into carton.

Features:

Easy to use.

Technical parameters:

Height: 730+50 mm US 29 + 2"

Diameter: 1000 mm US 39"

Power: 230 V 50 Hz US 110 V

Machine dimension [L x W x H] 1600 x 550 x 1100 mm US 63" x 22" x 43"

Nitrogen generator

Application:

It is use to make a nitrogen. Nitrogen is inject into bag with zipper.

Nitrogen prolongs the life of the packaged product and prevents damage.

Features:

Easy to use.

You can't buy a nitrogen, you can produce it, as much as you need.

Technical parameters:

Power 5 kW

Power supply 230 V / 50 Hz US 110 V

Nitrogen Capacity 5 Nm³ / h

Nitrogen Purity ≥99.5%

Dew point ≤-38℃

Air source pressure 0.8-1.0 MPa

Nitrogen pressure 0.1-0.65 MPa

Machine dimensions [L x W x H] 1100 × 760 × 1250 mm US 43" x 30" x 49"

Weight 200 kG / 440 lb

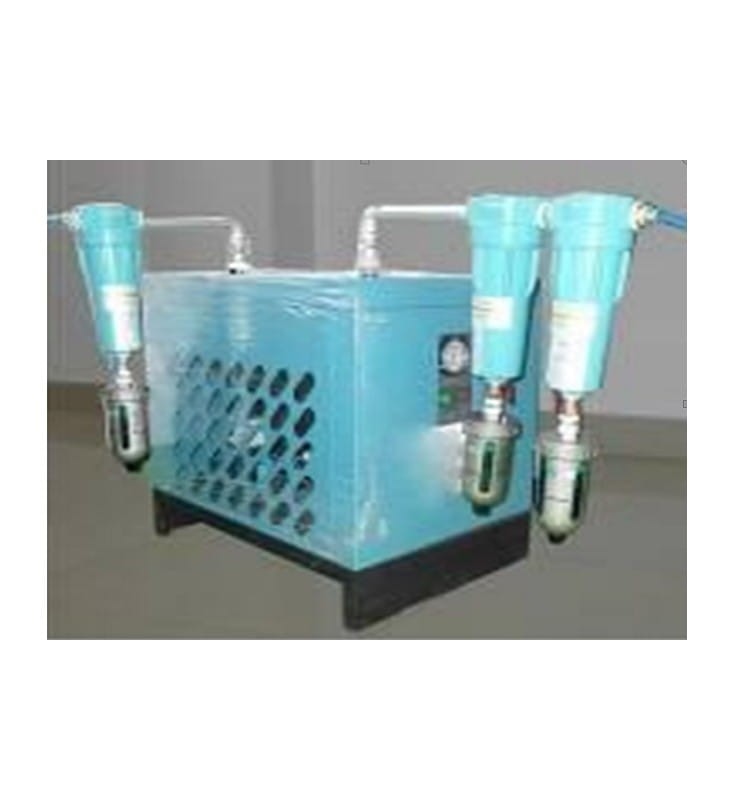

Refrigeration air dryer unit (included three precision filters)

Application:

Device was created to cool the device for nitrogen production.

Features:

Easy ot use.

Prevents overheating.

Technical parameters:

Power 0.5 kW

Power supply 230 / V 50 Hz US 110 V

Flow 1.2m³ / min.

Machine dimensions [L x W x H] 680 × 490 × 670 mm US 27" x 20" x 26"

Weight 60 kg US 132 lb

Precision Filter H-001

Flow 1.2m³ / min.

Disposal residues ＜0.01u

Residual oil content 0.01 ppm
