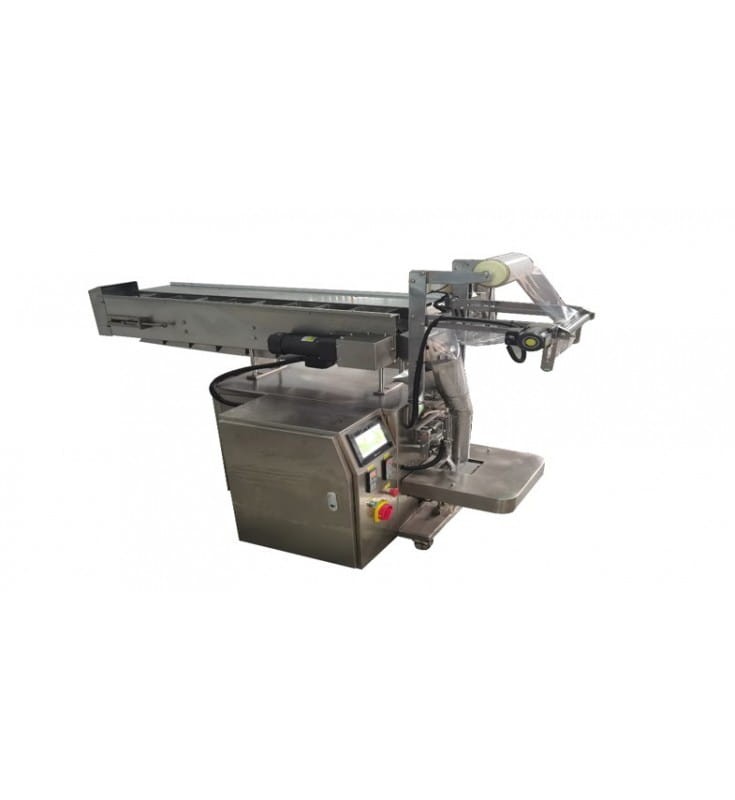

HORIZONTAL BUCKET VERTICAL PACKING MACHINE TCLB-260

Application:

Wagon sachet Only for automatic execution, e.g. dried fruit, candies, screws, buttons in foil pouches.

The products placed in the carriages fall successively to the sealing station, where they are deposited in bags formed from foil into a web.

Modern technology brings another level of efficiency.

The electronic control system synchronizes the operation of the machine.

This system provides high accessibility and space as well as dynamic strength.

High-quality components, including driver, immediate determination and device devices.

The kitchen sachet machine is equipped with a photocell and enables the creation of tief or printed foil sachets.

The device can run on multiple films.

It follows the induction in such a way as to make the risk of disease.

Sachet machine with a sachet on 3 sides - crosswise at the top, bottom and lengthwise

Functions:

Simple operation

Operation via the help program

High performance

High accuracy

Conveyor belt with 1.22 m² buckets

Technical data:

Power supply: 230 V / 50 Hz

Power: 1.2 kW

The length of the sachets: 30-150 mm

The width of the sachet: 20 - 120 mm

Capacity: 1 - 40 pcs / min.

Film thickness 0.03-0.06 mm

Device dimensions [length x W x H]: 1920 x 1220 x 1350 mm

Weight: 225 kg

Extra paid options:

Stamp
