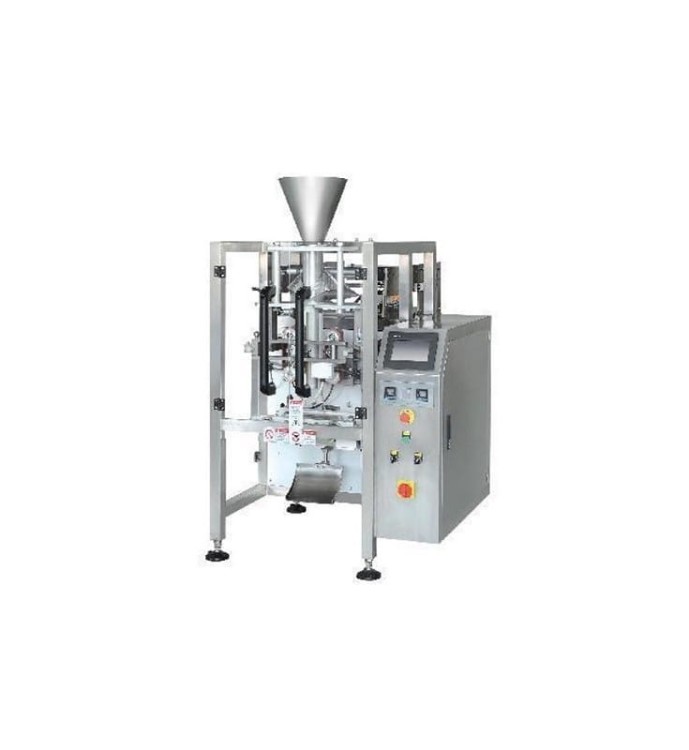

VERTICAL PACKING MACHINE TCLB-420AZ

Application:

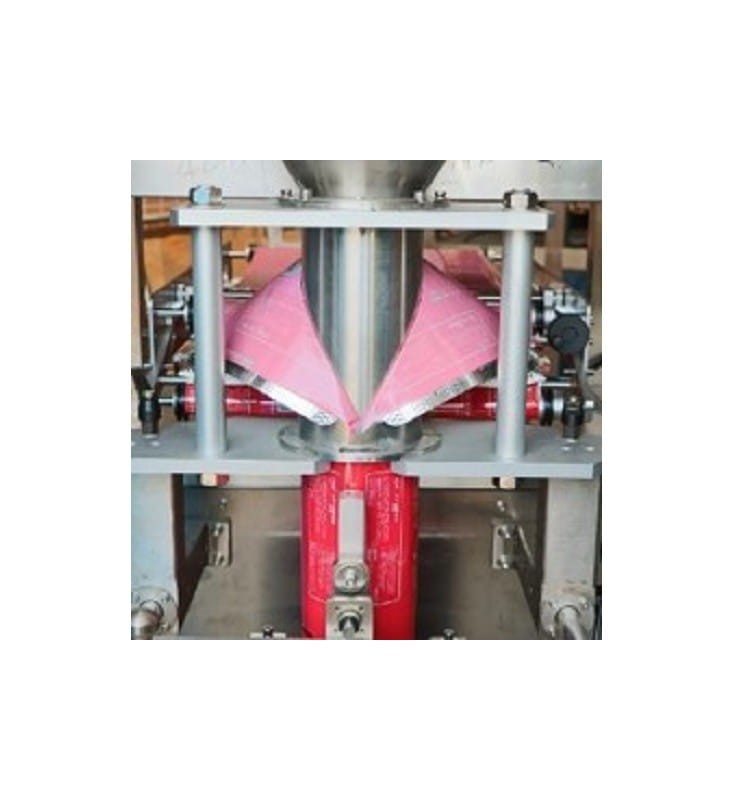

The device forms foil bags in the form of a web.

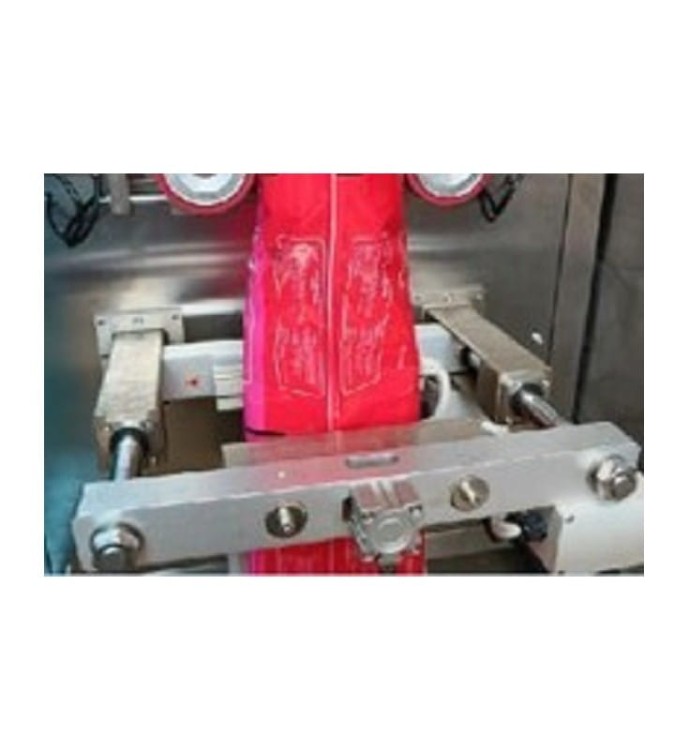

The sachet machine seals the sachets on 3 sides - crosswise at the top, bottom and longitudinally (the seal is created at the back, in the middle) - a pillow-type sachet.

The length of the sachet is adjustable with a simple panel.

The sachet machine is equipped with a photocell and enables the creation of sachets from smooth or printed foil.

Modern technology ensures the highest achievable level of efficiency.

The electronic control system synchronizes the operation of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology along with reliability, ergonomic design and easy cleaning allow for convenient use.

Independent temperature control.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

Simple operation.

Functions:

Simple operation

Ease of device adjustment

Forms sachets

PLC screen

The price includes:

Packing Machine

14 Head Weigher

Feeder

Platform

Conveyor belt

Technical data:

Packing Machine:

Power supply: 220 V, 50/60 Hz

Max film width: 420 mm

The width of the sachet, one fixed to choose from, 65-200 mm (you can buy a tube for a different width)

Sachet length adjustable: 80-300 mm

Max roll diameter: 320 mm

Speed: 5-75 pcs/min

Dose: 150-1500 ml

Film thickness: 0.04 - 0.08 mm

Dimensions: 1217 x 1015 x 1343 mm

Weight: 400 kg

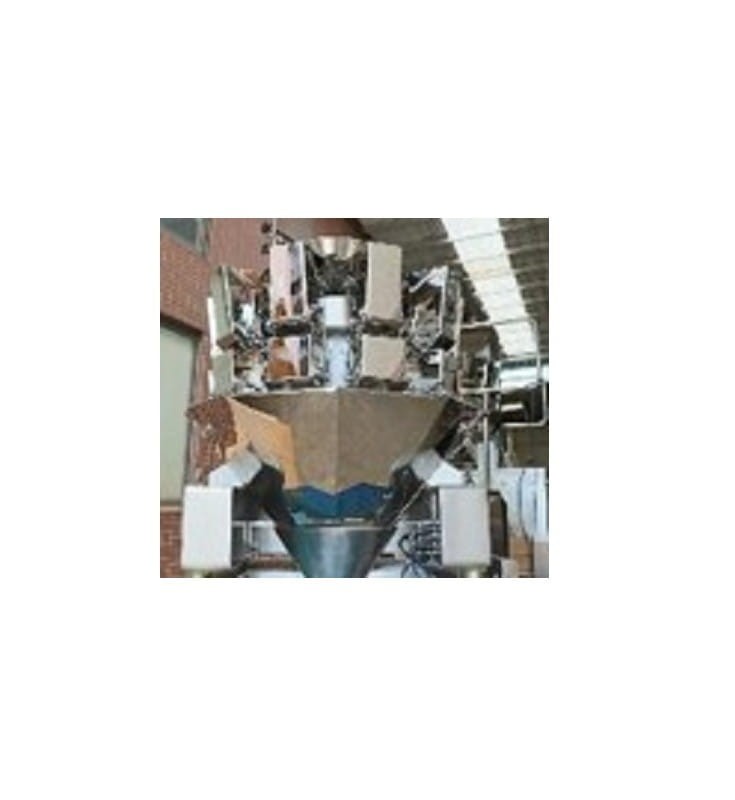

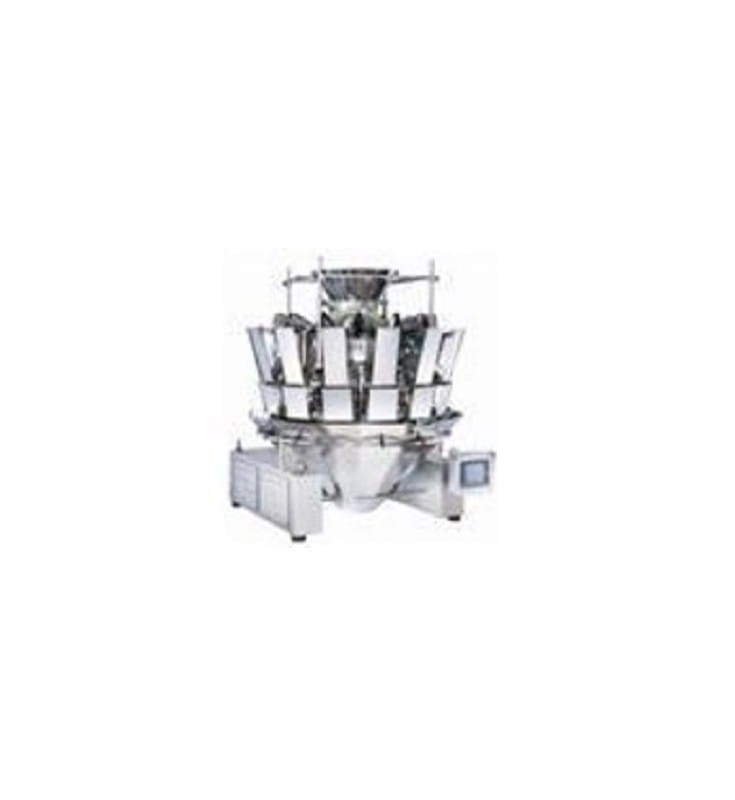

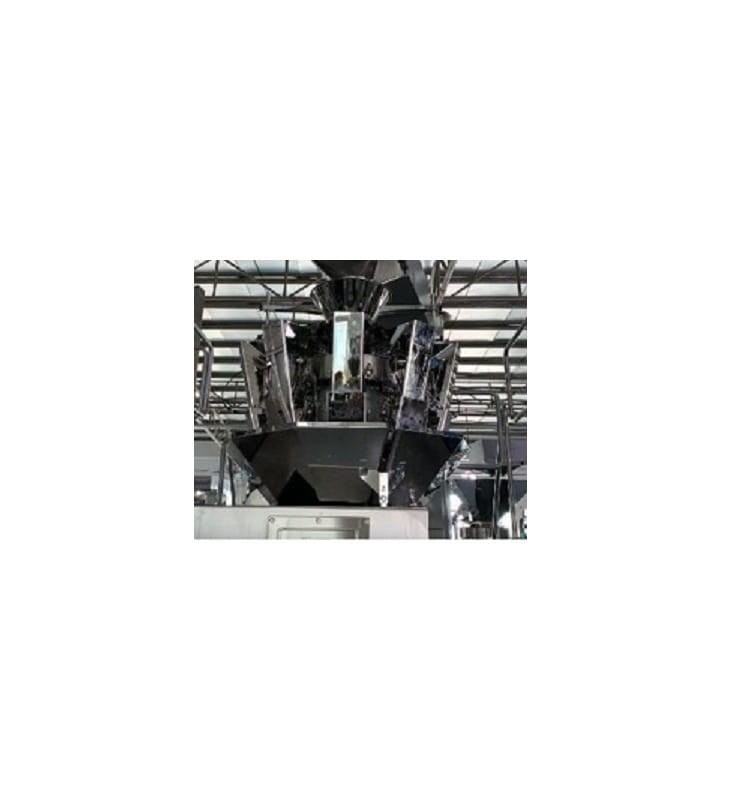

14 head weigher:

Power: 1 kW

Power supply: 220 V / 50 Hz

Weighing: 10-1000 g

Accuracy: 0.5 - 2 g

Dispenser volume: 1600 ml

Dimensions: 1620 x 1100 x 1100 mm

Weight: 420 kg

Z-type feeder:

Power: 750 W

Power supply: 380 V

Product feeding height: 3 m

Speed: 0-17 m/min, approx 6 m3/h

Platform:

Dimensions: 2000 x 2000 x 1800 mm

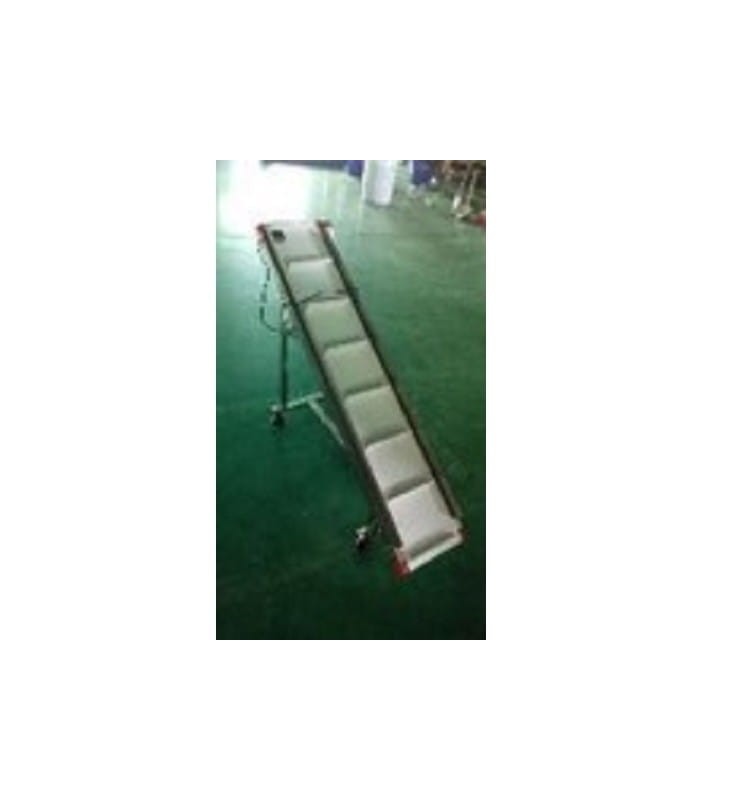

Conveyor:

Power: 90 W

Power supply: 220 V

Weight: 50 kg
