ROTARY PACKING MACHINE HLTC-820

Application:

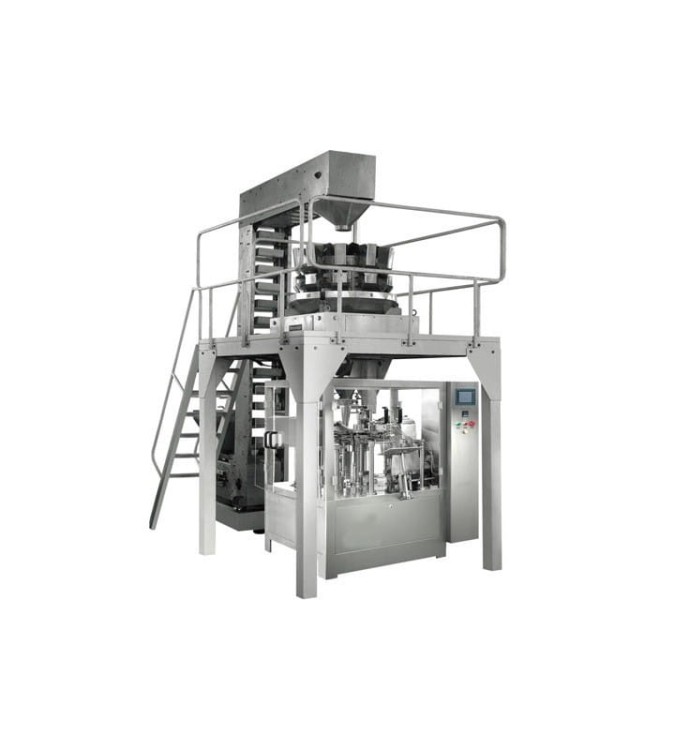

Fully automatic line designed for filling ready-made doypack bags with granules (and other solid products), and closing them.

It is suitable for products of various sizes, eg pasta, sweets, biscuits, dried fruits, coffee beans, dry food for animals and others.

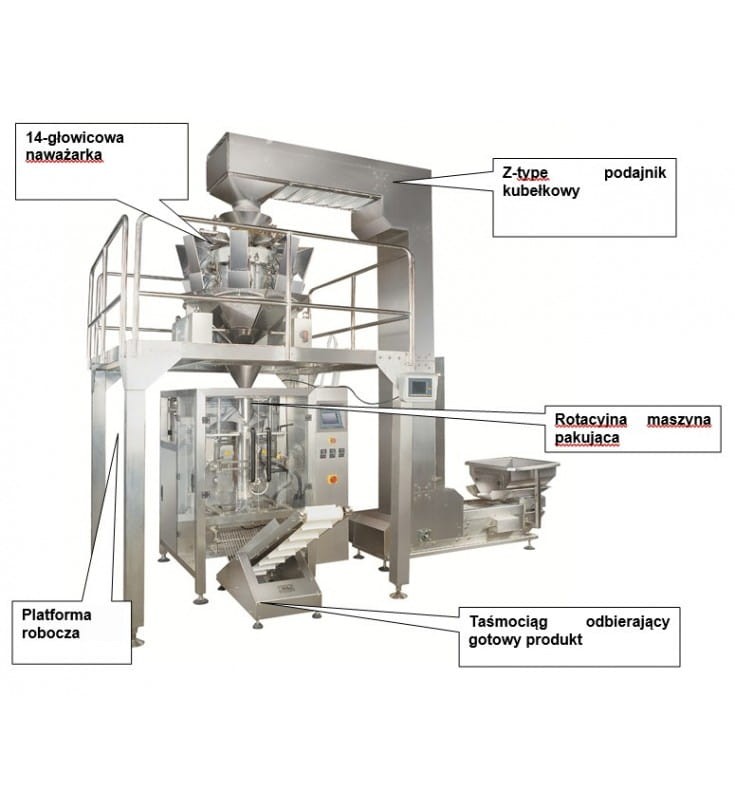

The product is fed with a "Z" type elevator to a 14-head computer weigher, where it is portioned and passed to the packaging machine.

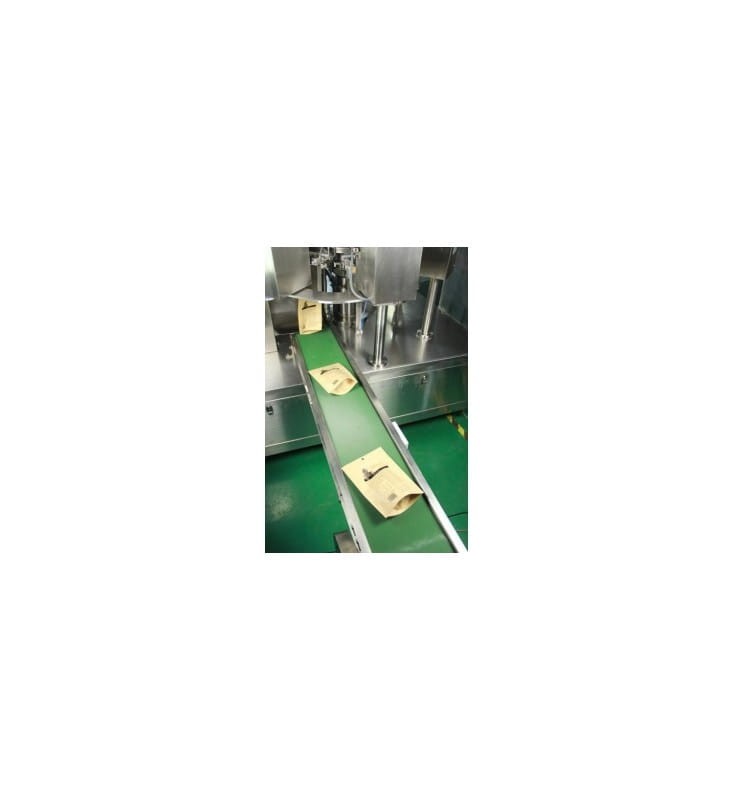

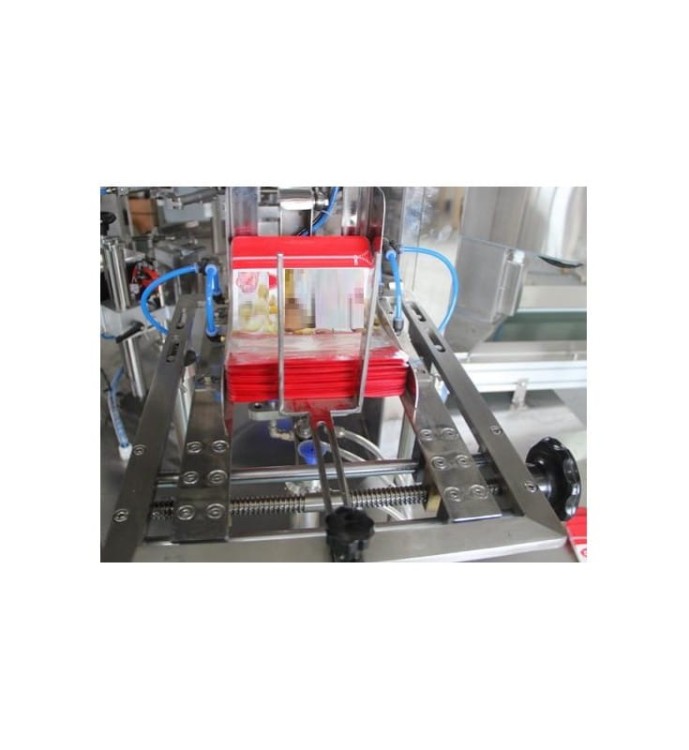

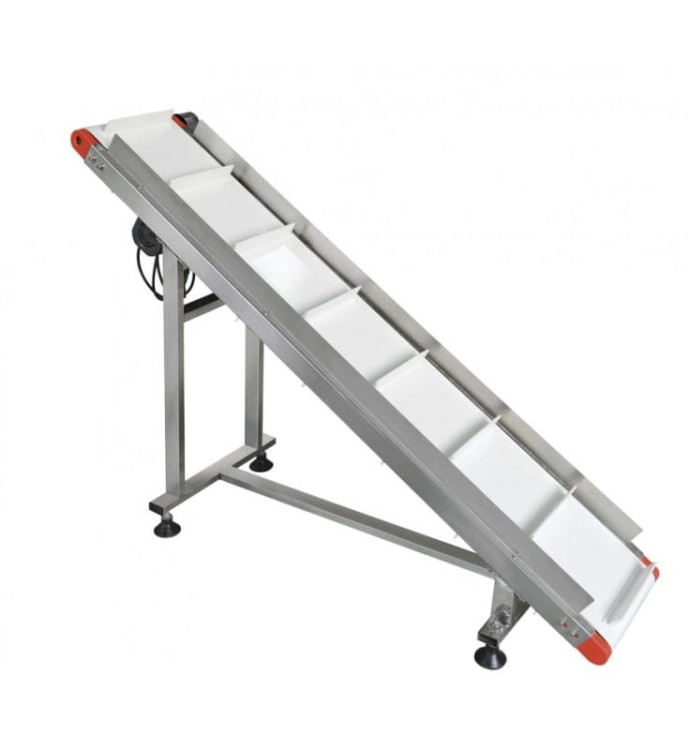

The packaging machine is opened each bag, filled and closed and then discharged by an external conveyor.

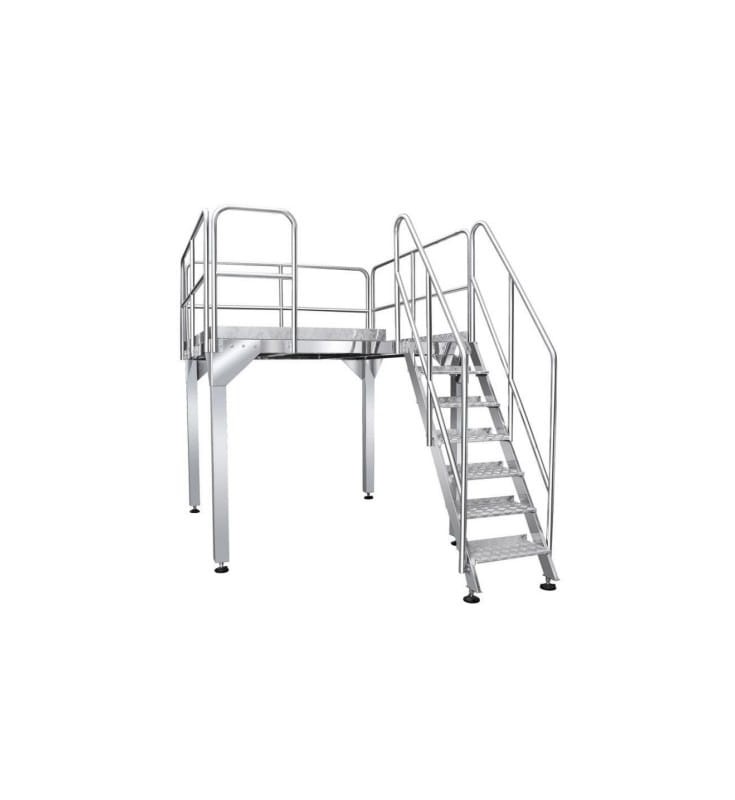

The last element of the line is a platform for controlling the packaging process and maintaining the balancers.

Functions:

Easy-to-use touch screens, solid construction, high quality components.

Operational stability is guaranteed by PLCs.

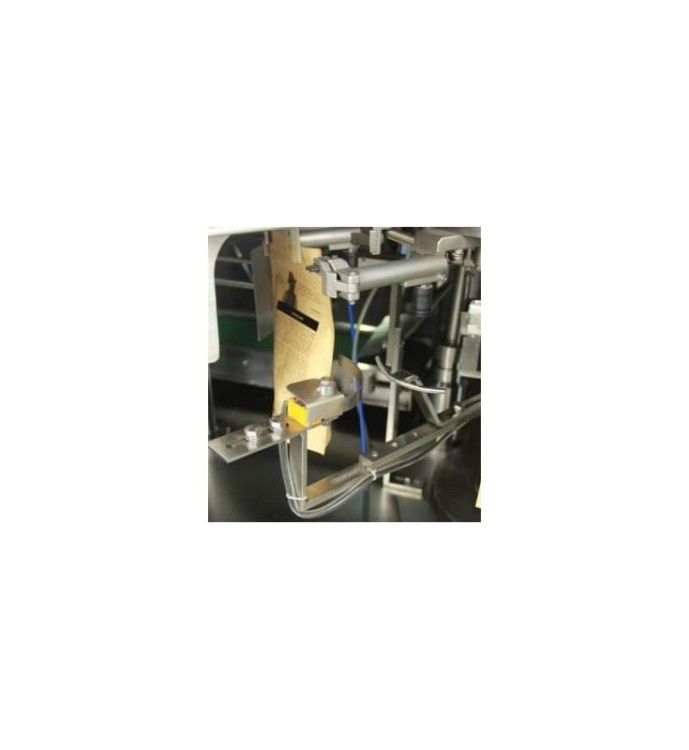

The packaging machine is equipped with a bag detection system - when there is no bag or bag in the packing station it is not open enough to dispense.

Devices made of stainless steel.

Doypack zipper opening function

Date printer

Technical data:

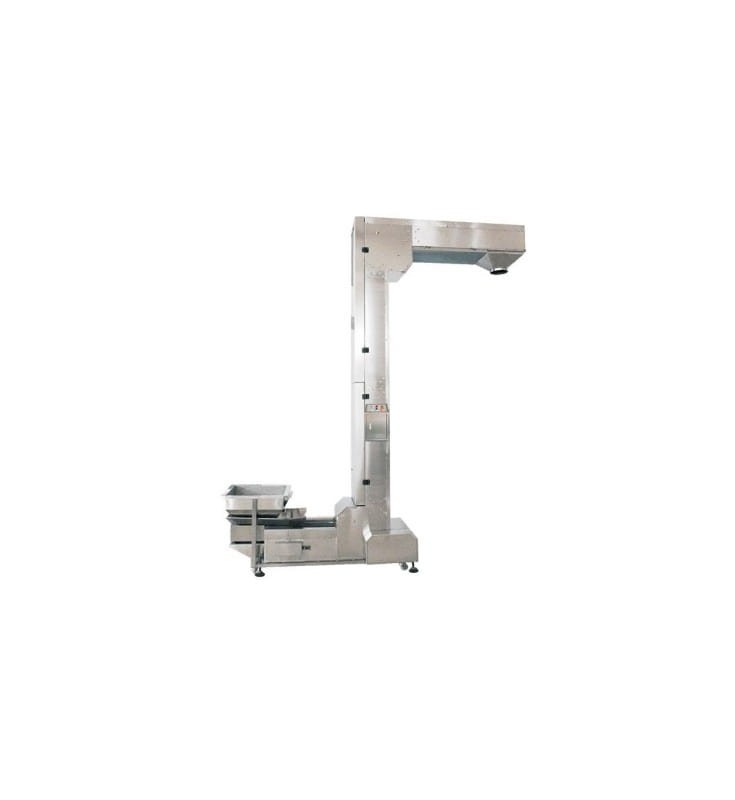

Z type elevator

Power: 1 kW

Power supply: 380 V / 50 Hz

Capacity: 4 m3 / h

Weight: 550 kg

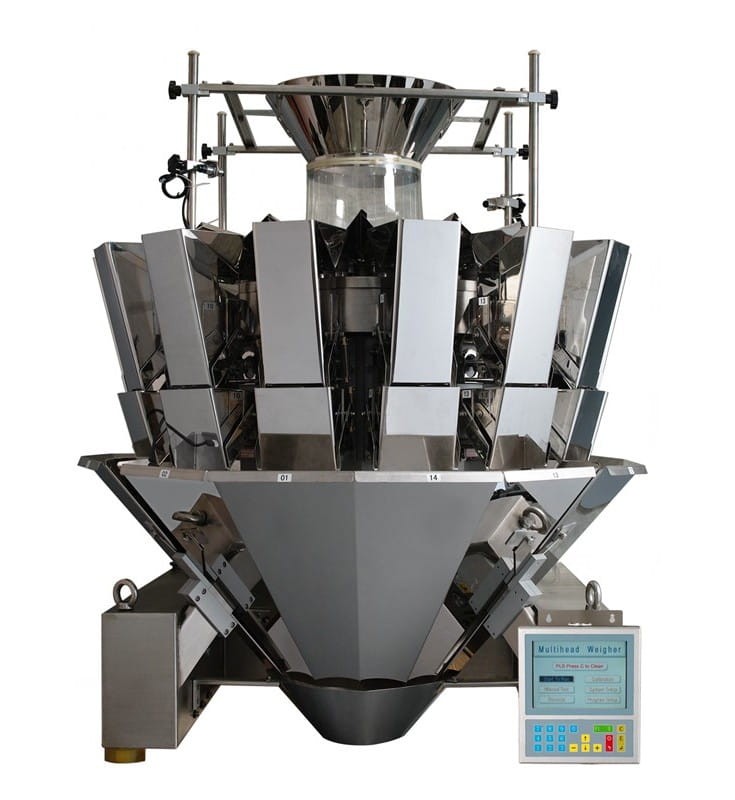

A14-1-1 computer weigher

Power supply: 220 V / 50 Hz

Dose: 100-2500 g

Accuracy: 0.2-2.0 g

Hopper volume: 1.6 L / 2.5 L

Capacity: 60 pcs / min

Dimensions: 1700 x 1110 x 1100 mm

Weight: 480 kg

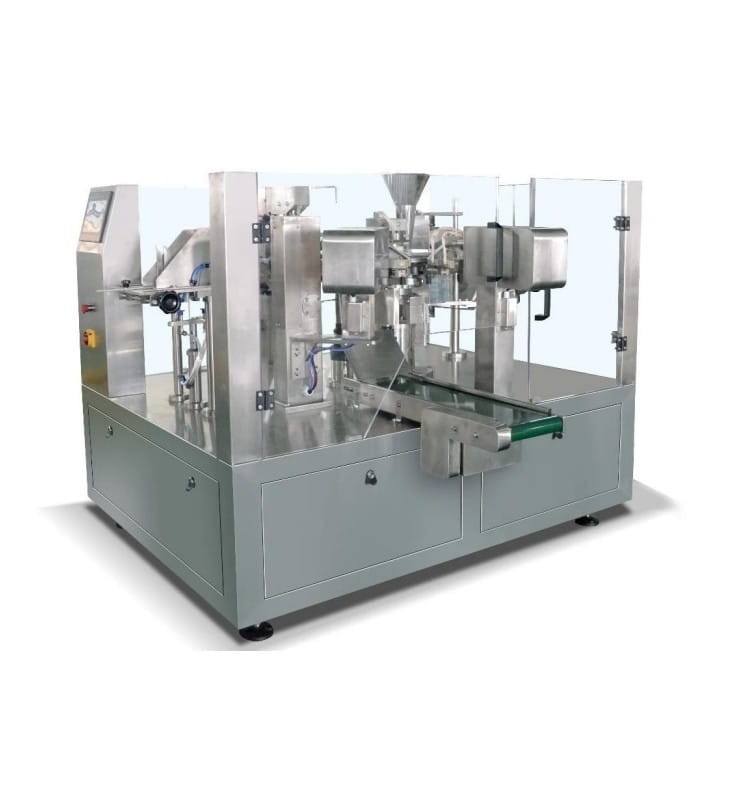

Rotary packaging machine GDD-300

Power: 0.5 kW

Power supply: 220 V / 50 Hz

Air consumption: 0.5 m3 / min, 0.7 MPa

Capacity: 10-15 pcs / min

Bag width: 100 - 200 mm

Bag length: 110 - 430 mm

Seal width: 10 mm

Maximum thickness of single layer film: <0.08 mm

Dose: Max. 2000 g

Dimensions: 1772 x 676 x 1518 mm

Weight: 315 kg
