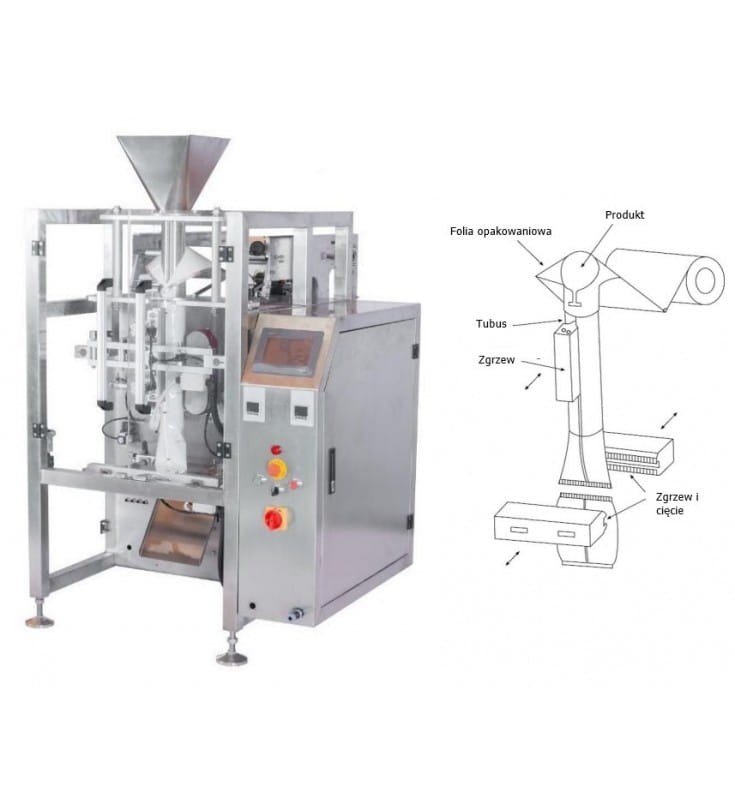

VERTICAL POWDER PACKING MACHINE WITH AUGER WEIGHER HTL-520F

Application:

Complete line for powder packaging, for eg. flour, spices, powder.

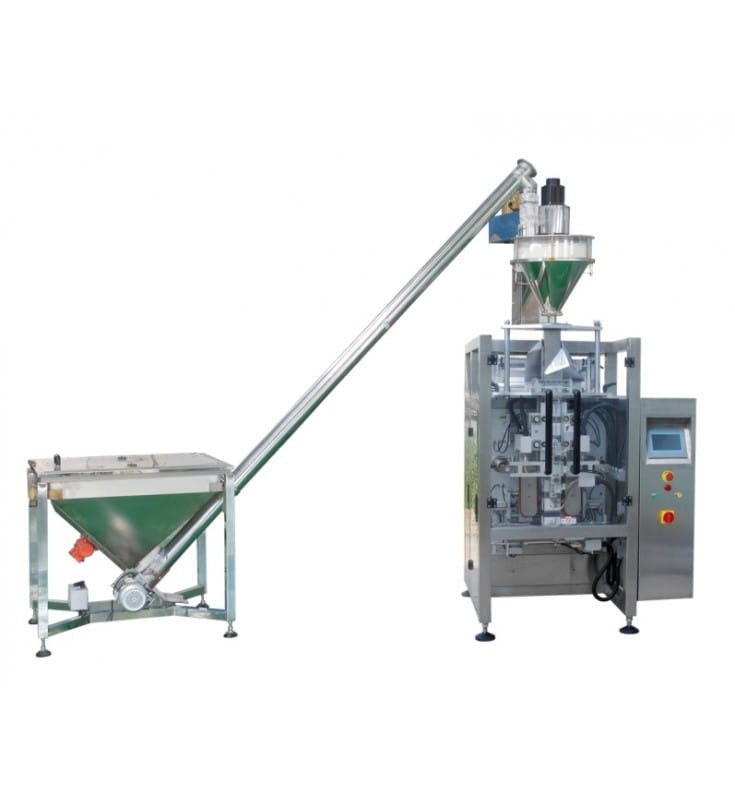

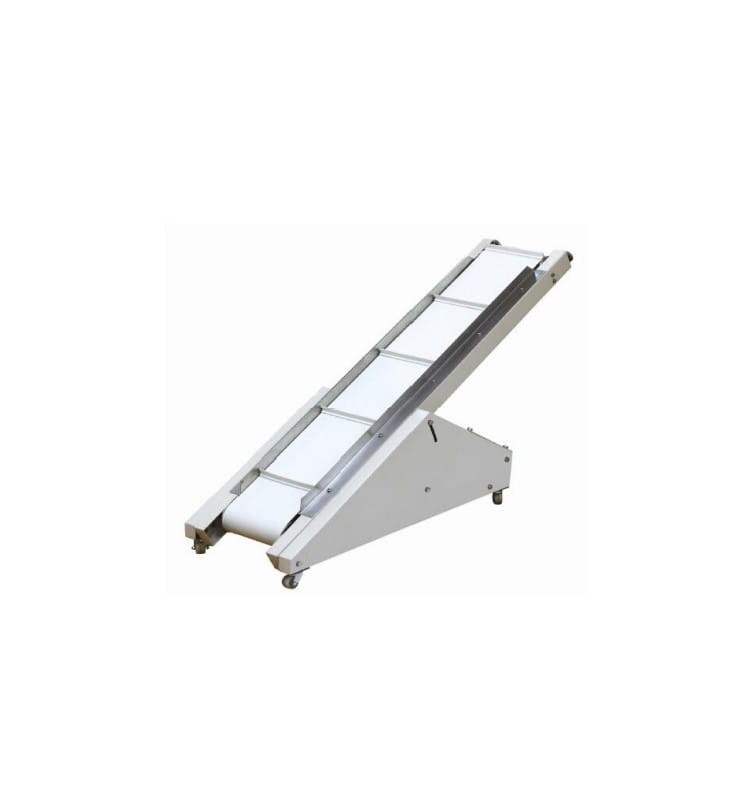

The line consists of a screw dispenser system, a powder packaging machine, a webbing bag (VFFS system) and a conveyor belt that delivers ready-made bags.

Functions:

Easy to use and maintenance.

High quality japanese and european components.

Elements in contact with the product and conveeyur are made of stainless steel 304.

Technical parameters HTL-520F:

Power: 3.8 kW

Power supply: 230 V / 50 Hz  US 110 V

Air Consumption: 0.36 m³ / min, 0.6 MPa

Bag-making size range [L x W]: 80-400 mm x 80-250 mm
Film width range: 180 mm - 520 mm
Packing filling range: 50 - 2000 g
Film thickness range: 0.04 mm - 0.08 mm
Packing material: paper. OPP/CPP. Pet/PE. Pet-Al/PE, composite material

Dimensions [L x W x H]: 1055 x 1500 x 1750 mm
Weight: 650 kg

Possibility to upload the menu in other language.

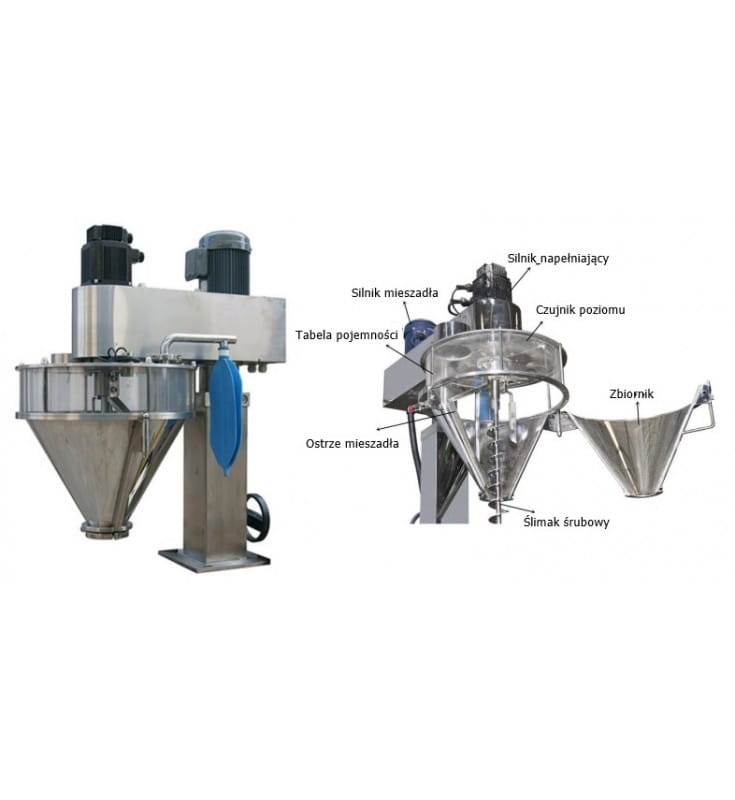

Screw powder dispensing system:

Power: 1,9 kW

Power supply: 380 V / 50 Hz

Filling weight: 10 - 2000 g

Accuracy: 100-1000g: <0.3-1%; >1000g: <0.25-.5%

Capacity: 30 - 70 dos/min

Tank capacity: 50L

Dimensions [LxWxH]: 1060 x 650 x 1100 mm

Weight: 220 kg

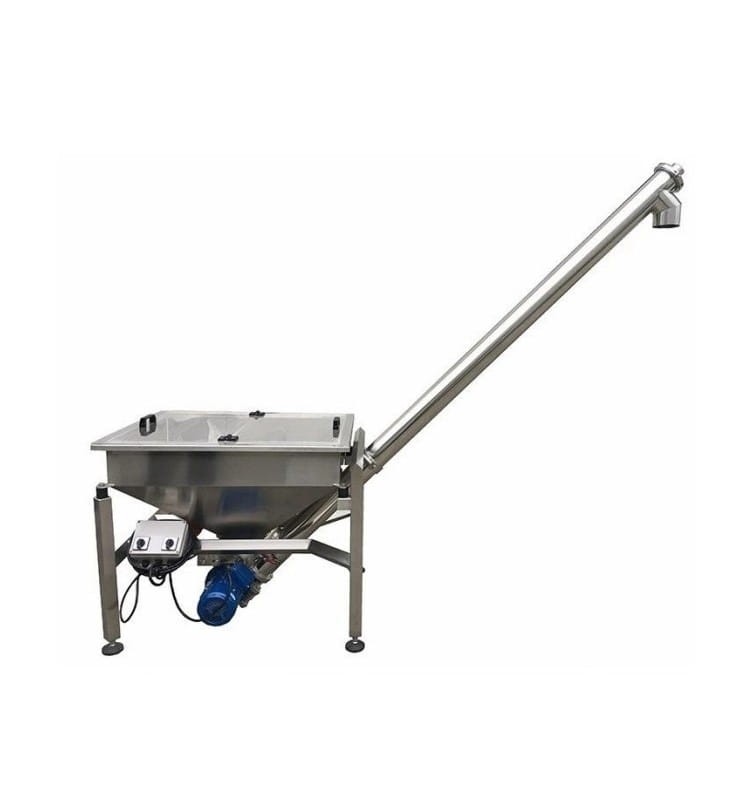

Screw feeder:

Power: 1,9 kW

Power supply: 380 V / 50 Hz

Speed: 3 m3/h

Tube diameter: 114 mm

Tank capacity: 230L

Dimensions [LxWxH]: 1000 x 800 x 900-1800 mm

Weight: 180 kg

Extra paid options:

Tube for a different width of the sachet

Gas flushing device

Tank vibrations

4 sided weld

Incision for easy opening
