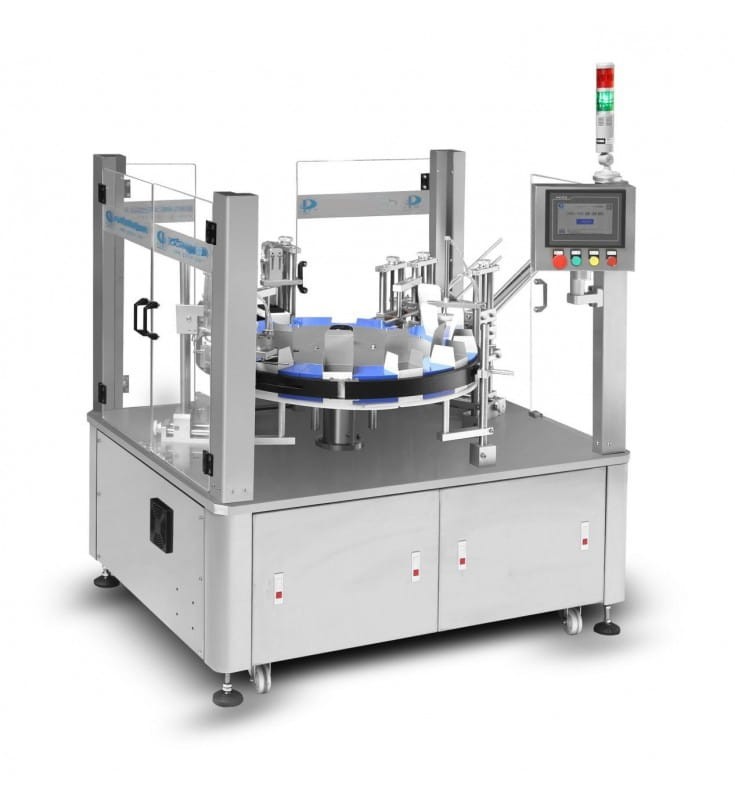

VERTICAL BOX FILLING MACHINE DJ-50D

Application:

Vertical machine designed for filling ready-made boxes with granules (and other solid products) and closing them.

It is suitable for products of various sizes, eg pasta, sweets, biscuits, dried fruits, coffee beans, dry food for animals and others.

The packaging machine is opened each box, filled and closed and then discharged by an external conveyor.

The feeder and weigher visible in the video are in our offer for an additional payment.

Functions:

Easy-to-use touch screens, solid construction, high quality components.

Operational stability is guaranteed by PLCs.

The packaging machine is equipped with a box detection system - when there is no box or box in the packing station it is not open enough to dispense.

All elements in contact with the product have a smooth surface or are made of 304 steel, resistant to corrosion.

Technical data:

Power: 1.5 kW

Power supply: 220 V / 50 Hz

Air consumption: 260 l/min

Air pressure 0.5-0.8 MPa

Capacity: 20-40 pcs/min (depends on the size of the box and the size of the dose)

Max. box dimensions: 200 x 70 x 70 mm

Min. box dimensions: 60 x 20 x 20 mm

Packaging thickness: 250-350 g/m3

Dimensions: 1100 x 1500 x 1700 mm

Weight: 450 kg

Additional paid options:

Weigher and feeder
