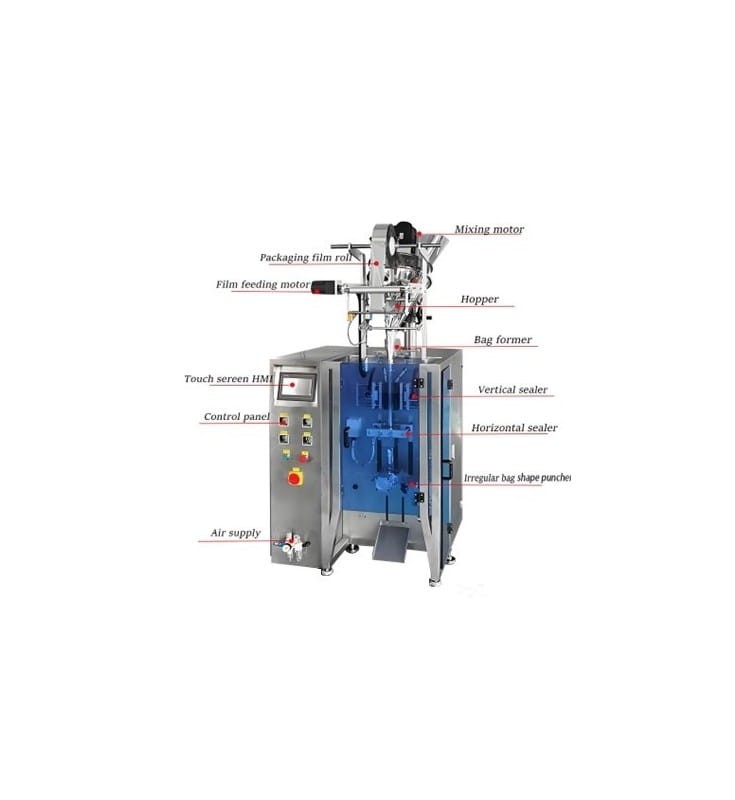

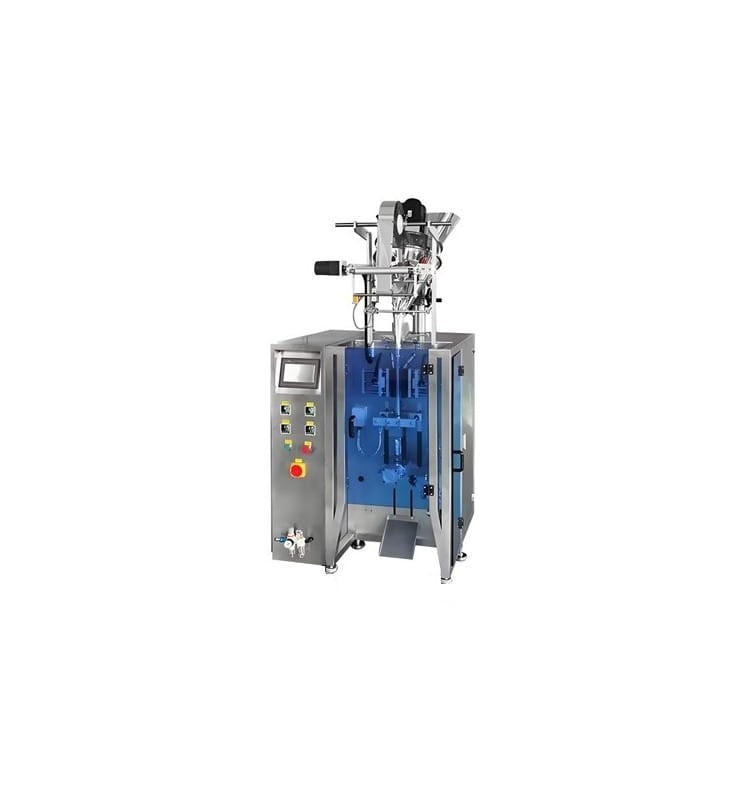

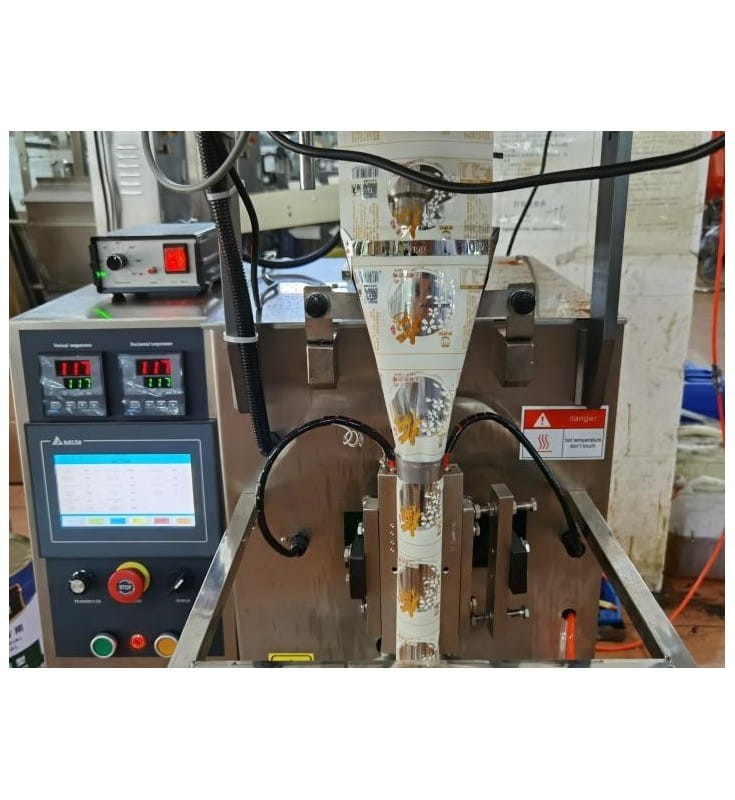

VERTICAL SACHET POWDER PACKAGING MACHINE UN-C60F

Sachet machine for packing loose products, in the form of powder.

It can work on various types of foil: PE, foil + aluminum laminates, foil + paper, nylon, BOPP.

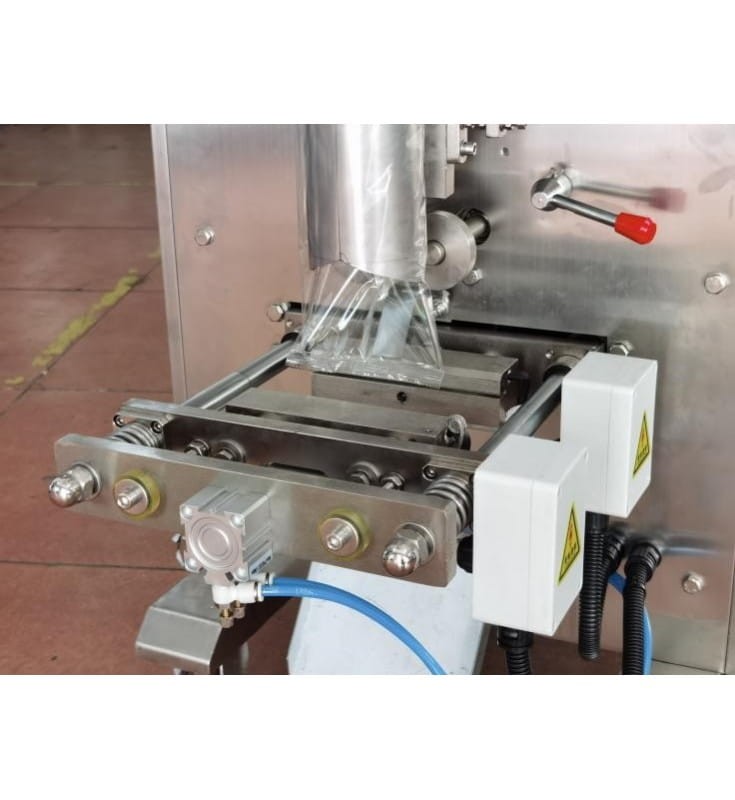

The sachet machine seals the sachets on 3 sides.

Modern technology ensures the highest achievable level of efficiency.

The electronic control system synchronizes the operation of the machine.

Modern technology along with reliability, ergonomic design and easy cleaning allow for convenient use.

The machine may be intended to come into contact with food articules.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel 304.

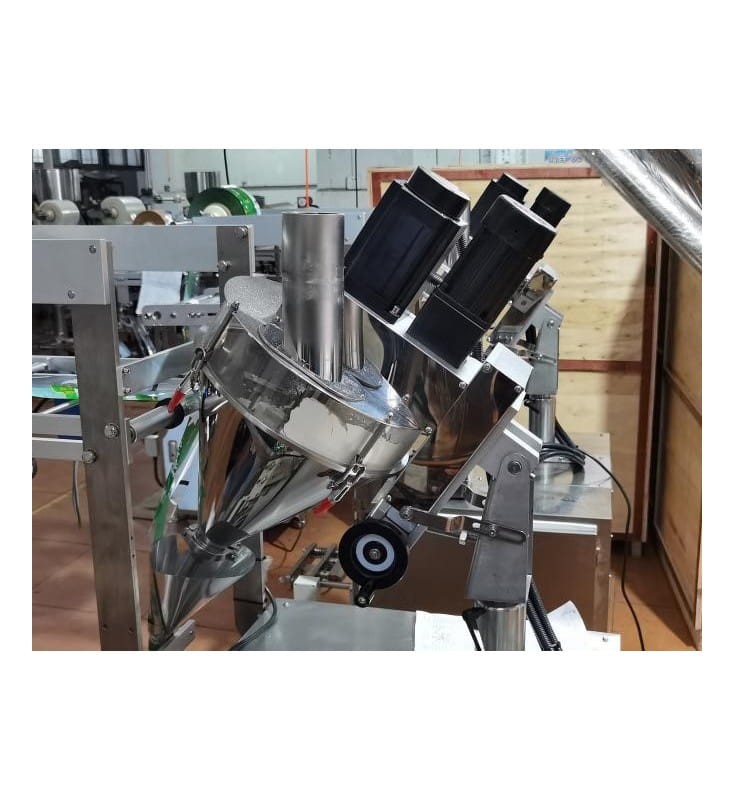

Inclined hopper screw.

It adopts high-precision auger filling system.

Functions:

Simple operation.

High precision.

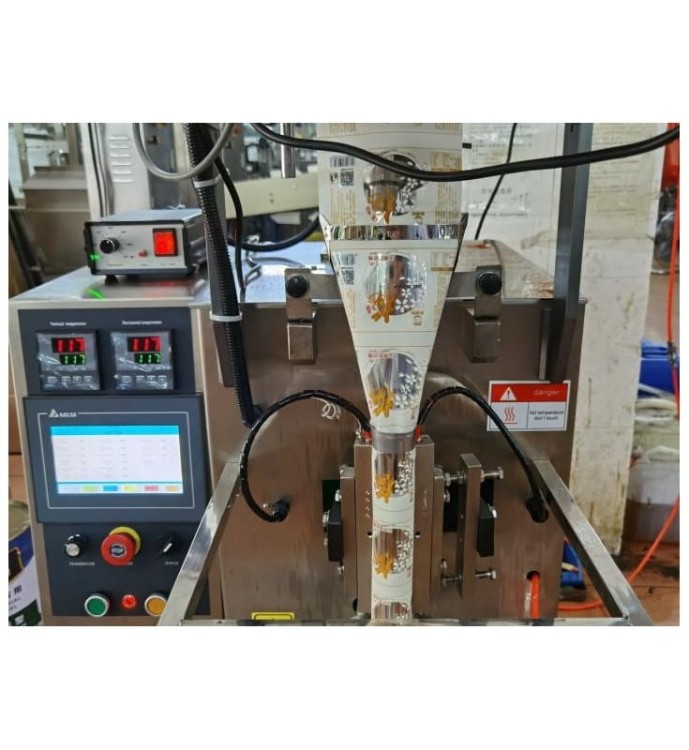

Independent temperature control.

The length of the sachet is adjustable with buttons

The sachet machine is equipped with a photocell and enables the creation of sachets from smooth or printed foil.

Technical data:

Tank capacity: 15 kg

Filling accuracy: +/- 3%

Material density range: 0.6-2.0 g/ml

Capacity: 15-60 sachets/min

Sachets length: 30-210 mm

Sachets width: max. 110 mm

Film width: max. 200 mm

Biggest film diameter: 300 mm

Dosage: 20-250 ml

Dimensions (L x W x H): 650 x 780 1650 mm

Weight: 200 kg

Extra paid options:

Tank vibration

Tube for different width of the sachet

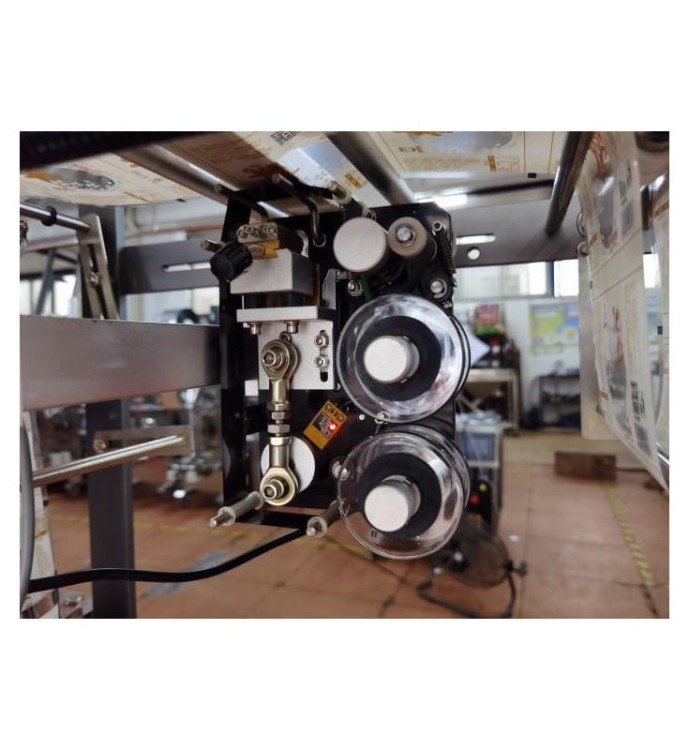

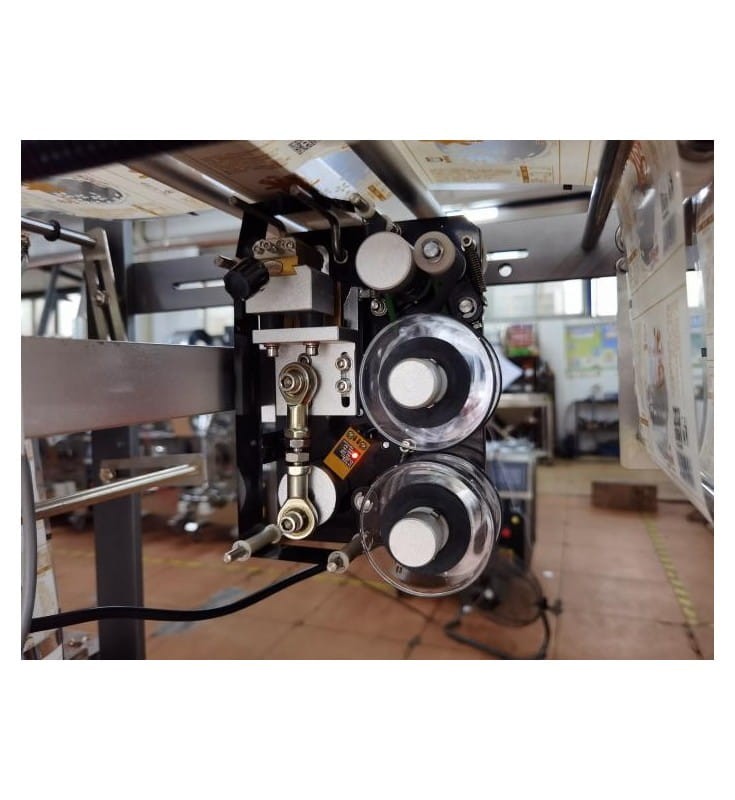

Date printer

Notch for easy opening of sachets

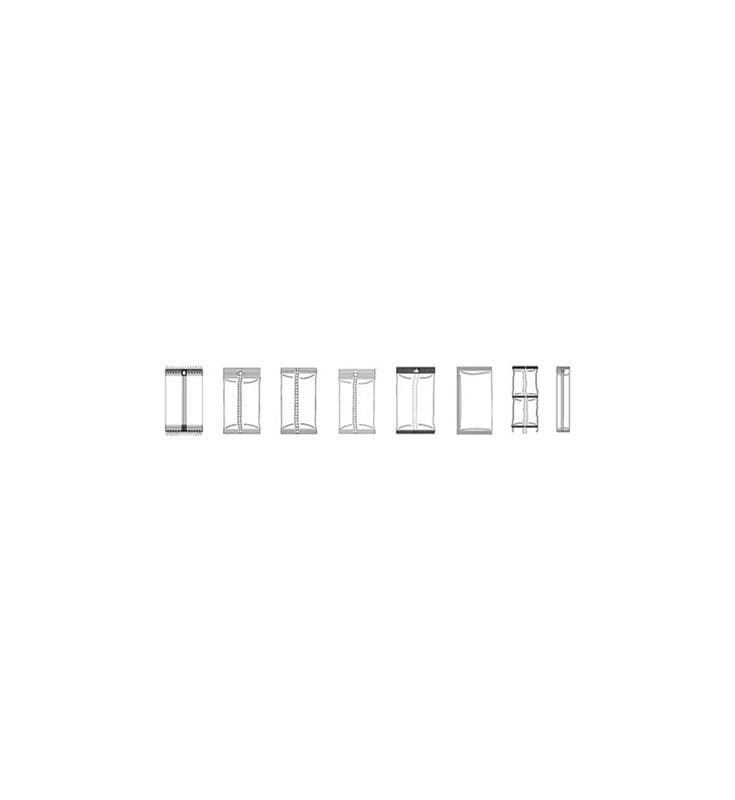

Other type of sachet: 3-sided, 4-sided, overlapped or pyramid seal

Version with elements in contact with the product made of 316 steel
