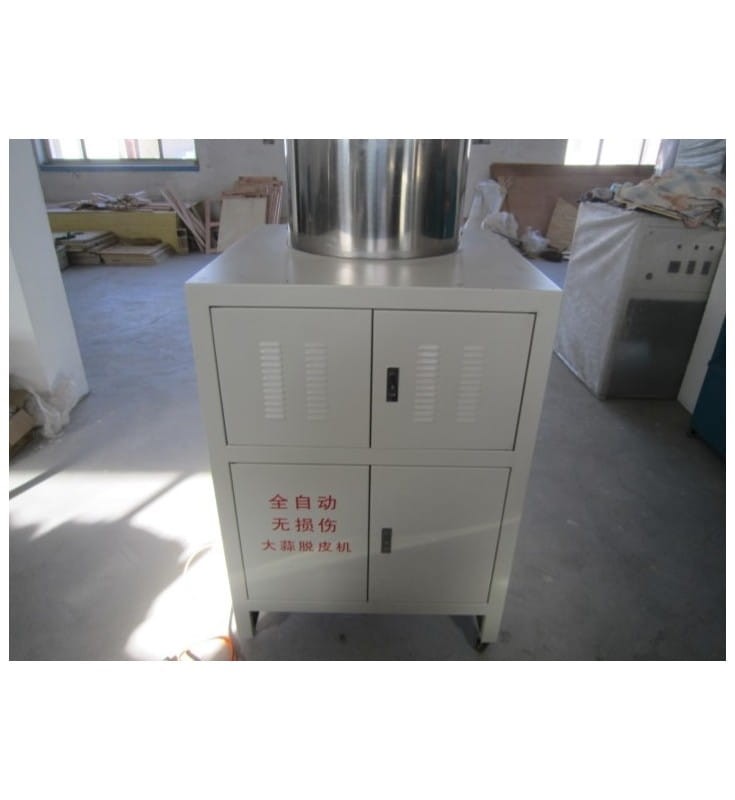

GARLIC PEELING MACHINE GG-200

Application:

Simple but efficient device for peeling garlic.

The shelling process does not involve blades or other sharp elements, thanks to which the surface of the peeled teeth has no damage.

Functions:

The teeth are deprived of the shell by a pressurized air stream.

Set the number of cloves that fall into the peeling chamber by adjusting the hopper opening time - the longer the hopper is open, the more cloves fall into the chamber.

Shells are blown out of the device.

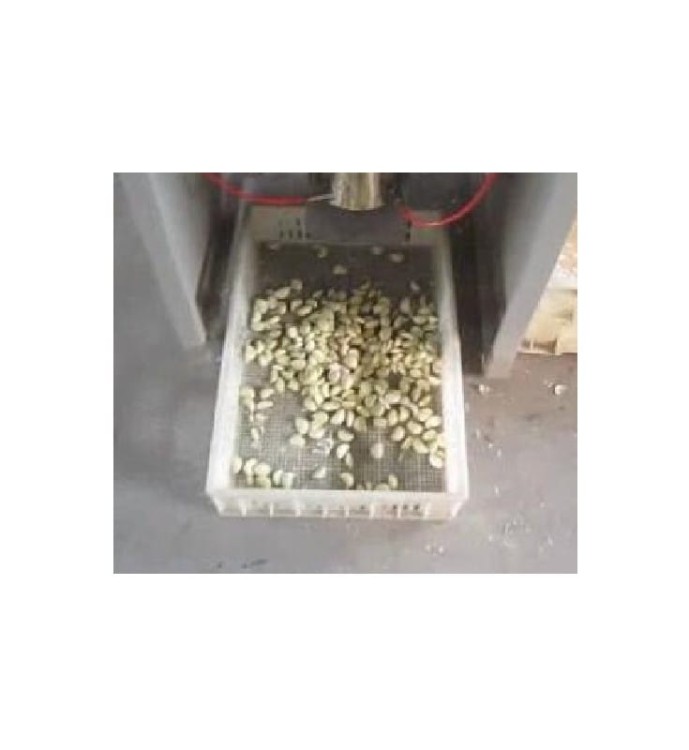

After the shells are blown out, the machine door opens, the peeled teeth fall out at the bottom, and another portion goes into the chamber.

Chamber filling time and shell blowing time are set on the control panel.

All surfaces in contact with the product have a smooth surface and are made of stainless steel, resistant to corrosion.

Compressed air source required.

Technical data:
Power: 3.2 kW

Power supply: 230 V / 50 Hz  US 110 V
Capacity: 180-280 kg/h  US 396 - 617 lb/h
External dimensions [L x W x H]: 600 x 900 x 1650 mm  US 24 x 36 x 65"

Air source parameters:
Power: 11 kW

Air pressure: 0,6 - 0,8 MPa

Capacity: ok. 1 m³ / min.
