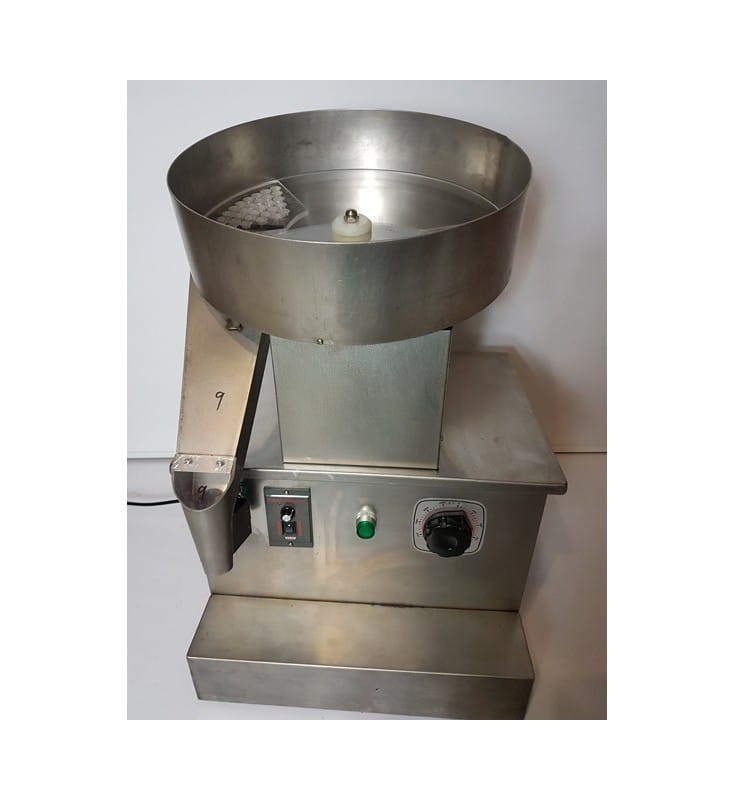

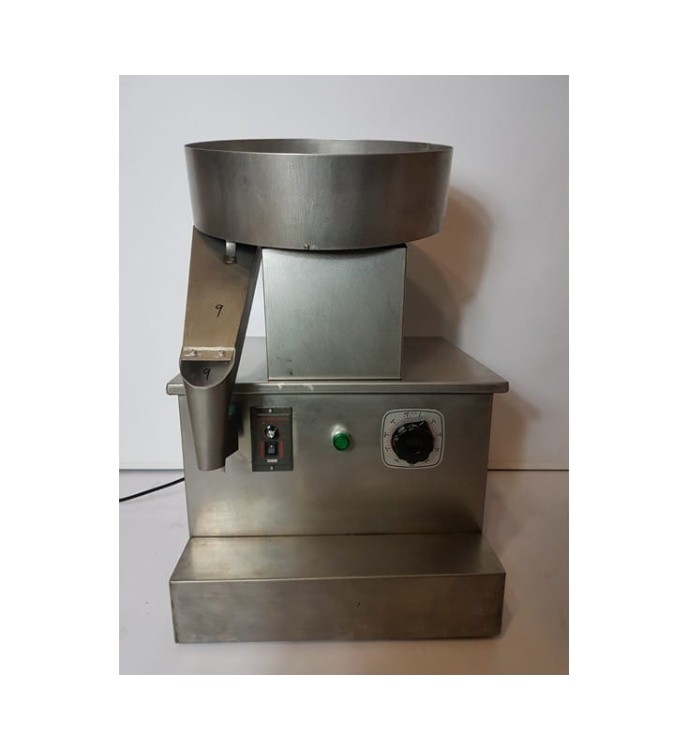

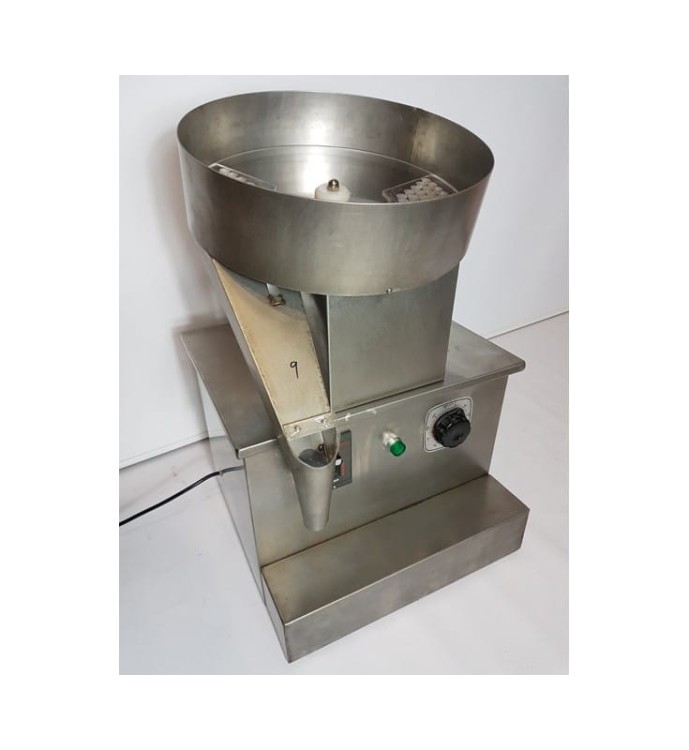

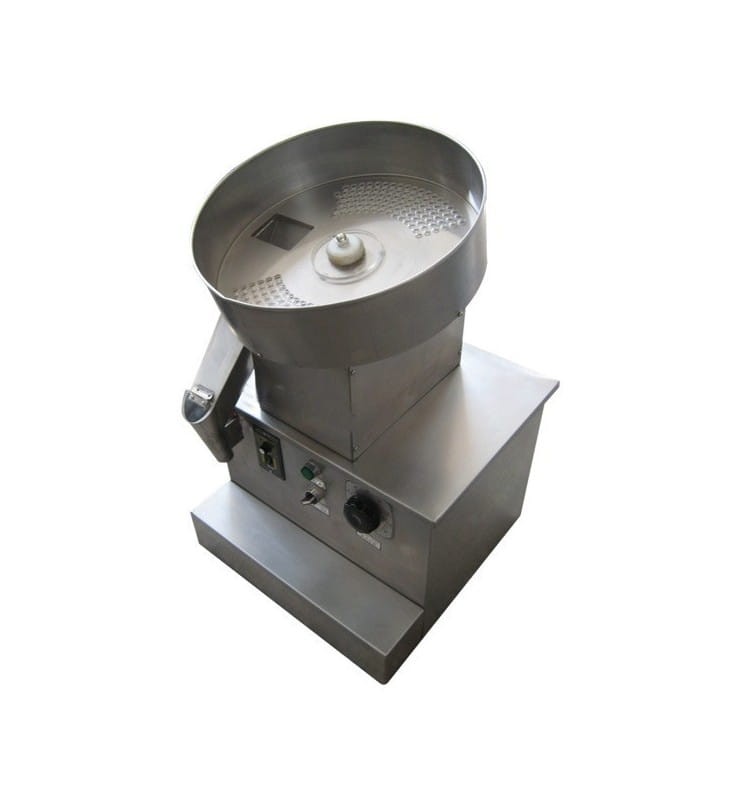

LTPJ-100 / ZN-400 DISPENSER LABEL TABLETS

Application:

Semi-automatic device designed for dispensing tablets, capsules, etc.

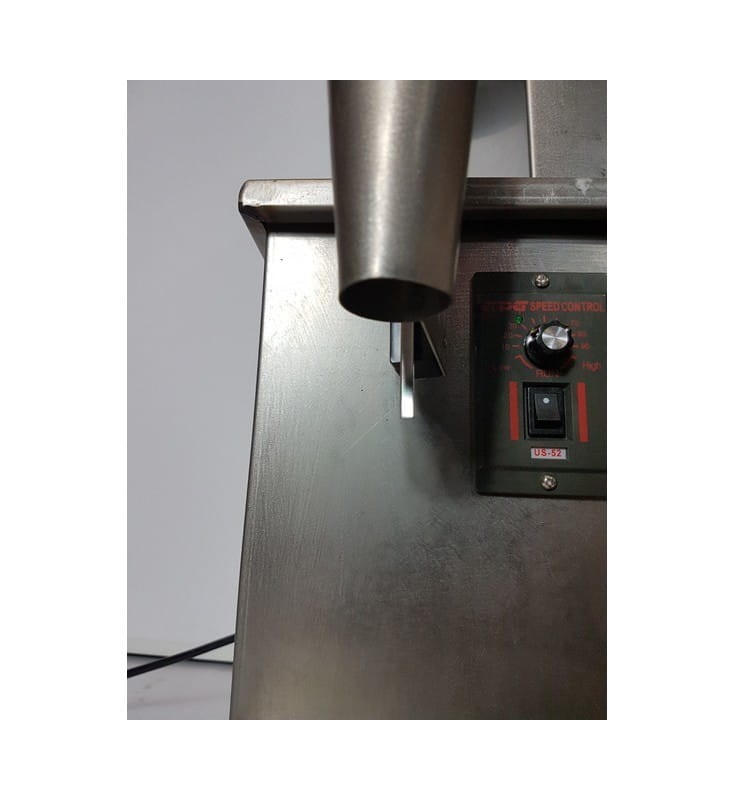

The machine counts the set number of product and fills it with the containers placed at the outlet.

Functions:

Simple operation.

Accurate counting.

The elements in contact with the product are smooth or made of 304 steel, resistant to corrosion.

Note - the device is not universal - the price applies to the device with one module adapted to dispense a fixed number of products of one size specified by the customer.

One module included in the price of the device.

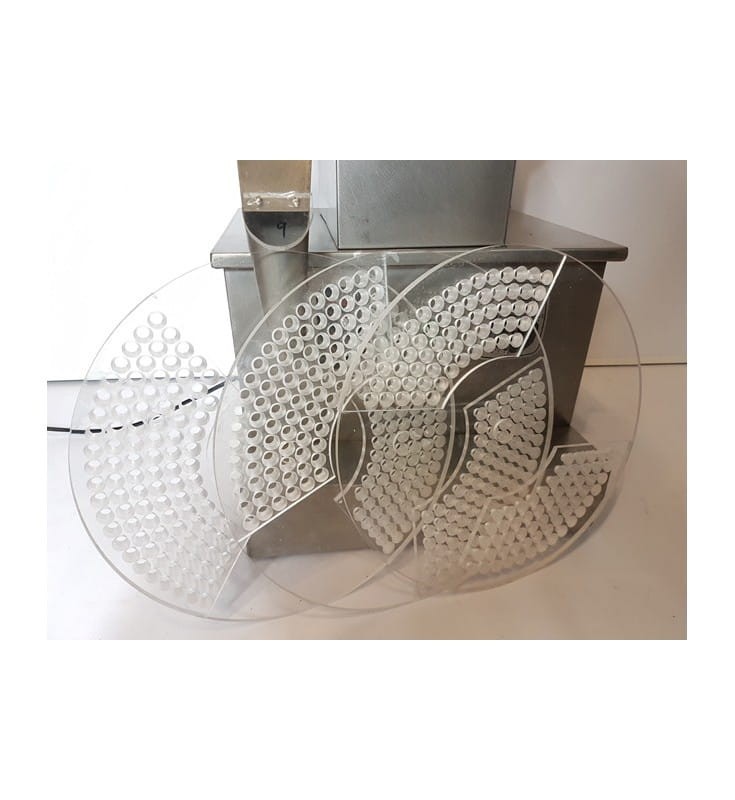

Subsequent, allowing the dosing of a product with different dimensions and quantities (the number of loading sockets in the form determines the counting amount, e.g. 100) are additionally payable.

There are 3 modules available for sizes:

1) 00 #, 0 #, 1 #

2) 2 #, 3 #

3) 4 #

Technical data:

Power: 0,55 kW

Power supply: 220 V / 50 Hz

Capacity: 12 - 26 cycles / min

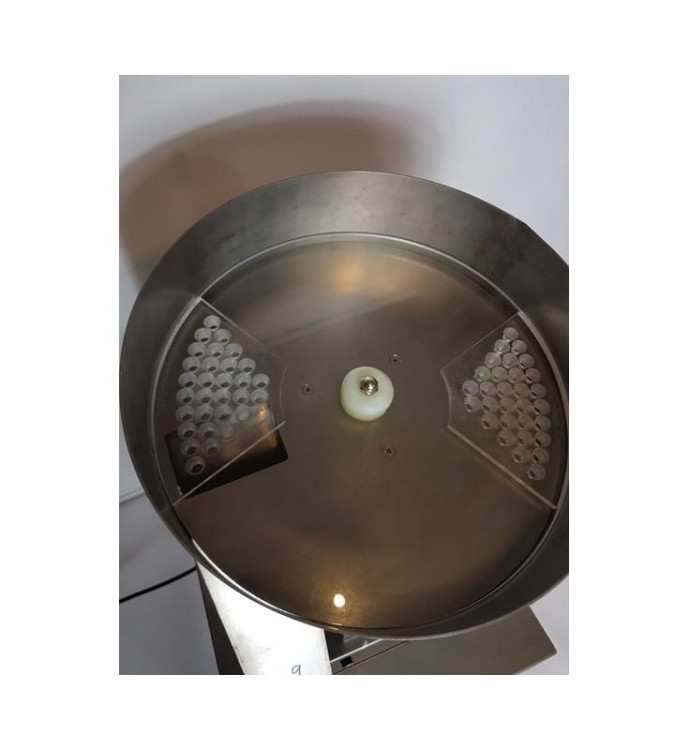

Hole quantity of plate: 5-100 (optional)

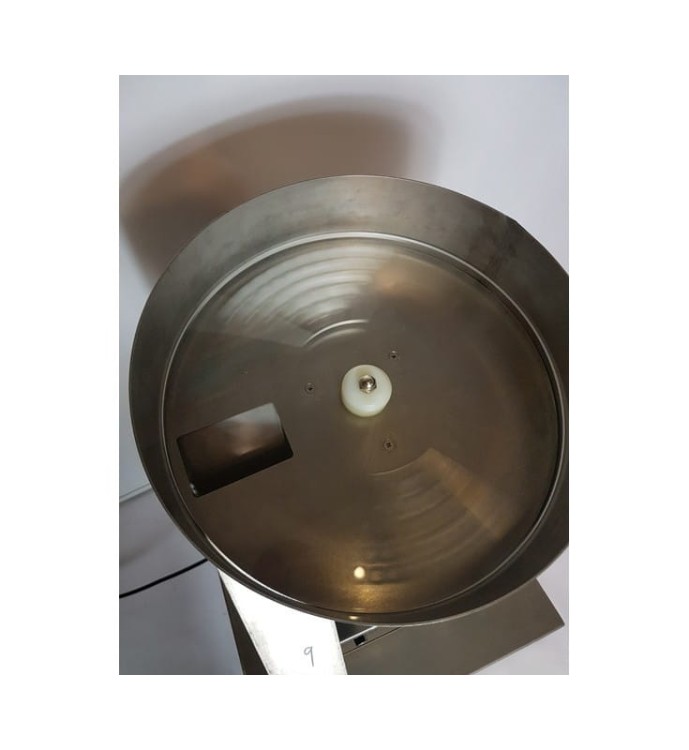

Plate diameter: 400 mm

External dimensions [L x W x H]: 540 x 540 x 905 mm

Weight: 60 kg
