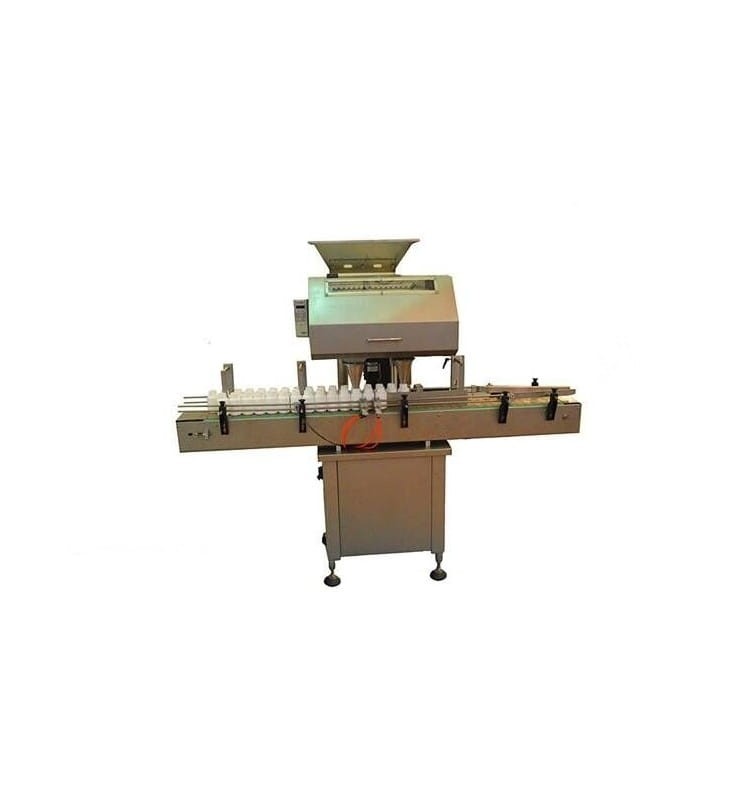

LTEC-8 DISPENSER - TABLETS CALCULATING MACHINE

Application:

An automatic device designed for dispensing tablets, capsules, chewing gums etc. into containers in the form of a bottle.
The solution most commonly used in the pharmaceutical and food industry.

Function:

The machine counts down the preset number of product and fills it with bottles moving on the conveyor.

Touch screen easy to use.

European components - Weintec, Siemens, Panasonic etc.

Technical data:
Power supply: 230 V / 50 Hz  US 110 V
Required compressor capacity: 0.5 MPa
Tank capacity: 40 l  US 9.1 dr gal
Capacity: 10-30 bottles / min.
10-9999 pcs / bottle
Dimensions of the bottle:
- diameter: 30-75 mm  US 1.2-3"
- height: 40-250 mm  US 1.6-9.8"
Dimensions of the packed elements:
- length: 3-25 mm  US 0.12-1"
- width: 3-15 mm  US 0.12-0.6"
- height: 3-10 mm  US 0.12-0.4"
Length of the conveyor: 2400 mm  US 94.5"
External dimensions [L x W x H]: 1400 x 800 x 1560 mm  US 32 x 55 x 62"
Weight: 650 kg  US 1433 lb

Possibility to upload the menu in other language.
