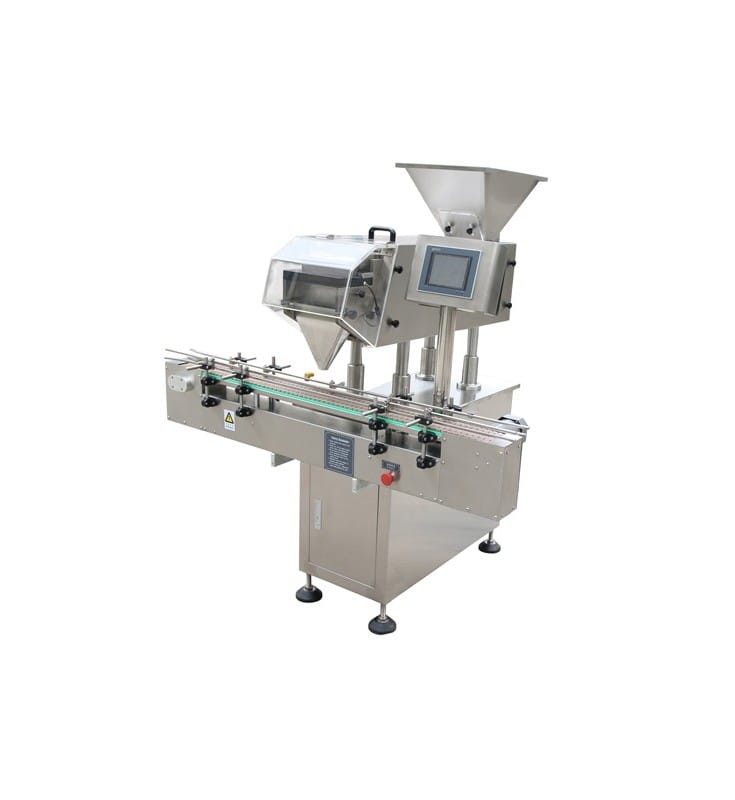

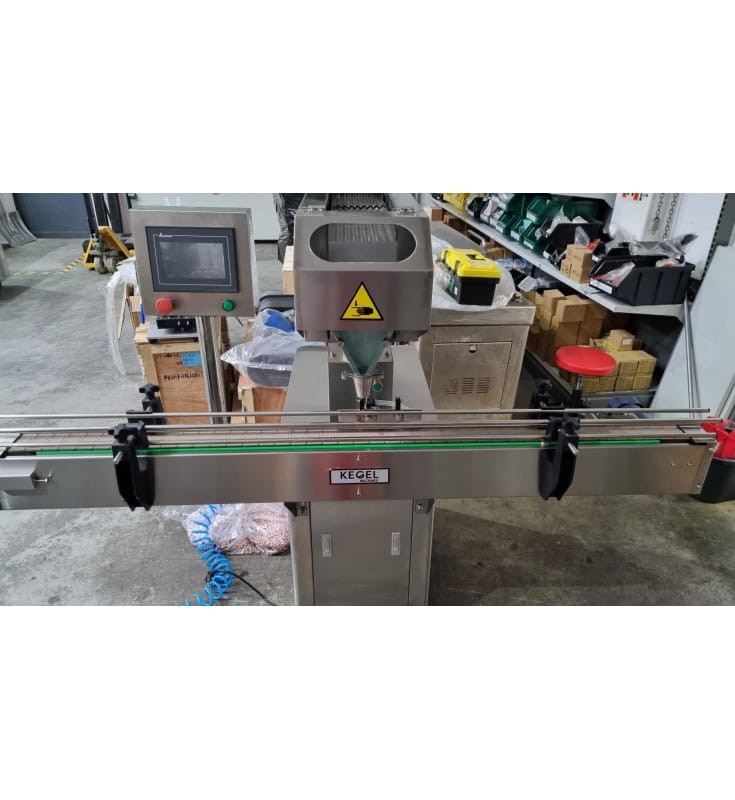

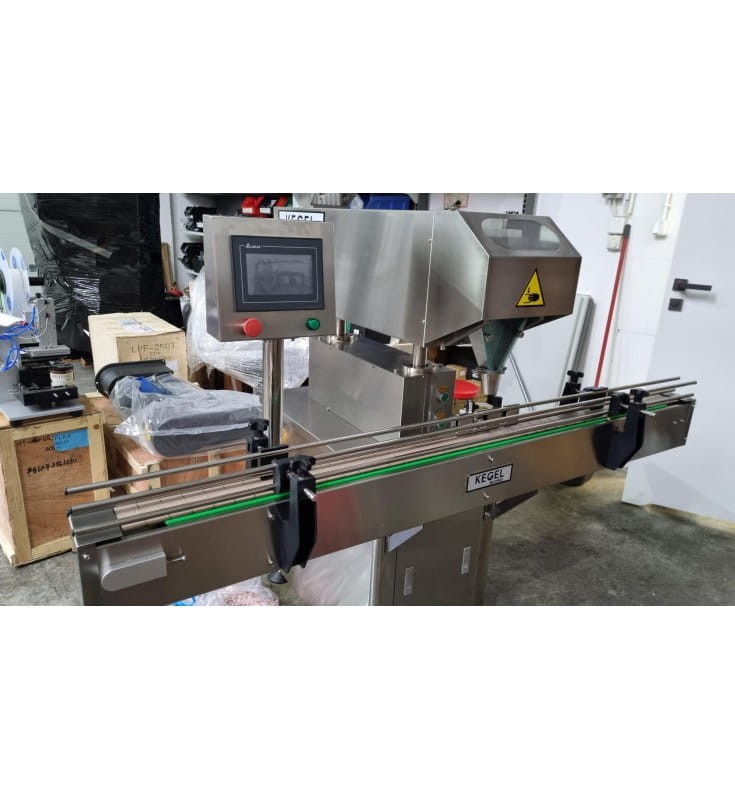

HLJL-8B / GS-8 CAPSULE COUNTING MACHINE

Application:

Automatic device designed for dispensing tablets, capsules, chewing gums into containers in the form of a bottle, jar.

The device is adapted to round and square bottles.

The machine counts the set number of product and fills containers moving along the conveyor belt.

It can be intended for contact with food.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

The construction of the machine excludes penetration of the substance into the product.

The device is widely used, e.g. in the pharmaceutical and food industry.

Function:

Counts and dispenses products precisely.

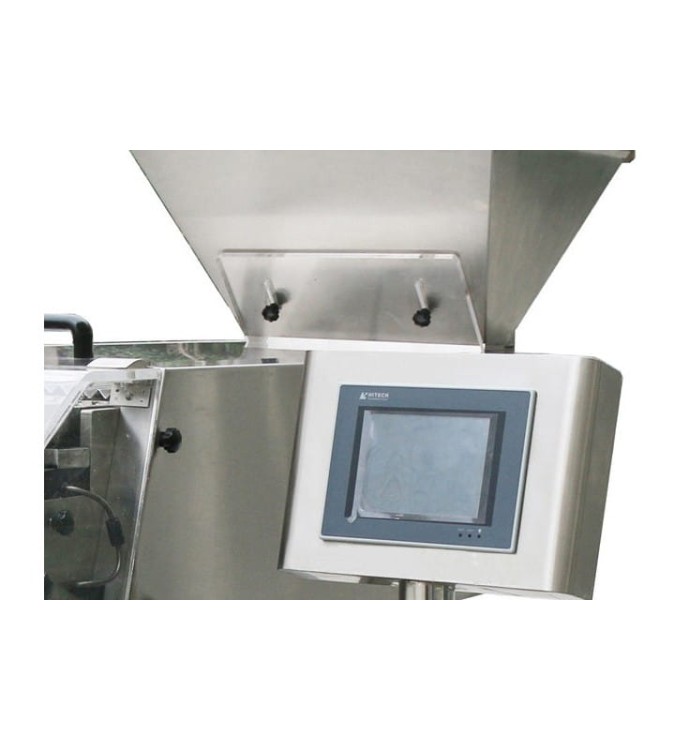

Easy to use touch screen.

Simple operation.

Easy adjustment and control.

High performance.

Simple maintenance.

A compressor connection is required for the device to work.

Elements can easily be cleaned before each use.

All surfaces in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.

European components - Weintec, Siemens, Panasonic etc.

Technical data:

Power: 0.6 kW

Power supply: 230 V / 50 Hz  US 110 V

Capacity: 10-30 containers / min.

Dosing: 2-9999 pcs / container

Accuracy: 99.5%

Bottle inlet diameter: 10 - 500 mm  US 0.4 - 19.7"

Dimensions of the packed elements:

capsules: 00 - 5 #

tablets: 5.5 - 22 mm  US 0.2 - 0.9"

pills: ф3 - 20 mm  US 0.1 - 0.8"

External dimensions [L x W x H]: 1360 x 1250 x 1600 mm  US 54 x 49 x 63"

Weight: 300 kg  US 661 lb

The ability to upload the menu in other language.
