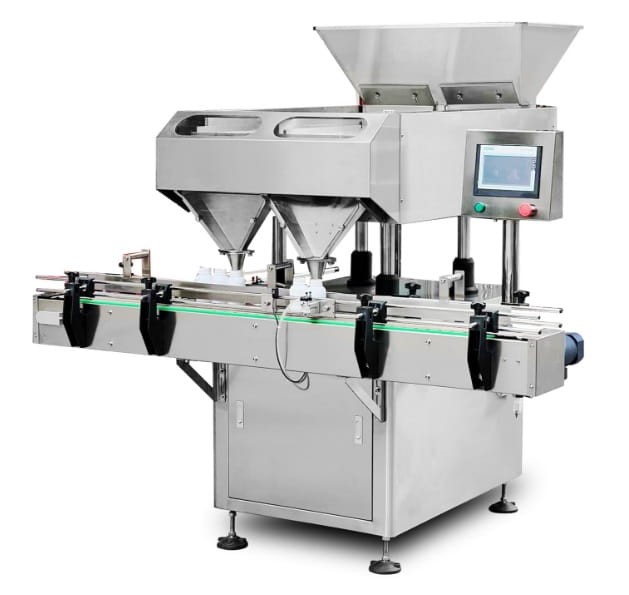

Automatic Counting and Filling Machine YL-16 – Your Perfect Solution for Precise and Efficient Packaging!

Boost your packaging efficiency and precision with the YL-16 automatic counting and filling machine. This device is the ideal choice for pharmaceutical and dietary supplement manufacturers who value accuracy, speed, and reliability.

Why Choose the YL-16 Capsule Counter?

High Efficiency
The machine packs 10 to 80 bottles per minute, making it perfect for both small and large production runs.
Wide Range of Materials Supported
Compatible with capsules sized from 5# to 00#, meeting diverse needs.
Counting Precision
With 99.7% accuracy, the machine minimizes waste and errors during the counting process.
Versatile Bottle Handling
Works with bottles ranging from 10 to 500 ml, both round and square, offering broad application flexibility.
Large Hopper Capacity
A 40-liter hopper reduces material refilling frequency, ensuring continuous operation.
Easy Adjustment and Customization
Capsule count settings from 2 to 9999 pieces and adjustable bottle height up to 160 mm enable quick adaptation to specific production requirements.
Durable Construction
Built with robust materials, the machine is reliable and easy to maintain.

Technical Specifications:

Model: YL-16
Production Capacity: 10–80 bottles/min
Capsule Size Range: 5#–00#
Quantity Settings: 2–9999 pieces (adjustable)
Vibration Levels: 3
Bottle Types: Round and square (10–500 ml)
Accuracy: 99.7%
Hopper Capacity: 40 L
Bottle Height Adjustment: ≤160 mm
Air Pressure: 0.6 MPa
Voltage/Power: 110–220 V, 50–60 Hz, 0.9 kW
Net/Gross Weight: 490 kg / 600 kg
Device/Packaging Dimensions: 138 × 170 × 170 cm / 155 × 188 × 159 cm
Notes: Production speed depends on the type of medication, size, and volume of bottles.
