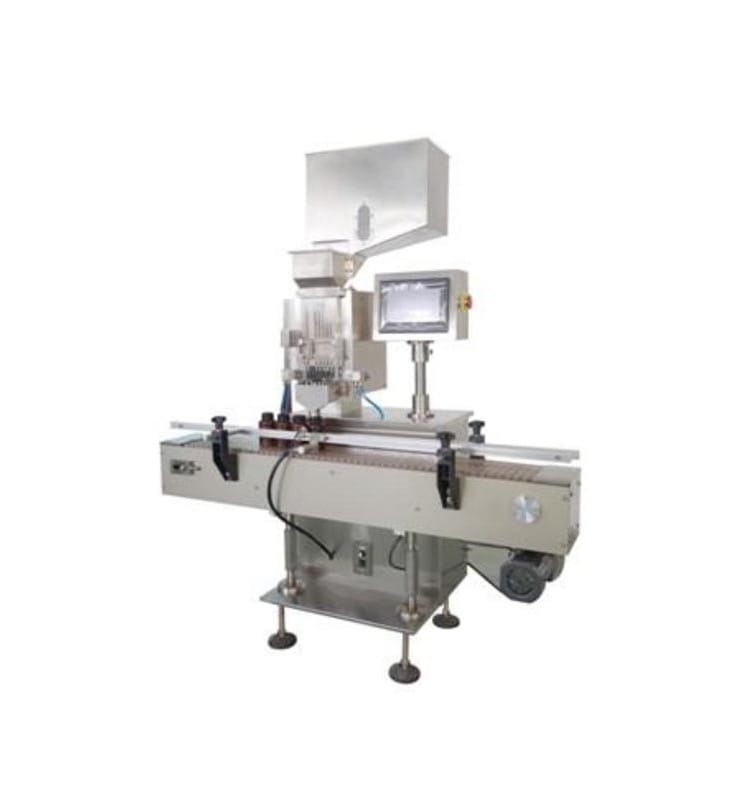

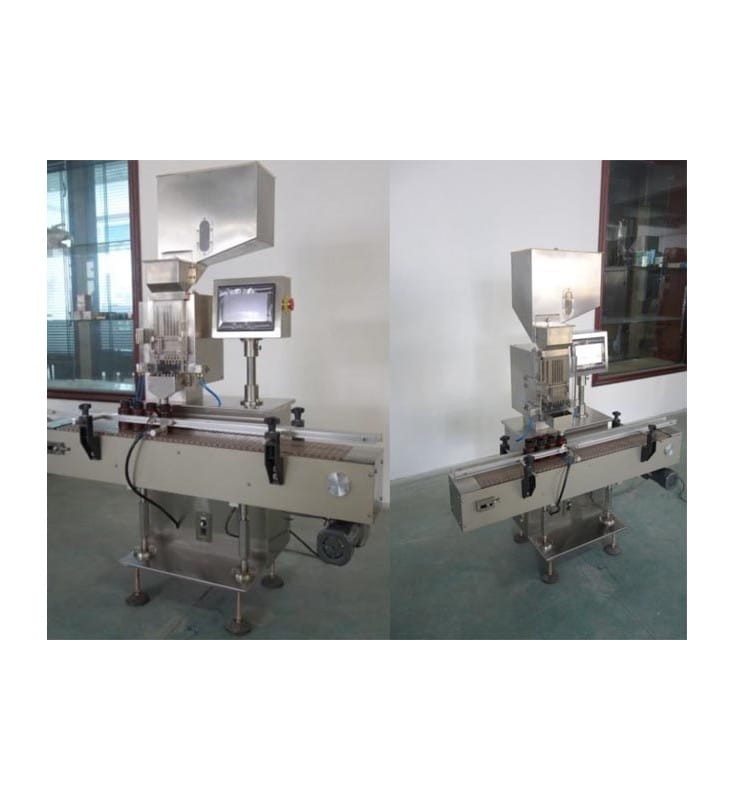

ZJS-A HIGH PRECISION CAPSULE MANUFACTURING MACHINE

Application:

An automatic device designed for dispensing capsules into containers in the form of a bottle and a jar.

The device is adapted for hard tablets and capsules.

Not suitable for gel tablets.

Note - the device is not universal - the price applies to the device with one module adapted to dispense a fixed number of products with one size specified by the customer. Subsequent modules, allowing the dosing of a product with other dimensions, are additionally payable.

The device is widely used, e.g. in the pharmaceutical and food industry.

Functions:

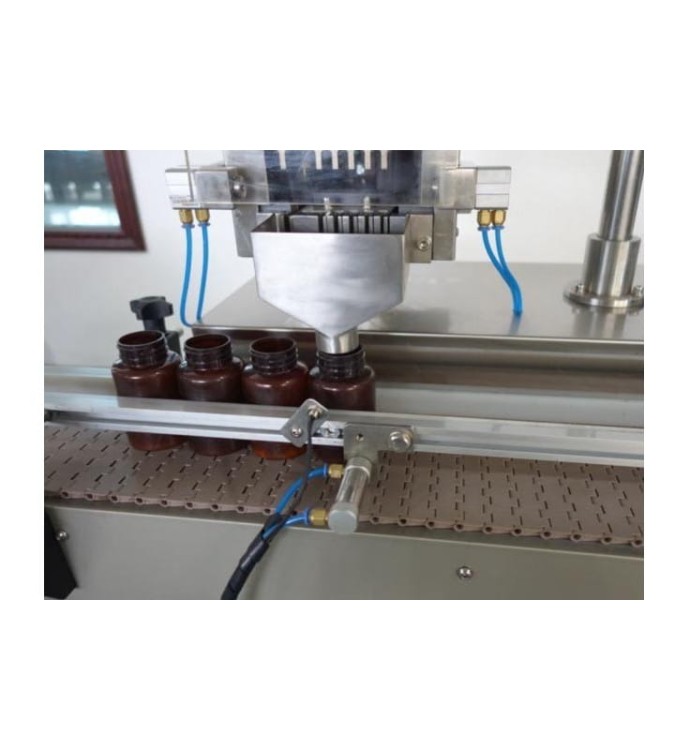

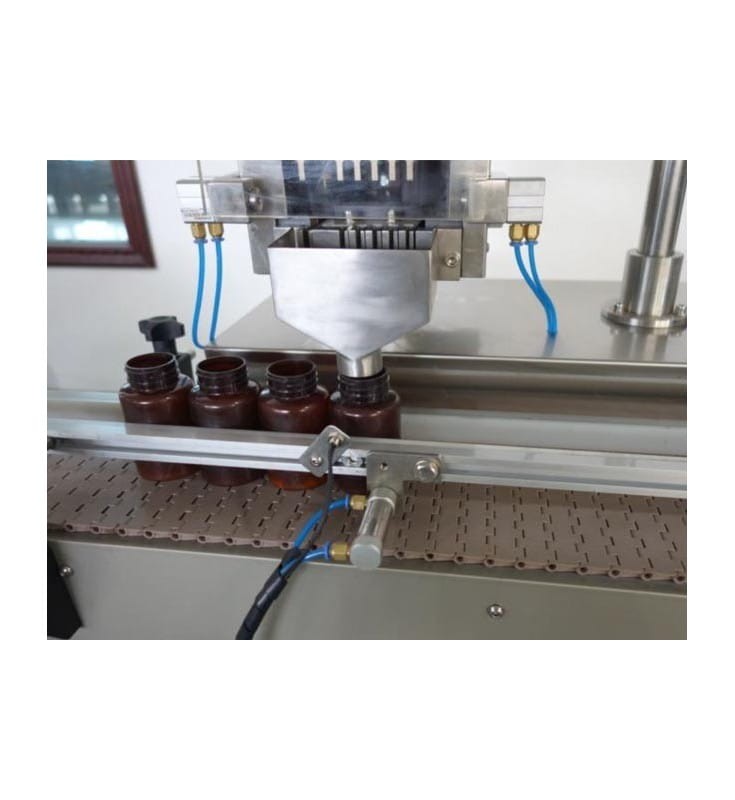

The machine counts down the preset number of product and fills it with containers moving on the conveyor.

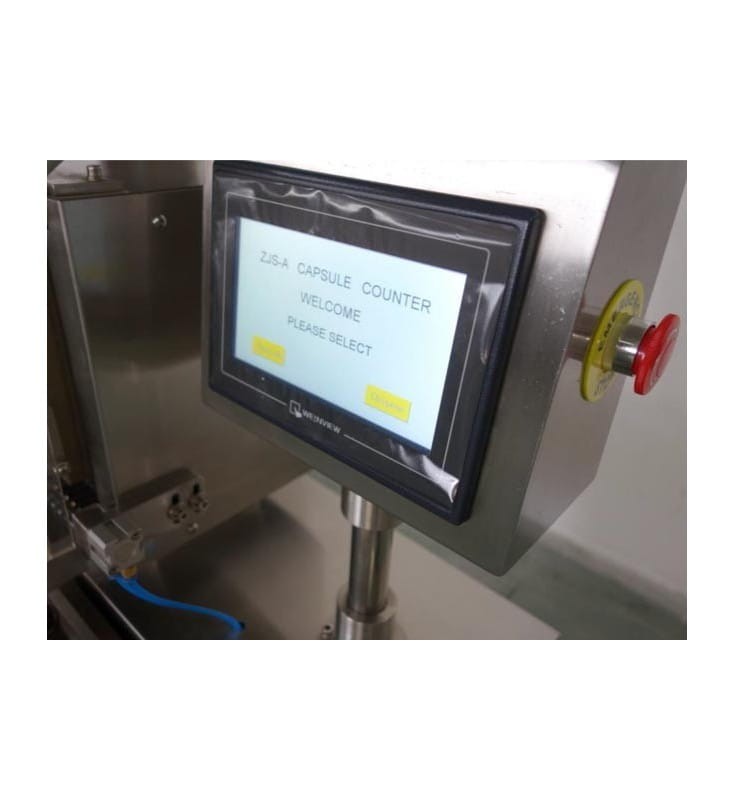

It has a touch screen and a PLC.

Easy to use.

The machine frame and all elements in contact with the product are made of stainless steel.

Menu in English.

Easy use and maintenance.

Low noise.

High accuracy.

Technical data:

Power: 1.2 kW

Power supply: 230 V / 50 Hz  US 110 V

Air consumption: 0.03 m³ / min.  US 0.03 CBM / min.

Air pressure: 0.7 MPa

Maximum diameter of the container inlet: 130 mm  US 5.1"

Capacity: 20,000 - 40,000 pcs / h

Diameter of the dispensing nozzle: 25 mm  US 1" (can be adapted to customer requirements)

Accuracy: 100%

Capsule sizes supported:

# 000, # 00L, # 00, # 0L, # 0, # 1, # 2, # 3, # 4, # 5

External dimensions [L x W x H]: 1300 x 600 x 1400 mm  US 51 x 24 x 55"

Weight: 150 kg  US 330 lb
