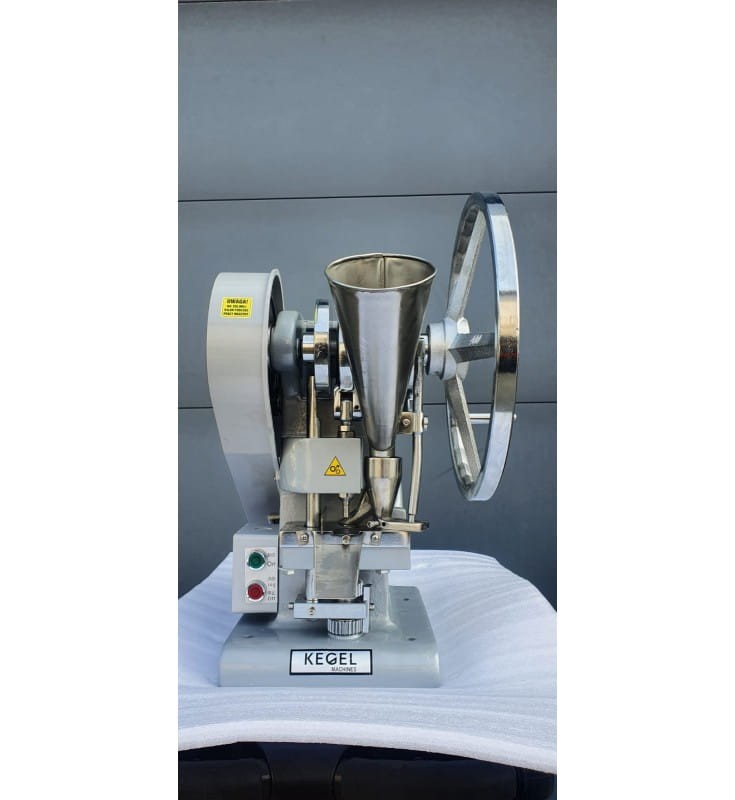

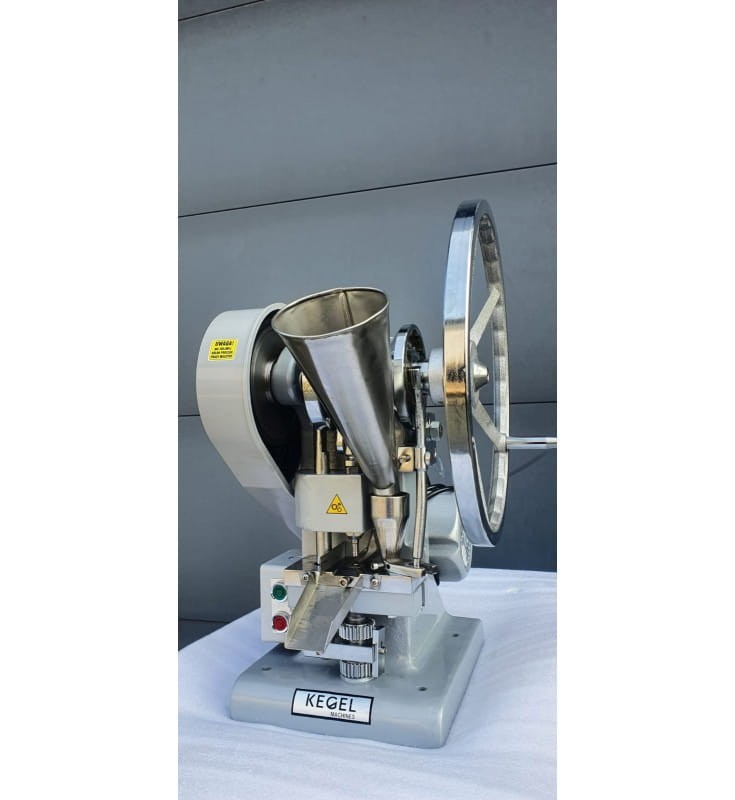

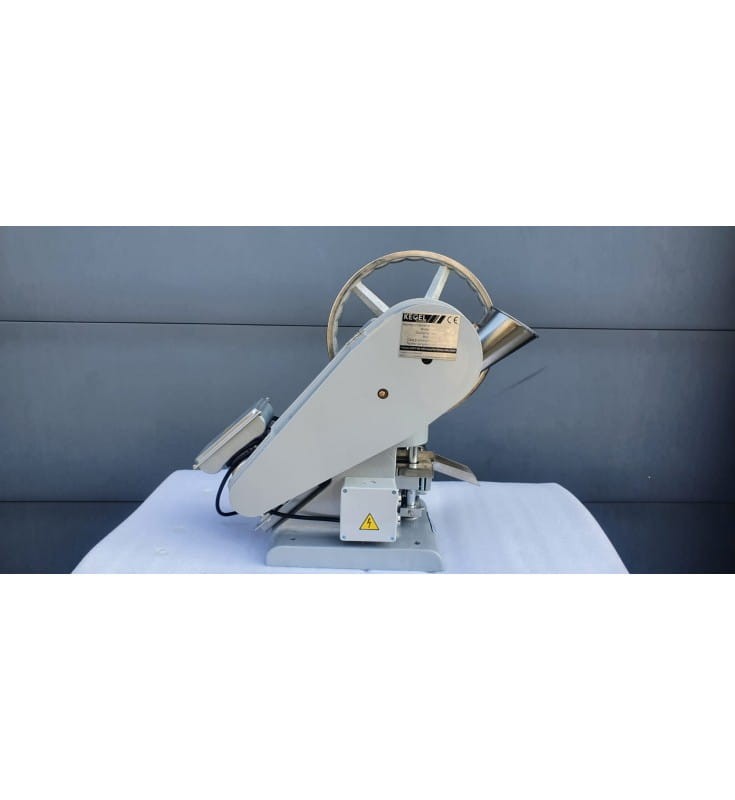

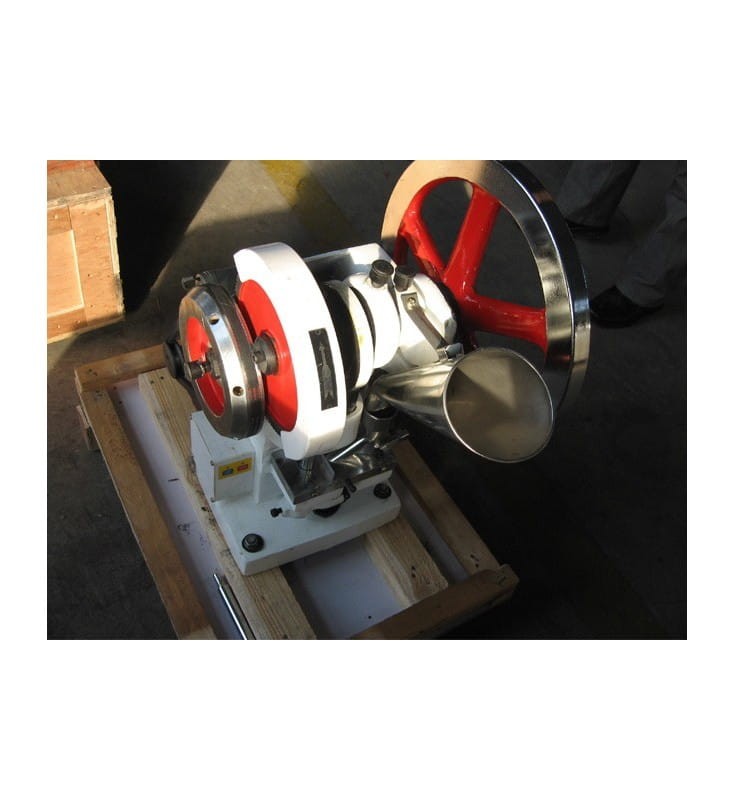

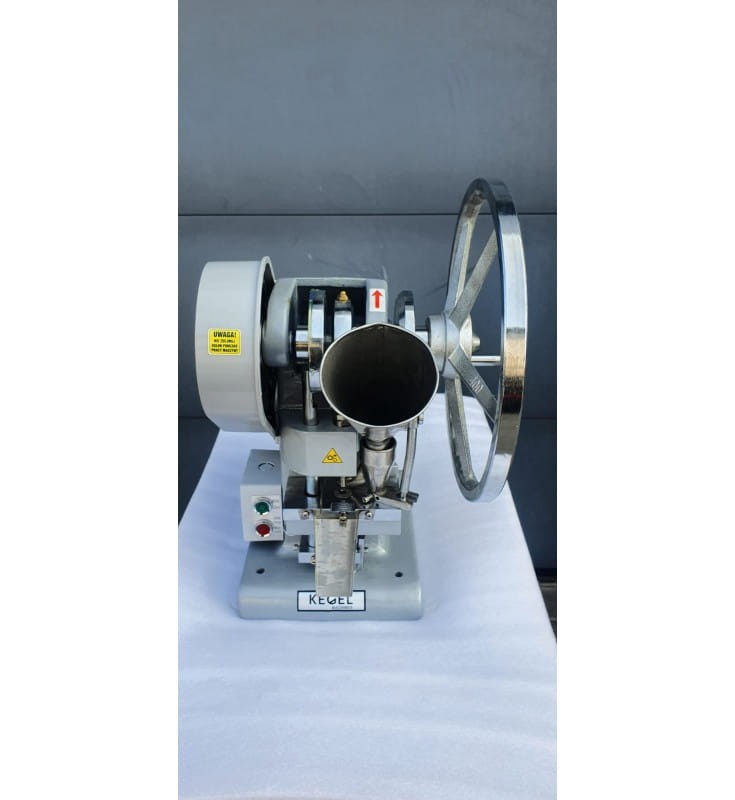

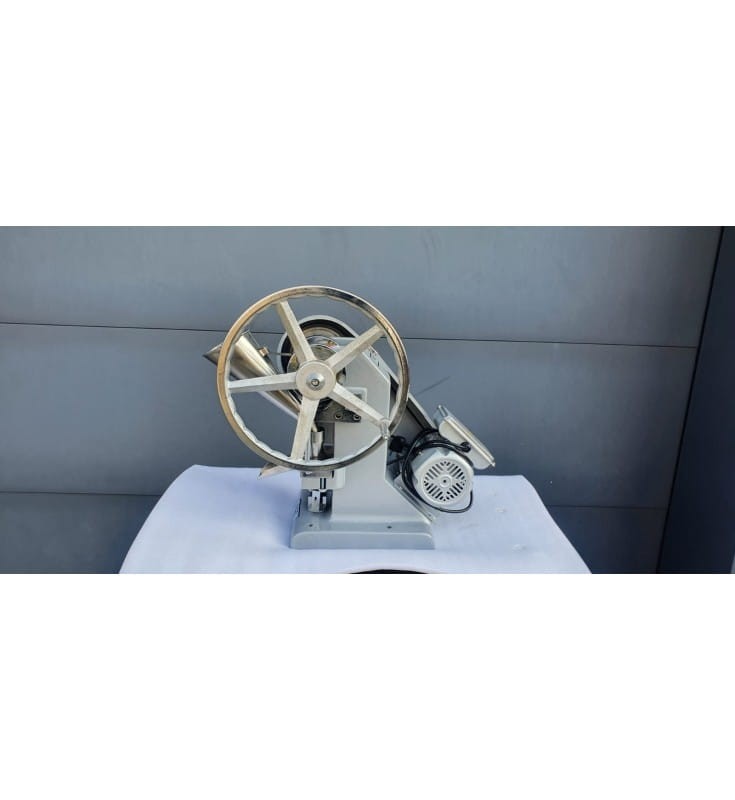

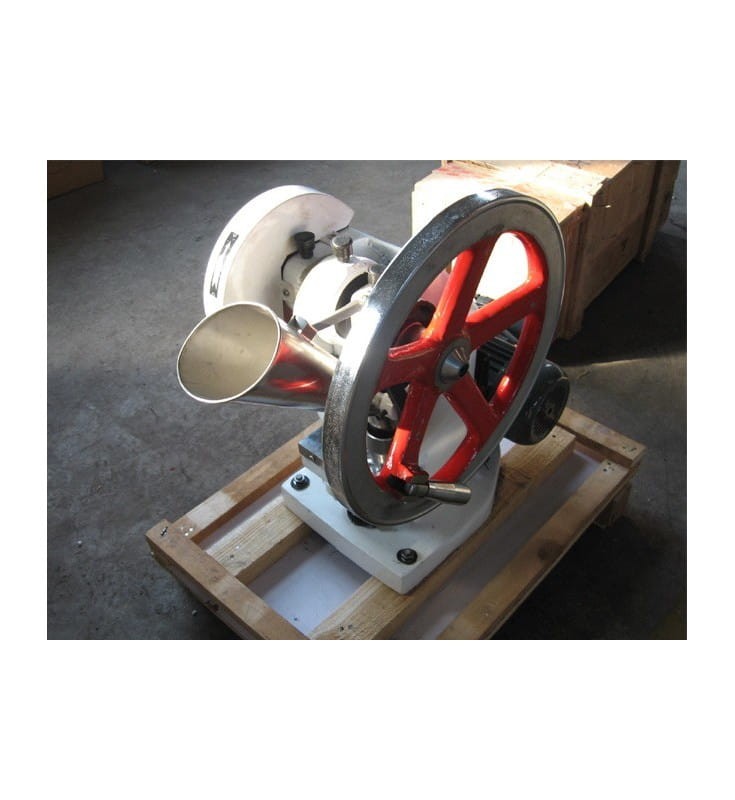

TDP 1.5 SINGLE PUNCH TABLETS PRESS MACHINE

Application:

The device is intended for compacting loose material in the form of powder, granules into tablets.

A simple model mainly used in research and small production.

The use of appropriate forms allows the production of both regular and irregular shaped tablets.

Functions:

Designed to avoid the risk of infection, infection.

Elements can easily be cleaned before each use.

The construction of the machine excludes the penetration of substances into the product.

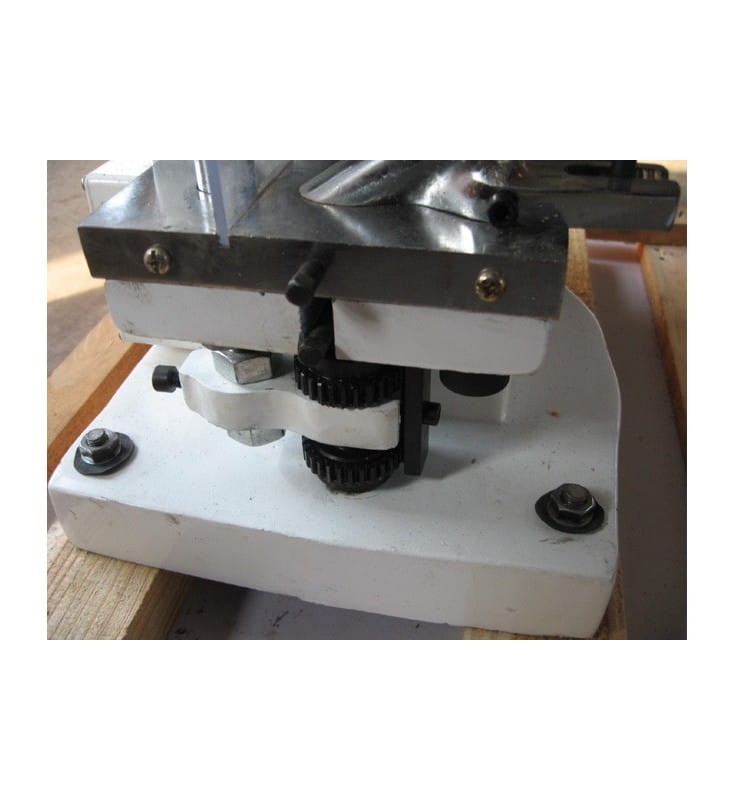

The dispensing depth of the intermediate and the thickness of the tablet can be adjusted.

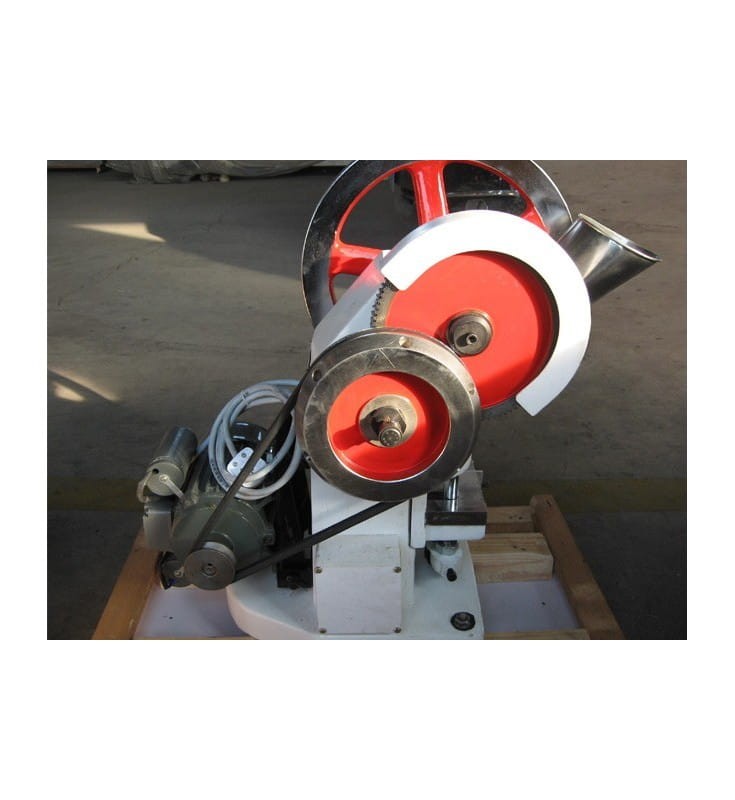

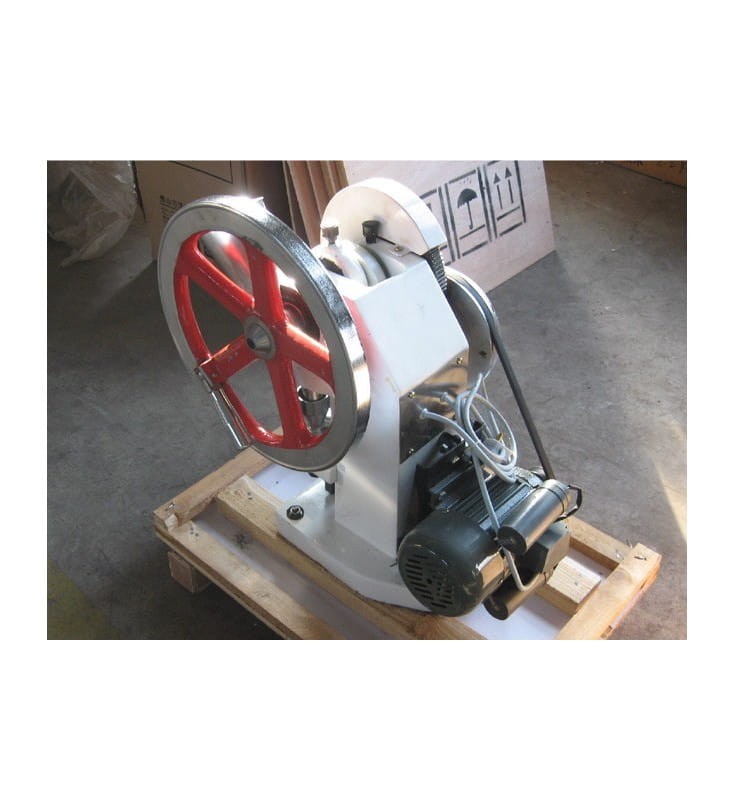

The device is easy to use, it can be driven by the engine or manually.
The press is designed for one type of tablet.

Technical data:
Power: 0.25 kW
Maximum pressure: 15 KN
The maximum diameter of the tablet: 12 mm  US 0.5"
Maximum filling depth: 12 mm  US 0.4"
The maximum thickness of the tablet: 6 mm  US 0.2"
Capacity: 4000 pcs / h
External dimensions [L x W x H]: 670 x 470 x 750 mm  US 26 x 18 x 29"
Weight: 70 kg  US 154 lb

Additional paid option:

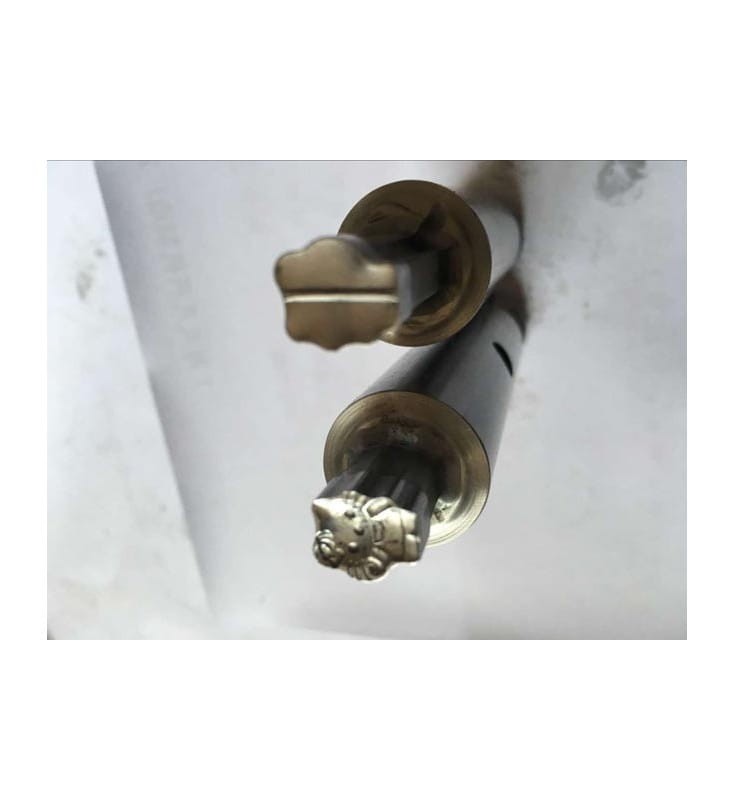

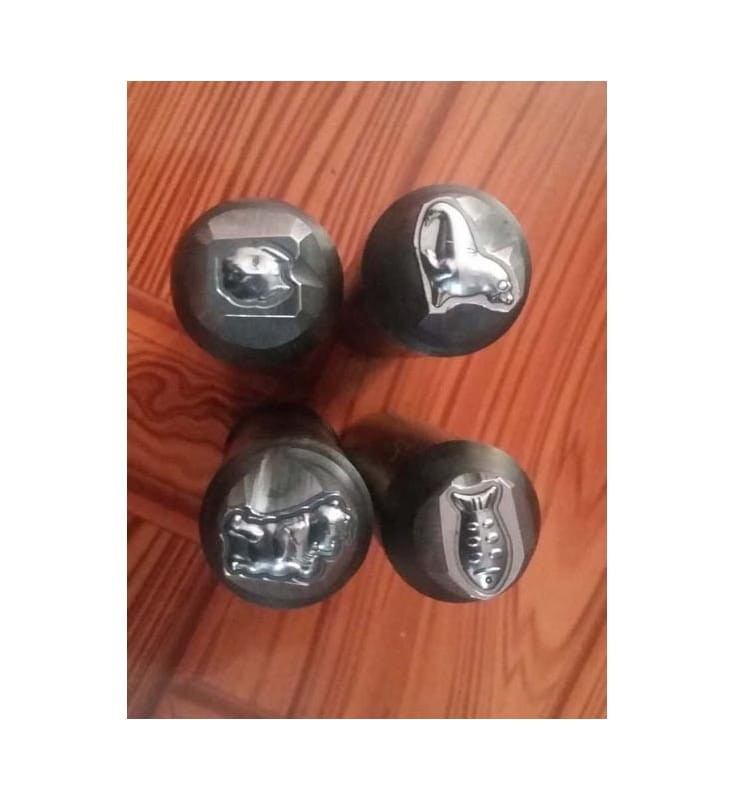

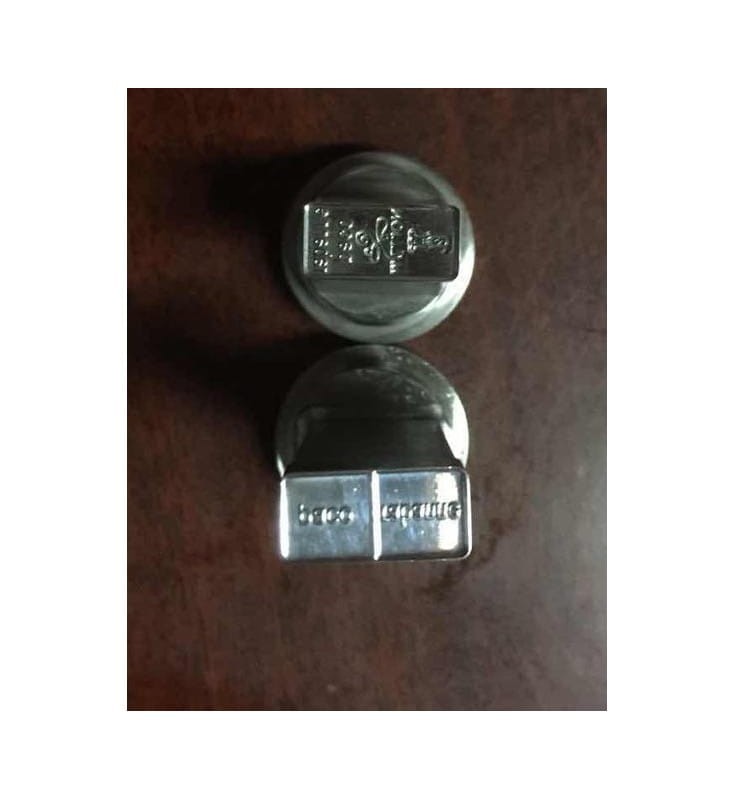

Form for different size of pill
