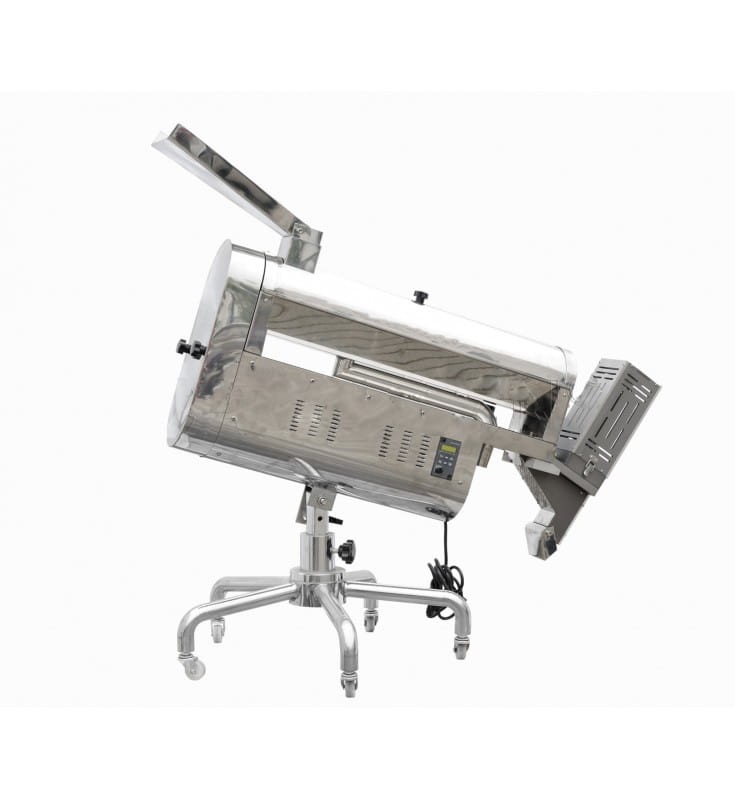

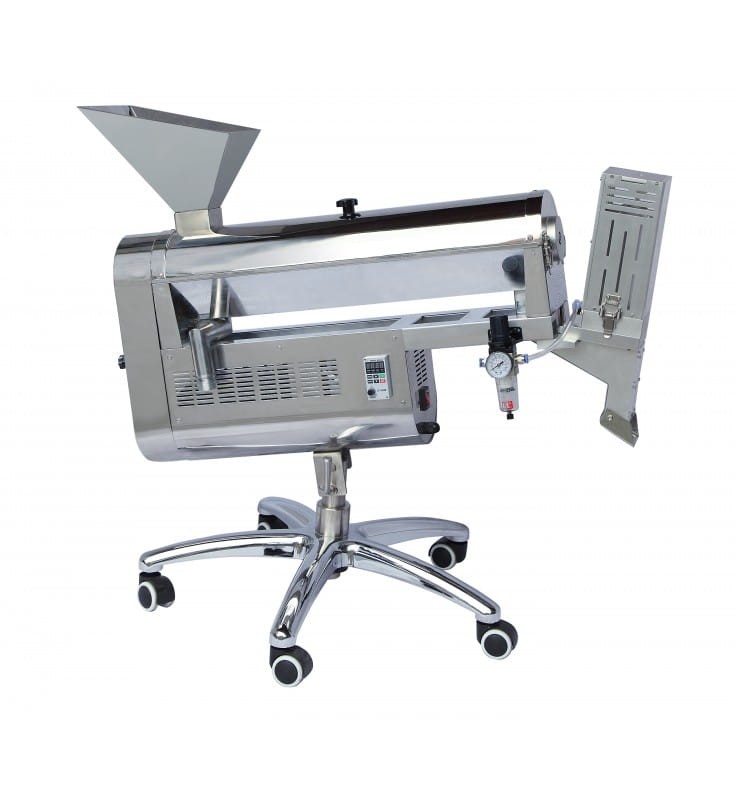

CAPSULE SEPARATING POLISHING MACHINE HSL-C100A

Application:
This machine is a kind of special equipment for pharmacy.
It is driven by variable speed control, polish and clean powder on pills or tablets to get smooth products and meet hygeian standard of pharma industry.
It is suitable for various kinds of pills and tablets.

Function:
The height and angle can be adjusted to fit into any chute of the capsule filling machines and tablet presses so the products can be polished immediately after production.
It can eliminate static; and automatically reject ultra light weight capsules, fragment and empty capsules.
New type net cylinder ensures no jammed capsules during operations
The capsules are not directly contact with the metal net to protect the printed capsule effectively.
New type of brush is durable and can be change easily.
Excellent design for quick cleaning and straight forward maintenance.
Adopts frequency converter, which is great for continuous long hours of operations.
Drive by synchronous belt to reduce noise and vibration of the machine.
All the main parts are made of premium stainless steel are in compliance with pharmaceutical GMP requirements.

Technical parameters:
Model: HSL-C100A
Power supply: 230 V / 50 Hz
Power: 0.18 KW
Capacity: 7000 pcs / min
Compressed air: 30 MPa
Dimensions: 900 x 600 x 1100 mm
Weight: 45 kg
