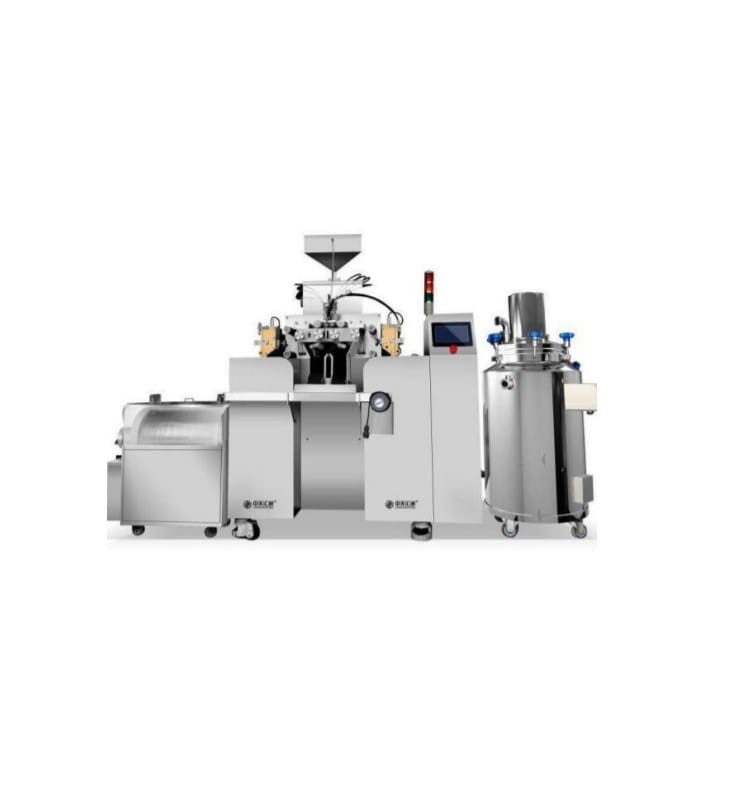

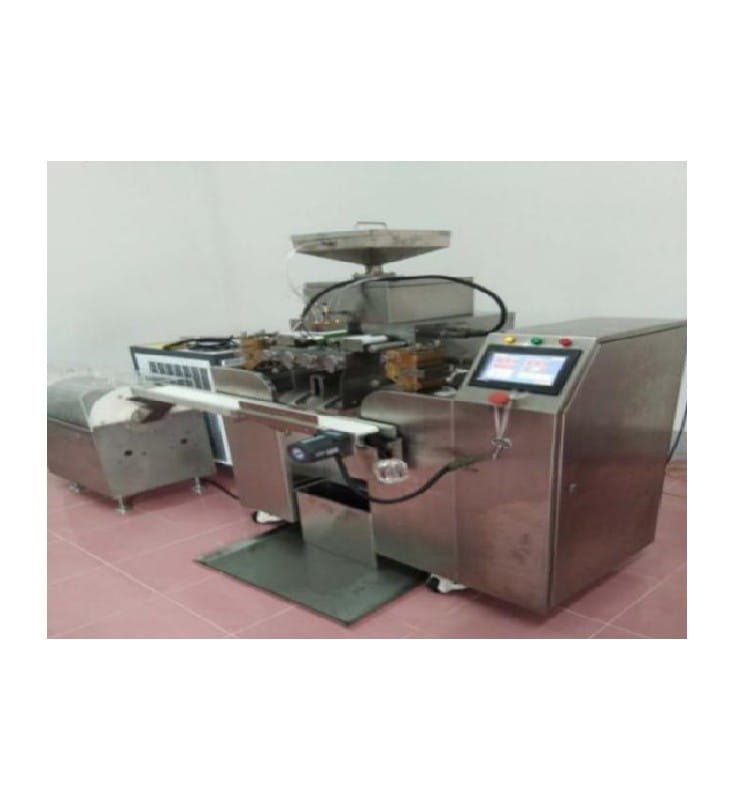

COSMETIC CAPSULES MACHINE WITH OPENING CHZ-A

Application:

Professional machines for the production of cosmetic capsules filled with, for example, oil, cream, serum.

Capsules are created with a characteristic tail used for opening.

They are created using a form with a specific shape.

It consists of: heated gelatin melting tank, dryer, compressor, extrusion molds, water cooling machine.

Functions:

It allows you to create a series of identical capsules

Forms capsules with a tear-off tail

Easy to use

Improves production

It allows you to create different shapes and dimensions of capsules depending on the form

Technical data:

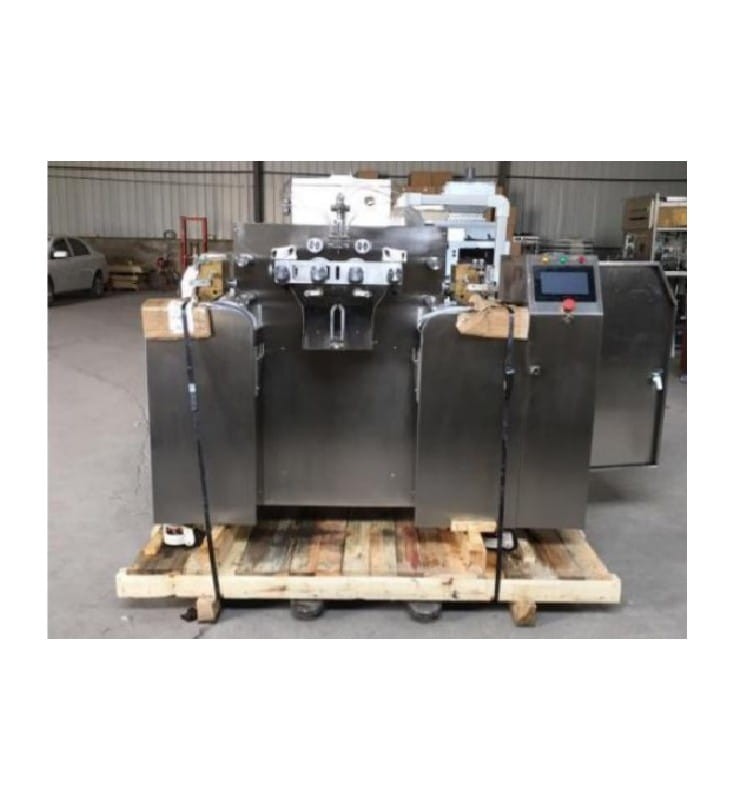

Capsule making machine:

Matrix size: 64 mm x 125 mm US 2,5" x 5"

Speed: 0-2.5 rpm

Single capsule capacity: 0-1.5 ml

Engine power: 0.55 kW

Machine power: 1.5 Kw

Power supply: 230 V / 50 Hz YS 110 V

Machine dimensions: 620 mm x 660 mm x 950 mm  US 24 x 26 x 37"

Weight: 350 kg  US 771 lb

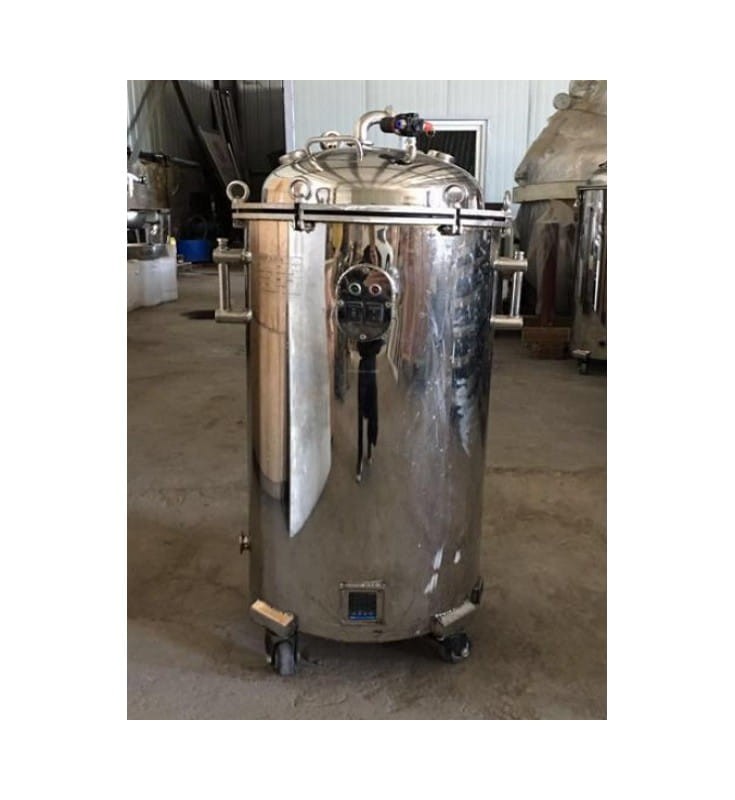

Gelatin heating tank:

Diameter: 400 mm US 15,7"

Height: 700 mm US 27,5"

Weight: 40 kg US 88 lb

Power: 1 kw

Power supply: 230 V / 50 Hz US 110 V

Power: 2.2 kW

Temperature range: 50-100 ℃

Capacity: 40 L

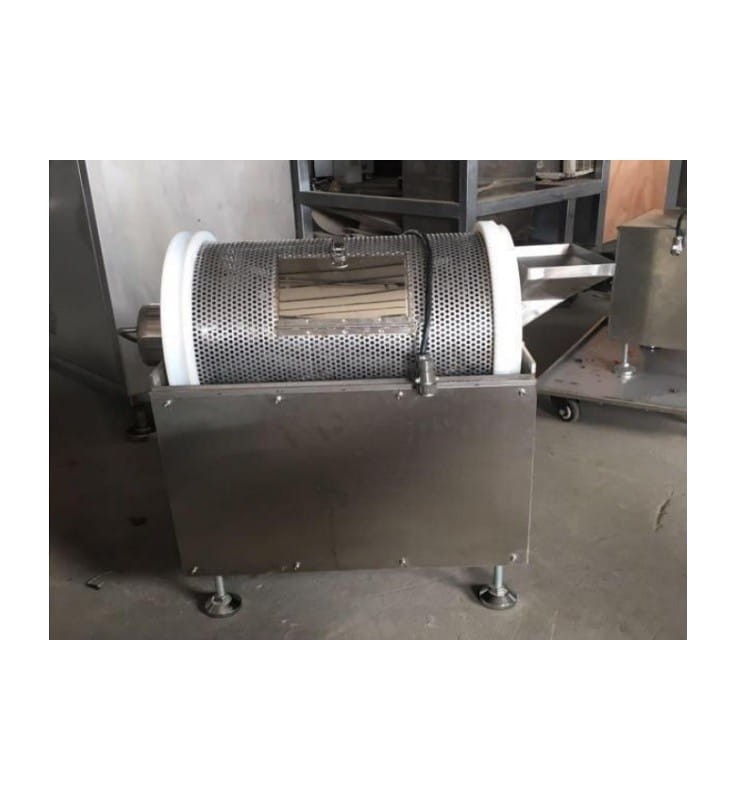

Dryer:

Diameter: 320 mm US 12,6"

Height: 450 mm  US 17,7"

Power supply: 230 V / 50 Hz  US 110 V

Power: 0.2 kW x 2

Dimensions: 500 mm x 400 mm x 700 mm  US

Weight: 70 kg US 154 lb

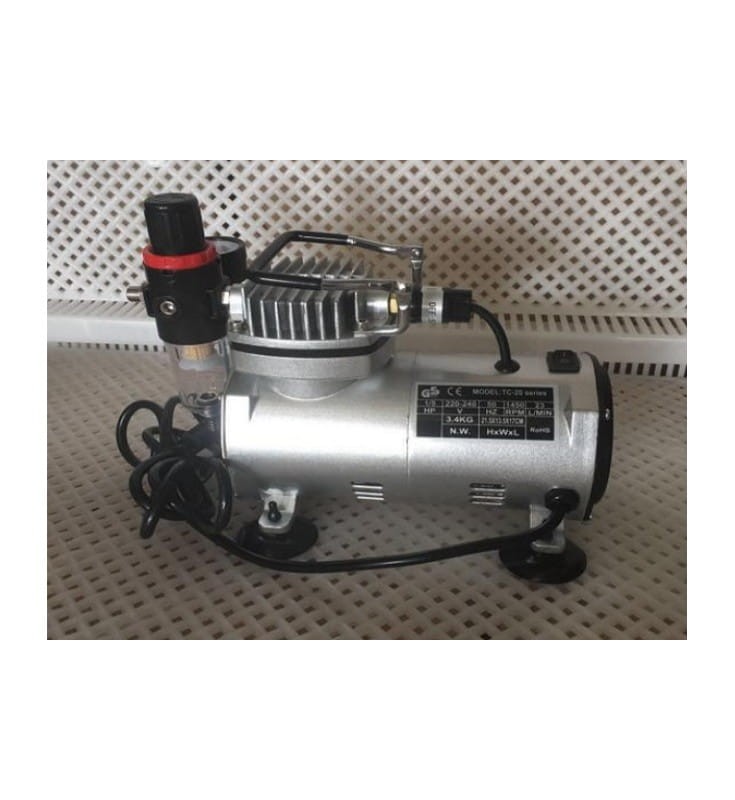

Compressor:

Dimensions: 420 mm x 220 mm x 360 mm  US 16,5" x 9" x 14"

Weight: 2 kg US 4,4 lb

Voltage: 230 V / 50 Hz US 110 V

Power: 320 W.

Air flow: 3.3 m3 / H

Storage trays:

Dimensions: 775 mm x 510 mm x 115 mm US 30" x 20" x 4,5"

Capacity: 2500 capsules

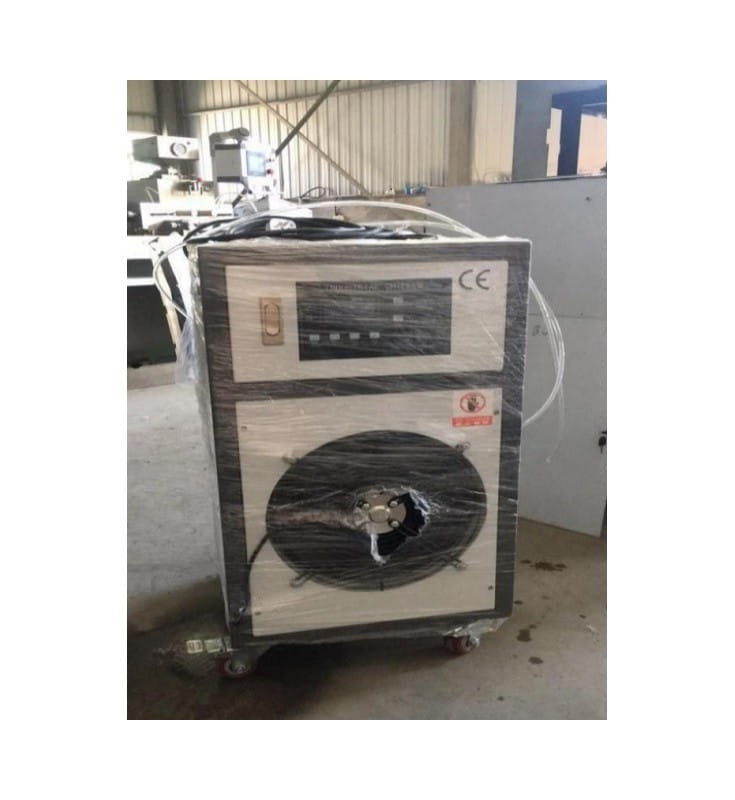

Cooling machine:

Machine power: 0.88 Kw

Pump power: 0.25 Kw

Power supply: 230V / 50 Hz US 110 V
