CONSUMABLES FOR AUTOMATIC NET BAG CLIPPING MACHINE HLSP-2-1

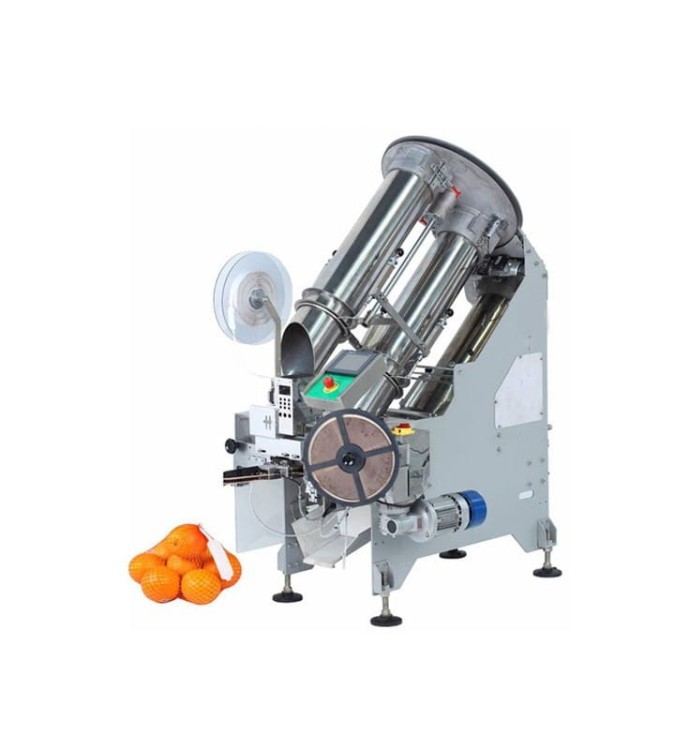

PRODUCT DESCRIPTION: AUTOMATIC NET BAG CLIPPING MACHINE HLSP-2-1

The Automatic Net Bag Clipping Machine HLSP-2-1 is an advanced device designed for efficiently packing fruits, vegetables, and industrial products into net sleeves sealed at both ends with metal clips. With its modern features and precise construction, this machine is an ideal solution for companies seeking efficiency and reliability in product packaging.

TECHNICAL SPECIFICATIONS

• Material: Cast iron frame, stainless steel 304 net tube, special material for the clipping head
• Power: 2.6 kW
• Voltage: 380V, 3-phase, 50Hz
• Capacity: Approximately 25 bags per minute
• Packaging Weight Range: 0.5–5 kg

KEY FEATURES

• Packaging Versatility: Enables packing products in net sleeves with labeling and identification features, tailored to specific market needs.
• Automatic Tube Change: Single motor control allows for quick tube switching.
• Net Extraction System: Dual-speed (slow for packaging, fast for resetting) enables precise package formation and quick return to the start position.
• Easy Cassette Replacement: Single-use tape cassette can be changed quickly and easily.
• Control Panel: User-friendly control panel for easy operation and parameter configuration.

PACKAGING INFORMATION

• Packed in fumigated wooden crates for pest protection
• Packaging Dimensions: 1900 x 1160 x 2050 mm
• Packaging Weight: 500 kg

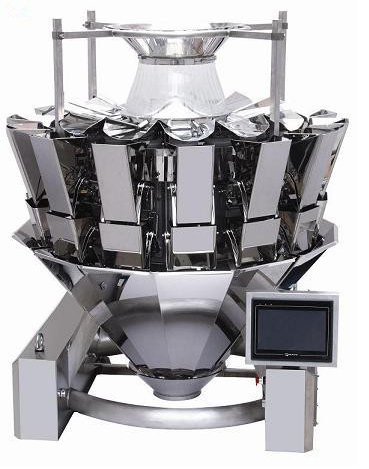

MULTIHEAD WEIGHER (10, or optional 14 or 16 heads pay more)

Ideal for use with dry, fresh, and processed foods such as snacks, seeds, coffee, spices, and more. Digital sensors ensure high precision and resistance to interference.

WEIGHER FEATURES

• Fast, Precise Weighing: High-precision load cells provide accurate weight measurement.
• Quiet Operation and Longevity: Stepper motors ensure quiet and durable performance.
• Material: Stainless steel parts for hygiene and easy cleaning.
• Compatibility: Integrates smoothly with other packaging equipment.

TECHNICAL DATA

• Weighing Range: 10-1000 g (max. 3000 g at once)
• Accuracy: ±0.3–1.5 g
• Weighing Speed: Up to 180 weighs per minute

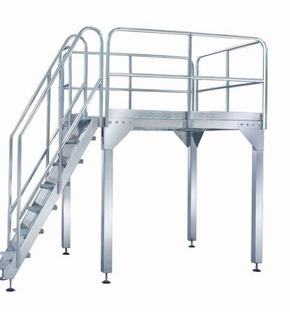

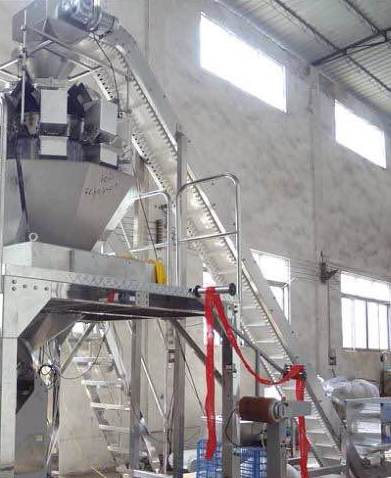

SUPPORT PLATFORM AND CONVEYOR

The support platform provides stability for the multihead weigher during the weighing process, while the conveyor transports finished products to the platform, reducing waste and ensuring a smooth packing process.

RECEIVING TABLE

• Diameter: 1200 mm
• Material: Stainless steel

CONSUMABLES FOR AUTOMATIC NET BAG CLIPPING MACHINE HLSP-2-1

1. NET PACKAGING

The net packaging is made from high-quality HDPE (High-Density Polyethylene), ensuring strength and stretch resistance. It is ideal for packing various food products, such as fruits and vegetables.

NET TECHNICAL SPECIFICATIONS

• Material: HDPE (High-Density Polyethylene)
• Forming Type: Woven
• Net Length: 5000 meters
• Net Hole Size: 10x10 mm
• Tube Capacity: One tube holds 200 meters of net
• Packaging Size: Each bag measures 800 x 450 x 300 mm
• Weight: 30 kg per bag

2. METAL CLIPS

The metal clips used for sealing the nets are made from aluminum-plated iron, ensuring durability and corrosion resistance. They are designed for secure packaging, ensuring that products remain sealed and stable.

CLIP TECHNICAL SPECIFICATIONS

• Material: Aluminum-plated iron
• Thickness: 0.3 mm
• Width: 5 mm per roll (each roll on a plastic plate with a diameter of up to 400 mm)
• Quantity: Approximately 14,000 clips per roll
• Packaging: 5 rolls per carton box, dimensions 430 x 410 x 150 mm
• Weight: 5 rolls in one carton weigh 30 kg

APPLICATION

Both products are essential accessories for the HLSP-2-1 Automatic Net Bag Clipping Machine, ensuring efficiency and quality in the packaging process.
