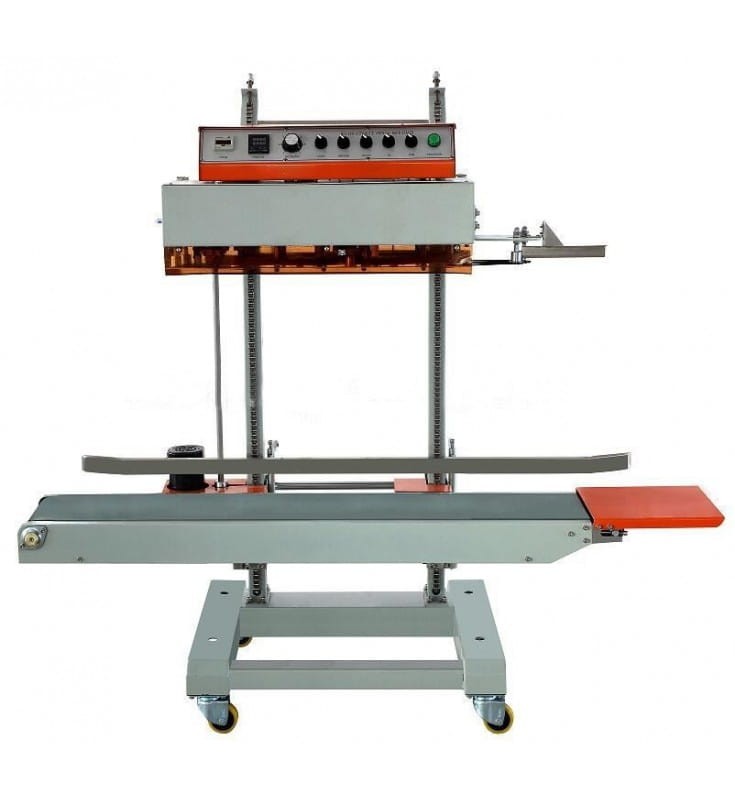

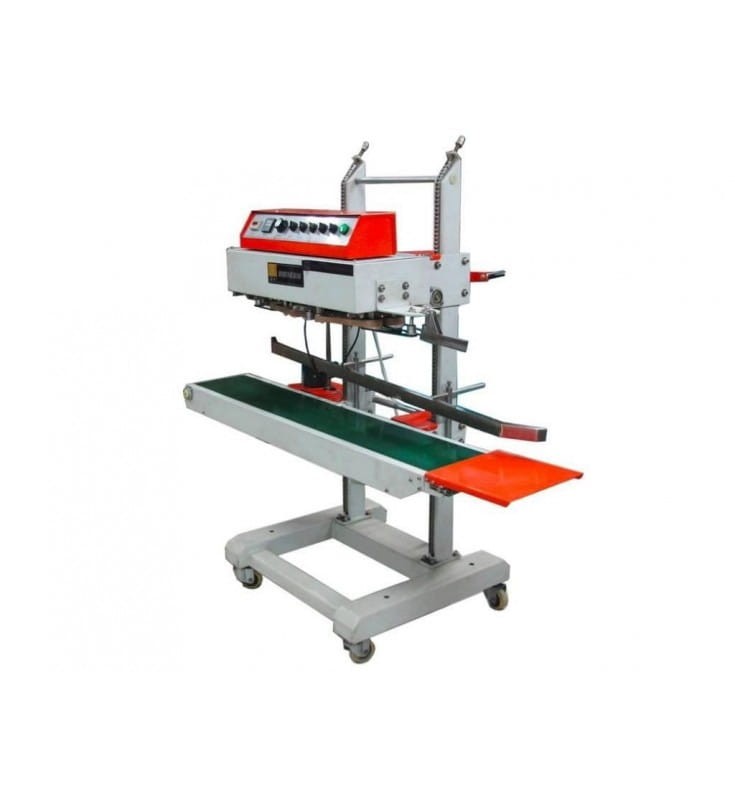

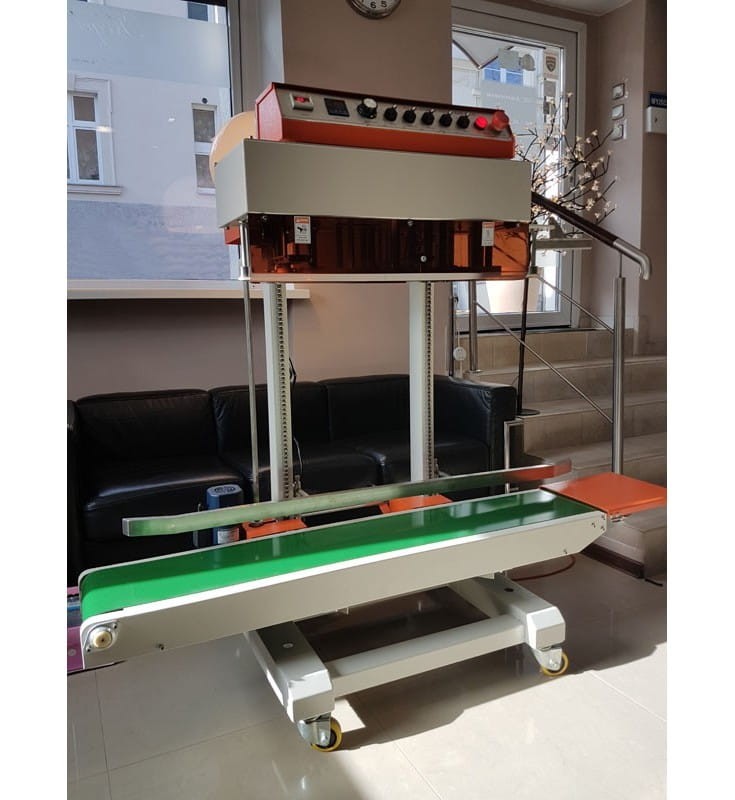

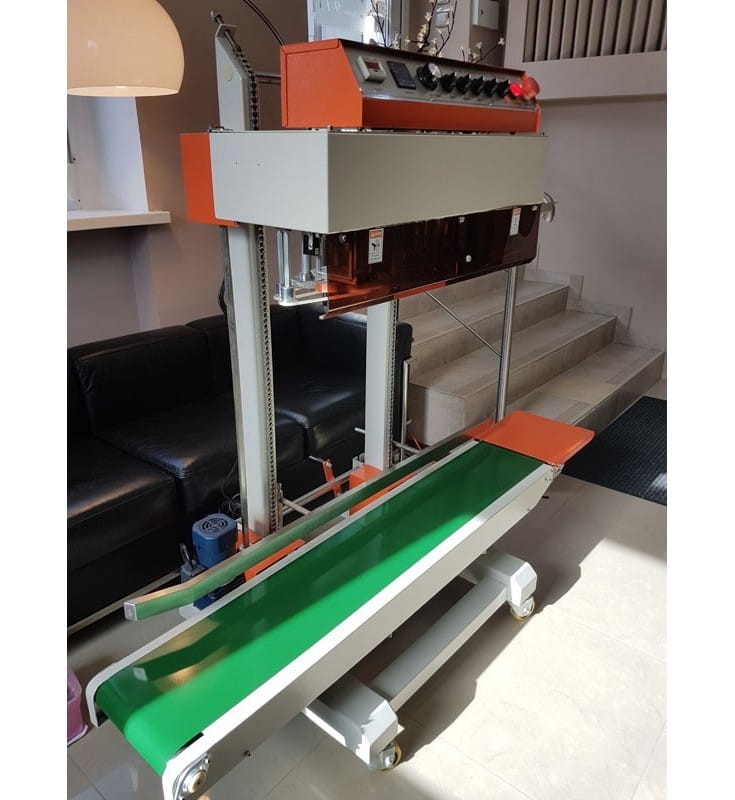

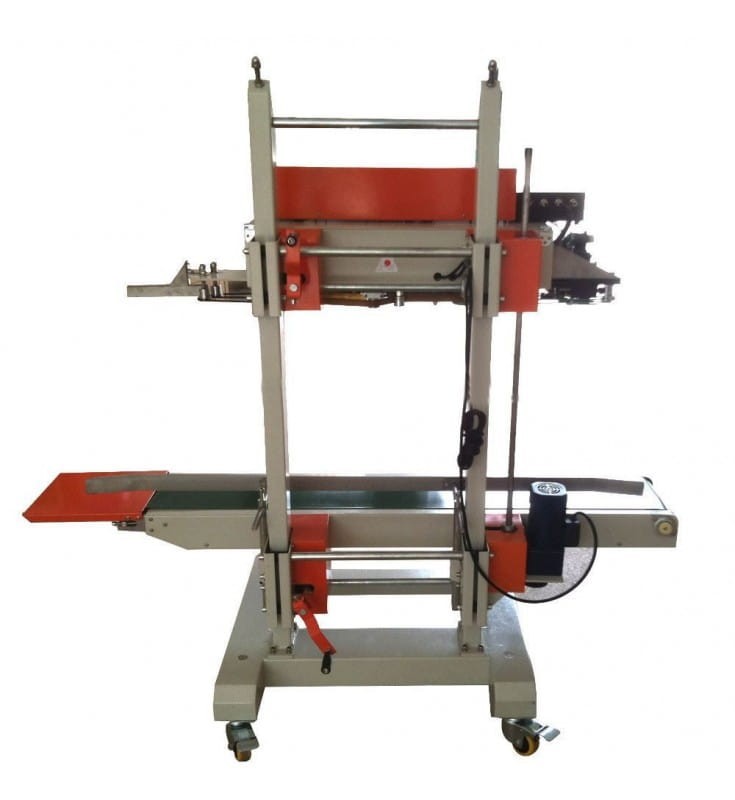

BAND SEALER MACHINE QLF-1680

Application:
The color may vary depending on the delivery.
It is widely used in many fields.
It is made with adjustable stepless speed,constant temperature controlling and adjustable temperature.
It is suitable for kinds of sealing materials.

Function:
Conveyor belt conveyor designed for welding large bags made of any film or laminate.
Unlimited width of the bag.

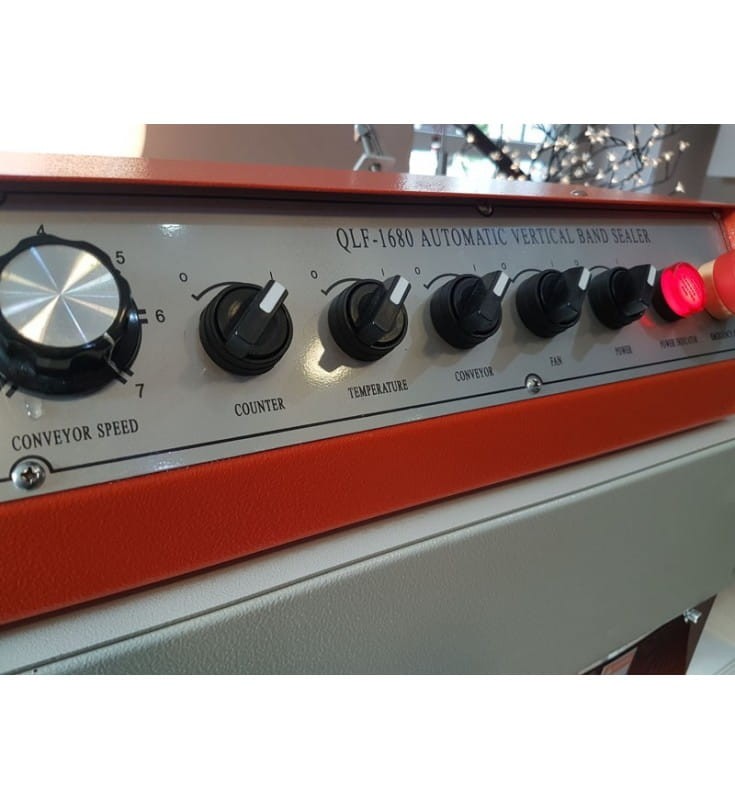

It is also important that all functions of the machine are controlled by one central control panel.

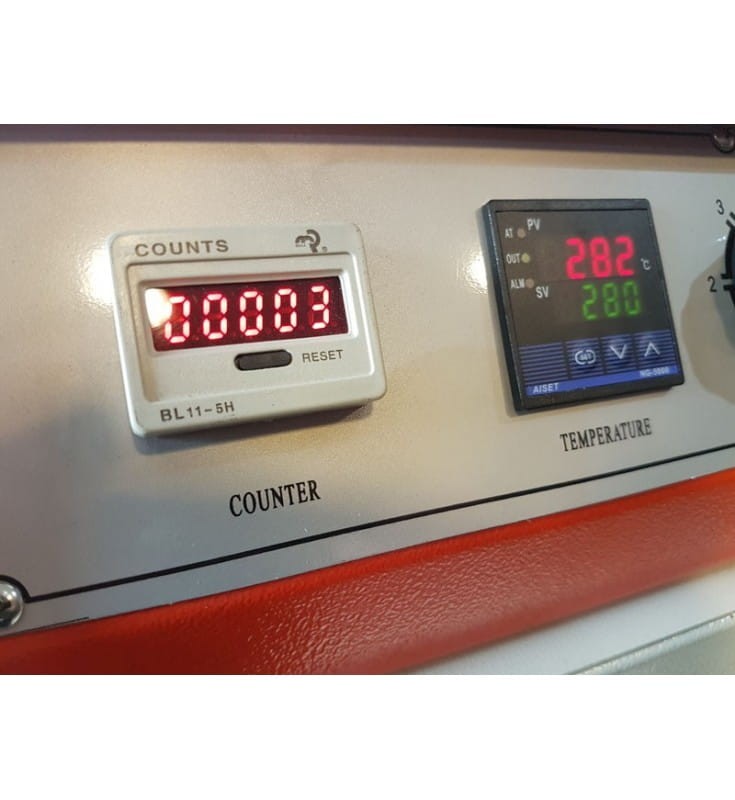

Continuous temperature control.
It gives very aesthetic seal.
Perfect for doypack bags.

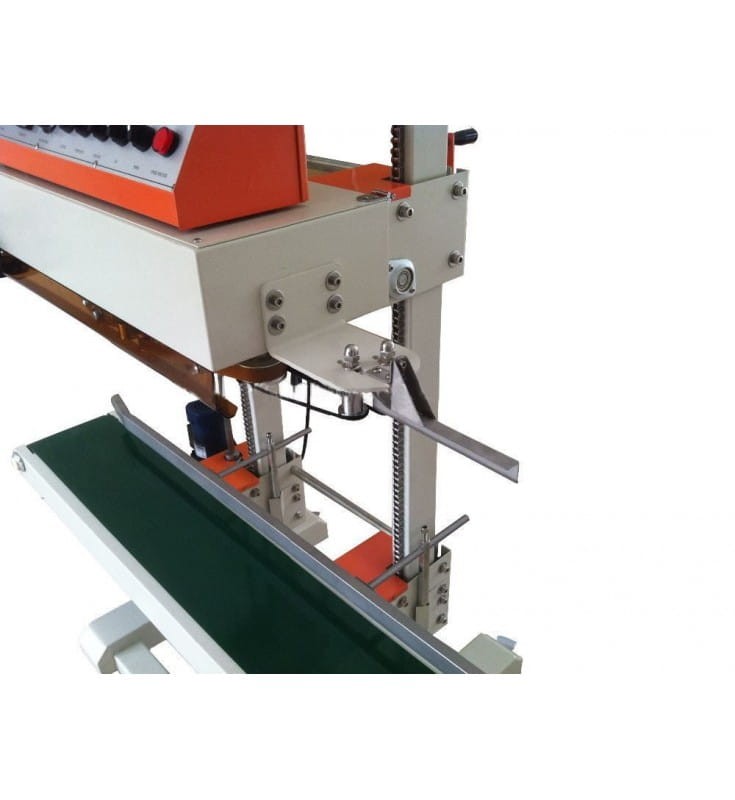

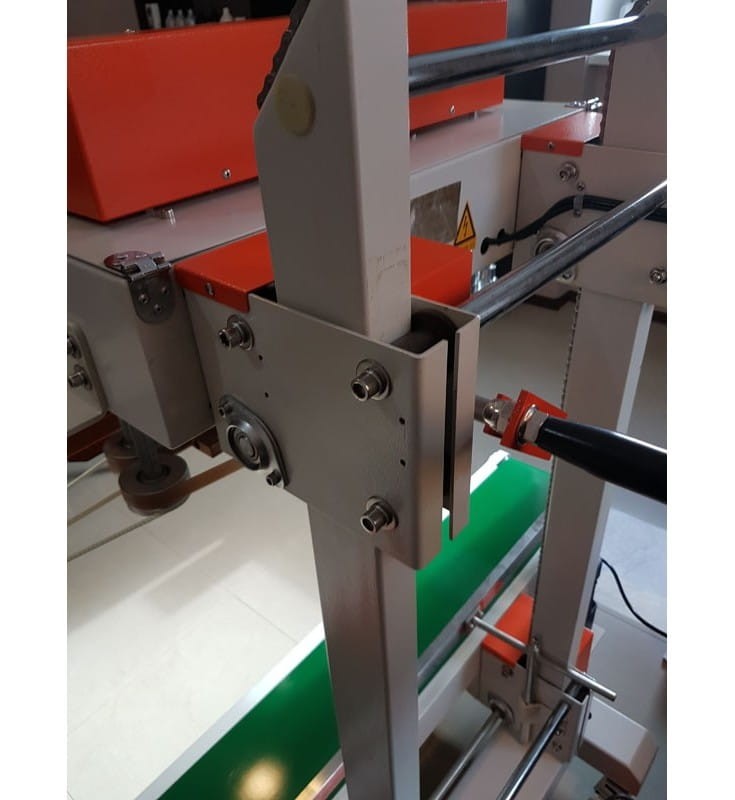

The height is adjustable in the range of 50-700mm.

Technical data:
Power supply: 230 V / 50 Hz  US 110 V
Total power: 1 kW
Welding power: 2 x 0,4 kW
The height of the bag: 50-800 mm  US 2"- 31"
Bag length: unlimited
Max. bag pressure: 15 kg  US 33 Ib
The width of the seal: 10 mm  US 0,4"
The speed of the conveyor belt: 0-13 m / min.  US 0 - 512" / min.
Sealing temperature: 0-300°C

External dimensions [L x W x H]: 1700 x 750 x 1600 mm  US 67" x 29" x 63"
Weight: 130 kg  US 287 Ib
