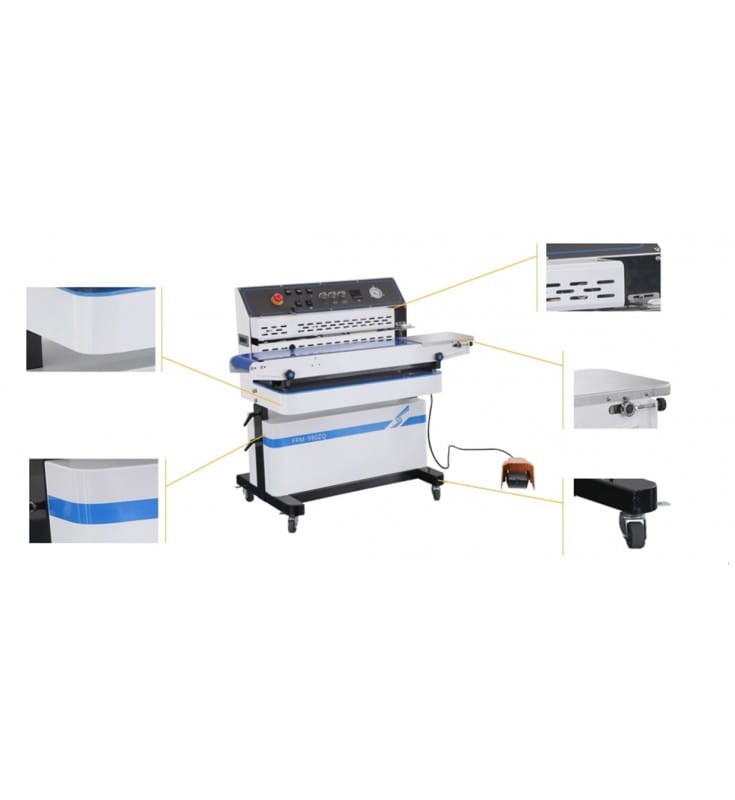

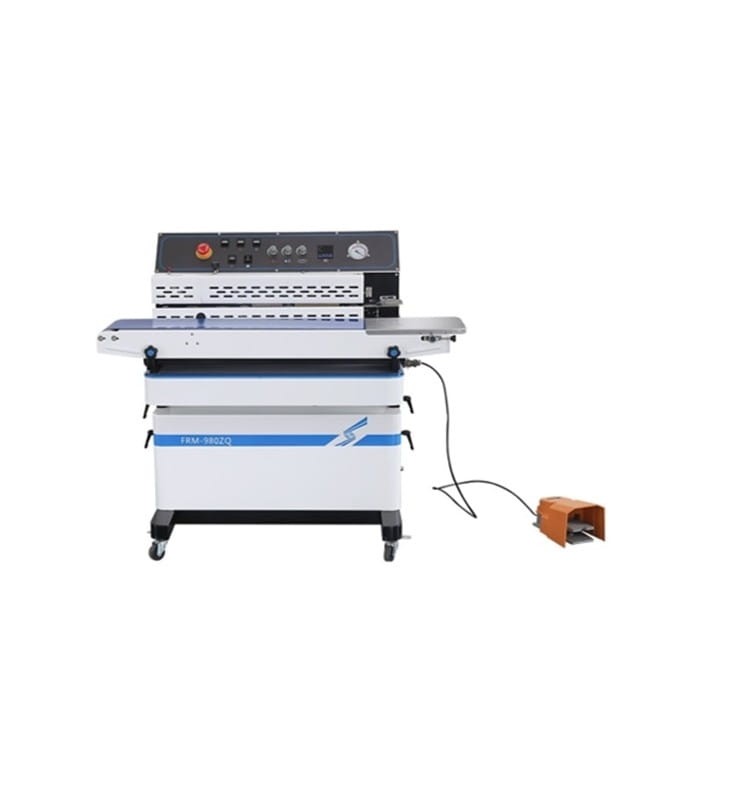

BAND SEALER WITH GAS FLUSH AND VACUUM FRMQ-980ZQ

Application:

A heat-resistant welder with a conveyor belt designed for welding bags in a horizontal position.

The welder easily welds thick metallized foil, foil with paper and laminates, but thanks to the temperature control it also enables work with PP, PE or cellophane film. Perfect for doypack bags.

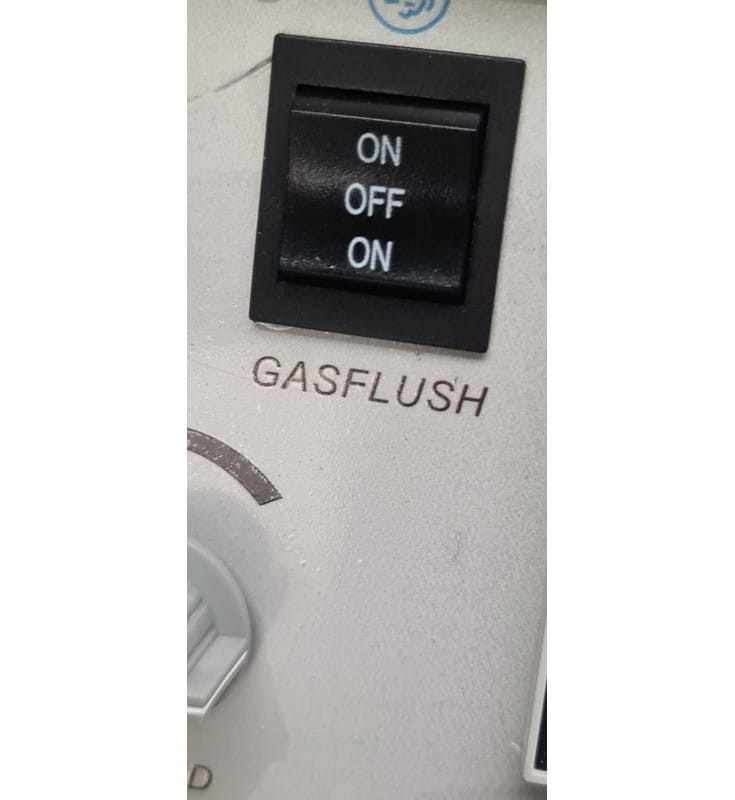

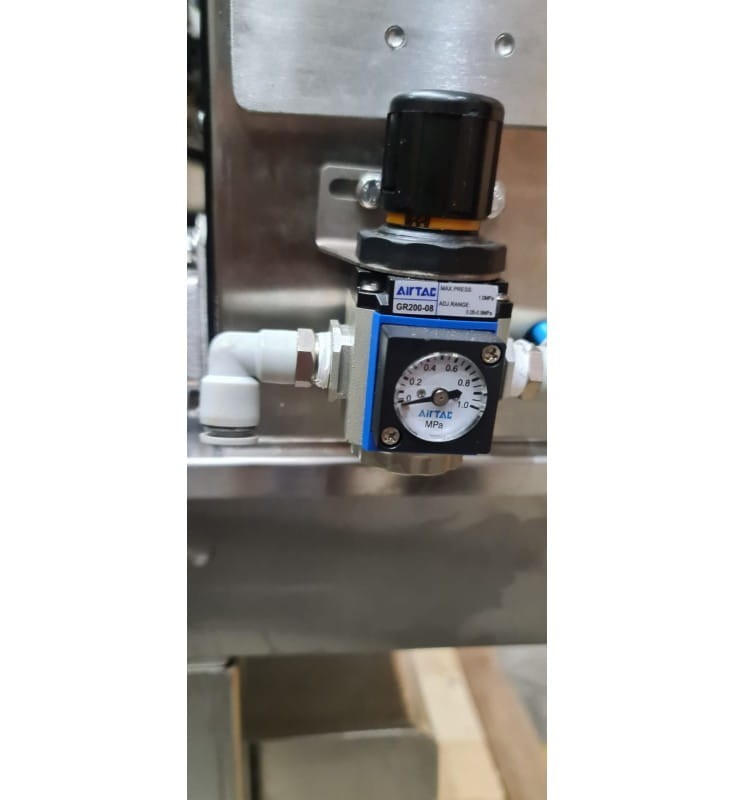

Model with aeration - injects air or gas into the bags before welding.

Aeration is used to protect delicate products that can easily be crushed, crushed etc. e.g. chips, popcorn, etc.

The machine can be intended for contact with art. food.

All parts in contact with the product have a smooth surface or are made of corrosion-resistant stainless steel.

The device is used in the food, chemical, pharmaceutical and cosmetics industries.

Functions:

The machine welds 10 mm wide.

It is also very important that the control of all functions of the machine is focused on one central control panel, located on the front of the device.

Infinitely adjustable temperature and belt speed.

It gives an even, very aesthetic weld.

The sealer has a date stamp enabling printing on the seal the expiry date, batch number etc.

Technical data:

Power supply: 230 V / 50 Hz

Motor power: 50 W

Heater power: 2 x 300 W

Heater power: 2 x 40 W

Sealing length: unlimited

Sealing width: 10 mm

Sealing temperature: 0-300 C

Distance between conveyor belt and heaters: 10 - 40 mm

Weight of a single bag: up to approx. 1 kg

Belt load: up to approx. 3 kg

Conveyor speed: 0-12 m / min.

Length and width of the conveyor belt: 930 x 200 mm

The dimensions of the welding machine 1050 x 550 x 900 mm

Weight: 67 kg
