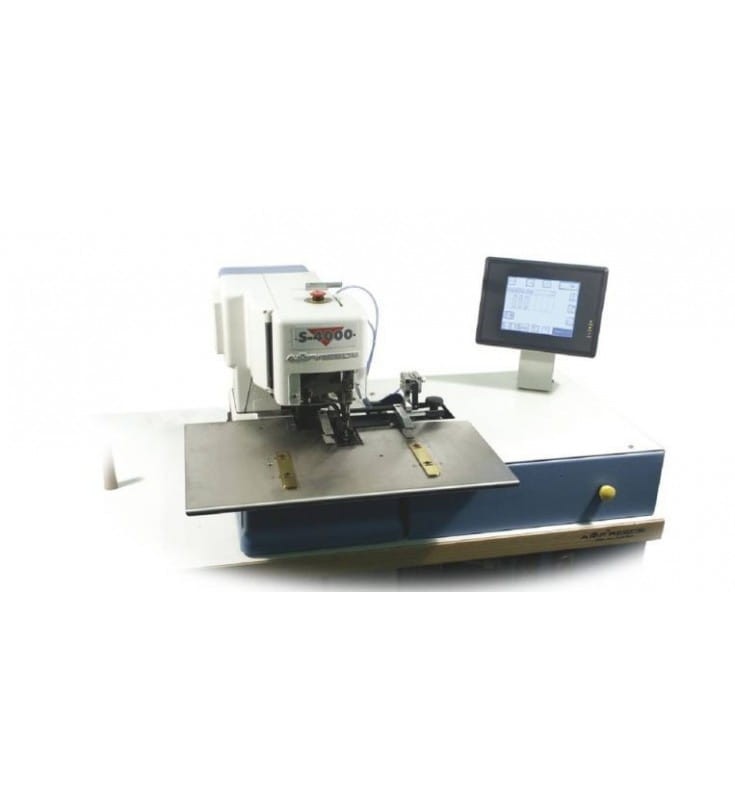

MACHINE FOR BUTTONHOLE IMITATION - AUTOMAT REECE S-4000 ISBH INDEXER

An electronic machine designed to sew imitation holes in the sleeves of jackets. Equipped with an indexer allowing automatic stitching of up to 8 holes in one cycle. Smooth regulation of the length of the hole and the distance between successive holes. Settings are made using a clear and easy-to-use tactile control panel.
Technical parameters:
- 1-needle, 1-thread
- direct drive, control by means of a touch control panel
- sewing speed 3.800 spm / min
- number of holes in one cycle: up to 8
- adjustable distance between holes: 4 - 63 mm
- adjustable length of the buttonhole: 15.8 - 25 mm
- the possibility of sewing holes at an angle of 0 - 6 °
- 230V 50 / 60Hz power supply
- automatic thread trimming and foot lift
- connection required for compressed air (5.5 bar)
- weight: 171 kg
- AMF REECE 750 needles system
