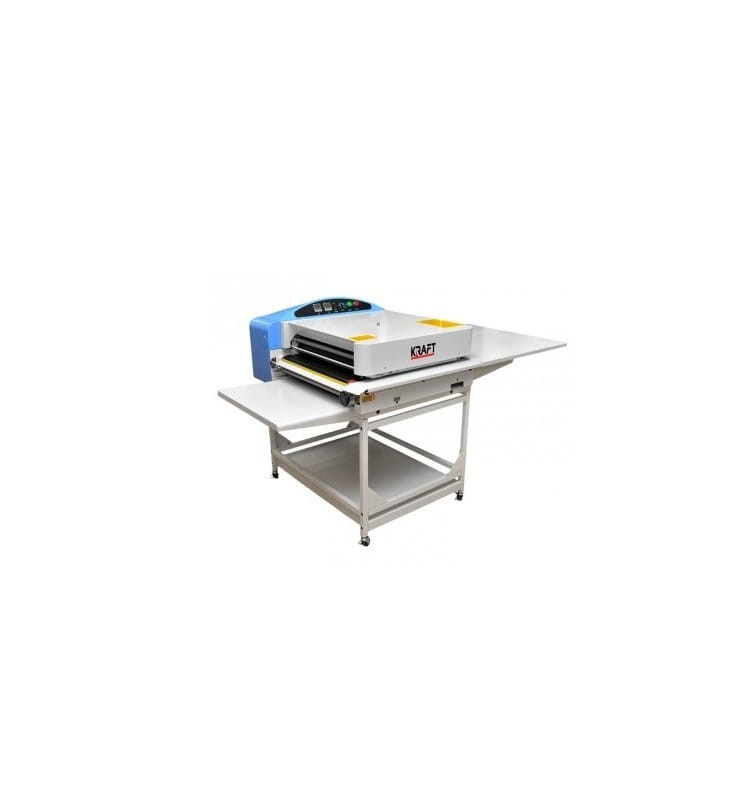

KRAFT NHG 600-B FUSING MACHINE

Continuous fusing machine, working width 600 mm.
The fusing machine has the so-called open side, which allows the gluing of elements wider than 600 mm. Adjustable clamping force, temperature maintained by an electronic thermostat with programming function (information on the temperature of the set temperature and the actual temperature) and gluing time.
The machine has a tape guide on specially shaped rollers, which protects against the danger of slipping of tapes, cleaning belts, belts and scraper strips.
Technical data:
Power supply: 380V
Heater power: 6.6 kW
Max. temperature: 220 C
Max. clamp: 2.0 kg / cm
Max. belt speed: 8 m / min
Weight 210 kg
The gluing machine is equipped with a solid base on wheels as standard.
