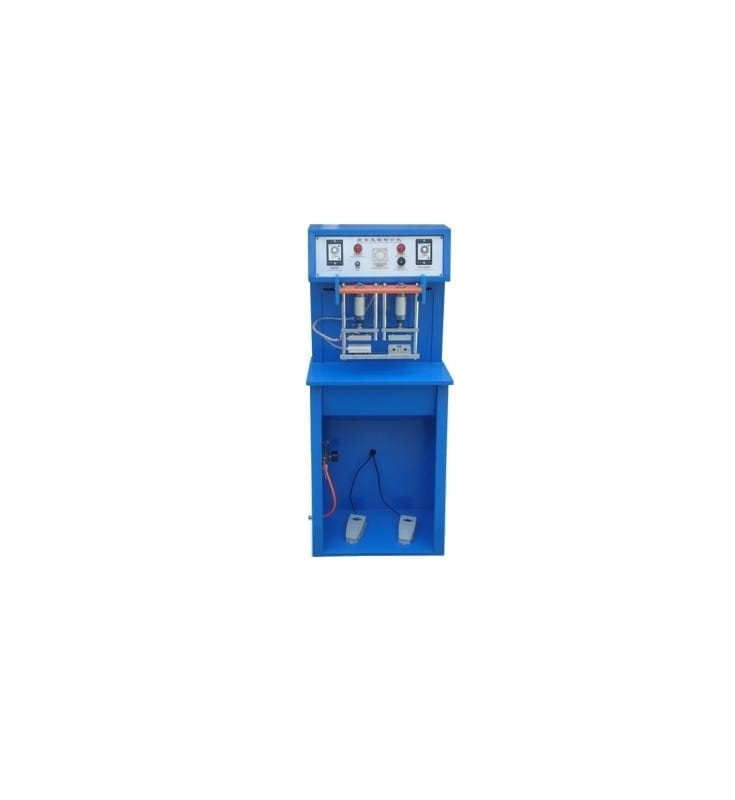

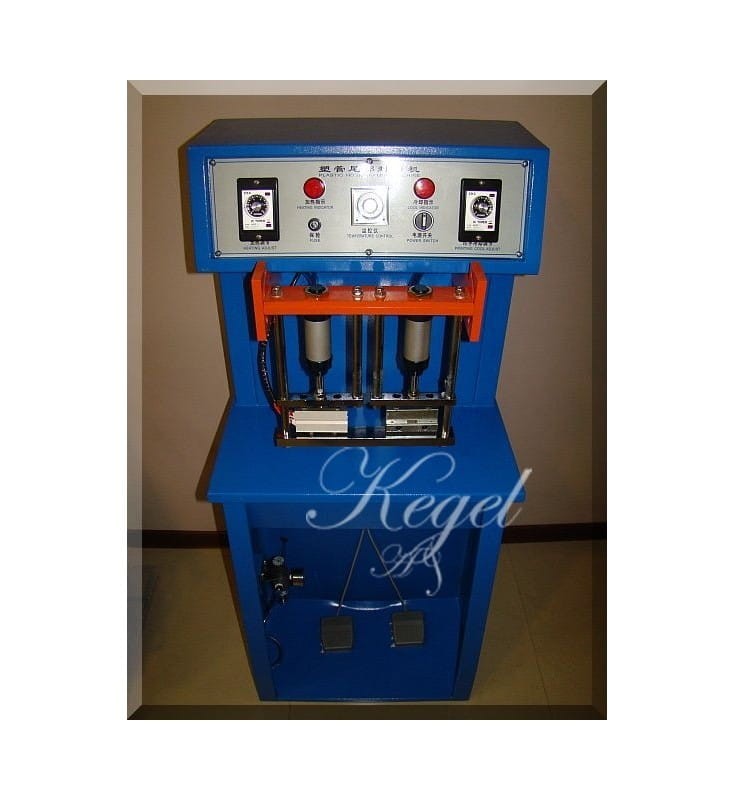

PLASTIC TUBE SEALING MACHINE FW 86

Application:

The device is designed to close packaging in the form of tubes widely used in the cosmetics, pharmaceutical, food, etc., for example, creams or toothpastes.

Functions:

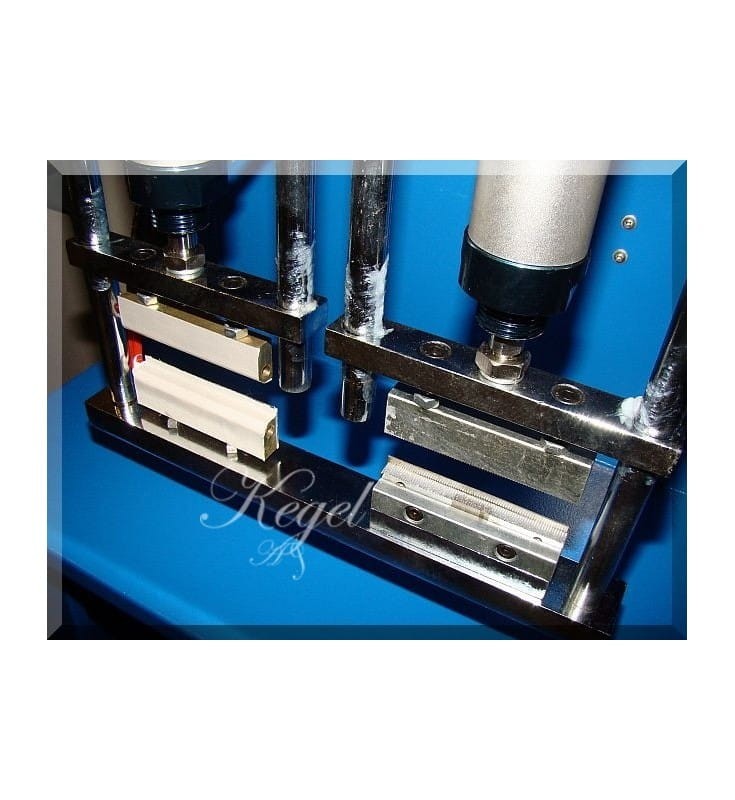

At the first station, the tube is welded, the second weld is cooled.

In addition, a number can be extruded at the second station (e.g., production date).

Behind the seal there is a stop which prevents the hot plastic from spilling, resulting in an even, straight weld edge.

The ability to weld tubes in both horizontal and vertical positions.
A compressor is needed to operate the tub.
Technical data:
Voltage: 230 V / 50 Hz  US 110 V / 50 Hz
Power: 0,18 kW
The length of the weld: 80 mm  US 3.1"
Working speed: 10-15 pcs./min.
Dimensions of the device [L x W x H]: 510 x 460 x 1140 mm  US 20 x 18 x 45"
Weight: 25 kg  US 55 lb
