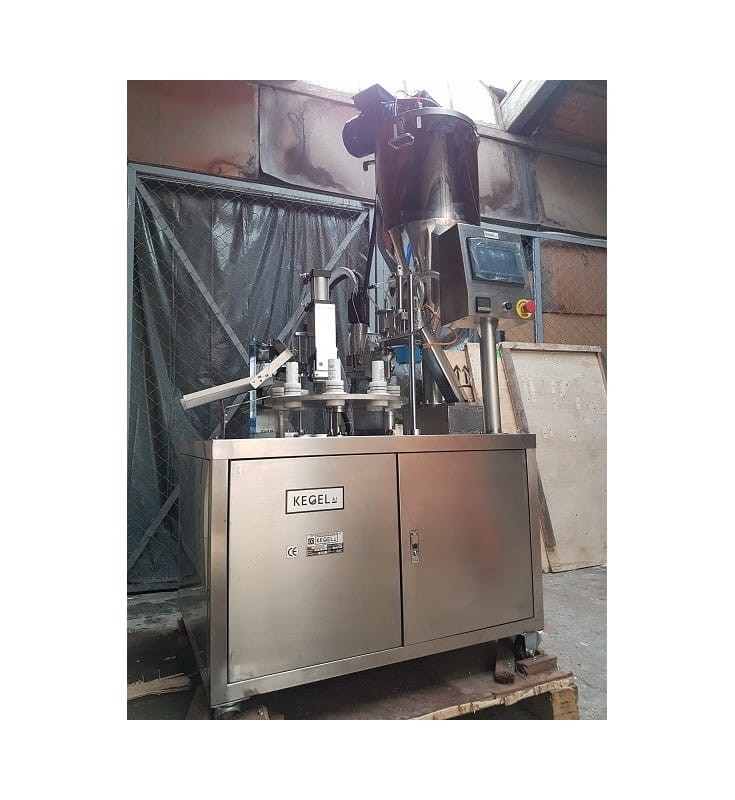

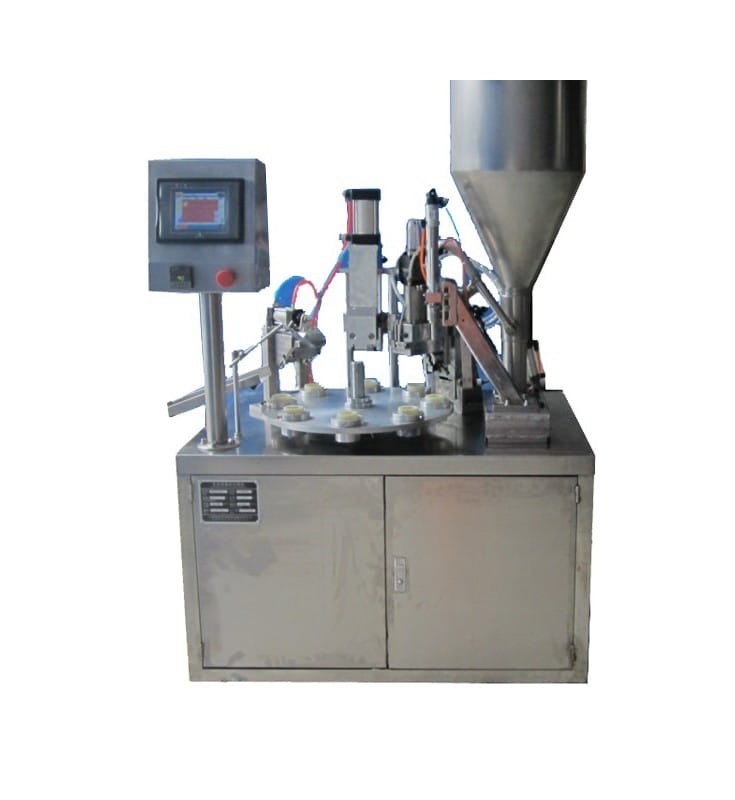

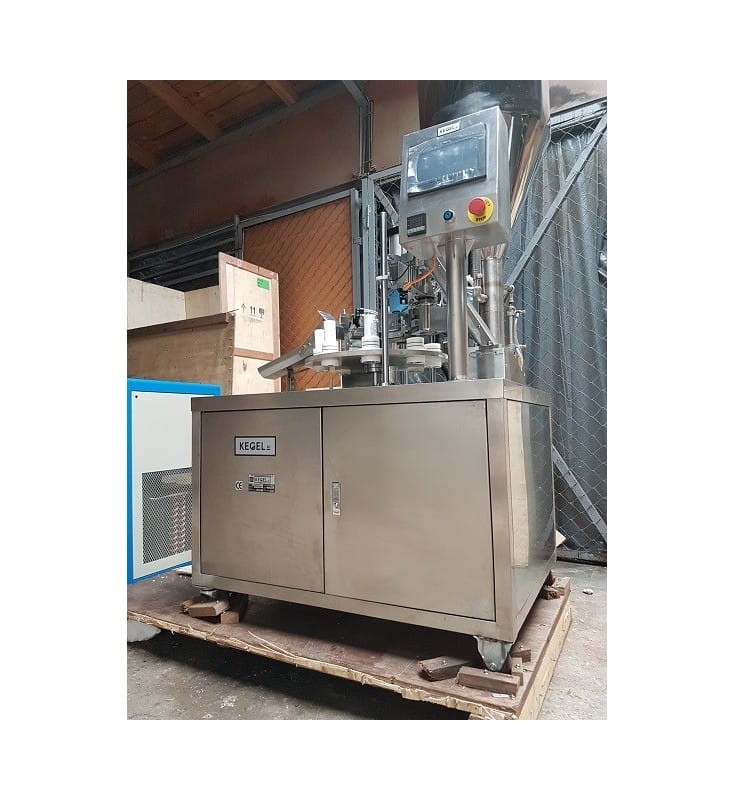

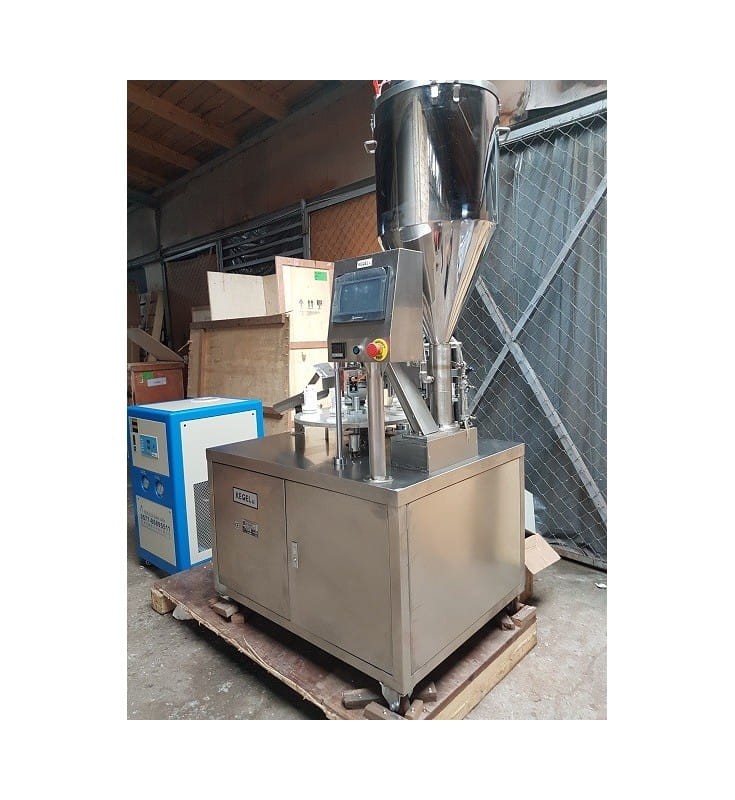

HTGF-50 SEMIAUTOMATIC PLASTIC TUBE FILLING AND SEALING MACHINE

Application:

The device is intended for filling and welding packaging in the form of tubes.

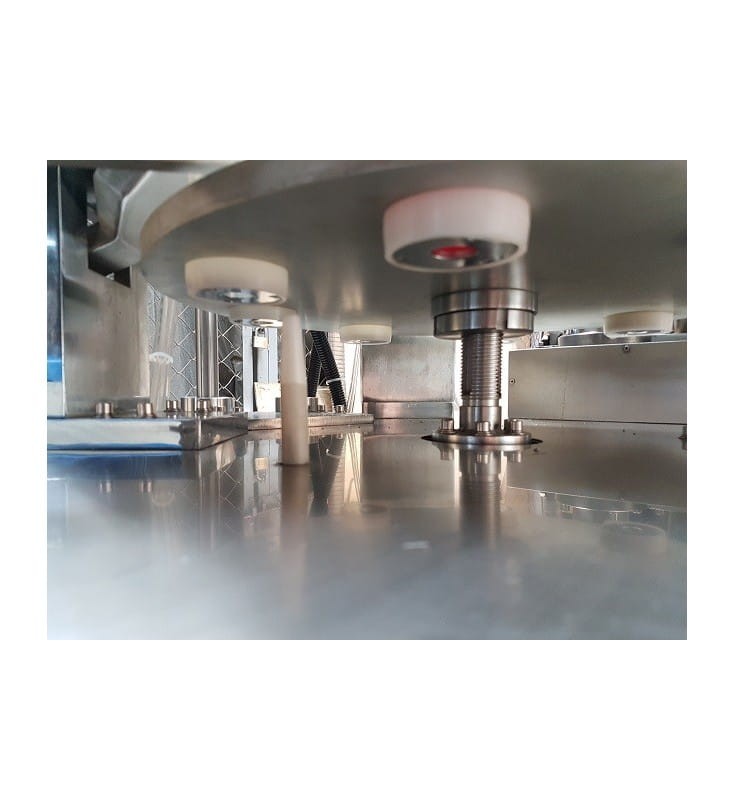

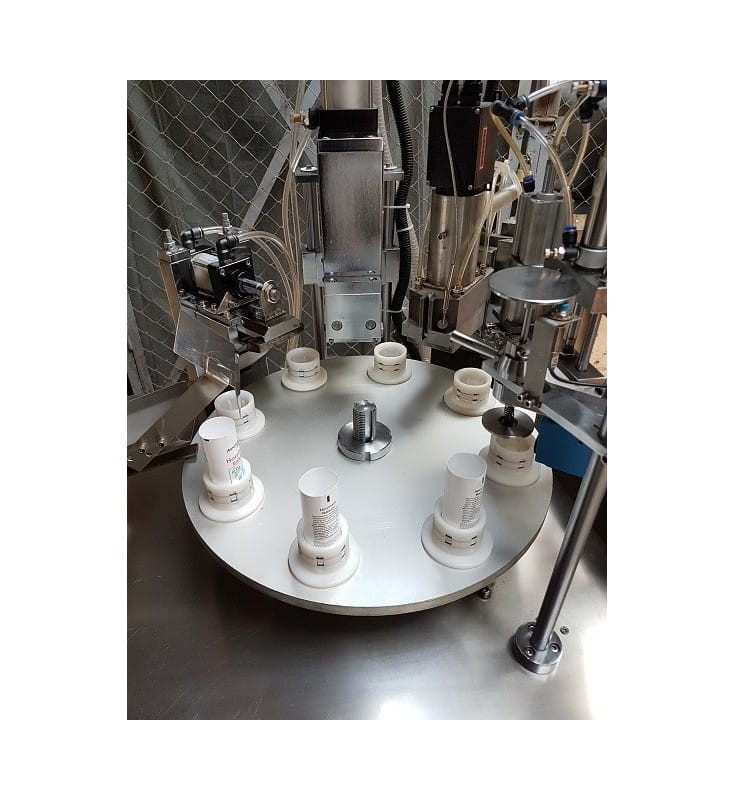

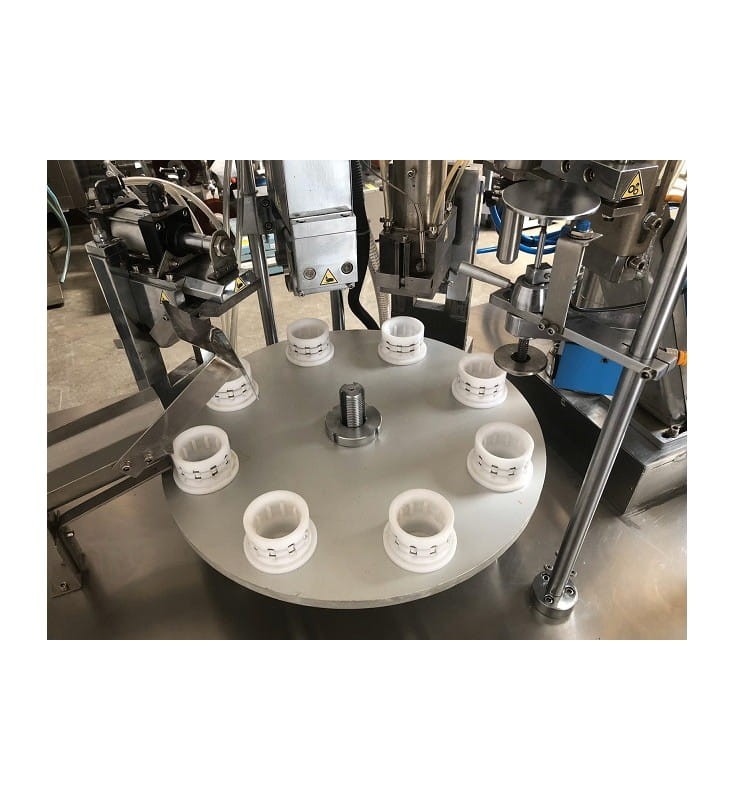

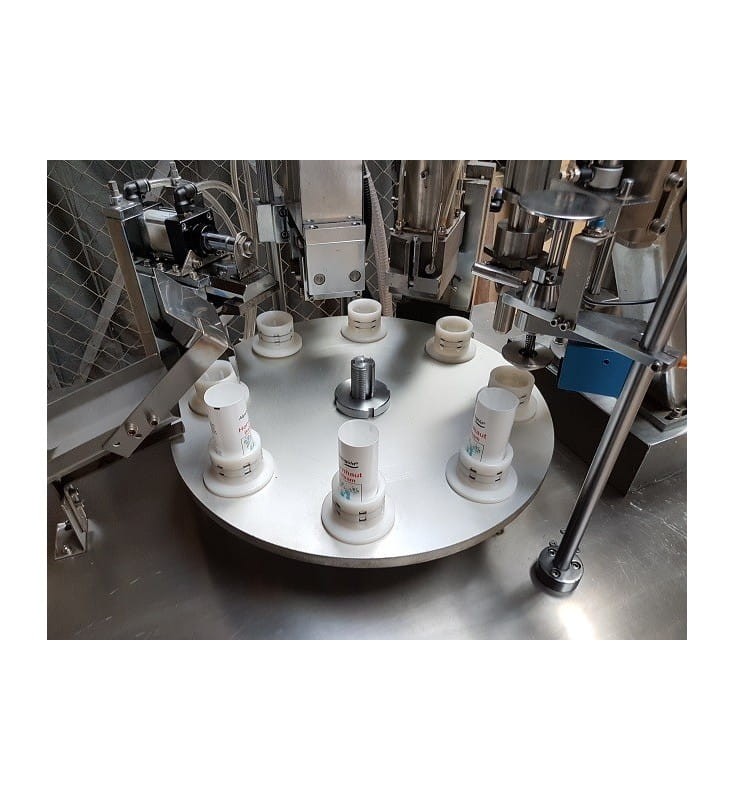

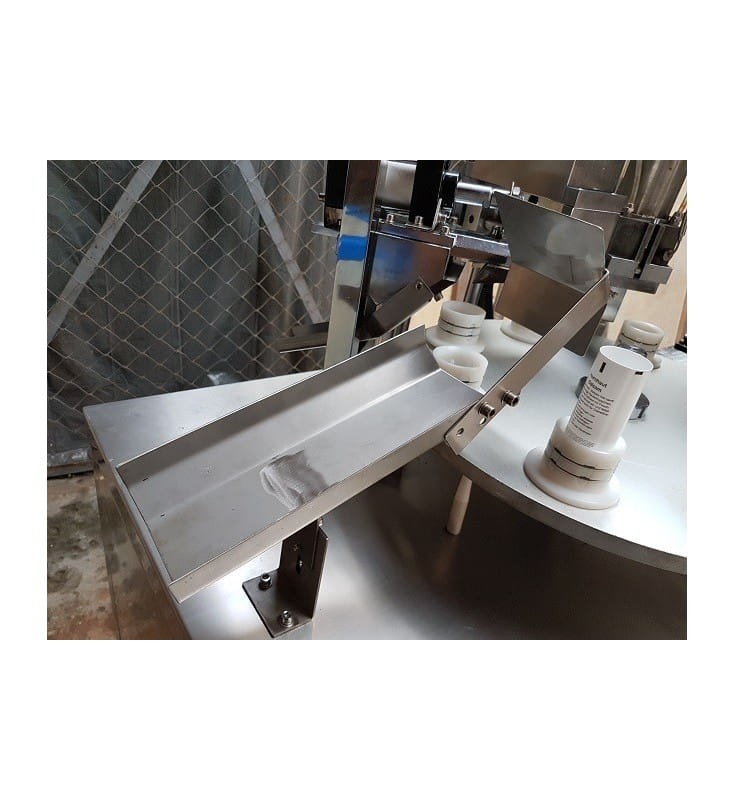

Tubes are placed manually in a rotary feeder, then work is carried out without human intervention.

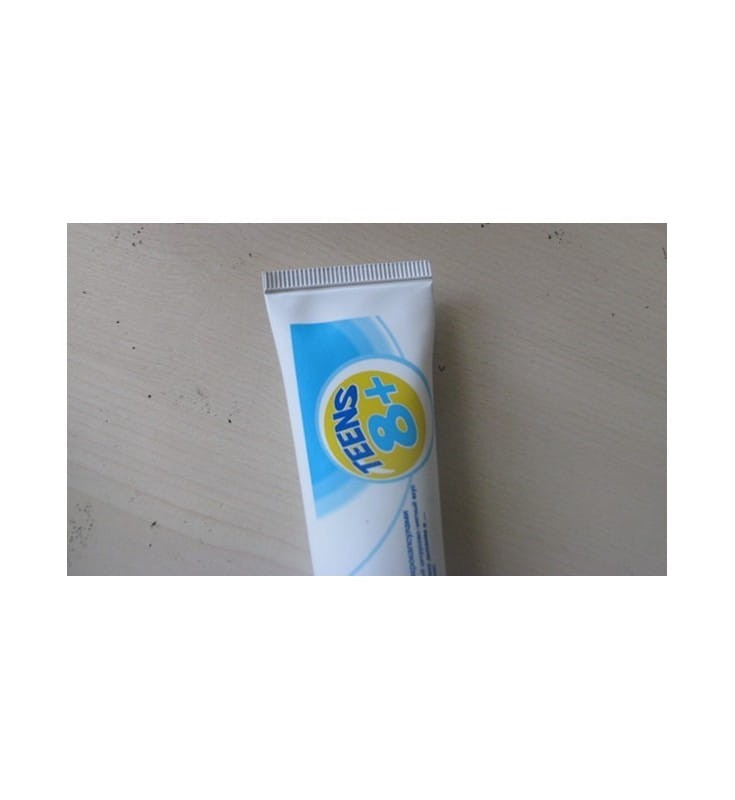

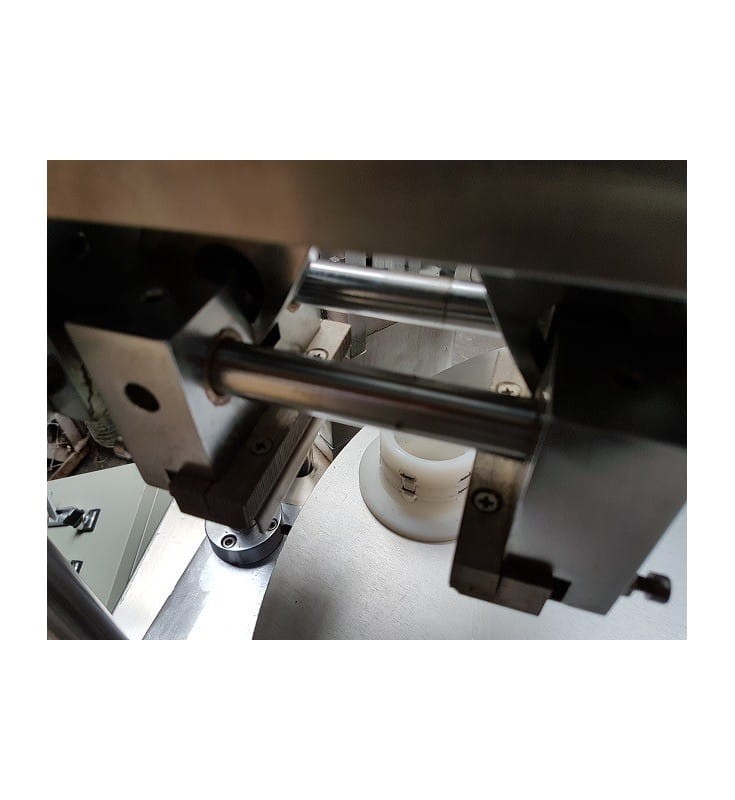

The device automatically fills and seals tubes, levels and cuts off excess material remaining after welding, and prints the date, batch number, etc.

Devices of this type are used in the cosmetics, pharmaceutical, food, etc. industries, e.g. creams and toothpastes.

Functions:

Dispenses the product precisely.

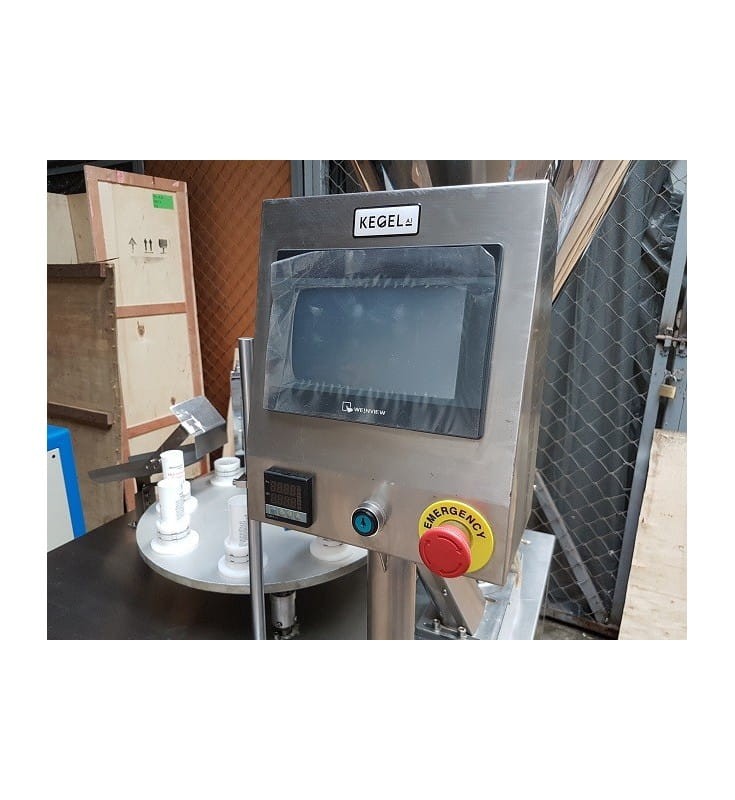

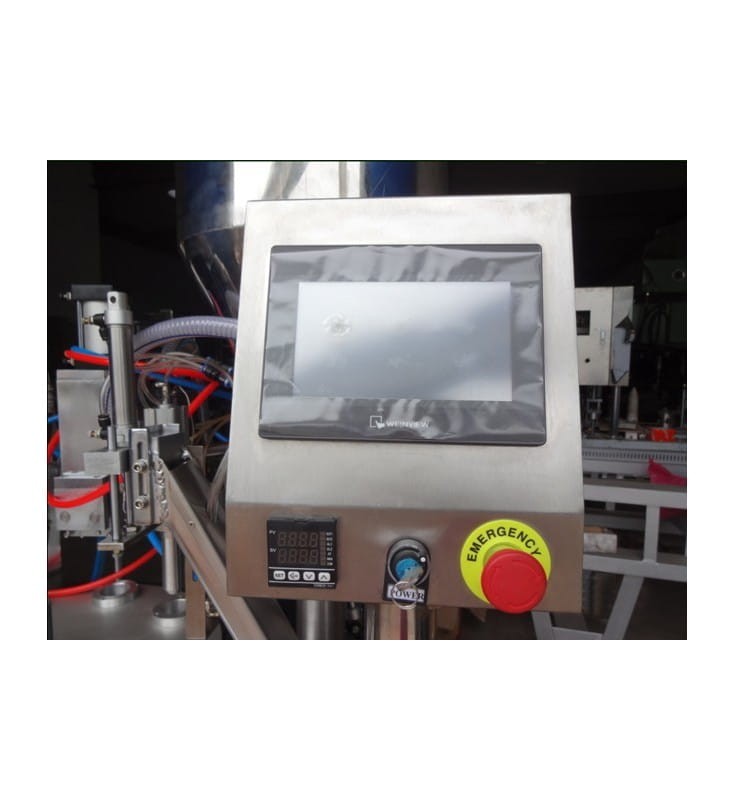

It is equipped with an easy to use, intuitive touch panel.

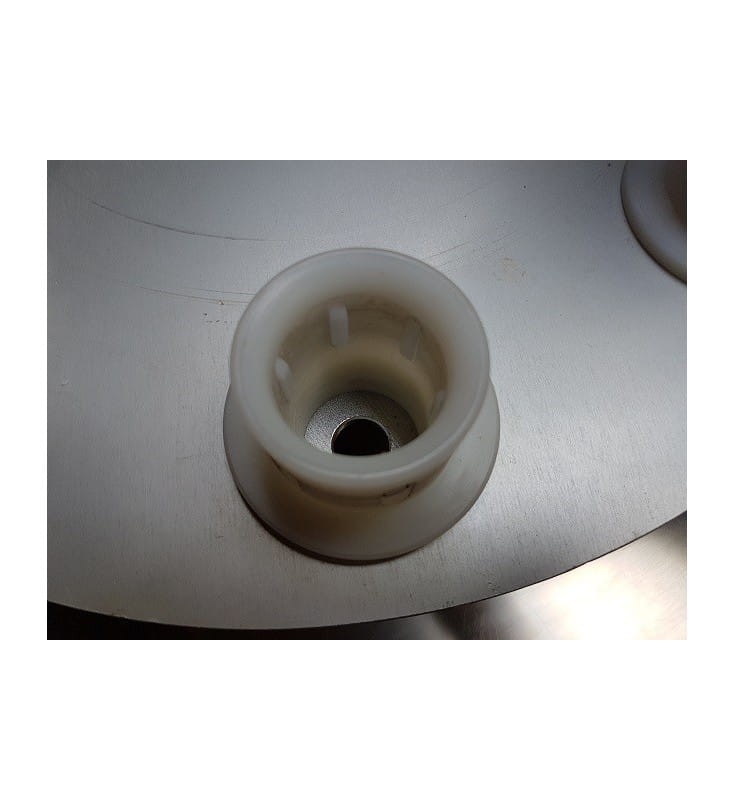

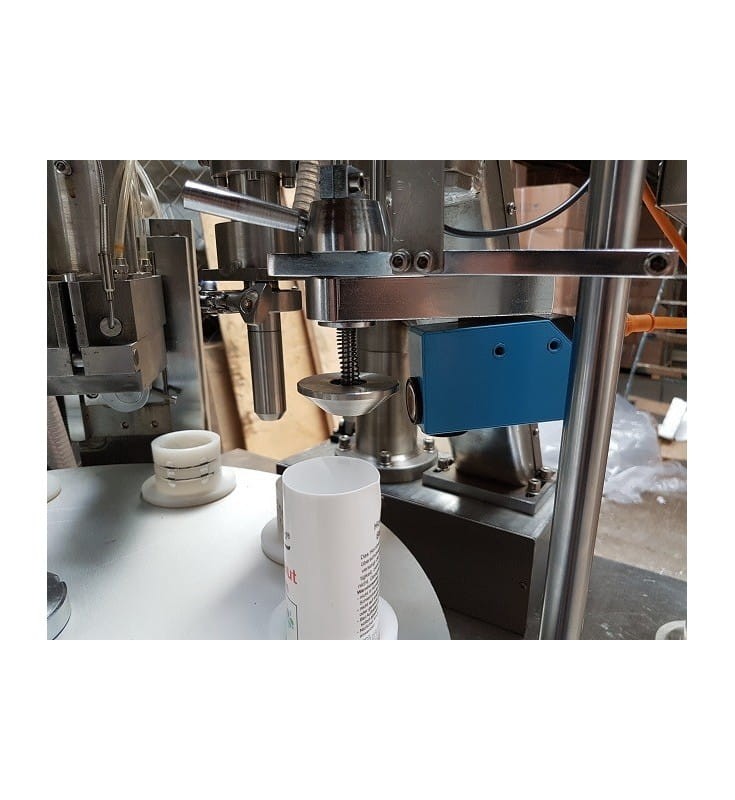

It has a product loss protection system - the tubes are detected by the sensor, when there is no tube in the feeder socket, no dosing occurs.

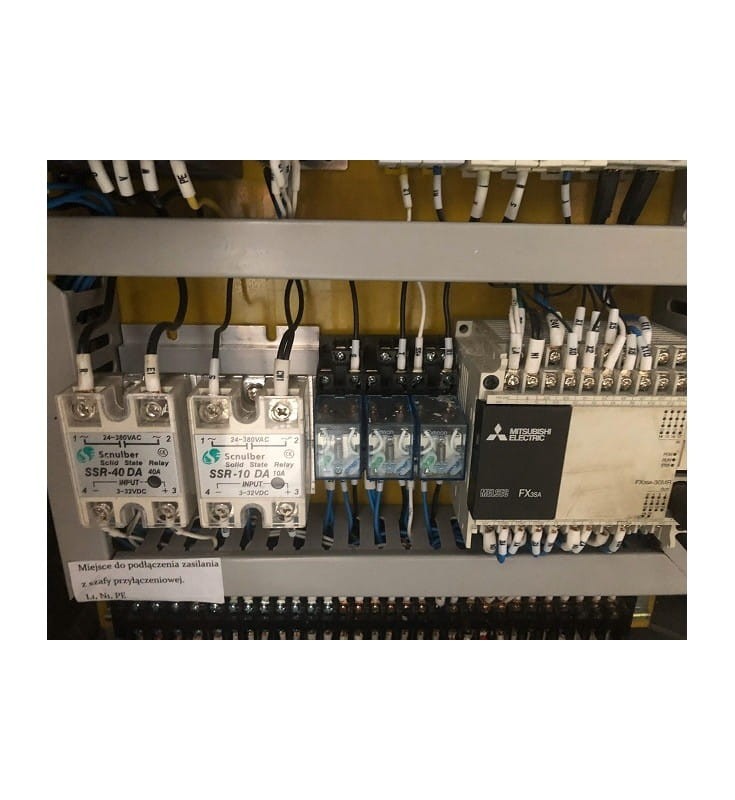

Everything is controlled by a PLC.

All elements in contact with the product are made of stainless steel.

Designed for dispensing products with a thick consistency.

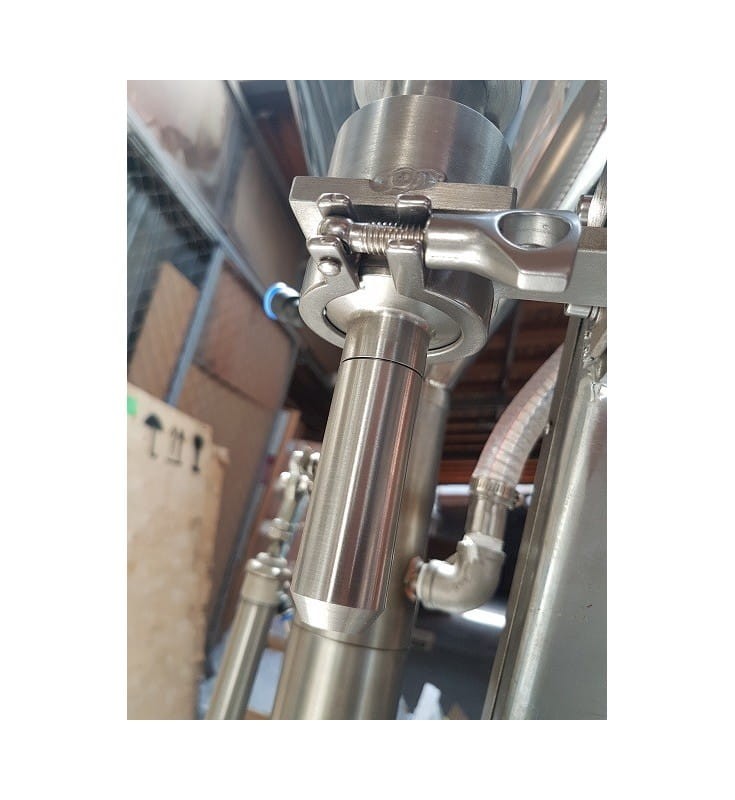

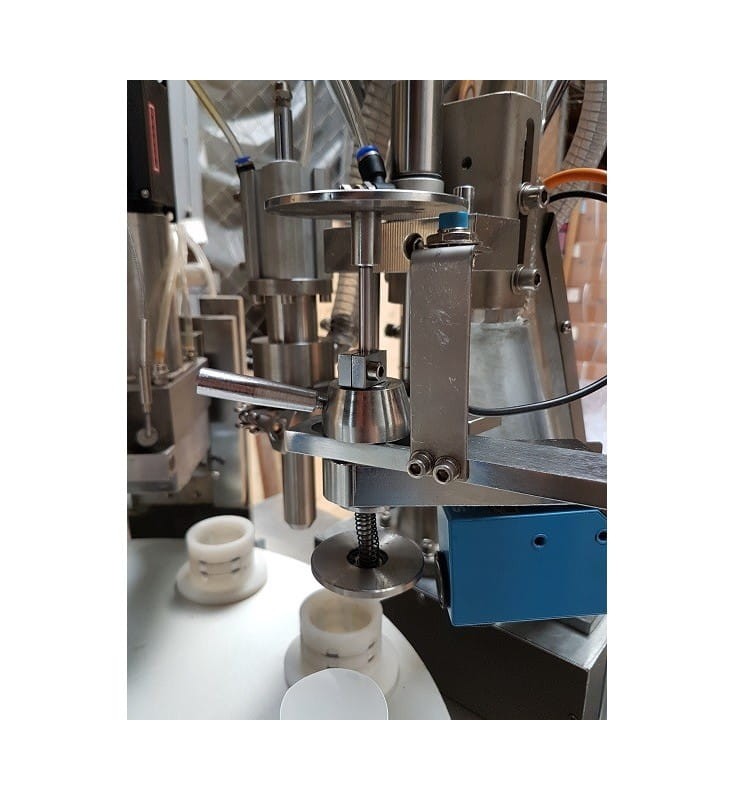

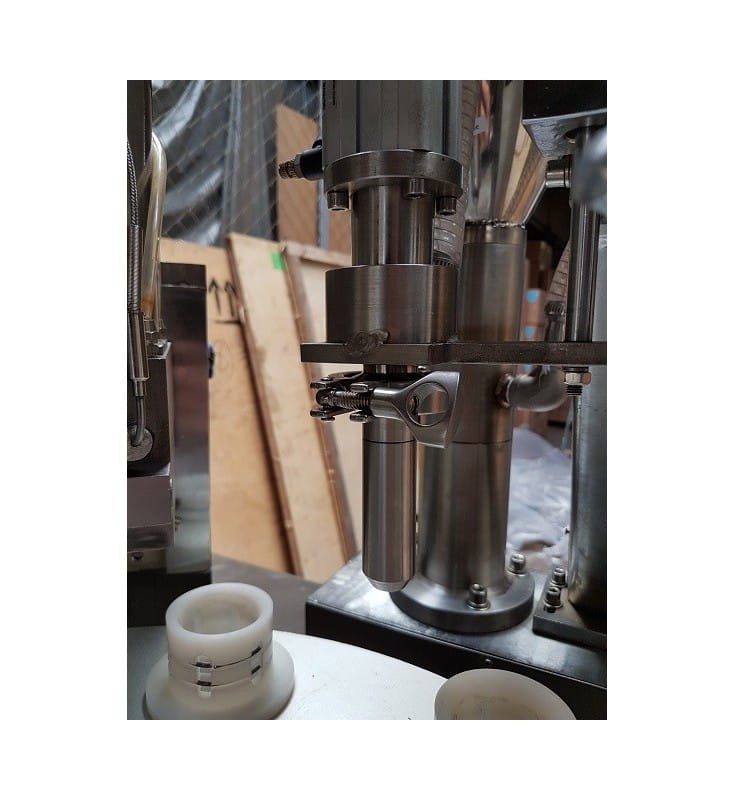

Depending on the product dispensed, you can match the machine with the appropriate dispensing nozzle.

The electronic control system synchronizes the work of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for comfortable use.

The tube maker is equipped with a photocell and allows the creation of tubes from smooth and printed materials.

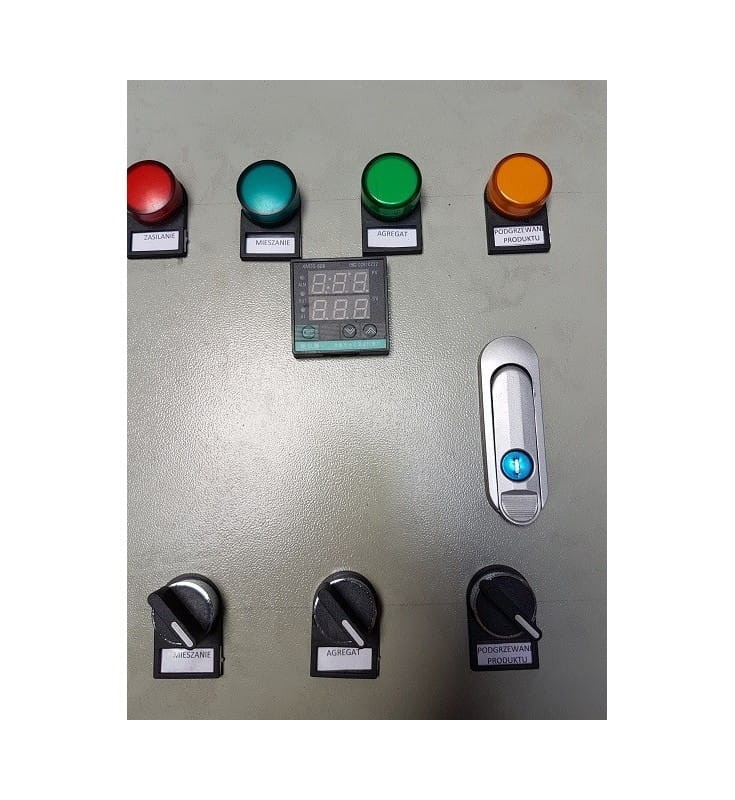

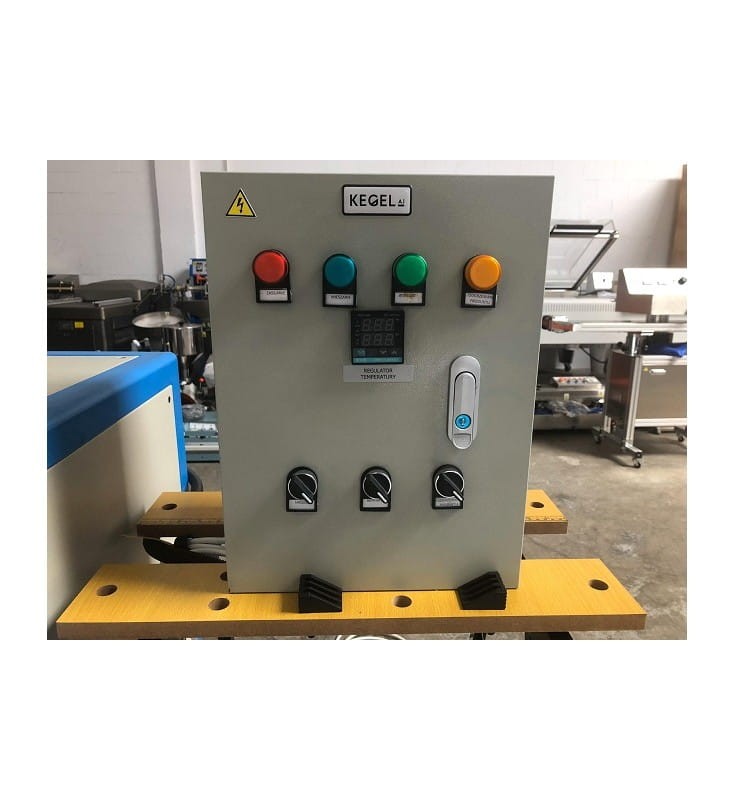

It also has an intelligent temperature control system.

All surfaces in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.

The construction of the machine excludes penetration of the substance into the product.

European components - Weintec, Siemens, Panasonic etc.

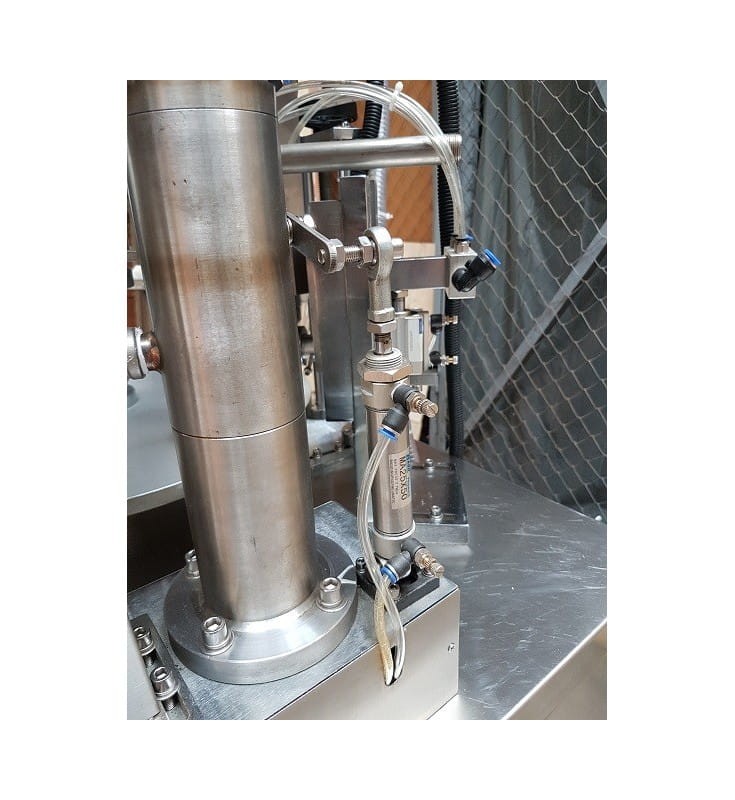

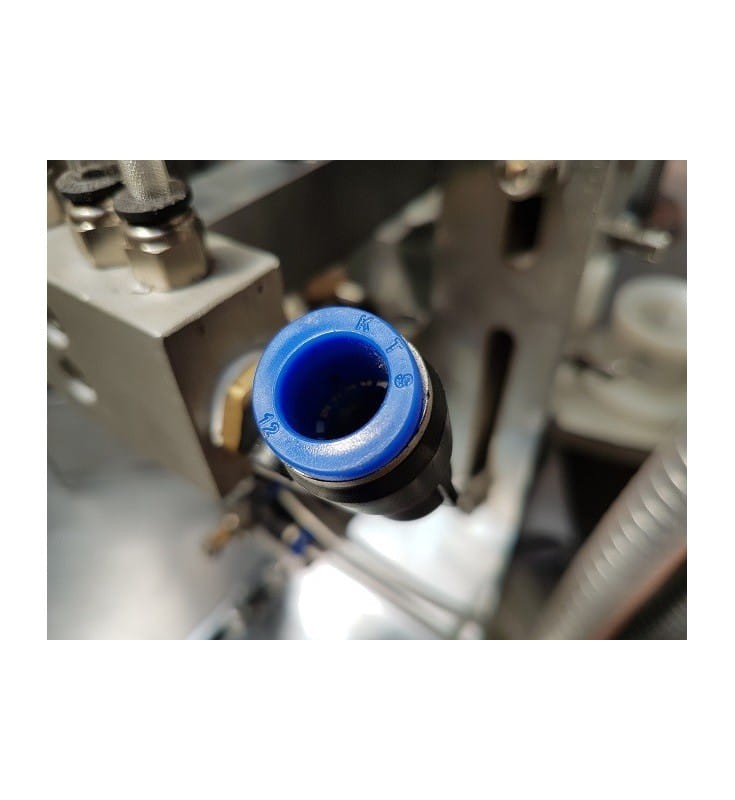

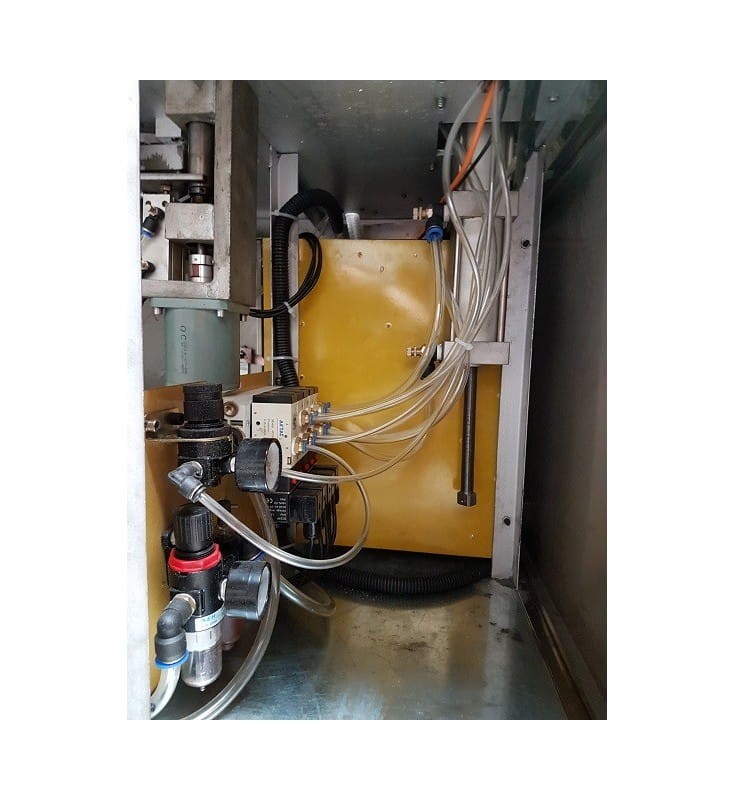

The device requires a compressor connection.

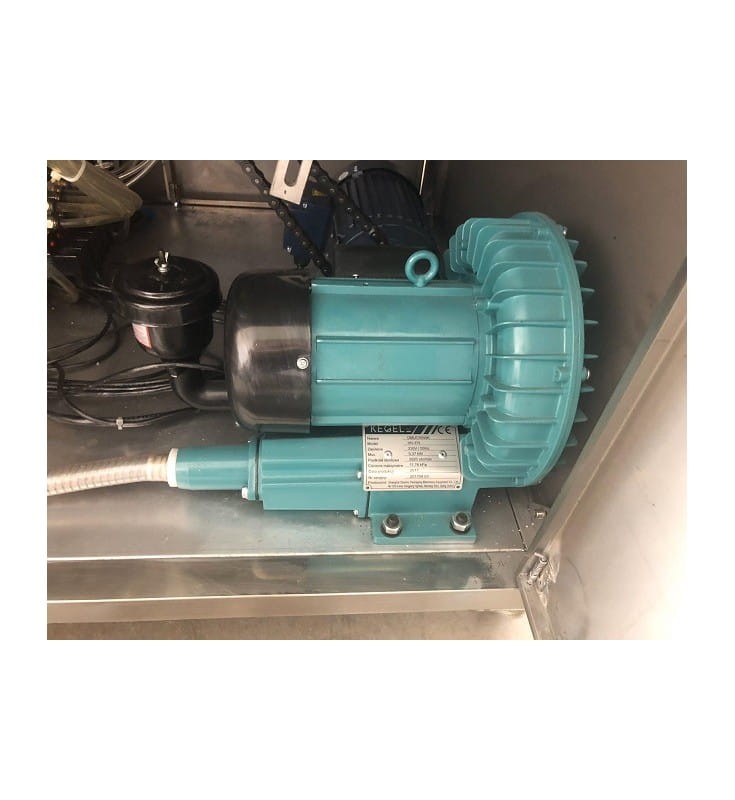

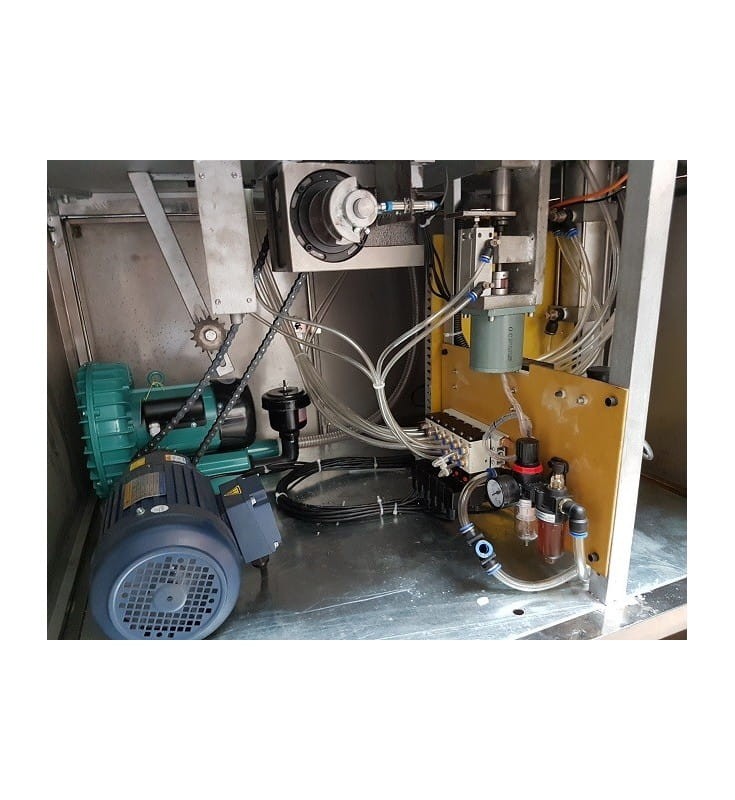

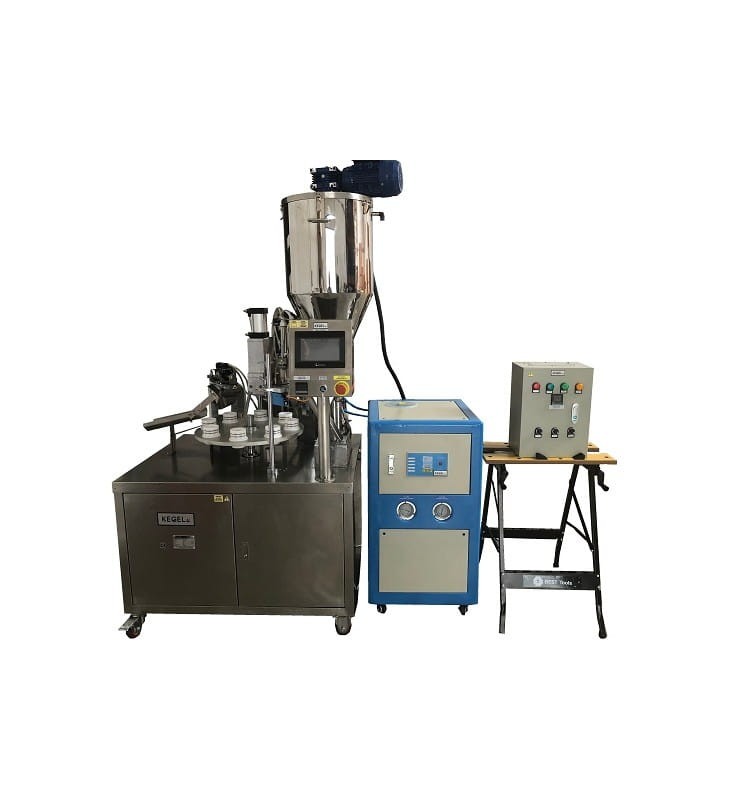

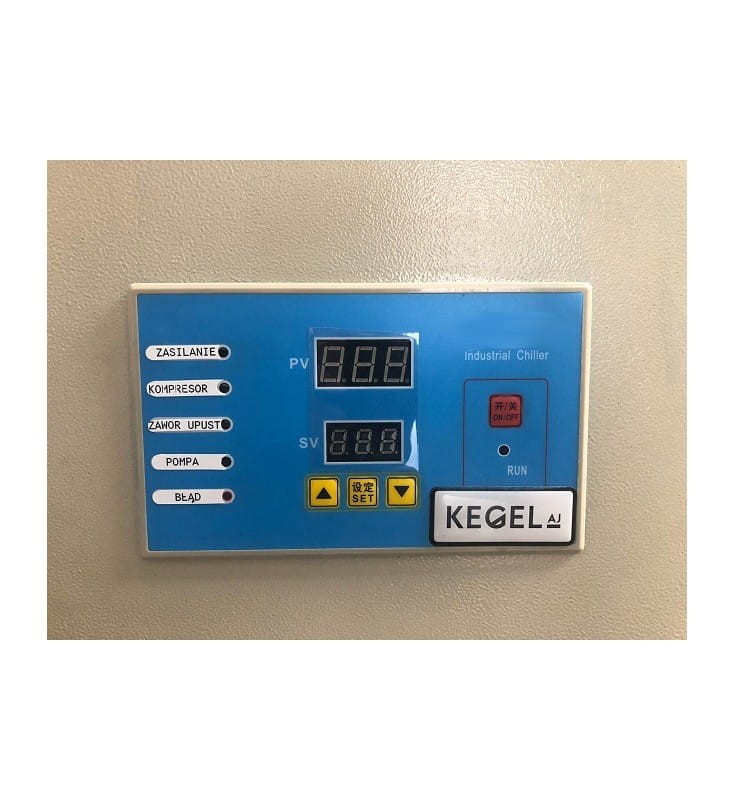

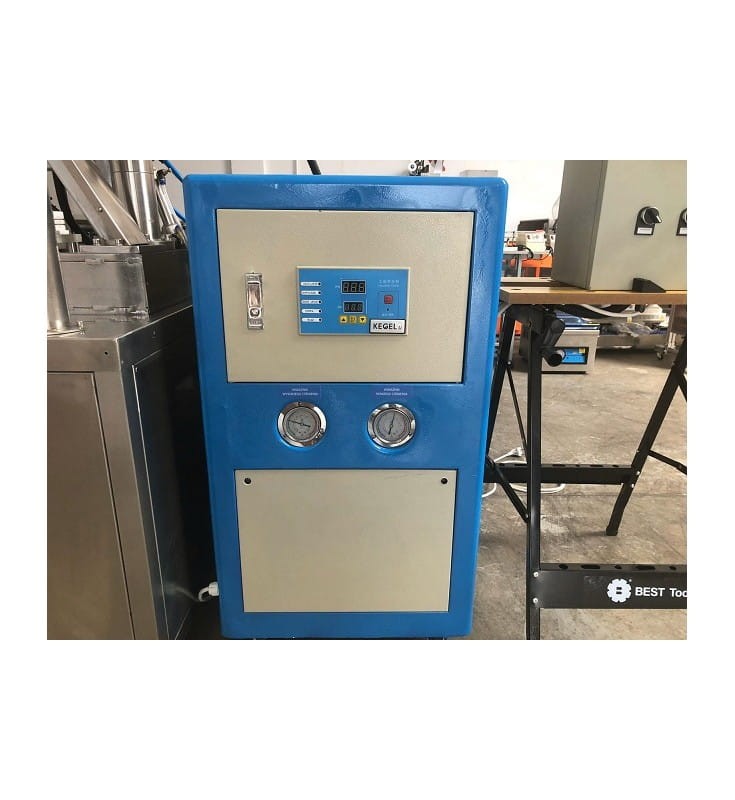

Pump and refrigeration unit included in the price.

Technical data:

Welding power: 3.3 kW

Power supply: 380 V / 50 Hz or 230 V / 50 Hz  US 110 V
Dosing range: 5 - 250 ml  US 0.2 - 8.5 oz
Accuracy: +/- 1%
Capacity: 1500 - 1800 pcs / h

Diameter of tubes: 11-50 mm  US 0.4 - 1.9"

Height of tubes: 50 - 200 mm  US 1.9 - 7.9"
Tube type: plastic, plastic with an internal aluminum layer
External dimensions [L x W x H]: 1000 x 800 x 1600 mm  US 39 x 31 x 63"
Weight: 350 kg  US 771 lb
