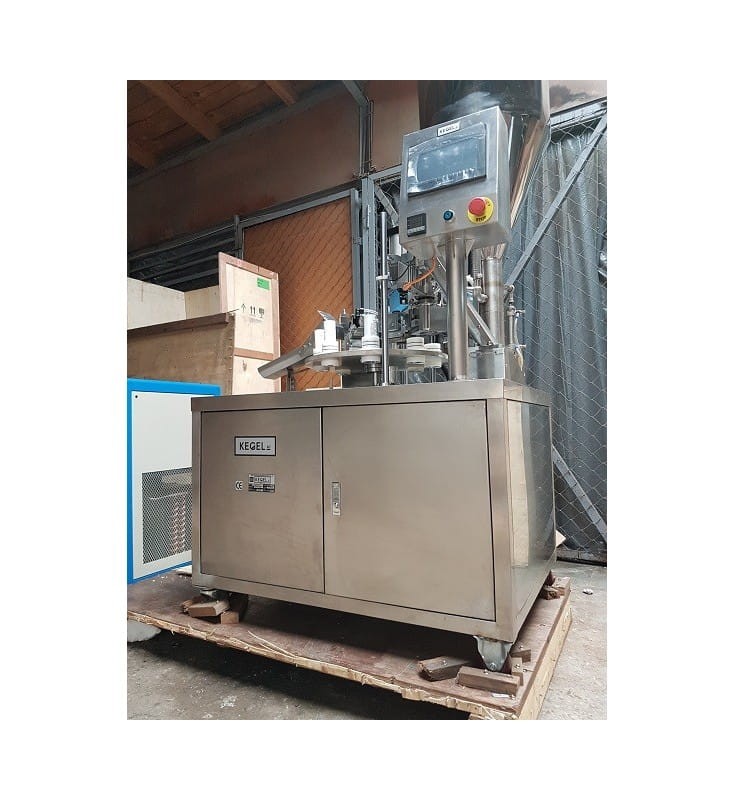

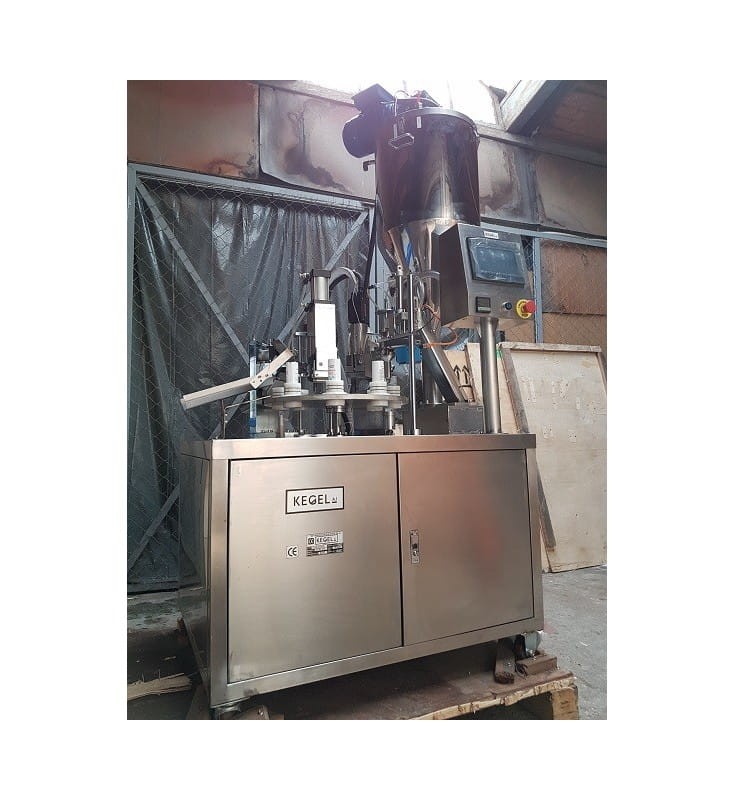

HTGF-50 ALUMINUM TUBE FILLING AND SEALING MACHINE WITH FEEDER

Application:

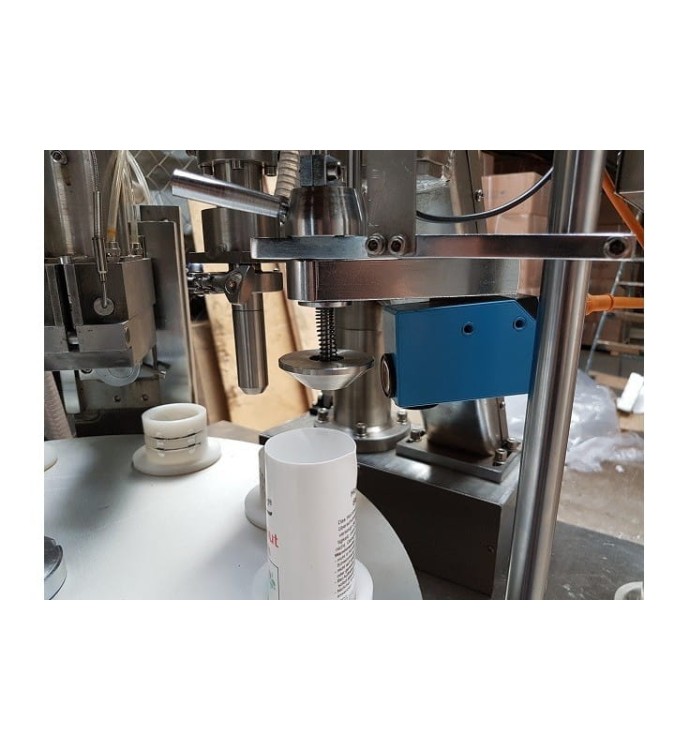

The automatic filling and sealing machine is mechatronics mechanical electrical integration ,used multiple introduction technology and controlled by PLC, it can complete tube feeding, photocell recognition, filling, sealing, date printing and  tube injection automatically simultaneously.
The machine has a modern shape, a strong practicability and good value for process, it is widely used in toothpaste,ointment,paste food, cosmetics, hair-dyeing, adhesive, art palette and so on.

Function:

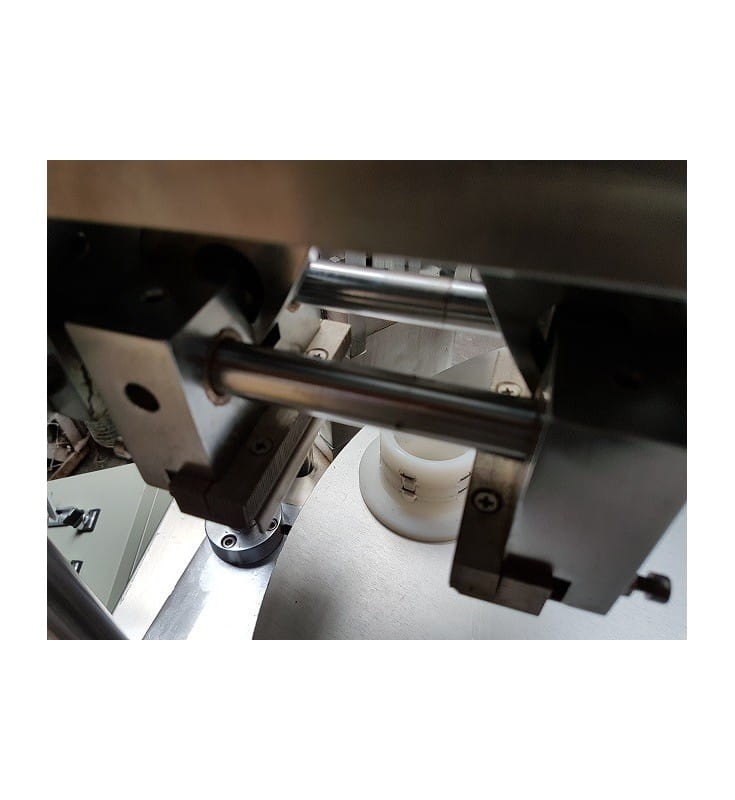

This machine can crush tube 3 or 5 times.
The machine runs smoothly , easy to control and size change over , suitable for producing paste products.

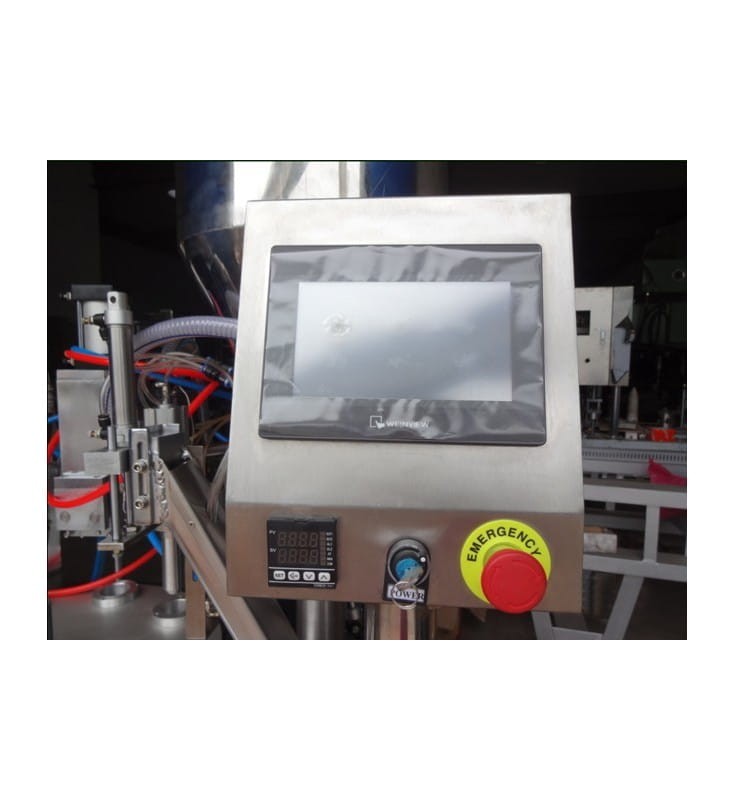

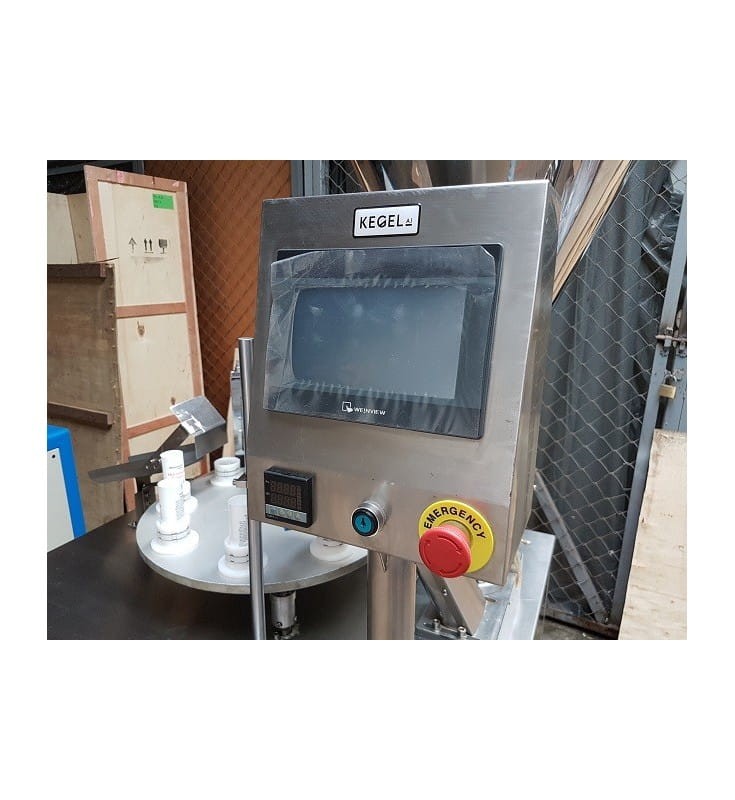

Touch screen.

European components - Weintec, Siemens, Panasonic etc.

Made of stainless steel.

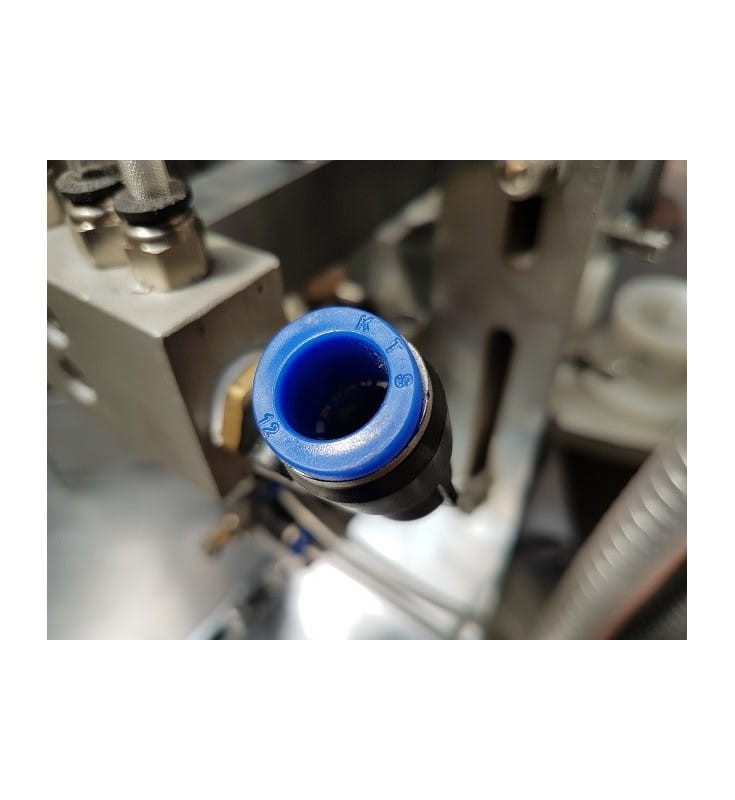

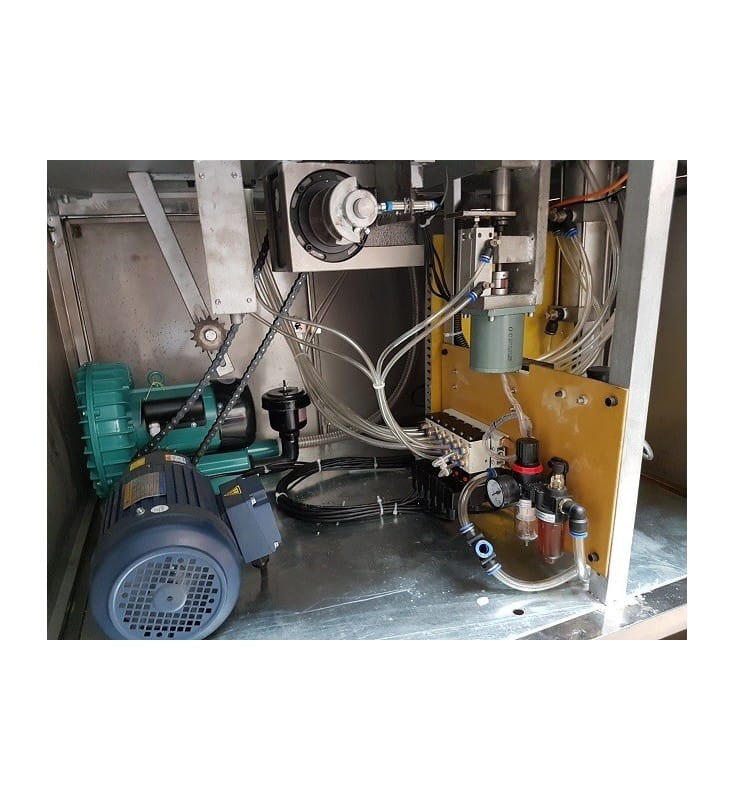

The device requires a compressor connection.

Pump and refrigeration unit included in the price.

For an additional charge, it is possible to equip the device with a heated tank necessary for dispensing very dense products.

Technical data: Voltage: 380 V / 50 Hz or 230 V / 50 Hz  US 110 V
Welding power: 2 kW

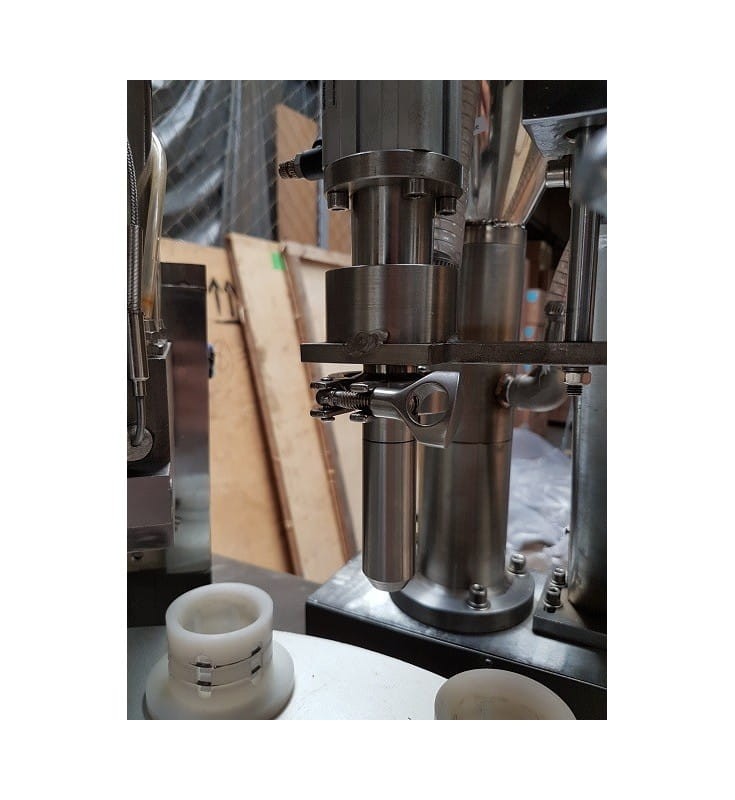

Dosing range: 2-200 ml

Hopper capacity: 40l
Accuracy: +/- 1%
Capacity: 1500 - 1800 pcs / h
Diameter of tubes: 10 - 50 mm
Height of tubes: 50 - 200 mm
Type of tubes: aluminum
External dimensions [L x W x H]: 1200 x 800 x 1600 mm
Weight: 500 kg
Possibility to upload the menu in other language.
