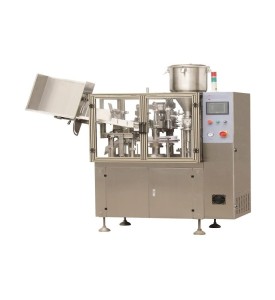

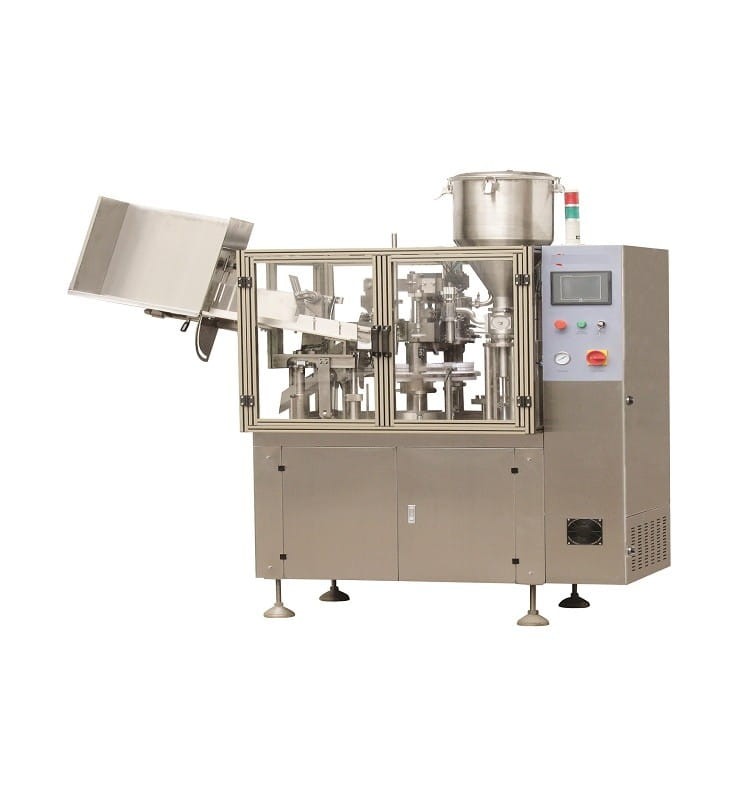

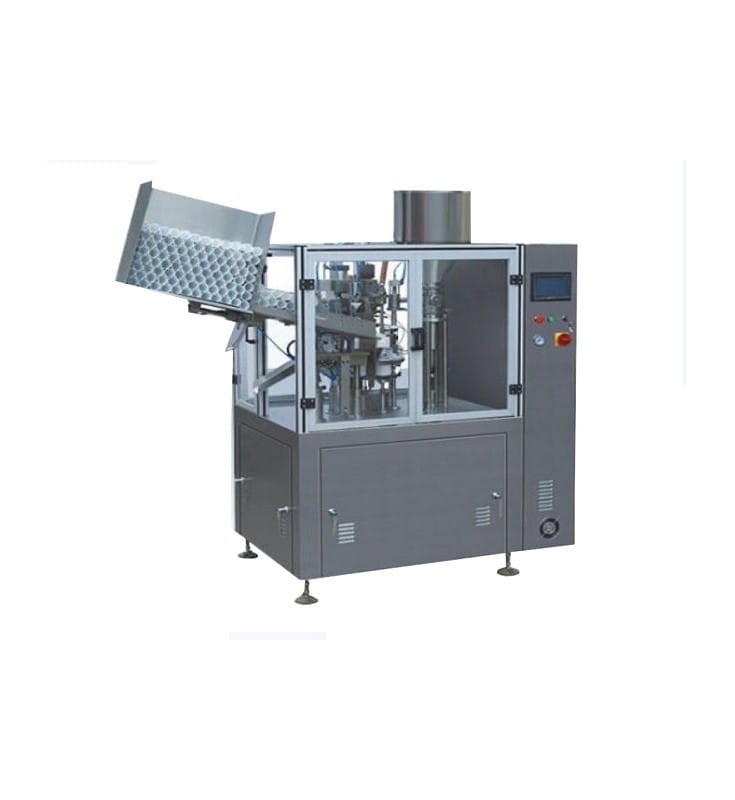

RGNF-30DB SEMIAUTOMATIC PLASTIC TUBE FILLING AND SEALING MACHINE

Application:

The packaging machine is designed for dispensing thick products such as creams, hair conditioners, ointments, toothpaste into tubes and sealing them for closing and protection.

It comprehensively combines elements of filling, closing, marking and trimming.

The device creates PET plastic tubes with high mechanical strength and high dimensional stability.

Depending on the product dispensed, you can match the machine with the appropriate dispensing nozzle.

Modern technology ensures the highest achievable level of performance.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

The tube maker is equipped with a photocell and allows the creation of tubes from smooth and printed materials.

It also has an intelligent temperature control system.

The machine can be intended for contact with art. food.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have a smooth surface or are made of corrosion-resistant stainless steel.

The construction of the machine excludes penetration of the substance into the product.

Functions:

Simple operation

Easy temperature regulation

Forms tubes

Dispenses the product precisely

Designed for dispensing products with a thick consistency

European components - Weintec, Siemens, Panasonic etc.

The electronic control system, equipped with a Mitsubishi PLC panel, synchronizes the work of the machine.

The device requires a compressor connection.

Cooling machine included.

The device is widely used in the following industries: food, cosmetics, pharmaceutical and chemical.

Technical parameters:

Equipped motor power: 1.1 kW

Air feeding power: 0.37 kW

Convulsions power: 0.37 kW

Hot air power: 3.0 kW

Power supply: 380 V / 50 Hz

Compressed Air: 0.5-0.7 MPa

Filling volume: 50-500 ml  US 1.7-17 oz

Filling accuracy: ≤±1%

Capacity: 30-40 tubes / min.

Tube diameter: ф10- 50 mm US 0,4-2"

Tube length: 210 mm  US 8"

Hopper volume: 40 l US 10.6 gal

External dimension [L x W x H]: 1900 x 850 x 1900 mm US 75 x 33 x 75"

Weight: 850 kg  US 1874 lb

Possibility to upload the menu in other language.

ADDITIONAL PAID OPTIONS:

Molds for other dimensions of the tube

Pneumatic pump (from external tank to machine tank)

Tank level controller

Mixer in the tank

Heated tank

Tube feeder

Cooling aggregate
