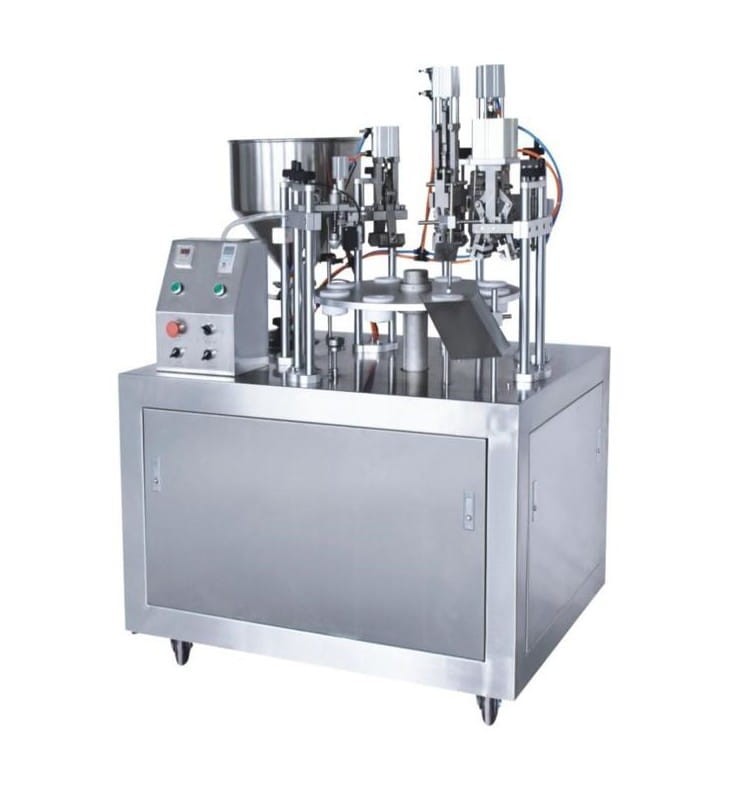

ALUMINUM TUBE FILLING FWJ-30B

Application:

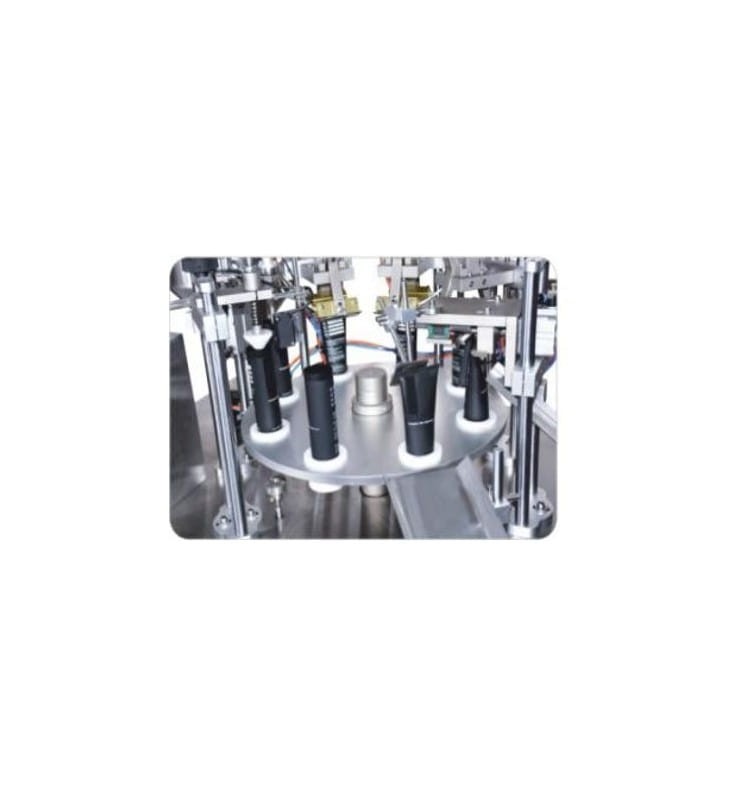

The automatic filling and sealing machine is mechatronics mechanical electrical integration, used multiple introduction technology and controlled by PLC, it can complete tube feeding, photocell recognition, filling, sealing,date printing and tube injection automatically simultaneously.

The machine has a modern shape, a strong practicability and good value for process, it is widely used in toothpaste, ointment, paste food, cosmetics, hair-dyeing, adhesive, art palette and so on.

Function:

Simple operation.

Ease of temperature control.

Forms tubes.

It doses the product precisely.

Designed for dispensing products with a thick consistency.

All components in contact with the product are made of stainless steel.

Requires connection of a compressor

Technical data:

Welding power: 1.4 kW

Power supply: 380 V / 50 Hz or 230 V / 50 Hz  US 110 V

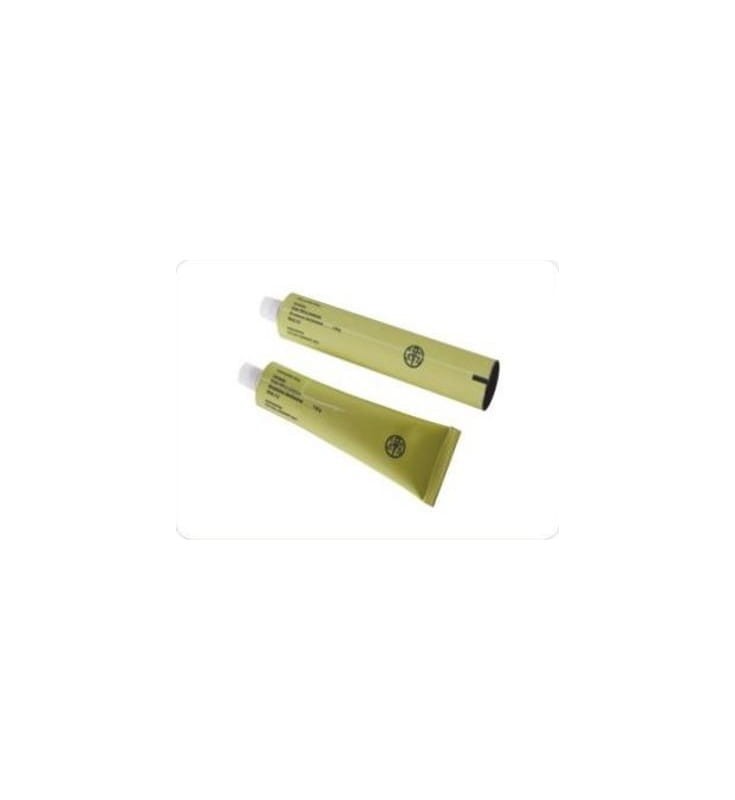

Tube material: aluminum plastic composite tubes

Tube diamete: Φ15—Φ30mm(metal tube )

Tube length: 30-220mm（customizable）

Filling volume: 5—250ml/tube（adjustable）

Filling accuracy: ≤±1%

Product capacity（pc/h）:30-60tubes/min

Pressured air: 0.55-0.65mpa (better to use more than 1mpa)

External dimensions [L x W x H]: 1100 x 780 x 1450 mm  US 43,3 x 31 x 57"

Weight: 350 kg  US 771 lb
