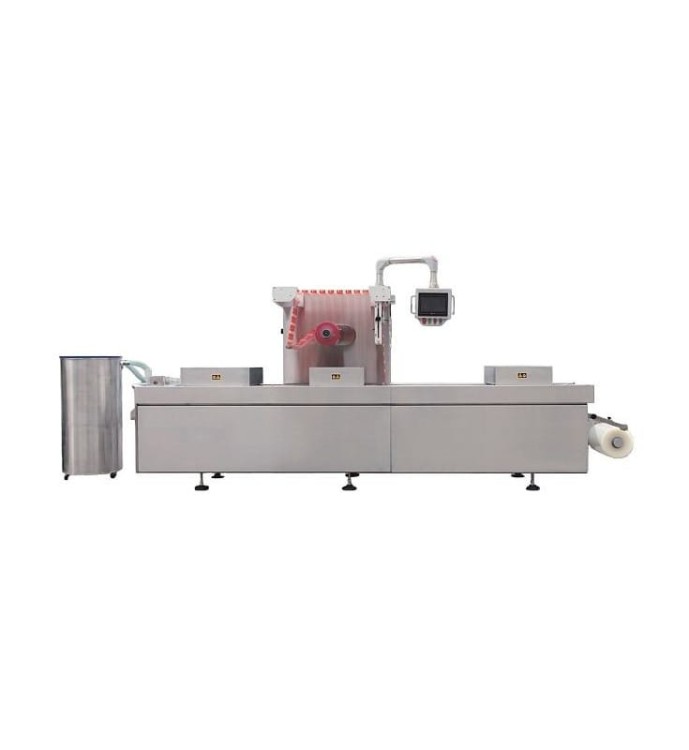

TERMOFORMING VACUUM PACKING MACHINE HVR 520A

Application:

Easy to use and efficient thermoforming packaging machine.

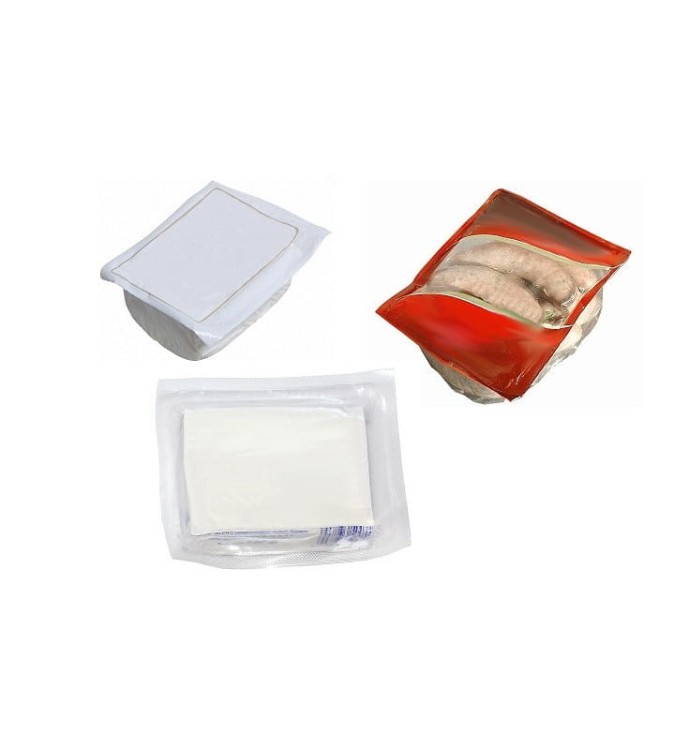

This type of machine will work for many products, including food (cheese, sausages, delicatessen).

Functions:

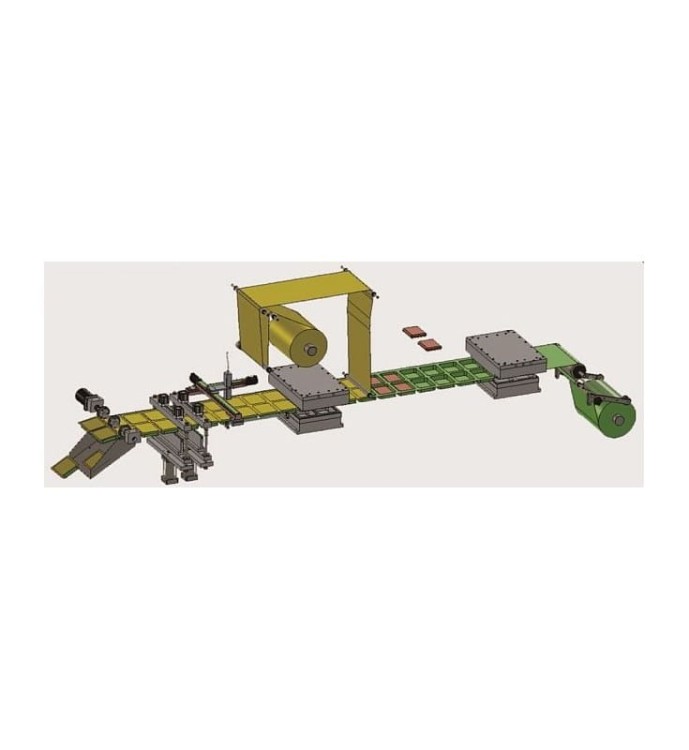

It creates a foil package from a web - first it forms the bottom part of the package, in which we place the packaged product, and then closes it from the top with a second layer of film.

The device has a vacuum function, i.e. suction of air from packaging and gasification, often required for products particularly exposed to spoilage.

It is equipped with a reliable and efficient vacuum pump, guaranteeing a vacuum of 99.9%.

All surfaces in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.

The machine body is made of stainless steel.

The packaging machine is easy to use and maintain, solidly made and reliable.

Technical data:

Power: 3 kW

Power supply: 380 V / 50 Hz

Suction pressure: 1 kPa

Pump capacity: 100 m3/h

Capacity: 3-5 cycles / min.

Cooling system: water

Chamber dimensions [L x W x H]: 500 x (200-600) x 5-80 mm  US 19.7 x (7.9-23.6) x 0.2-3.2"

Maximum depth: 50 mm  US 1.97"

The width of the upper film: 492 mm  US 19.4"

Width of the bottom film: 522 mm  US 20.6"

External dimensions [L x W x H]: 6000 x 1150 x 2000 mm  US 236 x 45 x 79"

Weight: 1300 kg  US 2866 lb

The price includes mold prepared according to the customer's demand.

Extra paid options:

Coding device

160 m3 / h pump

Additional molds
