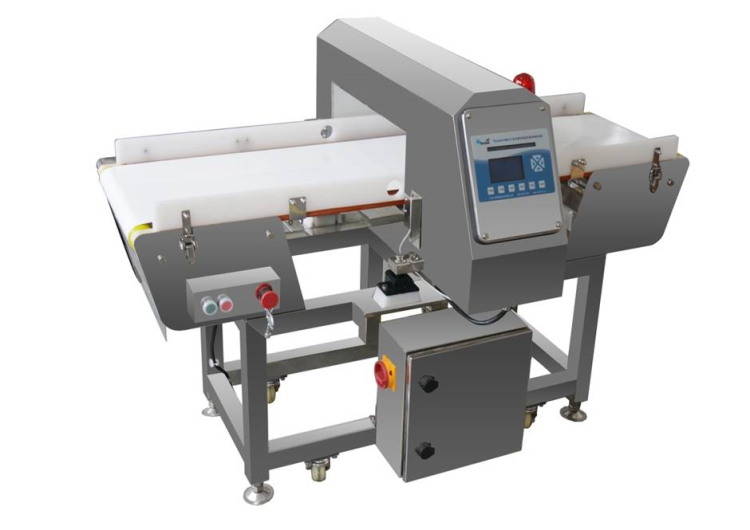

METAL DETECTOR IMD-IIS 5015

Conveyor Metal Detection System – HL-IMD-IIS

The HL-IMD-IIS (5015 specification) is a professional conveyor-type metal detection system made of high-quality 304 stainless steel. The device features high detection sensitivity for all types of metals – ferrous, non-ferrous, and stainless steel – and provides stable digital control for reliable performance.

Thanks to fully digital intelligent technology, the system ensures accurate and dependable detection of metal contaminants in food, pharmaceutical, chemical, and other industrial products. It is dust- and water-resistant and designed for intuitive and quick operation.

Key Advantages

• Fully digital intelligent metal detection – high stability and precision.

• Detects all metal types – iron, copper, silver, gold, stainless steel, etc.

• High sensitivity:

  • Fe ≥ 0.8 mm

  • Non-Fe ≥ 1.2–1.5 mm

  • SUS304 ≥ 1.8 mm

• Auto-set function with forward and reverse rotation – automatic product placement and removal without operator intervention.

• Dust- and water-resistant design – compliant with IP54 standard.

• Customizable – can be tailored to client-specific requirements.

Additional Features

• CE Declaration of Conformity – compliant with EU safety standards.

• Polish user manual – easy setup and operation.

• 52-product memory – fast switching between stored settings.

• Reject system – audible alarm and belt stop upon metal detection.

Technical Specifications – HL-IMD-IIS (5015)

• Main material: 304 stainless steel

• Detection coil width: 500 mm

• Detection coil height: 150 mm

• Conveyor length: 1800 mm

• Belt width: 460 mm

• Belt speed: 15–25 m/min

• Height from floor to belt: 750 mm + 100 mm

• Product memory: 52 types

• Working direction: right to left

• Reject system: audible alarm + belt stop

• Gross weight: 400 kg
